Colfax CX1110s-X7 1U Rackmount Server



  • Single Intel® Xeon® Scalable Processor
  • 6x DIMMs
  • 4x 3.5" SATA3 Drive Bays
  • Single or Redundant Power

Features

2 Models:

  • CX1110s-X7 - Single Power Supply
  • CX1110s-R-X7 - Redundant Power Supplies

  • 1x Intel® Xeon® Scalable Processor
  • Intel C621 Chipset
  • 6x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • 1 PCI-E 3.0 x16 Slot (FH, HL)
  • 4x 3.5" Hot-Swap SATA3 Bays
  • 1x M.2 SSD
  • 2x SATA DOMs
  • 2x Gigabit Ethernet LAN with Marvell® 88E1512
  • 350W Single or 400W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-165W TDP)
Memory • 6x DDR4 DIMM slots
• Supports up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 1x PCI-E 3.0 x16 slot (FH, HL)
Onboard Devices SATA
• SATA3 (6Gbps) via C621 controller
• RAID 0, 1, 5, 10 support
Network Controllers
• Dual Gigabit Ethernet LAN with Marvell® 88E1512
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• 2x RJ45 GbE LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (2 front, 2 rear)
• 2x USB 2.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 2x COM ports (1 rear, 1 header)
DOM
• 2x SuperDOM (Disk on Module) ports with built-in power
Drive Bays • 4x 3.5" Hot-swap SATA3 drive bays
M.2
• Interface: PCIe 3.0 x4
• Form Factor: 2242, 2280
Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7"H (43mm) x 19.8" (503mm)
Power Supply • 350W AC power supply w/ PFC or 400W (1+1) redundant power supply with PMBus
• 80PLUS Platinum Certified
System Cooling • 4x 40x28mm PWM fans; 2x fans for AOC cooling
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
BIOS • AMI UEFI

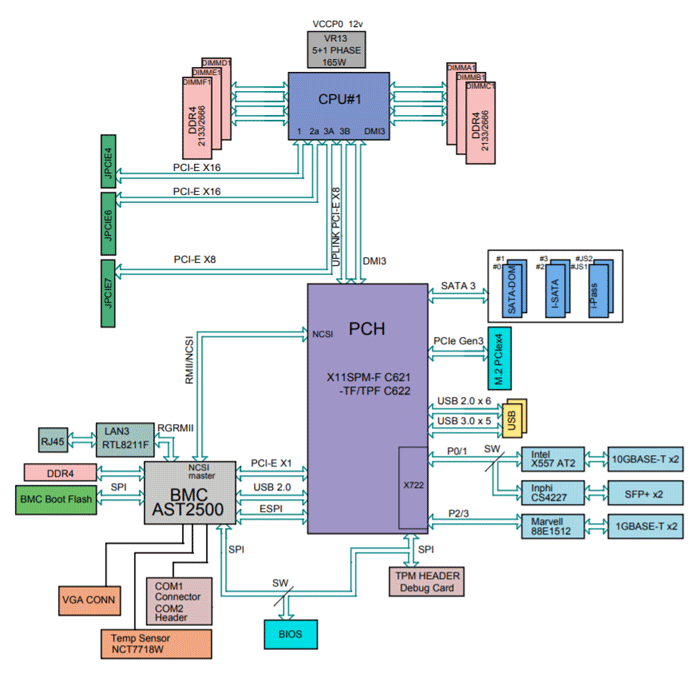

Block Diagram

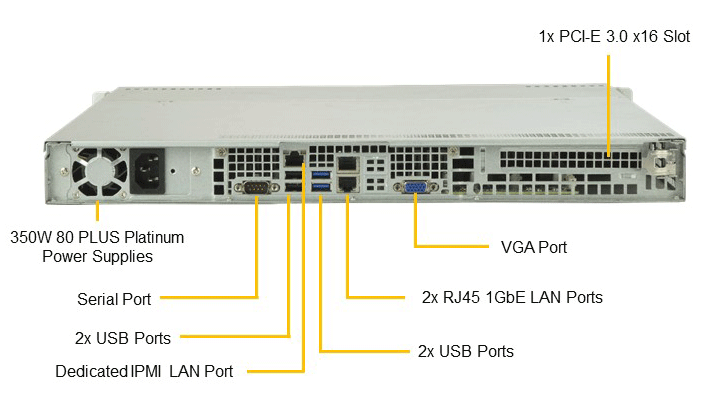

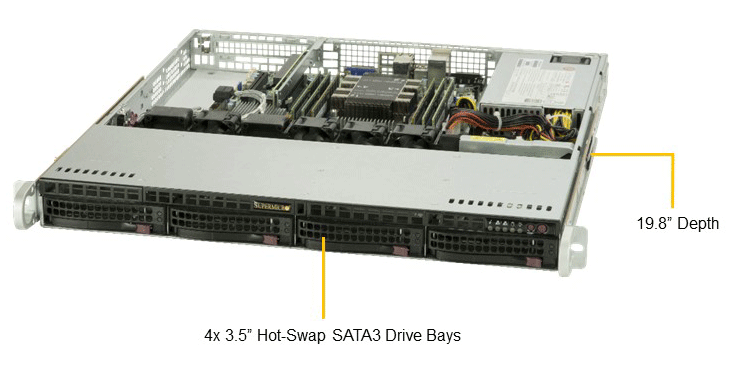

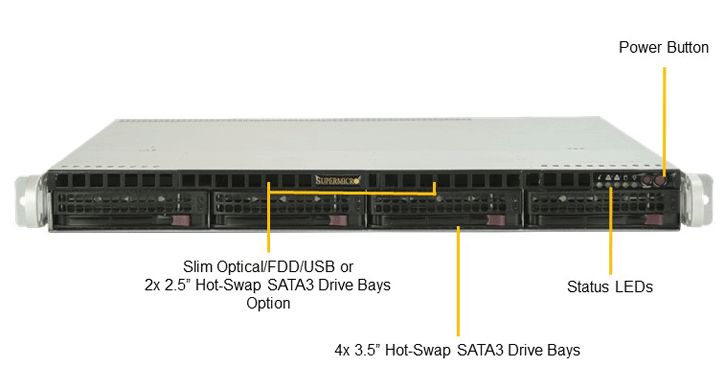

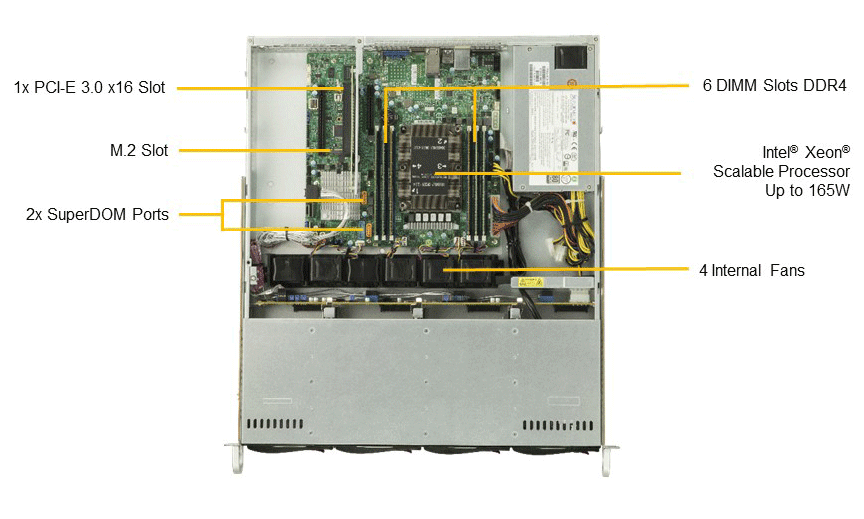

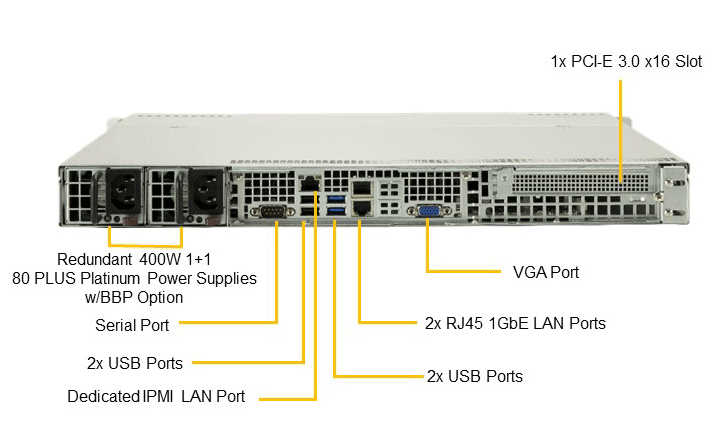

Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $1,082.62




  Qty.Colfax CX1110s-X7 1U Rackmount Server, Cost As Configured $1,082.62
