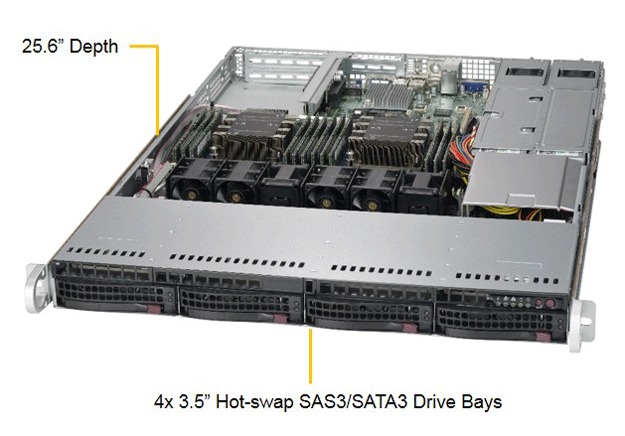

Colfax CX1210s-X7 1U Rackmount Server



  • Dual Intel® Xeon® Scalable Processors
  • 12x DIMMs
  • 4x 3.5" SAS3/SATA3 Drive Bays
  • 2 PCI-E 3.0 x16 (FHHL)

Features

  • 2x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 12x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 2 PCI-E 3.0 x16 (FHHL) Slots
    - 1 PCI-E 3.0 x8 (LP) Slot
    - 1 PCI-E 3.0 x16 for Add-on-Module
    - 1 PCI-E M.2 SSD Slot
  • 4x 3.5" Hot-Swap SAS3/SATA3 Drive Bays
  • Intel® X722 Dual-Port GbE Controller
  • 750W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-165W with IVR)

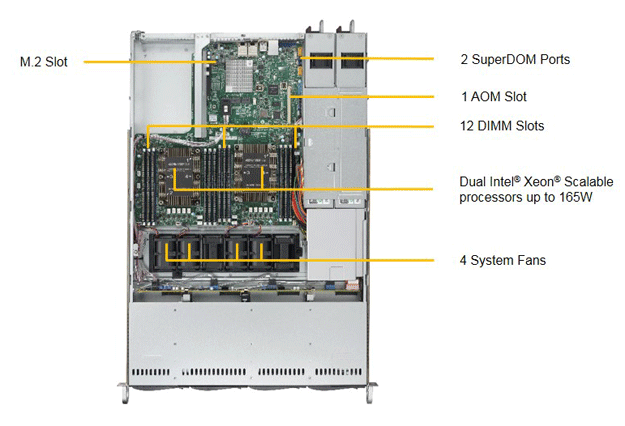

Memory • 12 DIMM Sockets
• Supports up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 2 PCI-E 3.0 x16 (FHHL) slots
• 1 PCI-E 3.0 x8 (LP) slot
• 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
• 1 PCI-E M.2 SSD slot
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Dual LAN with Gigabit Ethernet from C621
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC

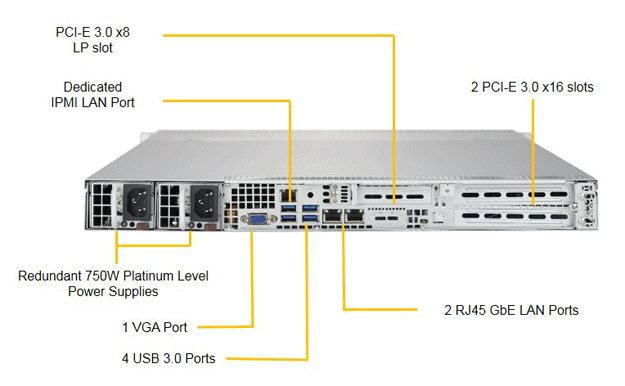

Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
VGA
• 1x VGA port
DOM
• 2x SuperDOM (Disk on Module) ports
Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7" (43mm) x 23.5" (597mm)
Power Supply • 700W/750W Redundant Power Supplies with PMBus
• Input
- 100 - 140Vac / 8 - 6A / 50-60Hz
- 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
- 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
• +12V
- Max: 58A / Min: 0.5A (100 - 140Vac)
- Max: 62A / Min: 0.5A (200 - 240Vac)
- Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
• +5V sb
- Max: 3A / Min: 0A
• 80PLUS Platinum Certified
Storage • 4x 3.5" hot-swap SAS / SATA HDD trays
System Cooling • 4x 4cm counter-rotating PWM fans

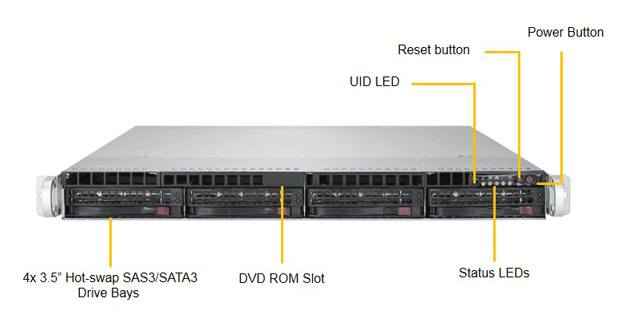

Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• Universal Information (UID) LED
BIOS • AMI 32Mb SPI Flash ROM

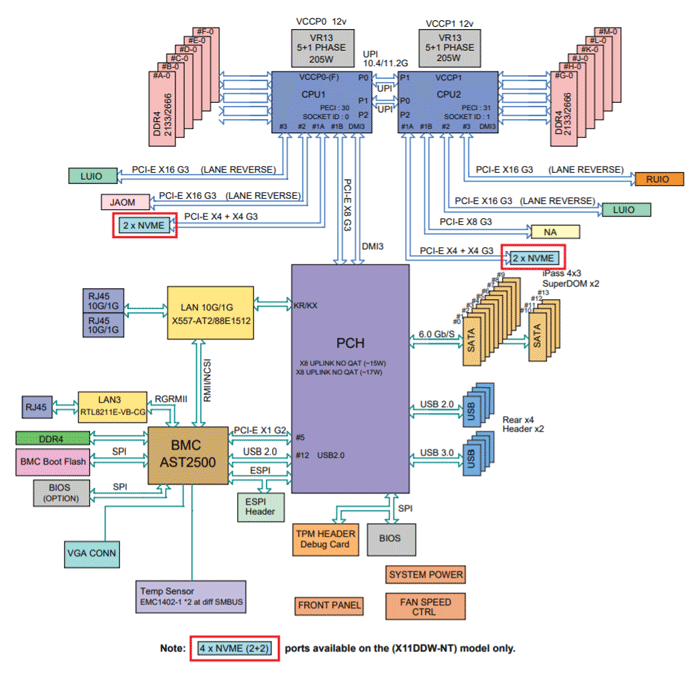

Block Diagram


Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $1,656.00




  Qty.Colfax CX1210s-X7 1U Rackmount Server, Cost As Configured $1,656.00
