Colfax CX2260s-S12-X7 2U Rackmount Server



  • 2x Intel® Xeon® Scalable Processors
  • 24x DIMMs
  • 12x 3.5” Hot-Swap Drive Bays

Models

  • CX2260s-S12-X7 - Integrated 4x 1GbE
  • CX2260s-2T-S12-X7 - Integrated 2x 10GBase-T
  • CX2260s-4T-S12-X7 - Integrated 4x 10GBase-T
  • CX2260s-TP-S12-X7 - Integrated 2x 10G SFP+
  • CX2260s-TR25-S12-X7 - Integrated 2x 25G SFP28

Features

  • 2x Intel® Xeon® Scalable Processors (Up to 205W TDP) (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 24x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 1 PCI-E 3.0 x16 (FH, 10.5” L)
    - 5 PCI-E 3.0 x8 (FH, 10.5" L), - 2 PCI-E 3.0 x8 (1 LP, 1 Internal LP)
  • 12x 3.5" Hot-Swap Drive Bays
  • 2x 2.5" Hot-Swap Drive Bays (Rear)
  • Integrated 4x 1GbE or 2x 10Gbase-T or 4x 10Gbase-T or 2x 10G SFP+ or 2x 25G SFP28 Ports
  • 1000W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-205W)
Memory • 24 DIMM Sockets
• Supports up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 1 PCI-E 3.0 x16 slot (FH, 10.5"L)
• 5 PCI-E 3.0 x8 slots (FH, 10.5" L)
• 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• 4 Gigabit Ethernet ports via AOC-UR-I4G (Intel® i350AM4) (CX2260s-S12-X7)
• 2 10GBase-T ports via AOC-UR-I2XT (Intel® X540) (CX2260s-2T-S12-X7)
• 4x 10GBase-T ports via AOC-UR-i4XTF (Intel® X710-B) (CX2260s-4T-S12-X7)
• 2 10G SFP+ ports via AOC-URN2-I2XS (Intel® 82599ES) (CX2260s-TP-S12-X7)
• 2 25GbE SFP28 ports via AOC-URN4-M2TS-O (Mellanox ConnectX-4 Lx EN) (CX2260s-TR25-S12-X7)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SAS
• 12 SAS3 ports via expander and AOC
LAN
• 4 RJ45 Gigabit Ethernet ports (CX2260s-S12-X7)
• 2 RJ45 10GBase-T Ethernet ports (CX2260s-2T-S12-X7)
• 4 RJ45 10GBase-T Ethernet ports (CX2260s-4T-S12-X7)
• 2 10G SFP+ ports (CX2260s-TP-S12-X7)
• 2 25GbE SFP28 ports (CX2260s-TR25-S12-X7)
• 1 RJ45 Dedicated IPMI LAN port
USB
• 3 USB 3.0 ports (2 rear, 1 Type A)
VGA
• 1 VGA connector
Serial Header
• 1 Serial header
DOM
• 2x SuperDOM (Disk on Module) ports
Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 28.46" (723mm)
Power Supply • 1000W Redundant Power Supplies with PMBus
• Input
- 100-127Vac / 9.8 - 7A / 50-60Hz
- 200-240Vac / 7 - 5A / 50-60Hz
• +12V
- Max: 66.7A / Min: 0A (100-127Vac)
- Max: 83A / Min: 0A (200-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified
Storage • 12x hot-swap 3.5" drive bays; (4 hybrid ports - optional 4 NVMe)
System Cooling • 4x heavy duty 8cm PWM fans
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System information (Overheat/UID) LED
BIOS • AMI 32Mb SPI Flash ROM

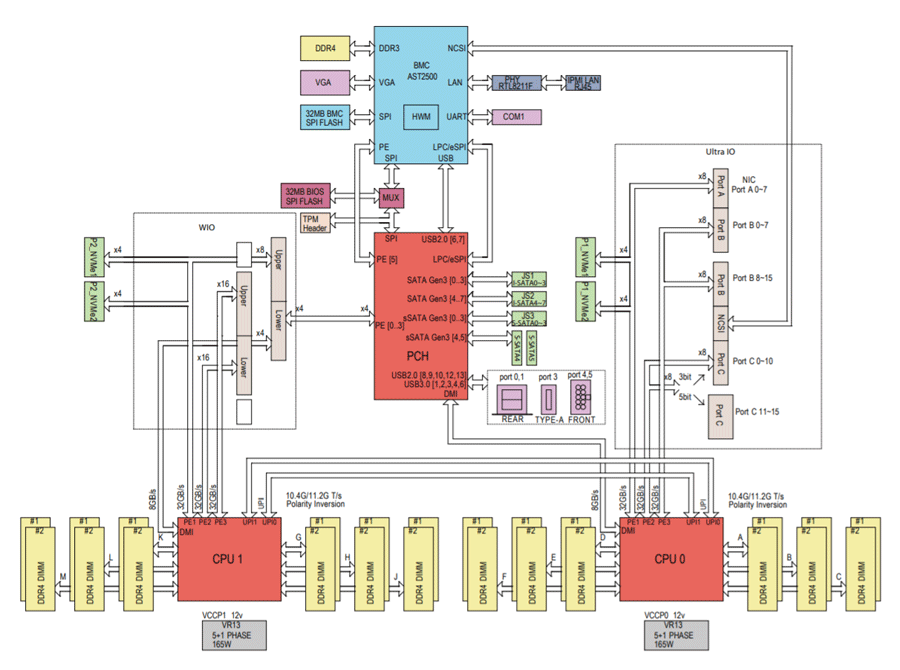

Block Diagram


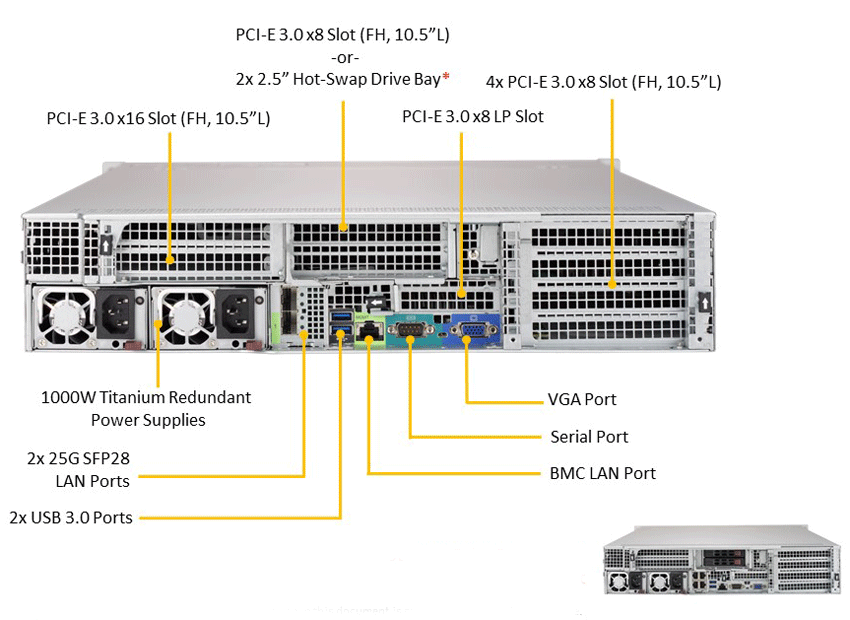

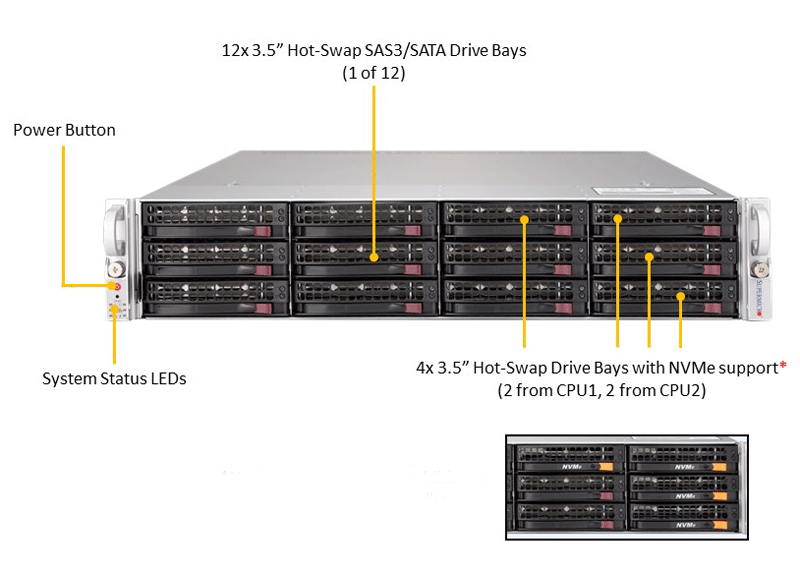

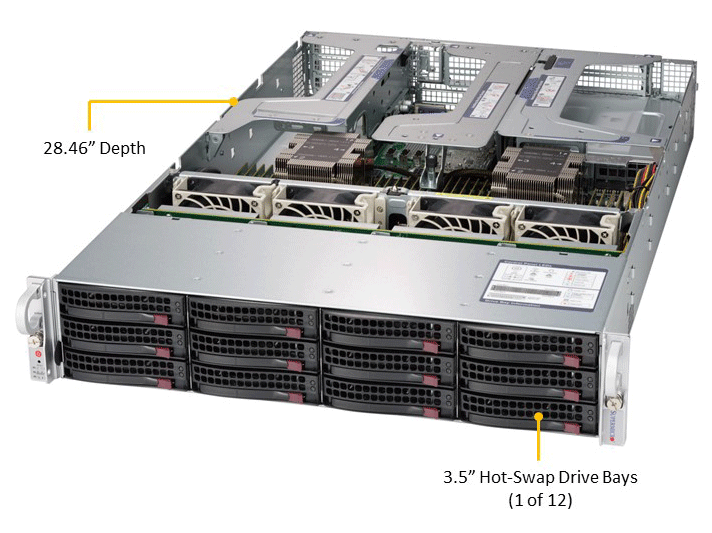

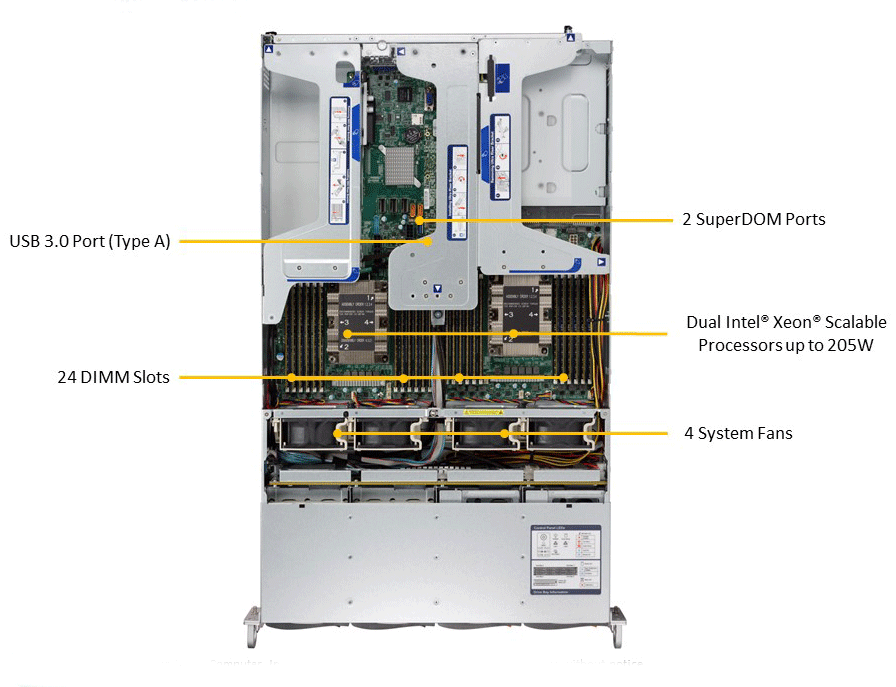

Images

Solution Configurator
