Colfax CX2265s-4T-N24-X7 2U Rackmount Server



  • 2x Intel® Xeon® Scalable Processors
  • 24x DIMMs
  • 24x 2.5" NVMe SSDs
  • Integrated 4x 10Gbase-T Ports

Features

  • 2x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 24x DIMMS, DDR4 ECC Registered RDIMM/LRDIMM
  • 2x PCI-E 3.0 x16 Slots (FH, 10.5"L) and 1x PCI-E 3.0 x8 Slot (LP)
  • 24x 2.5" Hot-Swap NVMe SSDs
  • 2x 2.5" Hot-Swap Rear Drive Bays
  • 2x M.2 SSDs (1x NVMe and 1x SATA)
  • 4x 10Gbase-T Ports (Intel® X550 Controller)
  • 1600W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 24x DDR4 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
• 1x PCI-E 3.0 x8 slot (Low-profile)
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• 4x 10GBase-T ports via Intel® X550 Ethernet Controller
• 1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output NVMe
• 24x NVMe ports

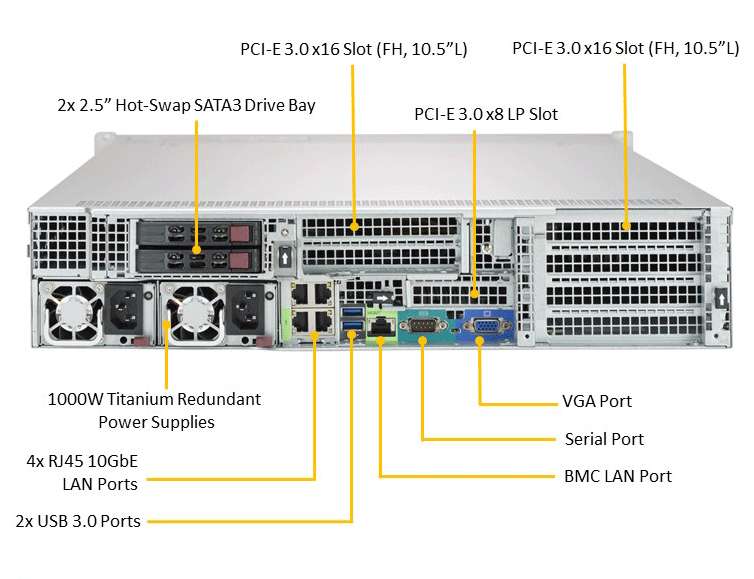

LAN
• 4x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 3x USB 3.0 ports (2 rear, 1 Type A)
VGA
• 2x VGA ports (1 rear, 1 onboard)
Serial Port/Header
• 1x Serial port
DOM
• 2x SuperDOM (Disk on Module) ports
Chassis Form Factor • 2U Rackmount
• Dimension: 17.2"W (437mm) x 3.5" (89mm) x 27.76" (705.3mm)
Power Supply • 1600W Redundant Power Supplies with PMBus
• Total Output Power
- 1000W/1600W
• AC Input
- 100-127Vac / 13 - 9A / 50-60Hz
- 200-240Vac / 10 - 8A / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100-127Vac)
- Max: 133A / Min: 0A (200-240Vac)
• 12Vsb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified
Storage • 24 hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
• 2 rear hot-swap 2.5" SATA drive bays
• 1 M.2 NVMe (2242/2260/2280*/22110*)
• 1 M.2 SATA (2242/2260/2280*/22110*)

Note: * Not supported if installing both NVMe & SATA M.2

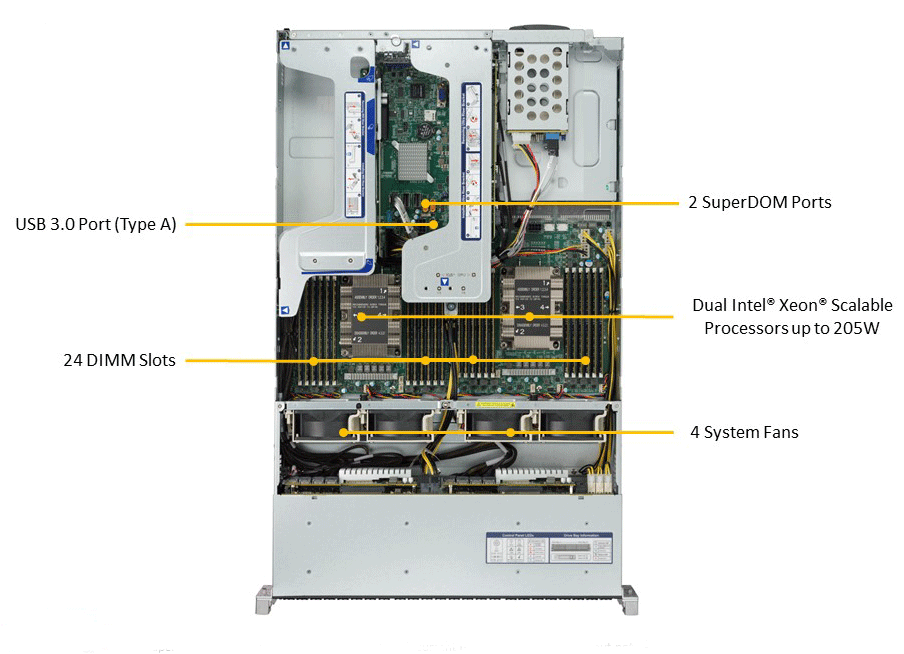

System Cooling • 4x 8cm heavy duty PWM fans

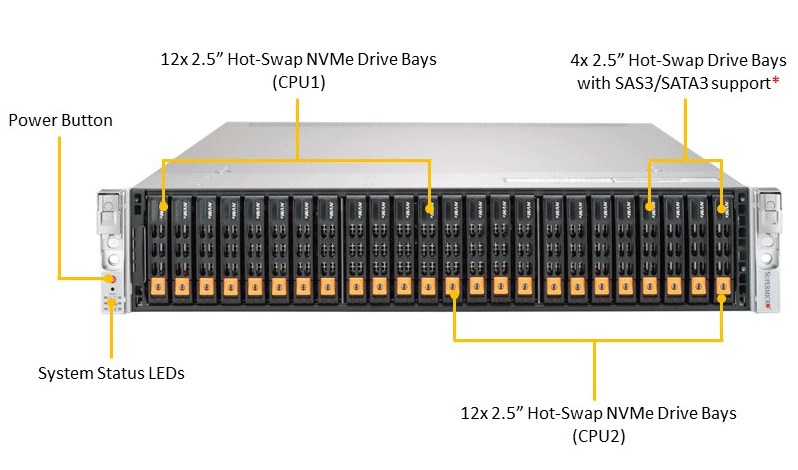

Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System information (overheat/UID) LED
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram

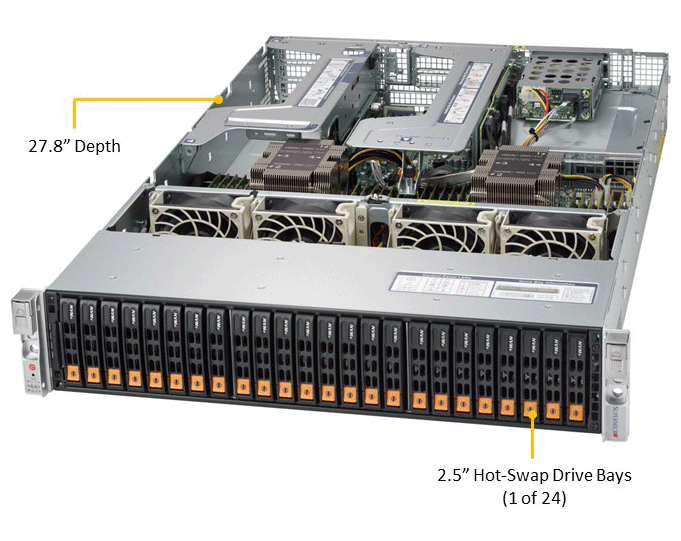

Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $4,390.00




  Qty.Colfax CX2265s-4T-N24-X7 2U Rackmount Server, Cost As Configured $4,390.00
