Colfax DX920 Desktop




High-Performance Desktop

  • Intel® Coreâ„¢ X-Series
  • 8x DIMMs Supporting DDR4 Memory
  • Up to 2x HDDs, 2x SSDs and 1x M.2 SSD

Features

  • Asus WS X299 SAGE
  • Intel® Coreâ„¢ X-Series Processor
  • Intel® X299 Chipset
  • 8x DIMMs Supporting DDR4 Memory
  • 7x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
  • Up to 2 Fixed 3.5” SATA HDDs, 2 SSDs and 1 M.2 SSD
  • Realtek® ALC S1220A 7.1-Channel High Definition Audio
  • Integrated Intel® I210-AT and I219-LM Gigabit LAN Controllers
  • Phanteks Enthoo Pro Chassis


Technical Specifications

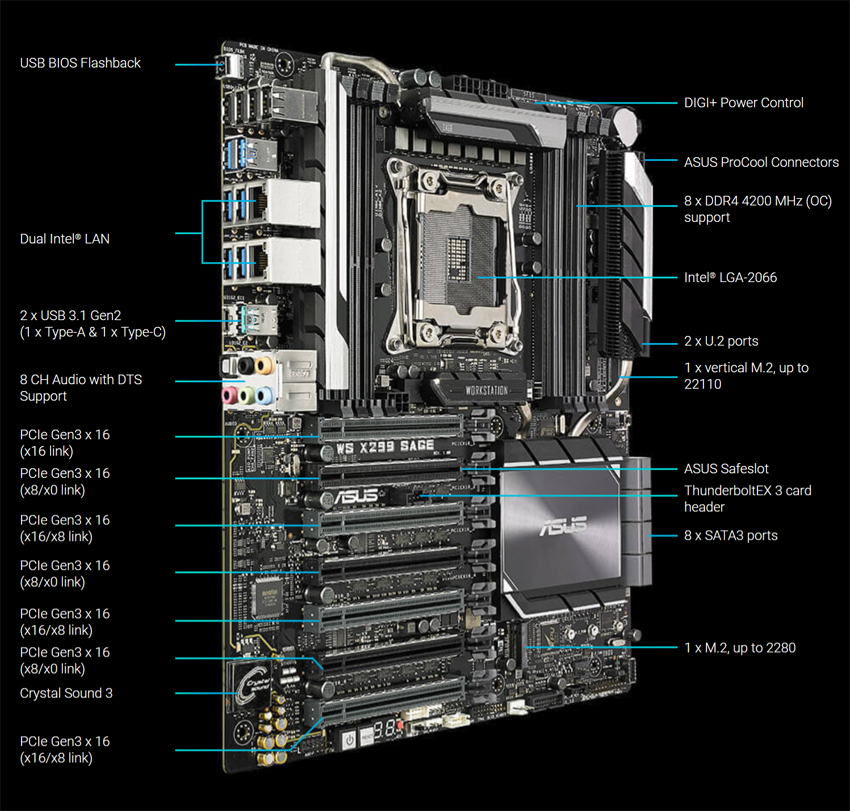

Motherboard • Asus WS X299 SAGE
CPU • Supports Intel® Coreâ„¢ X-Series Processors on LGA 2066 Socket
• Supports Intel® Virtual RAID on CPU (VROC)
• Supports Intel® Turbo Boost Max Technology 3.0

* The Intel® Turbo Boost Technology 3.0 support depends on the CPU types
Chipset Intel® X299
Memory Intel® Coreâ„¢ X-series Processors (6-core above)
• 8x DDR4 DIMM sockets (Max. 128GB)
• 4200 (O.C.*) / 4133 (O.C.*) / 4000 (O.C.*) / 3600 (O.C.*) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
Intel® Coreâ„¢ X-series Processors (4-core)
• 4x DDR4 DIMM sockets (Max. 64GB)
• 4200 (O.C.*) / 4133 (O.C.*) / 4000 (O.C.*) / 3600 (O.C.*) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

* WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.

Expansion Slots • 7x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
Integrated LAN • Intel® I210-AT and I219-LM Gigabit LAN Controller(s)
Storage Intel® X299 chipset:
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s port(s)
• 2 x U.2 connector1
• Supports Raid 0, 1, 5, 10
• Supports Intel® Rapid Storage Technology Enterprise 5.1 for X-Series (6-core and above) CPU RAID
• Supports Intel® Smart Response Technology
• Intel® Optaneâ„¢ Memory Ready • Intel® Virtual RAID (VROC) support for CPU RAID

1 The U.2 connectors are only supported on 44-Lane CPUs
Audio • Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
• Audio Features:
- DTS Connect
- DTS Headphone:X
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports Intel® X299 chipset:
• 8 x USB 3.1 Gen 1 port(s) (6 at back panel, 2 at mid-board)
• 4 x USB 2.0 port(s) (4 at back panel)
ASMedia® USB 3.1 Gen 2 controller:
• 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A + USB Type-C)
• 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
Back I/O Ports • 2 x LAN (RJ45) port(s)
• 1 x USB 3.1 Gen 2 (teal blue) Type-A
• 1 x USB 3.1 Gen 2 (black) USB Type-C
• 6 x USB 3.1 Gen 1 (blue)
• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 1 x 8-channel Audio I/O
• 1 x USB BIOS Flashback Button
Internal I/O Ports • 1 x AAFP connector
• 1 x Aura Addressable Strip Header
• 1 x Aura RGB Strip Header
• 2 x U.2 port(s)
• 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x VROC_HW_Key
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x 6-pin ATX Power connector
• 1 x EZ XMP switch
• 1 x 5-pin EXT_FAN (Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x Water Pump header (4-pin)
• 1 x System panel connector
• 1 x TPM header
• 1 x COM port connector
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x CPU_OV jumper
• 1 x M.2 Fan Header
Chassis Phanteks Enthoo Pro
• Full Tower Chassis
• ATX, EATX, mATX, SSI EEB Motherboard support
• Brushed Plastic, Steel Chassis
• Drive Bays
- 3 x 5.25”
- 6 x (2x 3 HDD cages) Internal 3.5"
- 7 x (1x SSD bracket, expandable to 2x SSD bracket) internal 2.5"
• 8 expansion slots
• Front I/O
- 2x USB 3.0, 2x USB 2.0, Mic, Headphone
• Cooling system:
Front
- 2 x 120 mm
- 2 x 140 mm
- 1 x 200 mm (included)
Top
- 3 x 120 mm
- 3 x 140 mm
- 1 x 200 mm
Rear
- 1 x 120 mm
- 1 x 140 mm (included)
Bottom
- 2 x 120 mm
- 1 x 140 mm
HDD Cage
- 2 x 120 mm
• Liquid Cooling system:
Front
- Up to 240 (120mm radiator)
Top
- Up to 360 (120mm radiator)
- Up to 420 (140mm radiator)
Rear
- 120 (120mm radiator)
- 140 (140mm radiator)
Bottom
- Up to 240 (120mm radiator)
- 140 (140mm radiator)
• Clearance
Graphic Card
- 347mm
without HDD Cages
- 472mm
CPU Cooler
- 193mm
Cable Management
- 27mm (39mm at PSU area)
Radiator (Top)
- 65mm to motherboard
• Dimensions:
- 235mm x 535mm x 550mm (W x H x D)

Images



Phanteks Enthoo Pro




Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $1,464.10
