Colfax DX930 Desktop




High-Performance Desktop

  • Intel® Xeon® Processor W Family
  • 8x DIMMs Supporting DDR4 ECC RDIMMM/LRDIMM
  • Up to 2x HDDs, 2x SSDs and 1x M.2 SSD

Features

  • Asus WS C422 PRO/SE
  • Intel® Xeon® Processor W Family
  • Intel® C422 Chipset
  • 8x DIMMs Supporting Supporting DDR4 ECC RDIMMM/LRDIMM
  • Expansion Options
    48-Lane CPU:
    - 2 x PCIe 3.0 x16 (x16 mode)
    - 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
    - 1 x PCIe 3.0 x4 (x4 mode)
  • Up to 2 Fixed 3.5” SATA HDDs, 2 SSDs and 1 M.2 SSD
  • Realtek® ALC S1220A 8-Channel High Definition Audio
  • Integrated Intel® I210-AT, Dual Gigabit LAN
  • Phanteks Enthoo Pro Chassis


Technical Specifications

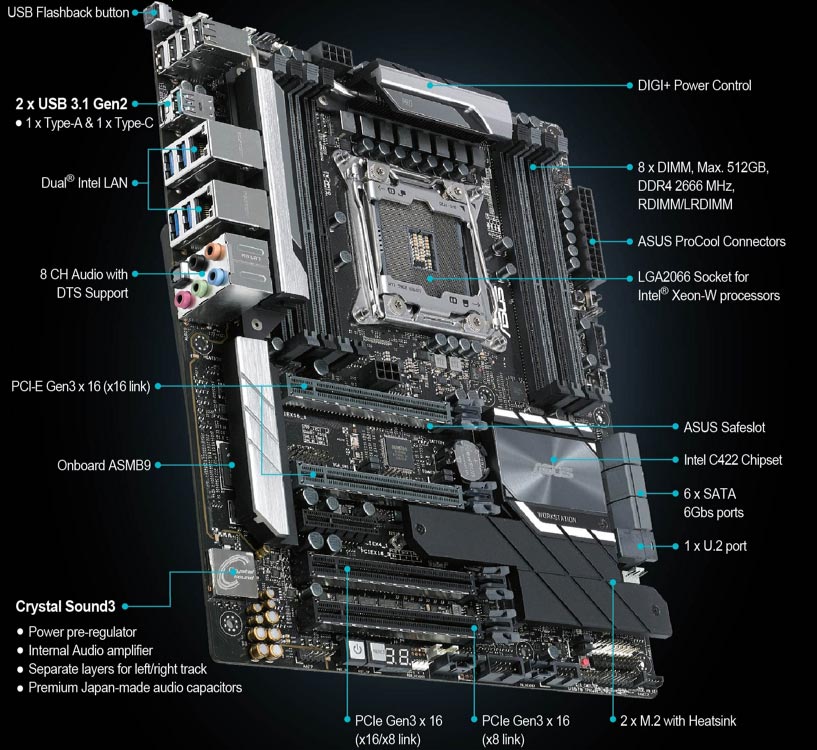

Motherboard • Asus WS C422 PRO/SE
CPU • Supports Intel® Socket 2066 Processor
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Max Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types
Chipset Intel® C422
Memory • 8x DDR4 DIMM sockets (Max. 128GB)
• Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM/LRDIMM Memory
Expansion Slots 48-Lane CPU:
- 2 x PCIe 3.0 x16 (x16 mode)
- 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
- 1 x PCIe 3.0 x4 (x4 mode)
Integrated LAN • Intel® I210-AT, 2 x Gigabit LAN Controller(s)
Storage • 1 x M.2 x4 Socket 31, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 x4 Socket 32, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
• 1 x U.2 connector1
• Supports Raid 0, 1, 10
• Supports Intel® Rapid Storage Technology Enterprise
• Intel® Virtual RAID (VROC) support for CPU RAID

1 Bandwidth is shared between M.2_2 and U.2
2 SATA Bandwidth is shared between M.2_1 and SATA6G_1
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192kHz playback3

3 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10

• Audio Features:
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports Intel® C422 Chipset :
• 6 x USB 3.1 Gen 1 port(s) (4 at back panel, 2 at mid-board)
• 6 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller:
• 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A + USB Type-C)
• 1 x USB 3.1 Gen 2 front panel connector port(s)
Back I/O Ports • 2 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 2 Type-A + USB Type-C
• 4 x USB 3.1 Gen 1 (blue)
• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 1 x 8-channel Audio I/O
• 1 x USB BIOS Flashback Button
Internal I/O Ports • 1 x AAFP connector
• 1 x Aura Addressable Strip Header
• 1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x VROC_HW_Key
• 2 x CPU Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x 5-pin EXT_FAN (Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x U.2 connector
• 3 x System panel connector
• 1 x Front fan
• 1 x Rear fan
• 1 x COM port header
• 1 x Aspeed VGA header
• 1 x USB 3.1 Gen 2 front panel connector
• 1 x CPU_OV jumper
• 1 x PUMP Fan connector
• 1x 6-pin ATX 12V Power connector
Chassis Phanteks Enthoo Pro
• Full Tower Chassis
• ATX, EATX, mATX, SSI EEB Motherboard support
• Brushed Plastic, Steel Chassis
• Drive Bays
- 3 x 5.25”
- 6 x (2x 3 HDD cages) Internal 3.5"
- 7 x (1x SSD bracket, expandable to 2x SSD bracket) internal 2.5"
• 8 expansion slots
• Front I/O
- 2x USB 3.0, 2x USB 2.0, Mic, Headphone
• Cooling system:
Front
- 2 x 120 mm
- 2 x 140 mm
- 1 x 200 mm (included)
Top
- 3 x 120 mm
- 3 x 140 mm
- 1 x 200 mm
Rear
- 1 x 120 mm
- 1 x 140 mm (included)
Bottom
- 2 x 120 mm
- 1 x 140 mm
HDD Cage
- 2 x 120 mm
• Liquid Cooling system:
Front
- Up to 240 (120mm radiator)
Top
- Up to 360 (120mm radiator)
- Up to 420 (140mm radiator)
Rear
- 120 (120mm radiator)
- 140 (140mm radiator)
Bottom
- Up to 240 (120mm radiator)
- 140 (140mm radiator)
• Clearance
Graphic Card
- 347mm
without HDD Cages
- 472mm
CPU Cooler
- 193mm
Cable Management
- 27mm (39mm at PSU area)
Radiator (Top)
- 65mm to motherboard
• Dimensions:
- 235mm x 535mm x 550mm (W x H x D)

Images



Phanteks Enthoo Pro




Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $1,289.05




  Qty.Colfax DX930 Desktop, Cost As Configured $1,289.05
Motherboard 1
Primary CPU 1
Cooling Pump 1
Socket 1    1

Set next    items (  ) like this
Socket 2    1
Socket 3    1
Socket 4    1
Socket 5    1
Socket 6    1
Socket 7    1
Socket 8    1
Chassis 1
Power Supply 1
DVD+/-RW Drive 1
M.2 SSD Drive 1
SSD Drive 1    1

Set next    items (  ) like this
SSD Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Video Card 1
Mouse 1
Keyboard 1
LCD Panel 1
Operating System SW 1
   Colfax DX930 Desktop, Cost As Configured $1,289.05
