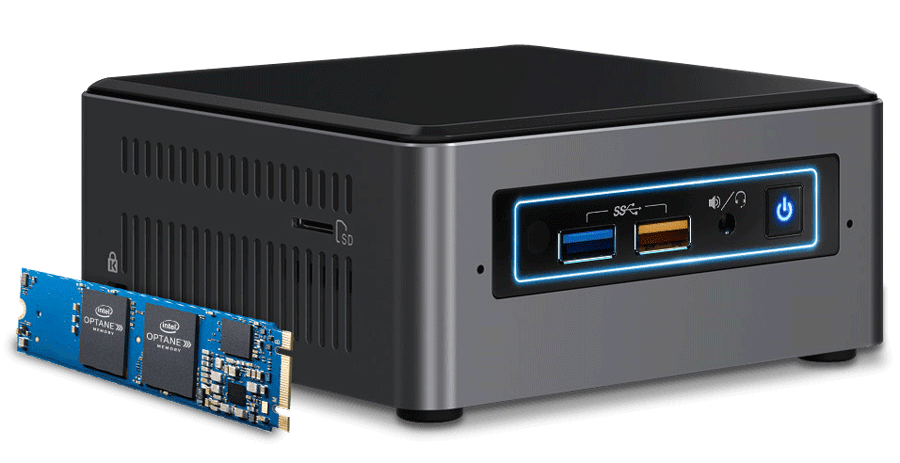

Intel® NUC Kit NUC7i7BNHX1




Go Small. Get Big.

  • 7th generation Intel® Core™ i7 processor
  • Intel® Optane™ memory
  • Intel® Iris™ Plus Graphics 650
  • Thunderbolt™ 3 technology

Get ready to play hard and fast while still taking advantage of the performance you need for content creation, photo editing, or complex work. The Intel® NUC Kit NUC7i7BNHX1 is built with a dual-core 7th generation Intel® Core™ i7 processor and has Intel® Turbo Boost Technology 2.0 for unprecedented power and responsiveness to help your productivity soar.

The Intel NUC Kit NUC7i7BNHX1 includes Intel® Optane™ memory1 which makes you ready for the future. By pairing Intel Optane memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches, and more responsive browsingâ€"exactly what you want for play or work.

Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better definition and clarity, letting you watch theater-quality 4K videos in your living room or see the sneaky moves your opponent is trying to make on your favorite game. The Intel NUC Kit NUC7i7BNHX1 can connect up to three 4K monitors so you can spread your game across screens. The kit also comes with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds, connection to external graphics, and has built-in 10 GbE for networking with another Thunderbolt 3 system.

Download Product Brief

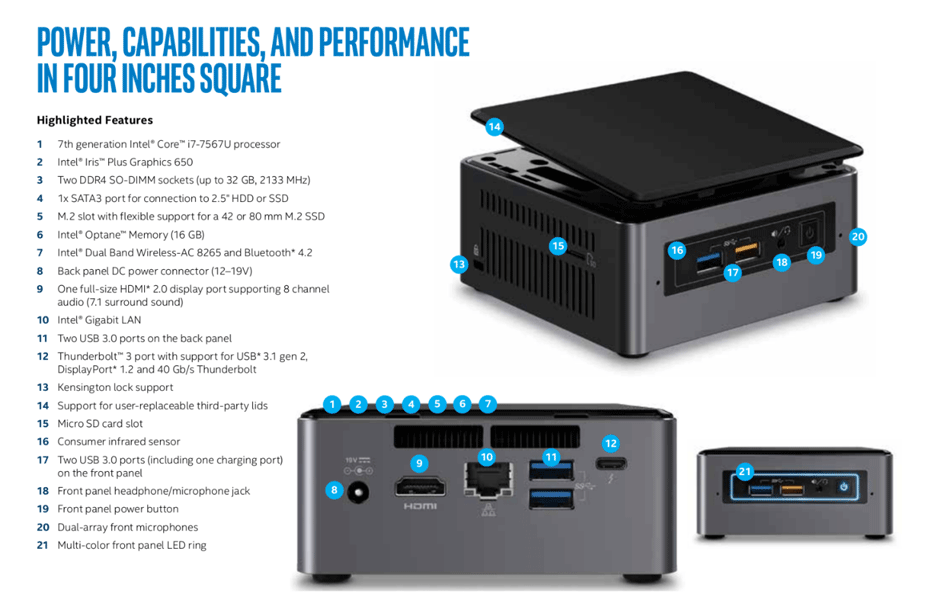

Features

  • 7th generation Intel® Core™ i7-7567U processor (3.5 GHz to 4.0 GHz Turbo,2 Dual Core 4 MB cache, 28W TDP)
  • 2x DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz)
  • Intel® Optane™ memory (16GB preinstalled)
  • Graphics:
    - Intel® Iris™ Pro Graphics 650
    - 1x HDMI* 2.0 port with 4K at 60 Hz
    - Thunderbolt™ 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt
  • Storage:
    - Micro SDXC slot with UHS-I support on the side
    - 1x SATA3 port for connection to 2.5" HDD or SSD (up to 9.5 mm thickness)
  • Up to 7.1 surround audio via HDMI
  • Peripheral Connectivity:
    - Thunderbolt™ 3 port with support for USB* 3.1 Gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt
    - 4x USB 3.0 ports (two back panel ports and two front ports including one charging port)
    - 2x USB 2.0 ports via internal header
    - Intel® Dual Band Wireless-AC 8265 (802.11ac), 2x2, up to 867 Mbps
    - Dual Mode Bluetooth® 4.2
  • Integrated Gigabit LAN


Images


$1,078.92


  Qty.Intel NUC 7i7BNHX1, Cost As Configured $1,078.92
Base Platform 1
Socket 1 1
Socket 2 1
SSD Drive 1
Mouse 1
Keyboard 1
Operating System SW 1
   Intel NUC 7i7BNHX1, Cost As Configured $1,078.92
