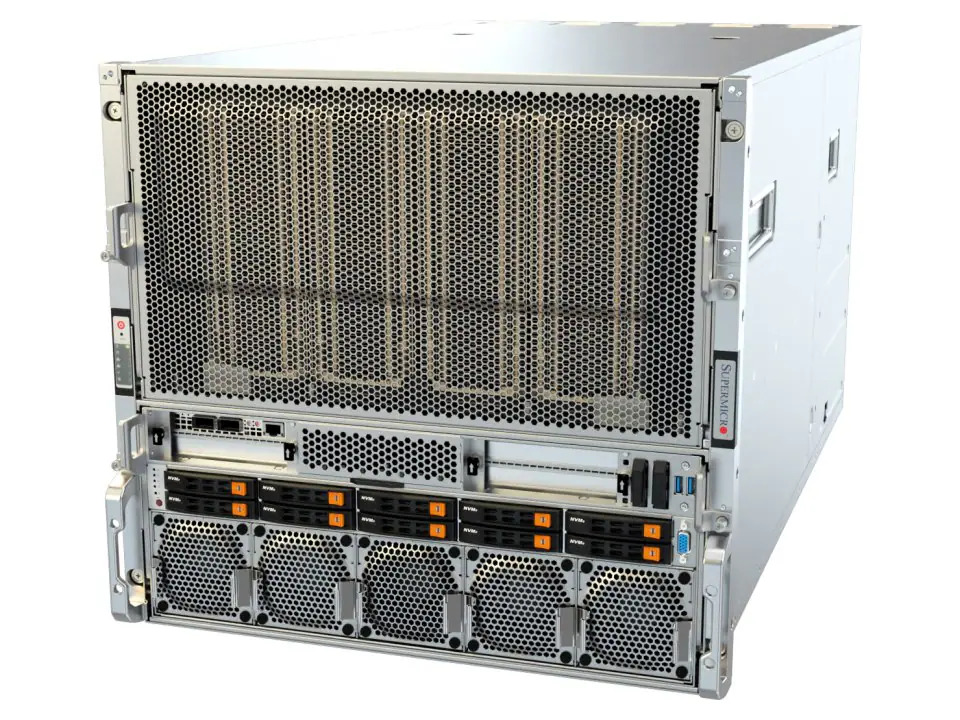

Colfax CX10860s-E9B2 10U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 8x NVIDIA HGX™ B200 8-GPU (Blackwell)
  • 24x DDR5 RDIMMs / MRDIMMs
  • 8x 2.5" Gen5 NVMe + 2x 2.5" SATA Drive Bays

Features

  • NVIDIA HGX™ B200 8-GPU NVIDIA Blackwell Architecture Technical Brief
    - Form Factor: SXM
    - 180GB of HBM3e GPU Memory (1.44TB Aggregate)
    - Up to 8TB/s of Memory Bandwidth (Up to 64TB/s Aggregate)
    - 5th Generation NVIDIA NVLink™
    - 1.8TB/s of NVIDIA NVSwitch™ GPU-to-GPU Bandwidth (14.4TB/s Aggregate)
  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 8x PCIe 5.0 x16 Slots (LP)
  • 2x PCIe 5.0 x16 Slots (FHHL)
  • 8x 2.5" Gen5 NVMe + 2x 2.5" SATA Drive Bays
  • 2x M.2 NVMe SSDs
  • 2x 10Gb/s LAN ports via Intel® X710
  • 1x Dedicated Management Port
  • 6x 5250 Watts RPSU (3+3)


Technical Specifications

Chassis Form Factor • 10U Rackmount
• Dimension (HxWxD): 17.2" (438.8mm) x 17.6" (438.8mm) x 33.2" (843.28mm)

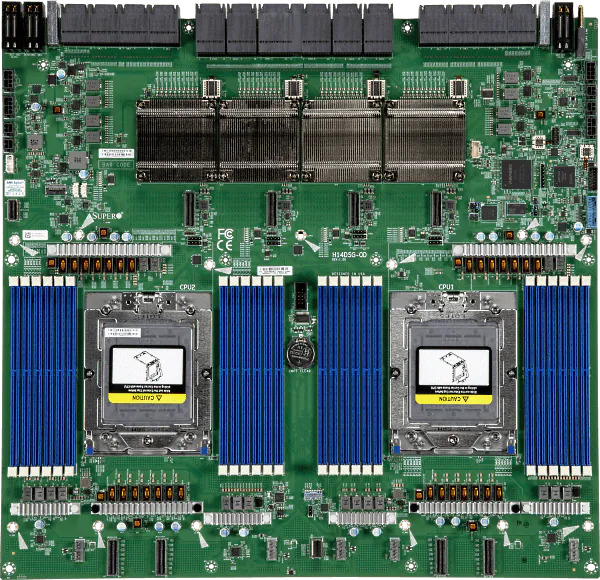

CPU • Socket SP5 (2x LGA 6096)
• 2x AMD EPYC™ 9004/9005 Series Processors
• Supports CPU TDP up to 500W
GPU Supported GPU
• NVIDIA HGX™ B200 8-GPU Baseboard
CPU-GPU Interconnect
• PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• NVIDIA NVLink™ with NVSwitch™
Memory • 24 DIMM Sockets
• Max Memory (1DPC):
- Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005)
- Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004)
I/O Expansion • 8x PCIe 5.0 x16 Slots (LP)
• 2x PCIe 5.0 x16 Slots (FHHL)
Storage Drive Bays
• 8x 2.5" hot-swap NVMe + 2x 2.5" hot-swap SATA drive bays
M.2
• 2x M.2 NVMe slots (M-key 22110)
Onboard Devices Network Controller
• 2x RJ45 10GbE with Intel® X710
Input / Output LAN
• 2x RJ45 10GbE LAN ports
• 1x RJ45 1GbE Dedicated BMC LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1 VGA port
TPM
• 1x TPM header
Power Supply • 6x 5250W Redundant (3+3) Power Supplies
• Input
- 5250W: 200-240Vac / 50-60Hz
• +12V
- Max: 125A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 4A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 19x 8cm heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID/Reset button
LEDs
• Hard drive activity LED
• Network activity LEDs
• System information (Overheat/UID) LED
• UID LED
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• ACPI Power Management
• Power-on mode for AC power recovery
Security Hardware
• Trusted Platform Module (TPM) 2.0
Health Monitoring CPU
• Monitors for CPU Cores, Chipset Voltages, Memory
Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
BIOS • AMI 64MB AMI UEFI


Images
$419,563.62


  Qty.Colfax CX10860s-E9B2 10U Rackmount Server, Cost As Configured $419,563.62
Base Platform 1
Nvidia B200 Baseboard (8 x B200) 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 12    1
CPU 1 - Socket 3 of 12    1
CPU 1 - Socket 4 of 12    1
CPU 1 - Socket 5 of 12    1
CPU 1 - Socket 6 of 12    1
CPU 1 - Socket 7 of 12    1
CPU 1 - Socket 8 of 12    1
CPU 1 - Socket 9 of 12    1
CPU 1 - Socket 10 of 12    1
CPU 1 - Socket 11 of 12    1
CPU 1 - Socket 12 of 12    1
CPU 2 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 12    1
CPU 2 - Socket 3 of 12    1
CPU 2 - Socket 4 of 12    1
CPU 2 - Socket 5 of 12    1
CPU 2 - Socket 6 of 12    1
CPU 2 - Socket 7 of 12    1
CPU 2 - Socket 8 of 12    1
CPU 2 - Socket 9 of 12    1
CPU 2 - Socket 10 of 12    1
CPU 2 - Socket 11 of 12    1
CPU 2 - Socket 12 of 12    1
SATA SSD Drive 1    1

Set next    items (  ) like this
SATA SSD Drive 2    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
NVM-E Drive 7    1
NVM-E Drive 8    1
Infiniband HBA 1    1

Set next    items (  ) like this
Infiniband HBA 2    1
Infiniband HBA 3    1
Infiniband HBA 4    1
Infiniband HBA 5    1
Infiniband HBA 6    1
Infiniband HBA 7    1
Infiniband HBA 8    1
Ethernet HBA 1
Infiniband HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX10860s-E9B2 10U Rackmount Server, Cost As Configured $419,563.62
