Colfax CX1125s-X6 1U Rackmount Server (Short Depth)




  • Short Depth
  • 1x Intel® Xeon® 6 Processor (6700E/6700P/6500P)
  • 8x DDR5 RDIMMs
  • 2x 2.5" Fixed Internal SATA/NVMe Drive Bays

Features

  • Short Depth
  • 1x Intel® Xeon® 6 Processor (6700E/6700P/6500P) (Click here for Specifications and Comparison)
    - P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
    - Deep Dive: Intel® Xeon® 6 Processors with P-Cores
    - Deep Dive: Intel® Xeon® 6 Processors with E-Cores
  • 8x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots (FHFL)
  • 1x PCIe 5.0 x16 Slot (LP)
  • 2x 2.5" Fixed Internal SATA/NVMe Drive Bays
  • 2x M.2 NVMe SSDs (PCIe Gen5 x2)
  • 2x 10GbE LAN Ports
  • 1x Dedicated IPMI LAN Port
  • 1x 800 Watts Power Supply (Redundancy Optional)




Technical Specifications

Enclosure • 1U
• Dimensions (H x W x D) - 1.7" (43 mm) x 17.2" (437 mm) x 16.9" (429.3 mm)
CPU • Socket E2 (1x LGA 4710)
• Intel® Xeon® 6 processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors
- Intel® Xeon® 6500P-Series Processors
• Supports CPU TDP up to 350W
Chipset • System on Chip
Memory • 8x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
• Memory speed:
- RDIMM: Up to 6400 MT/s (1DPC)
Expansion Slots • 2x PCIe 5.0 x16 slots (FHFL)
• 1x PCIe 5.0 x16 slot (LP)
Storage Front
• 2x 2.5" fixed internal SATA/NVMe drive bays
Internal
• 2x M.2 (2280/22110), PCIe Gen5 x2
Networking • 2x 10GbE with Intel® X550
• 1x 10/100/1000 Mbps management LAN
Video • 1x VGA port
Power Supply • 1+1 800W redundant PSUs
• AC Input:
- 750W: 100-127Vac / 50-60Hz
- 800W: 200-240Vac / 50-60Hz
• +12 V:
- Max: 62.5A / Min: 0.5A (100Vac-127Vac)
- Max: 66.6A / Min: 0.5A (200Vac-240Vac)
• 5V SB
- Max: 4A / Min: 0A
• 80PLUS Platinum
System Cooling • 6x 4cm heavy duty fans with optimal fan speed control
• 1x CPU air shroud
Input / Output LAN
• 2x RJ45 10 GbE LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x 3.2 Gen1 Type-A ports
• 2x 3.2 Gen1 Type-A ports (header)
Video
• 1x VGA port
Serial
• 1x COM port
TPM
• 1x TPM header
Front Panel Buttons
• Power On/Off
LEDs
• LAN1 activity
• LAN2 activity
• Power status
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• ACPI/APM Power Management
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• System Lockdown
Health Monitoring CPU
• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Voltage
• Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
BIOS • AMI 32Mb SPI Flash EEPROM

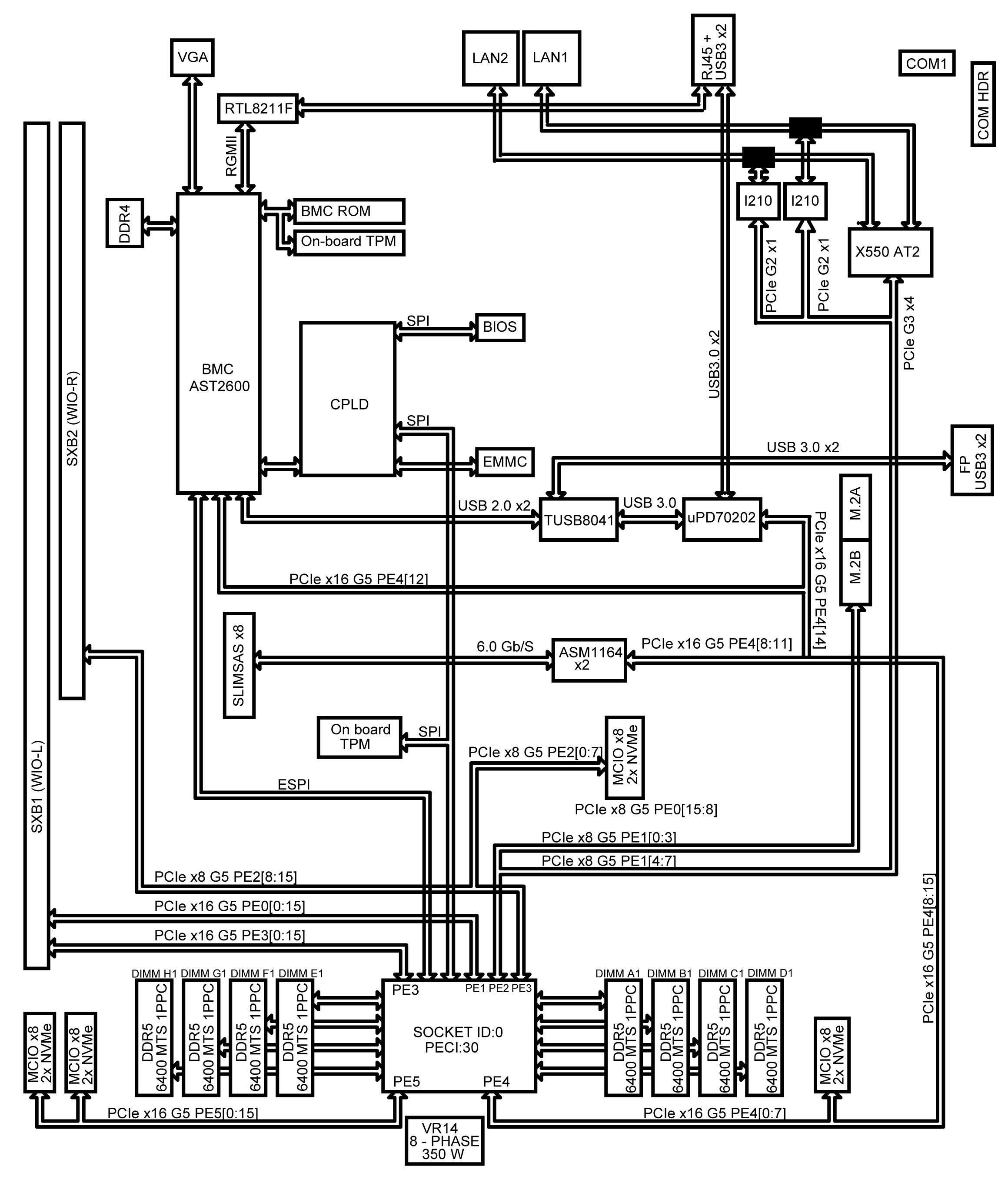

Block Diagram

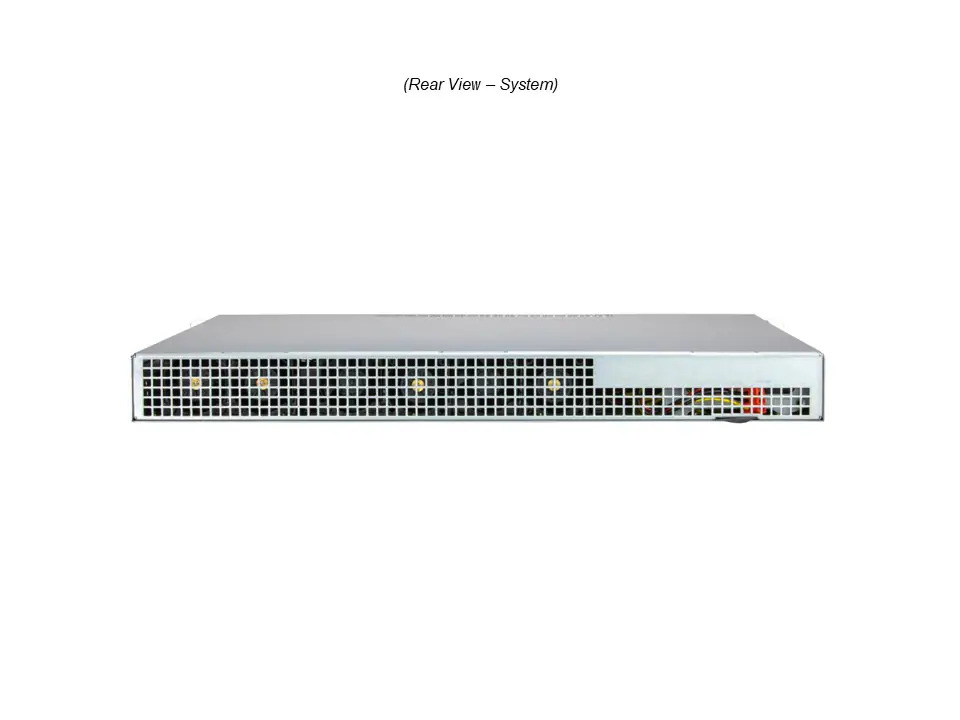

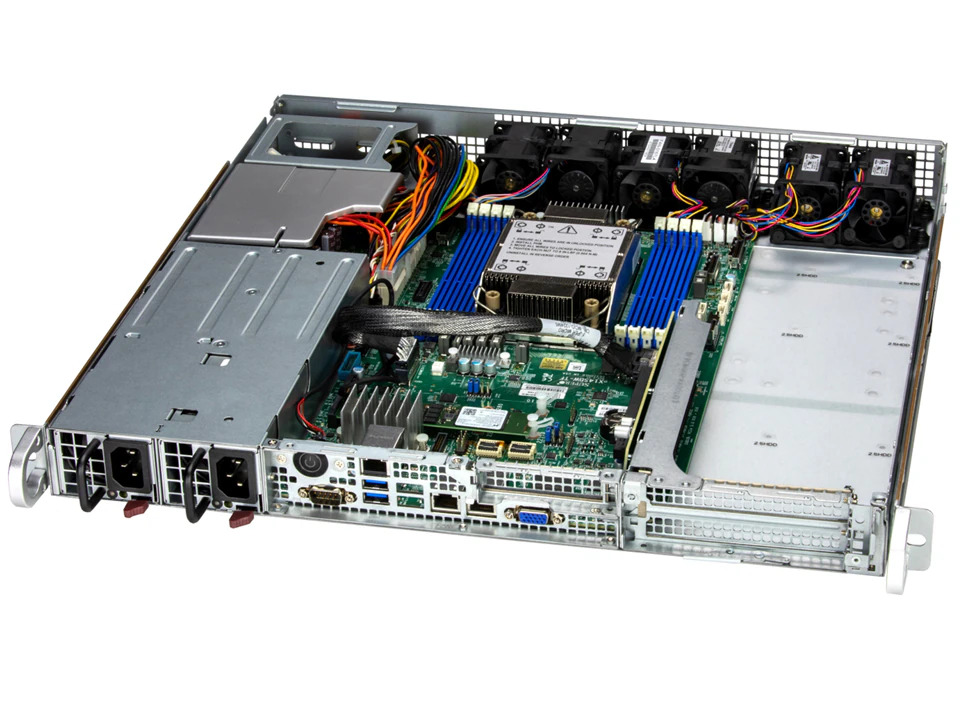

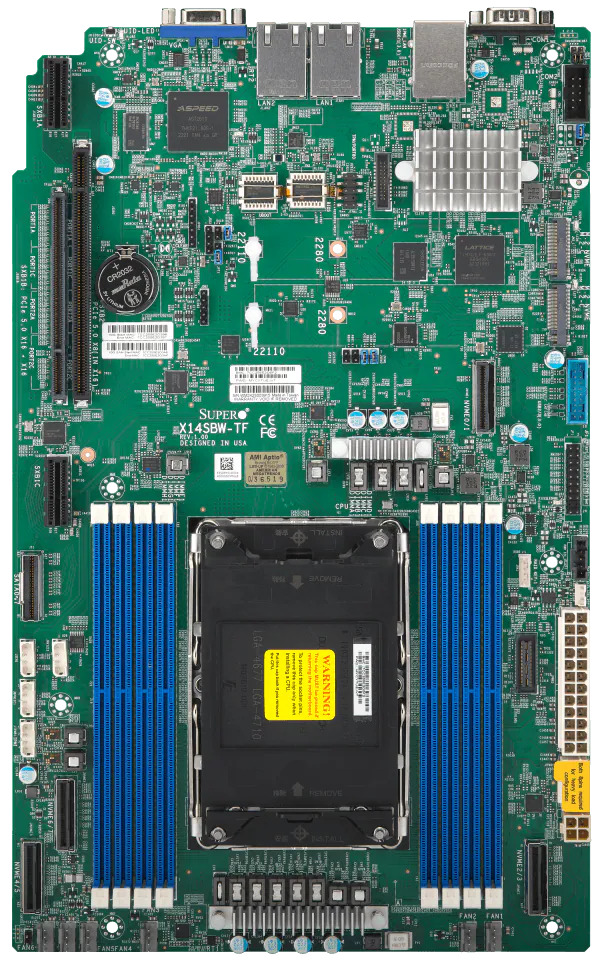

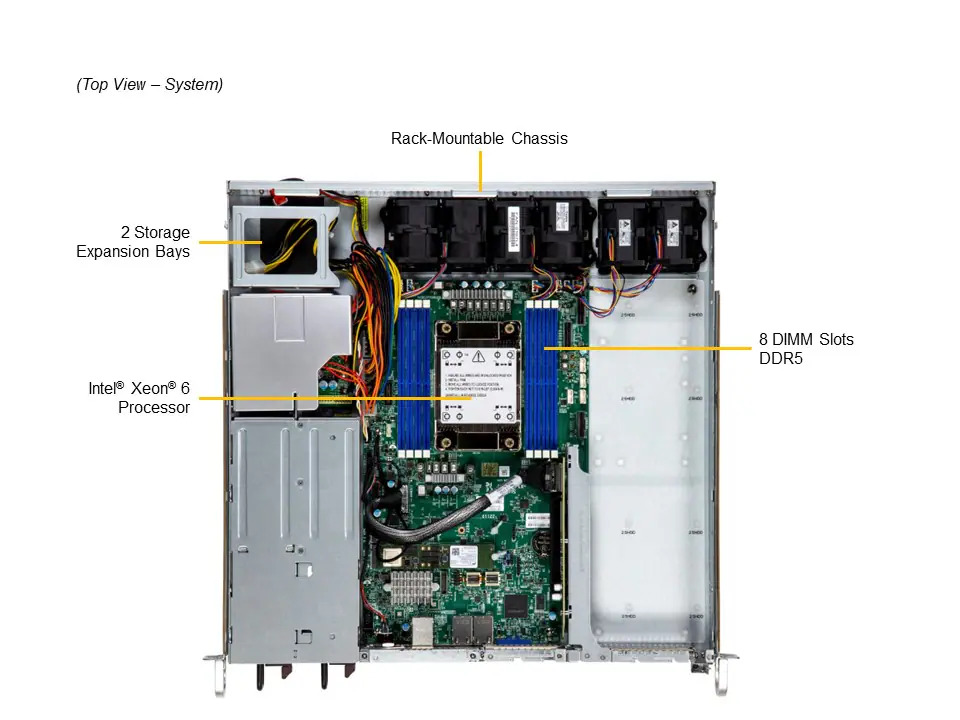

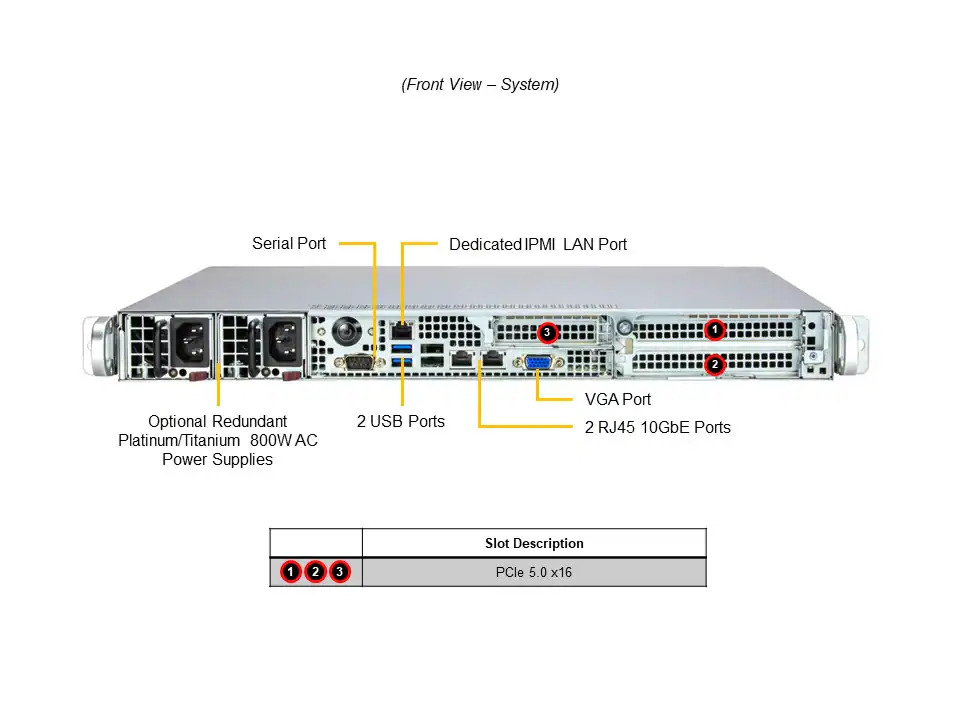

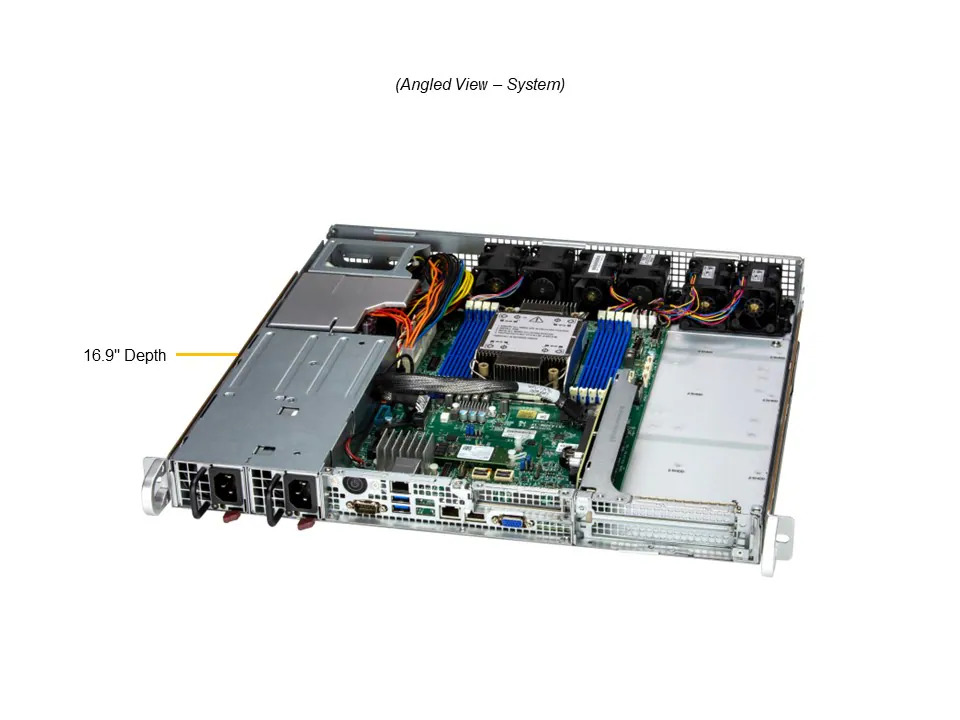

Images
