Colfax CX1155g-X6 1U Rackmount Server




  • 1x Intel® Xeon® 6 Processor (6700E/6700P/6500P)
  • 16x DDR5 RDIMMs / MRDIMMs
  • 2x 2.5" Gen5 NVMe Drive Bays

Features

  • 1x Intel® Xeon® 6 Processor (6700E/6700P/6500P) (Click here for Specifications and Comparison)
    - P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
    - Deep Dive: Intel® Xeon® 6 Processors with P-Cores
    - Deep Dive: Intel® Xeon® 6 Processors with E-Cores
  • 16x DIMM Sockets Support DDR5 ECC RDIMM/MRDIMM*
  • 2x PCIe 5.0 x16 Slots (FHHL)
  • 2x OCP 3.0 Slots (Gen5 x16)
  • 2x 2.5" Gen5 NVMe SSDs
  • 1x M.2 NVMe SSD (PCIe Gen5 x2)
  • 1x 1Gb/s LAN port via Intel® I210-AT
  • 1x Dedicated Management Port
  • 2x 800 Watts RPSU, 80PLUS Titanium
  • Dual ROM Architecture Supported

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores





Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.72" x 20.47" (438 x 43.5 x 520 mm)
CPU • Socket E2 (1x LGA 4710)
• Intel® Xeon® 6 processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors
- Intel® Xeon® 6500P-Series Processors
• Supports CPU TDP up to 350W
Chipset • System on Chip
Memory • 16x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
• Memory speed:
- RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
- MRDIMM*: Up to 8800 MT/s

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in an 1DPC configuration
Expansion Slots • Riser Card CRS101O
- 1x PCIe 5.0 x16 slot (FHHL)
• Riser Card CRS101P
- 1x PCIe 5.0 x16 slot (FHHL)
OCP
• 2x OCP 3.0 (Gen5 x16)
Storage Front
• 2x 2.5" hot-swap Gen5 NVMe drive bays
Internal
• 1x M.2 (2280/22110), PCIe Gen5 x2
• 1x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA
Networking • 1x 1Gb/s LAN (Intel® I210-AT)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x Mini-DP
Power Supply • 2x 800W redundant PSUs
• AC Input:
- 100-127V~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz
• DC Output:
- Max 800W
+12.2V/ 65A
+12.2Vsb/ 3A
• 80PLUS Titanium
System Cooling • 5 x 40x40x56mm (32,000rpm)
Front I/O • 1x USB 3.2 Gen1 port (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs (1x LED disabled)
• 1x Storage activity LED
• 1x System status LED

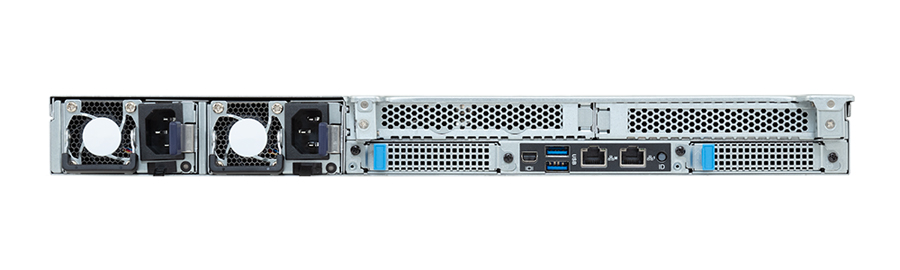

Rear I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 1x RJ45 port
• 1x MLAN port
• 1x ID button with LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

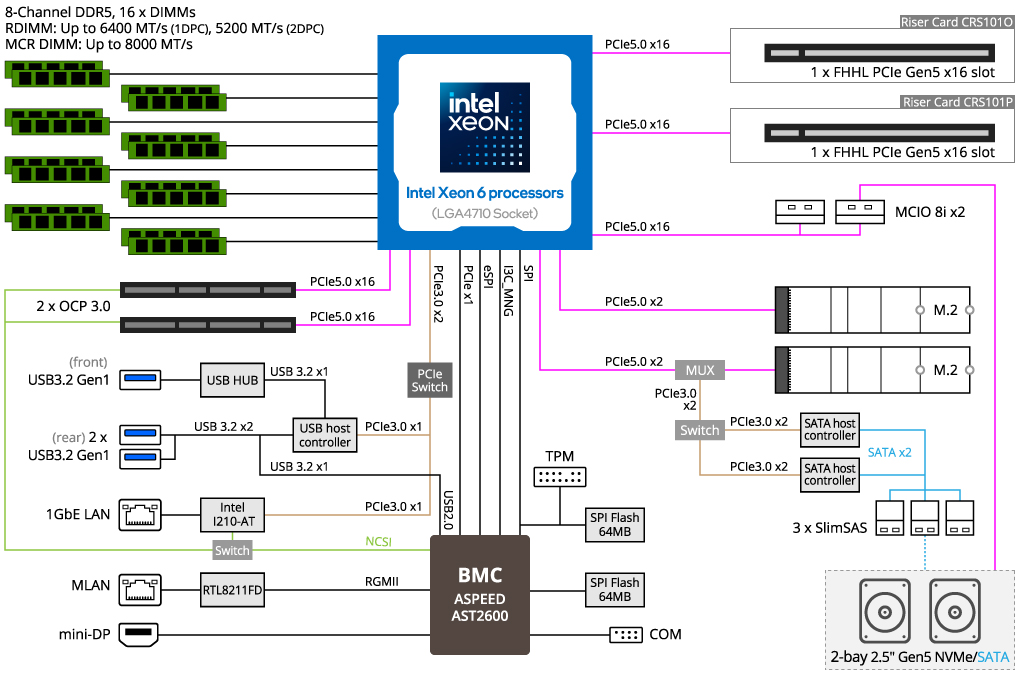

Block Diagram

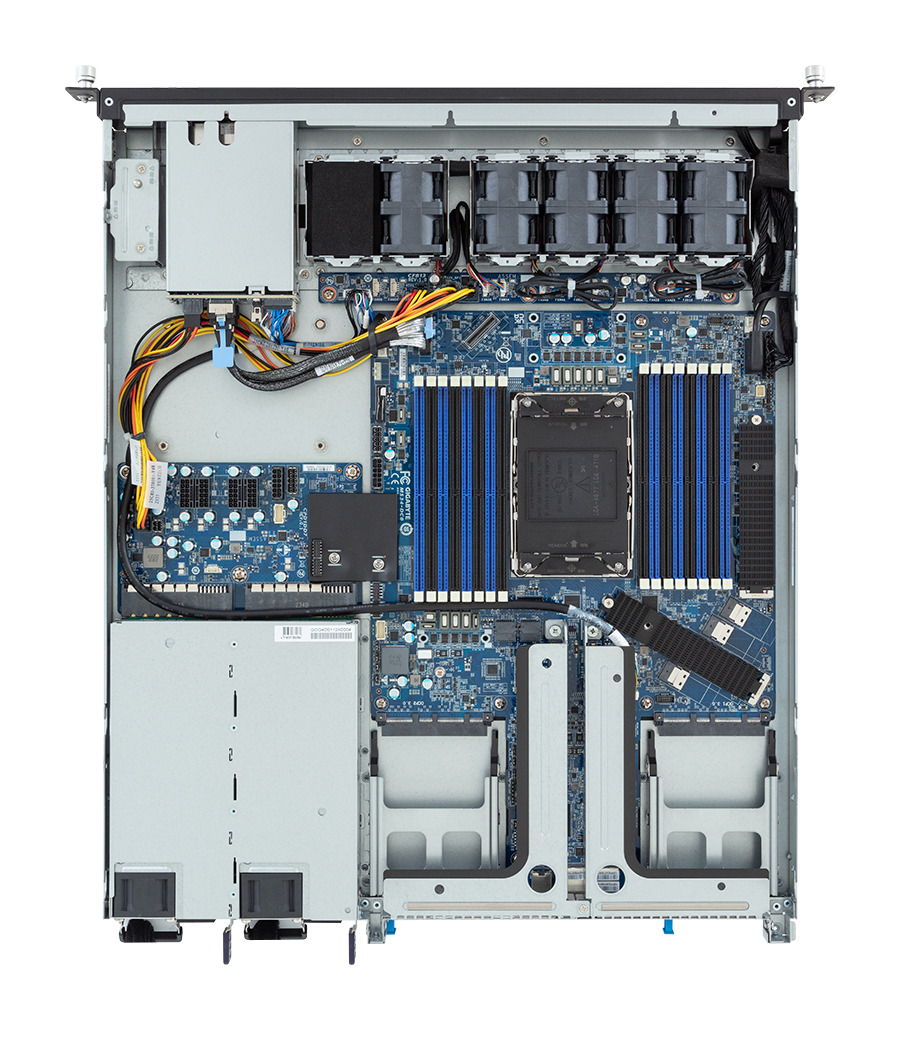

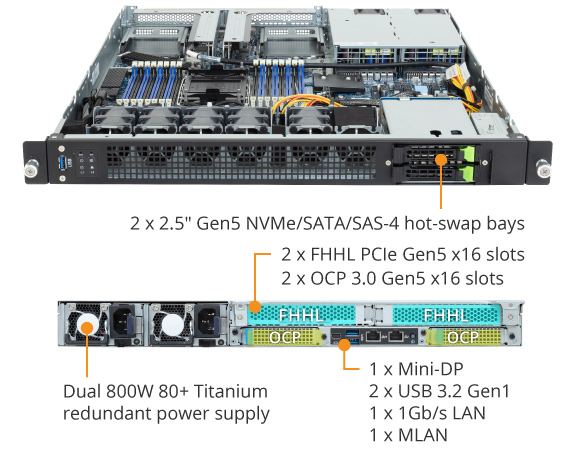

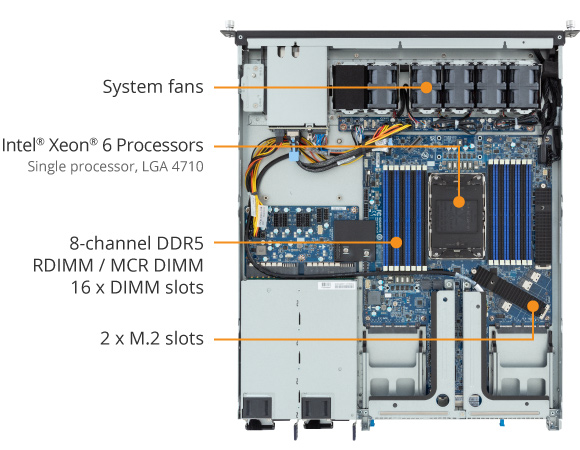

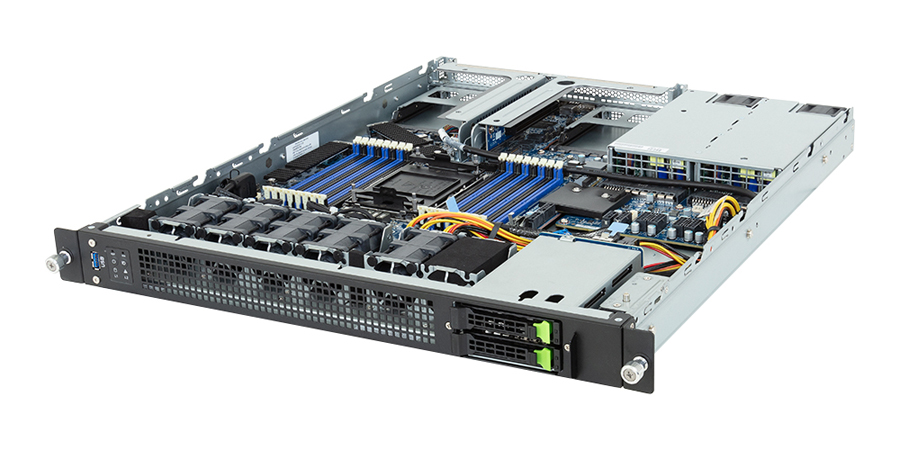

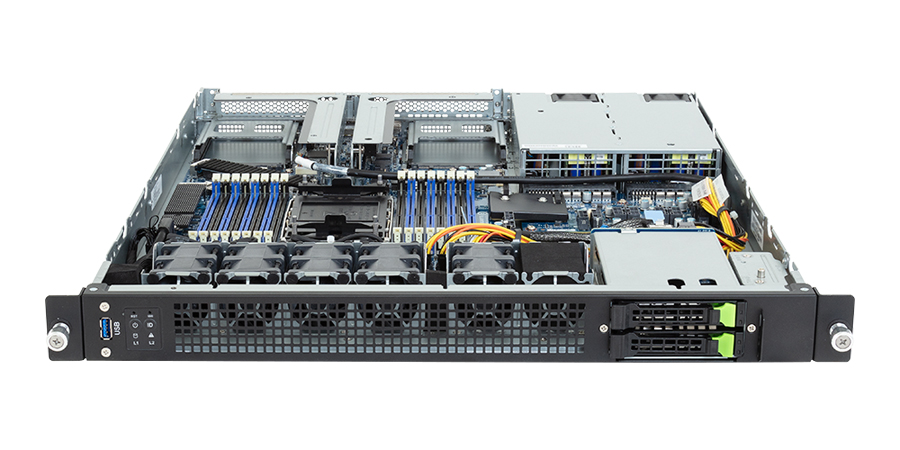

Images
