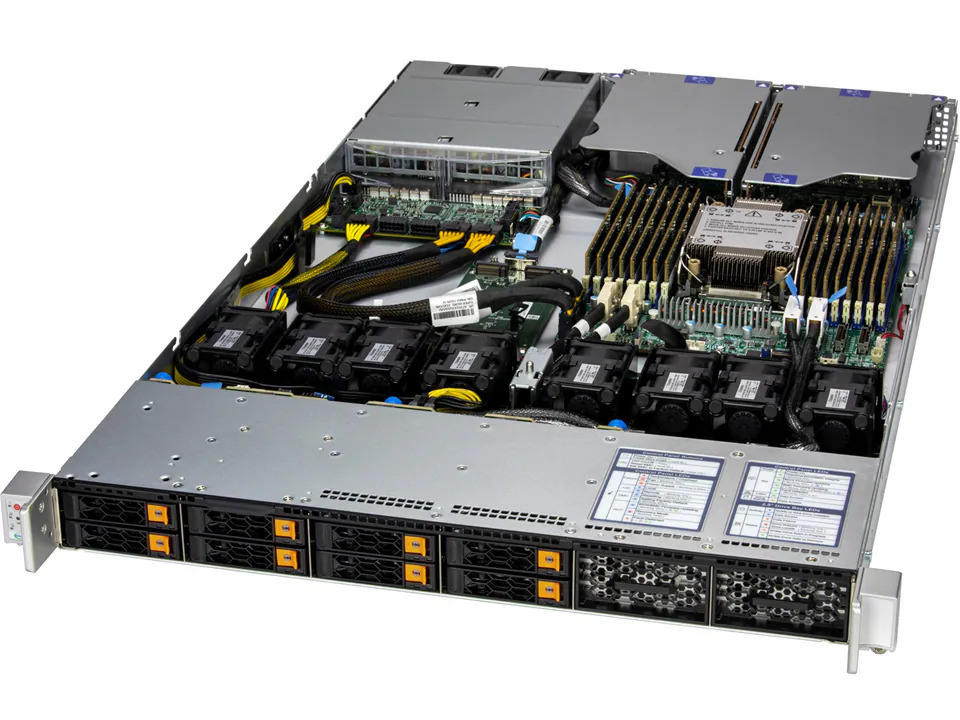

Colfax CX1165s-S8-X6 1U Rackmount Server




  • 1x Intel® Xeon® 6 Processor (6700E/6700P/6500P)
  • 16x DDR5 RDIMMs / MRDIMMs
  • 8x 2.5" Hot-Swap Gen5 NVMe Drive Bays

Features


* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores



Technical Specifications

Enclosure • 1U
• Dimensions (H x W x D) - 1.7" (43 mm) x 17.2" (437 mm) x 29.4" (747 mm)
CPU • Socket E2 (1x LGA 4710)
• Intel® Xeon® 6 processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors
- Intel® Xeon® 6500P-Series Processors
• Supports CPU TDP up to 350W
Chipset • System on Chip
Memory • 16x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
• Memory speed:
- RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
- MRDIMM*: Up to 8000 MT/s

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in an 1DPC configuration
Expansion Slots • 2x PCIe 5.0 x16 slots (FHHL)
OCP
• 1x OCP 3.0 (Gen5 x16)
Storage Front
• 8x 2.5" hot-swap SATA/Gen5 NVMe drive bays
Internal
• 2x M.2 (2280/22110), PCIe Gen5 x2
Networking • Via AIOM
• 1x 10/100/1000 Mbps management LAN
Video • 1x Mini-DP port
Power Supply • 1+1 1000W redundant PSUs
• AC Input:
- 800W: 100-127Vac / 50-60Hz
- 1000W: 200-240Vac / 50-60Hz
• +12 V:
- Max: 66.7 A (100–127 VAC)
- Max: 83 A (200–240 VAC)
• 12V SB
- Max: 2.1A
• 80PLUS Titanium
System Cooling • 6x counter-rotating PWM 40x40x56mm fans
• 2x counter-rotating PWM 40x40x56mm fans (optional)
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x 3.2 Gen1 Type-A ports (rear)
Video
• 1x Mini-DP port (rear)
TPM
• 1x TPM header
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Storage activity LED
• LAN1 activity LED
• LAN2 activity LED
• Power failed LED
• Power status LED
• System information LED
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• ACPI/APM Power Management
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring CPU
• Monitors for CPU Cores, Chipset Voltages, Memory
Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
BIOS • AMI 32Mb SPI Flash EEPROM

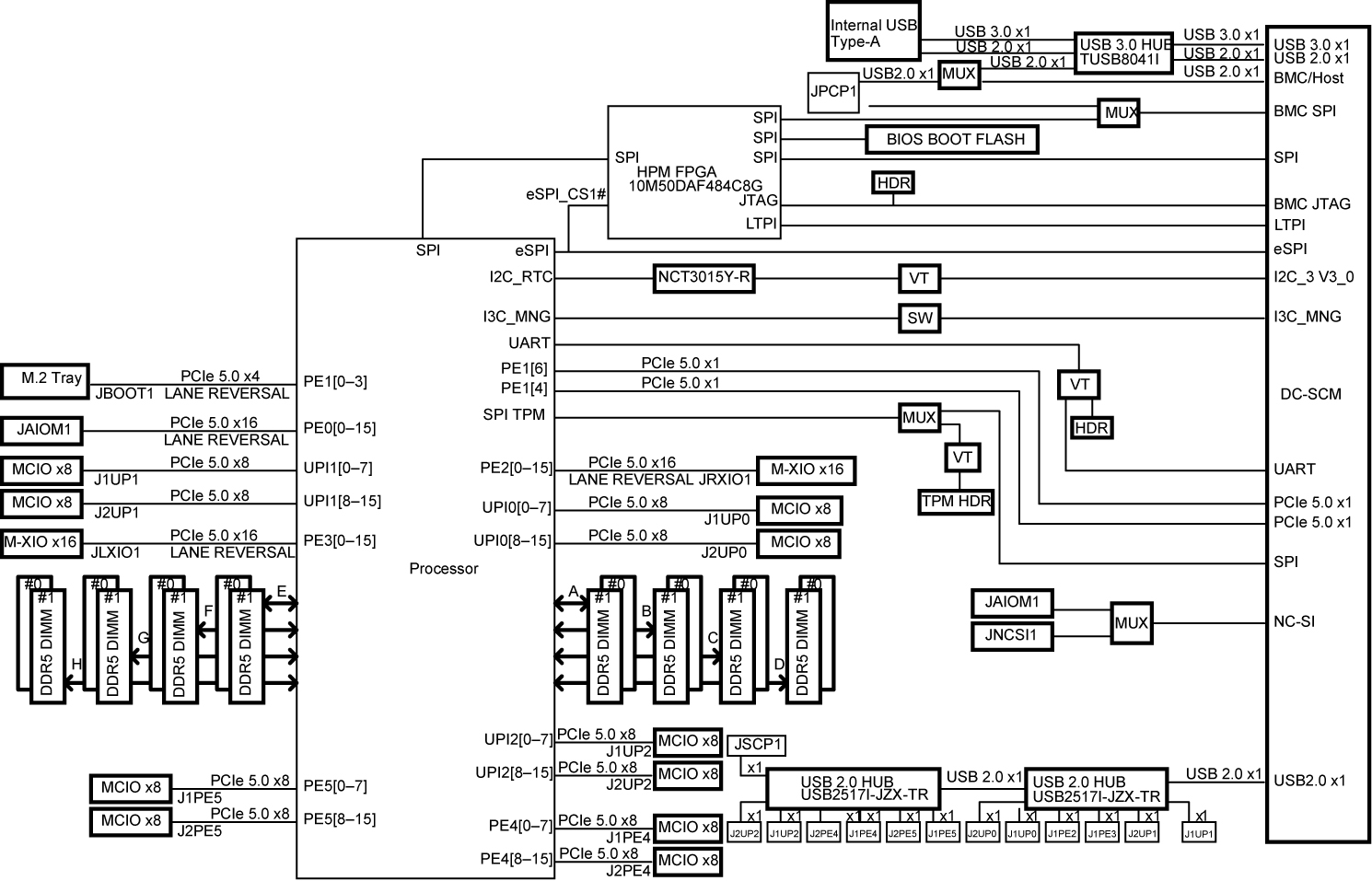

Block Diagram

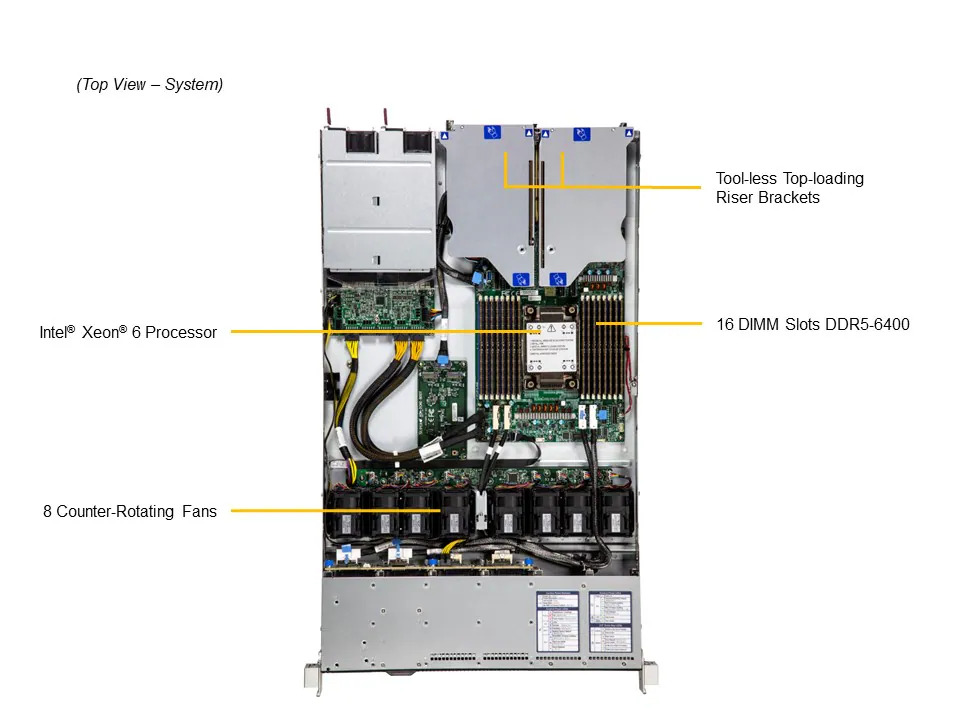

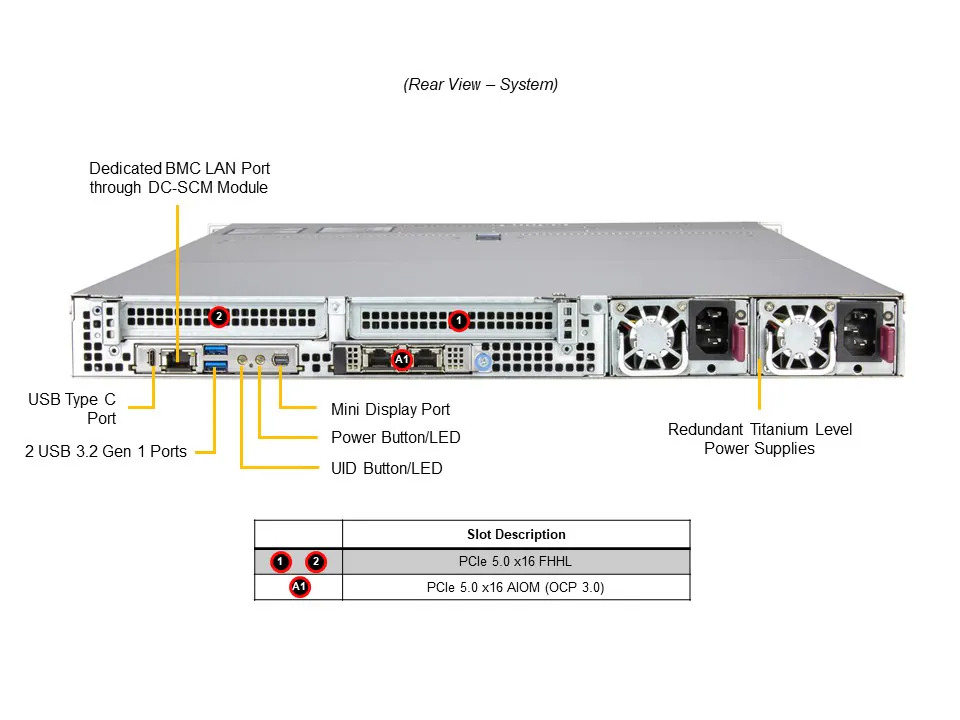

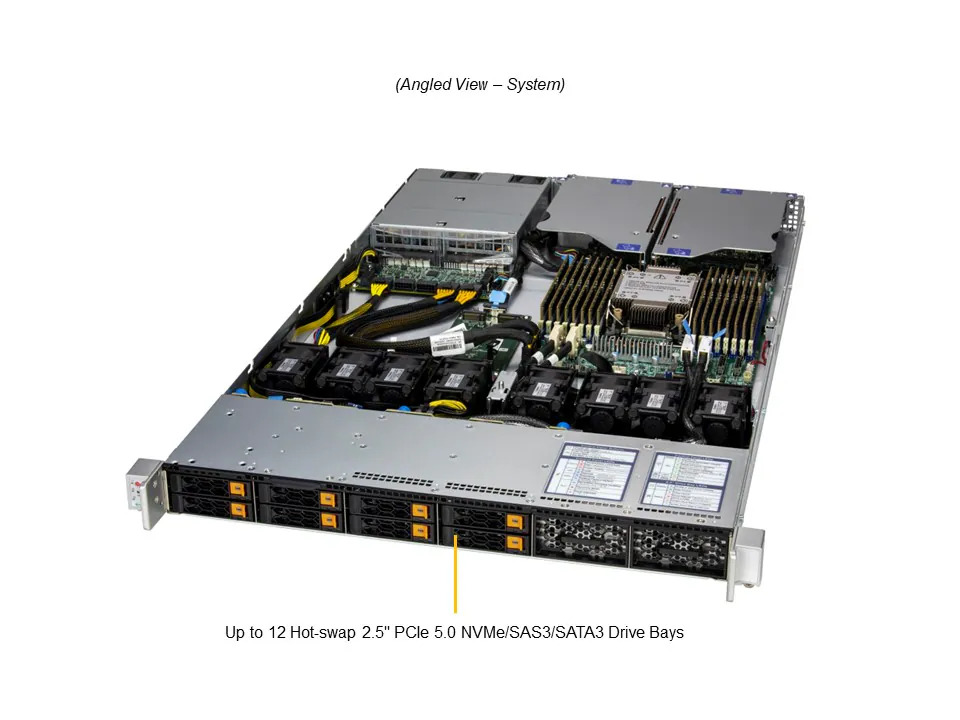

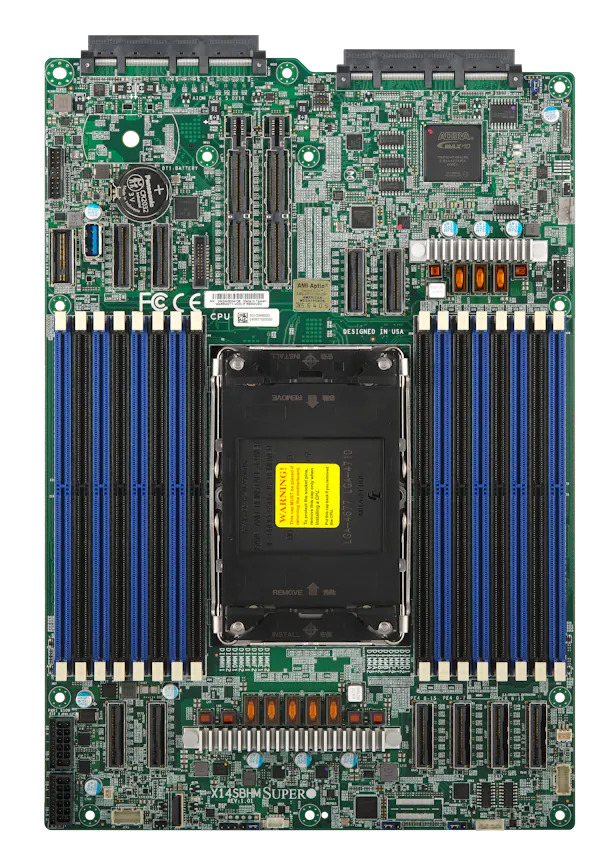

Images
