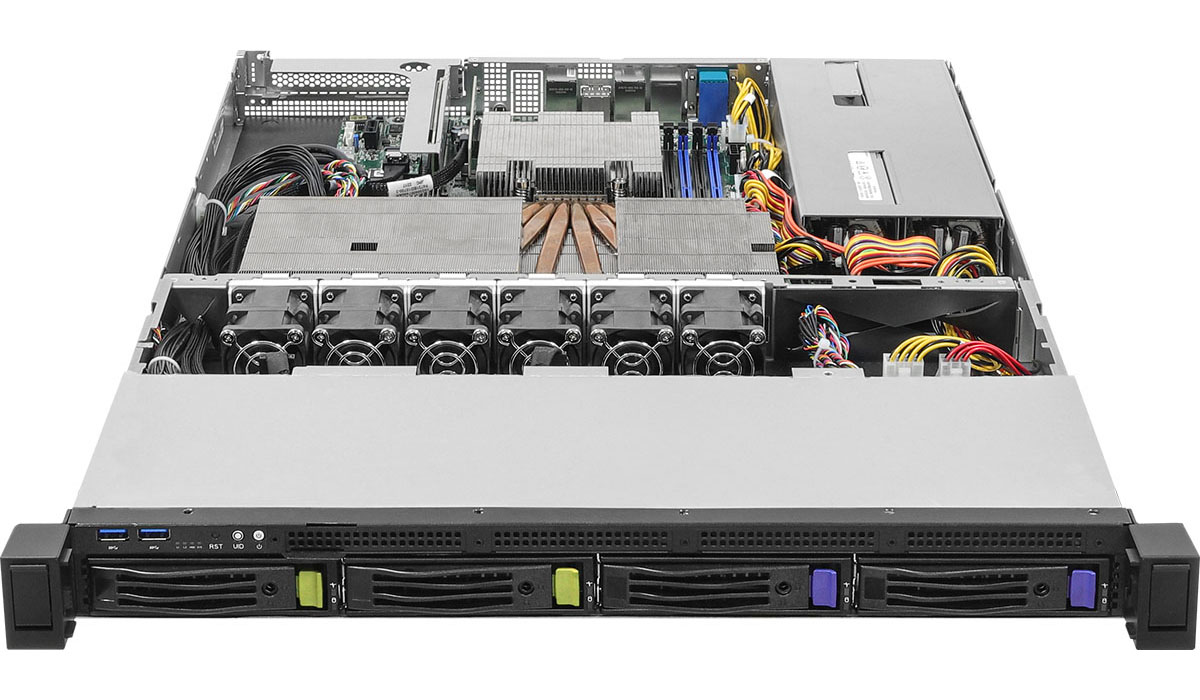

Colfax CX1170r-NVMe-E4 1U Rackmount Server



  • 1x AMD EPYC™ 4004 Series Processor
  • 4x DDR5 ECC/non-ECC UDIMM
  • 4x 3.5" Hot-Swap SATA Drive Bays (2x NVMe)
  • 1x PCIe 4.0 x16 Slot (FH/HL)

Features

  • 1x AMD EPYC™ 4004 Series Processor
  • 4x DIMM Sockets Support DDR5 ECC/non-ECC UDIMM
  • 1x PCIe 4.0 x16 Slot (FH/HL)
  • 4x 3.5" Hot-Swap SATA Drive Bays (2x NVMe*)
  • 2x M.2 NVMe SSDs (M2_1: PCIe 5.0 x4; M2_2: PCIe 4.0 x4*)
  • Integrated 2x 1GbE Ports (Intel® i210)
  • 1x Realtek RTL8211F for Dedicated Management
  • 1 HDMI, 1 DisplayPort
  • 1+1 650W Redundant Power Supplies


* If NVMe drives are configured, only M2_2 is available



Technical Specifications

Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43.4mm) x 17.2" (438mm) x 26.6" (676.5mm)
CPU • Single Socket AM5 (LGA 1718)
• Single AMD EPYC™ 4004 Series Processor
• Supports CPU TDP up to 170W
Chipset • AMD B650
Memory • 4 DIMM slots (2DPC)
• Supports DDR5 288-pin ECC/non-ECC UDIMM
• Max. DIMM Frequency 5200 MHz (1DPC); 3600 MHz (2DPC)
I/O Expansion • 1 PCIe 4.0 x16 slot (FH/HL)
Storage • 4x 3.5" hot-swap SATA drive bays (2x 2.5" NVMe*: PCIe 4.0 x4)
• M2_1 (PCIe 5.0 x4), supports 2280/2242 form factor (CPU)
• M2_2* (PCIe 4.0 x4), supports 2280/2242 form factor (FCH)

* If NVMe drives are configured, only M2_2 is available
Ethernet • Intel® i210: 2 RJ45 (1GbE)
Server Management BMC Controller
• ASPEED AST2600
IPMI Dedicated LAN
• 1x Realtek RTL8211F for dedicated management
Graphics ASPEED AST2600
• 1x DB15 (VGA), 1x (15-pin) header
AMD Processors with Graphics
• 1x HDMI, 1x DisplayPort
Power Supply • 1+1 650W slim redundant power supply
• AC Input
- 100-240Vrms, 50/60Hz
• 80PLUS Platinum Certified
System Cooling • 6 PWM hot-swap 40x56 mm fans
Rear I/O UID Button/LED
• 1x UID button w/ LED
VGA Port
• 1x DB15 (VGA), 1x DisplayPort, 1x HDMI
Serial Port
• 1x DB9 (COM) USB Ports
• 4x Type-A (USB 3.2 Gen1)
RJ45 Ports
• 2x RJ45 (1GbE)
• 1x dedicated IPMI
Front Panel Buttons
• Power, System reset
LEDs
• Power, HDD Activity, LANs, System Event
I/O Ports
• 2x Type-A (USB 3.2 Gen1)
BIOS • AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM

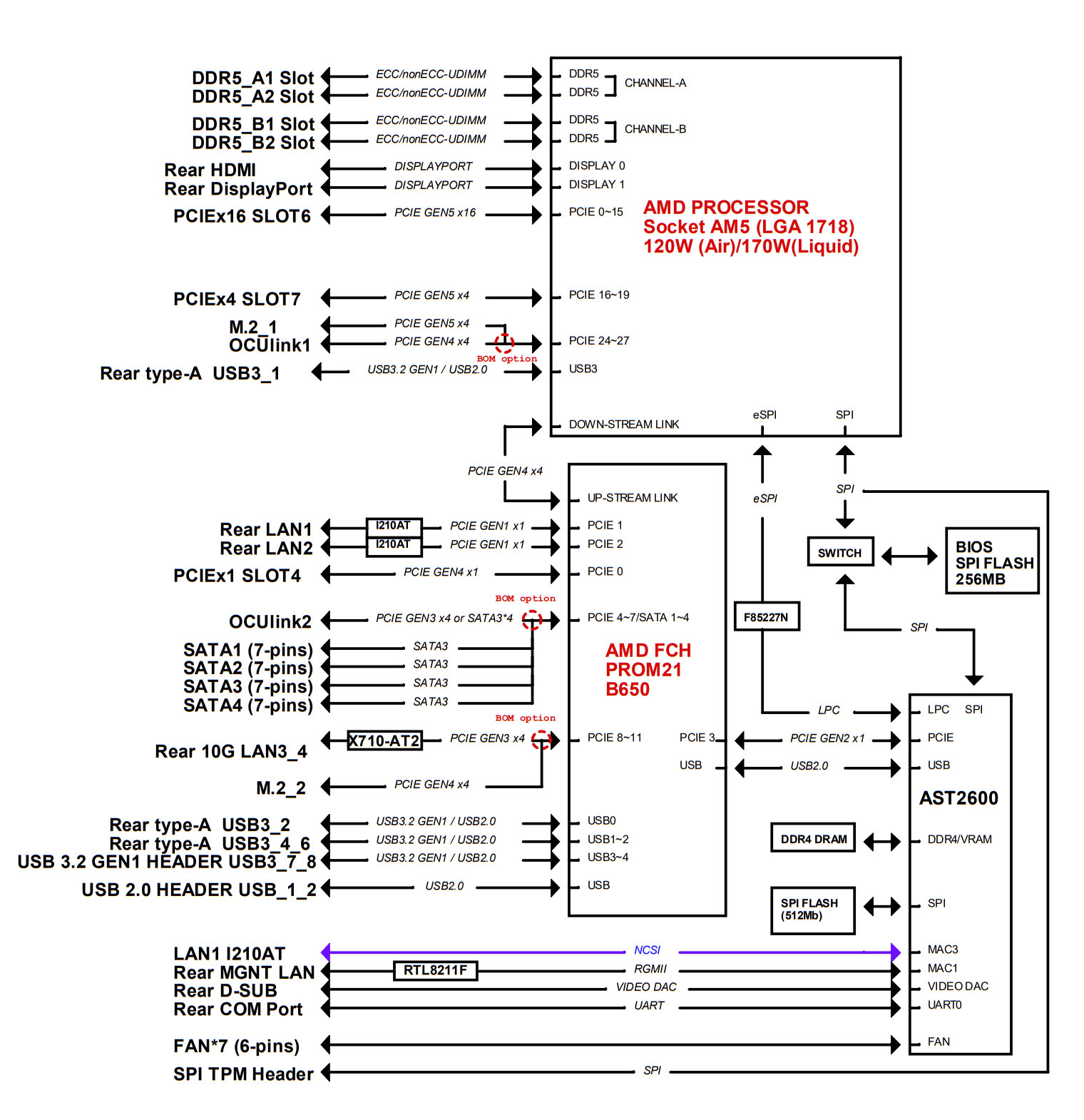

Block Diagram

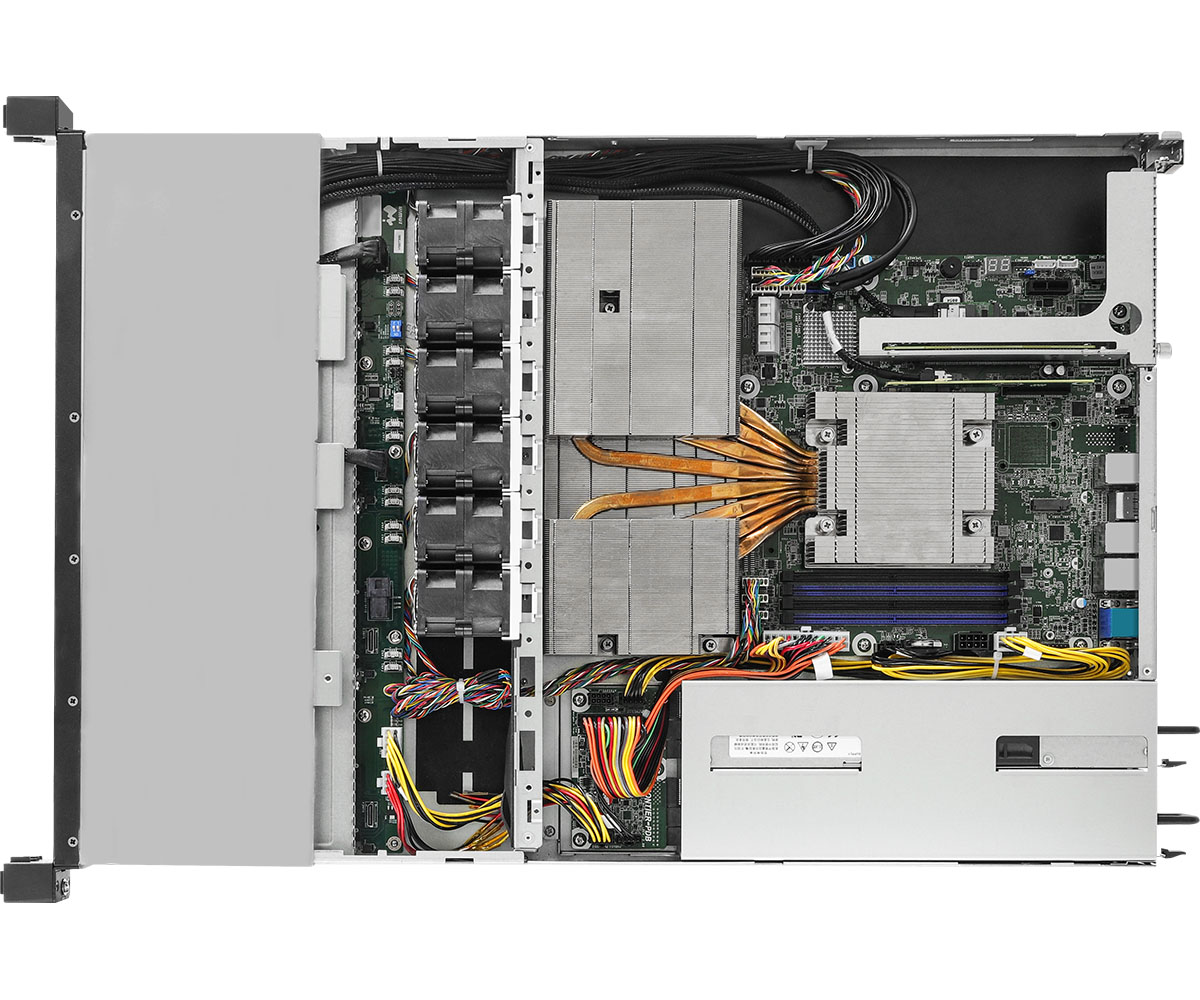

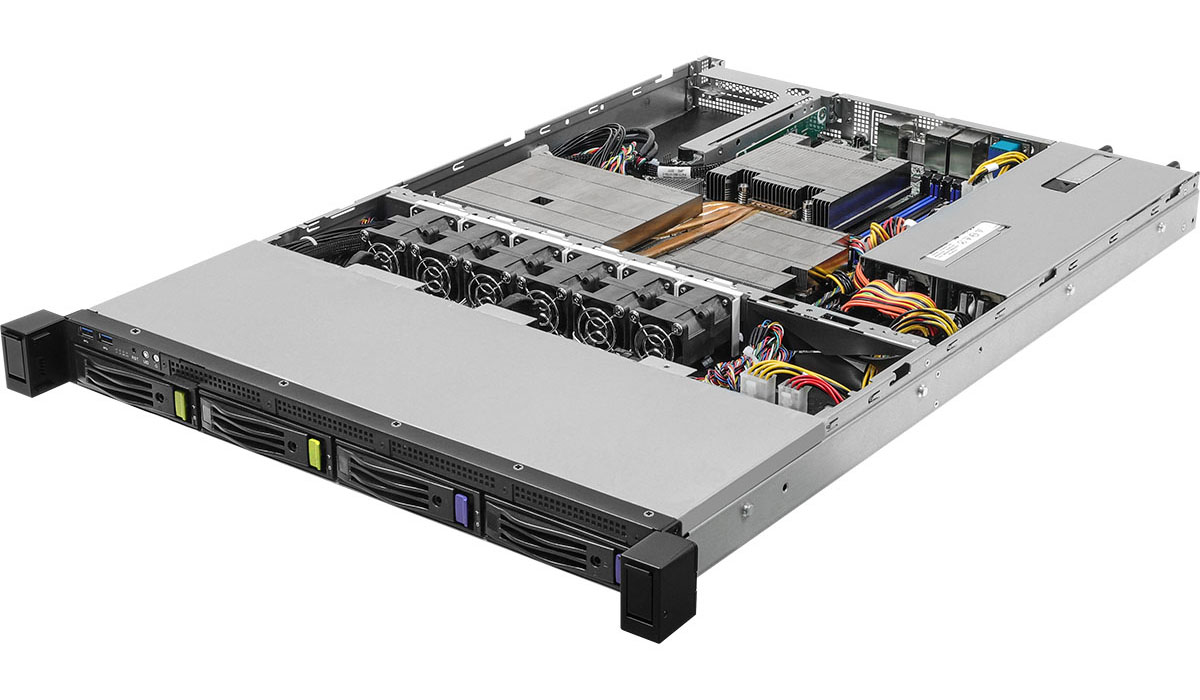

Images
