Colfax CX1170s-X9 1U Rackmount Server



  • Single 4th Gen Intel® Xeon® Scalable Processor
  • 8x DDR5 DIMM Sockets
  • 4x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD

Features

  • Single 4th Gen Intel® Xeon® Scalable Processor
  • 8x DIMM Sockets Support DDR5 ECC RDIMM
  • 2 PCI-E 5.0 x16 Slots (FHFL) + 1 PCI-E 5.0 x8 Slot (LP)
  • 4x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD (PCIe 3.0 x2)
  • Integrated 2x 1GbE Ports (Intel® i210)
  • 860W Redundant Power Supply, 80PLUS Platinum Certified


Technical Specifications

Chassis Form Factor • 1U
• Dimensions (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 25.6" (650mm)
CPU • Single Socket E (LGA 4677)
• 4th Gen Intel® Xeon® Scalable Processor
• TDP up to 300W
Chipset • Intel® C741
Memory • 8x DIMM Sockets
• Up to 2TB: 8x 256GB DRAM
• Memory Type: 4800/4400MHz ECC DDR5 RDIMM
I/O Expansion • Slot 1: PCIe 5.0 x16 FHFL
• Slot 2: PCIe 5.0 x16 FHFL
• Slot 3: PCIe 5.0 x8 (in x16) LP
Drive Bays / Storage • 4x 3.5" hot-swap drive bays
M.2
• 1 PCIe 3.0 x 2
• M-Key, 2280/22110
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0/1/5/10 support
Network Controllers
• 2x 1GbE BaseT with Intel® i210
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

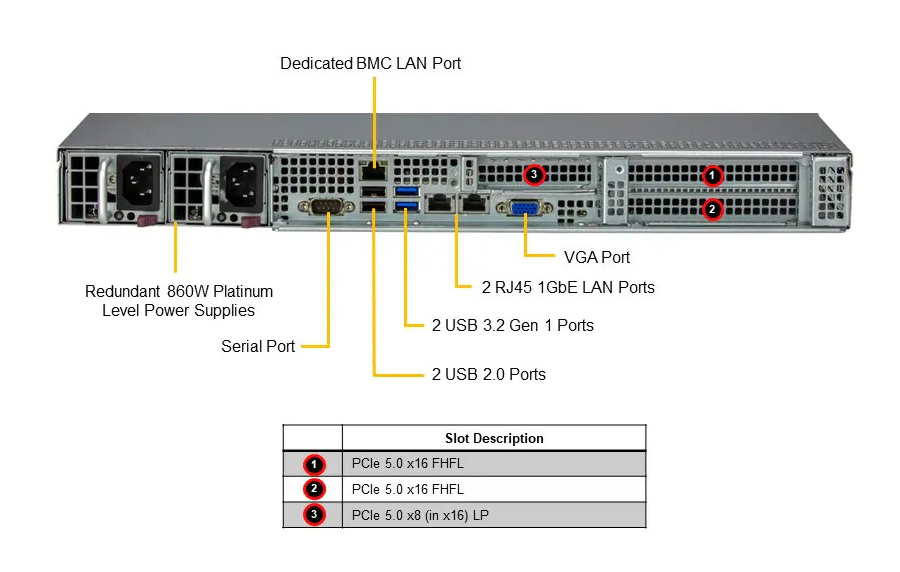

Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 2x RJ45 1GbE LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.2 Gen 1 ports (2 front; 2 rear)
• 3x USB 2.0 ports (2 rear; 1 Type A)
VGA
• 1x VGA port
Serial Port
• 2x COM ports (1 header; 1 rear)
Power Supply • 800W/860W 1U redundant power supply
• AC Input
- 800W: 100-127Vac / 9A-7.5A / 50-60Hz
- 860W: 200-240Vac / 6A-4.5A / 50-60Hz
• +12V
- Max: 66.6A / Min: 0A (100Vac-127Vac)
- Max: 71.6A / Min: 0A (200Vac-240Vac)
• 5V SB
- Max: 4A / Min: 0A
• 80PLUS Platinum Certified
System Cooling • 5x middle cooling PWM 40x40x56mm fans

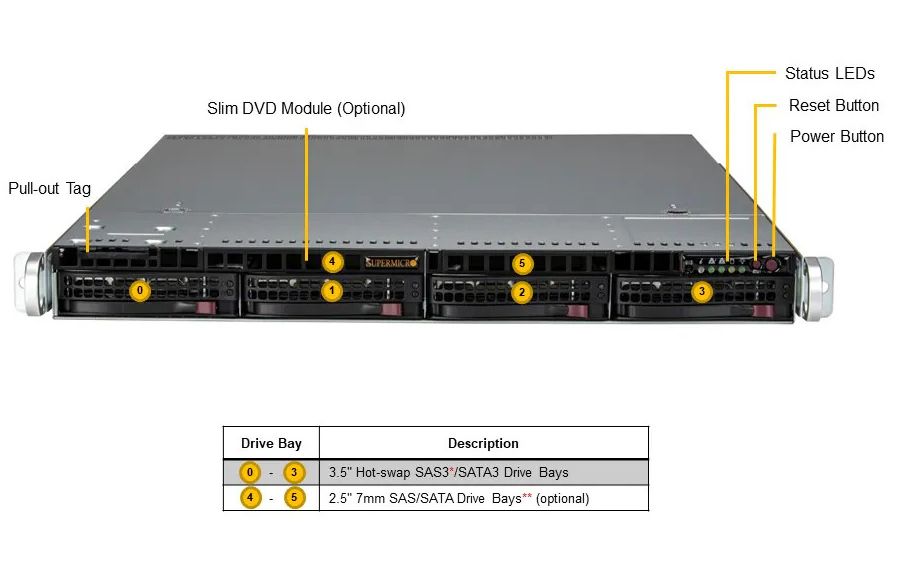

Front Panel Buttons
• Power On/Off
• UID
LEDs
• Power status
• Device activity
• 2x Network activity
• System Information
BIOS • AMI 32Mb SPI Flash ROM

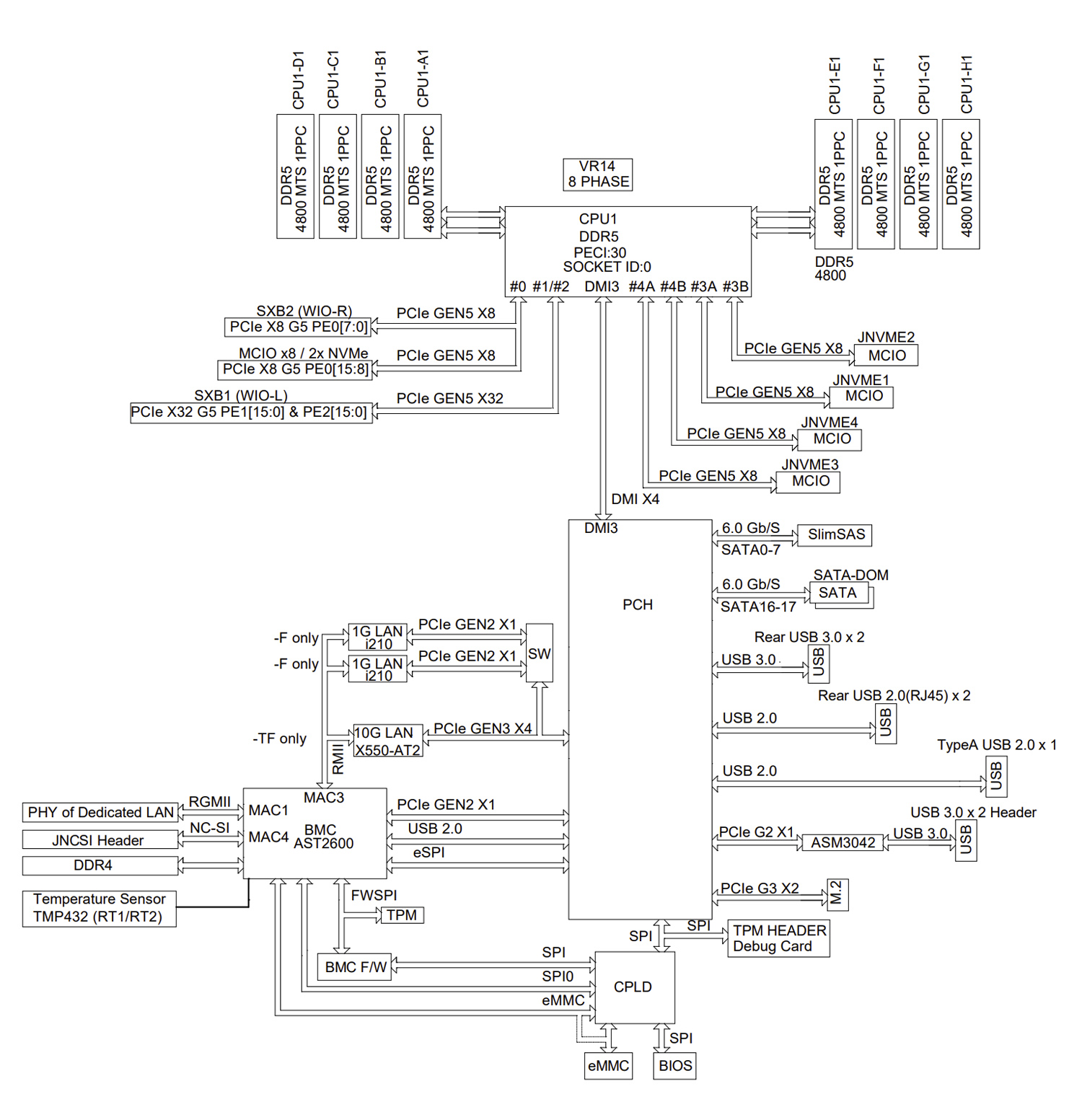

Block Diagram

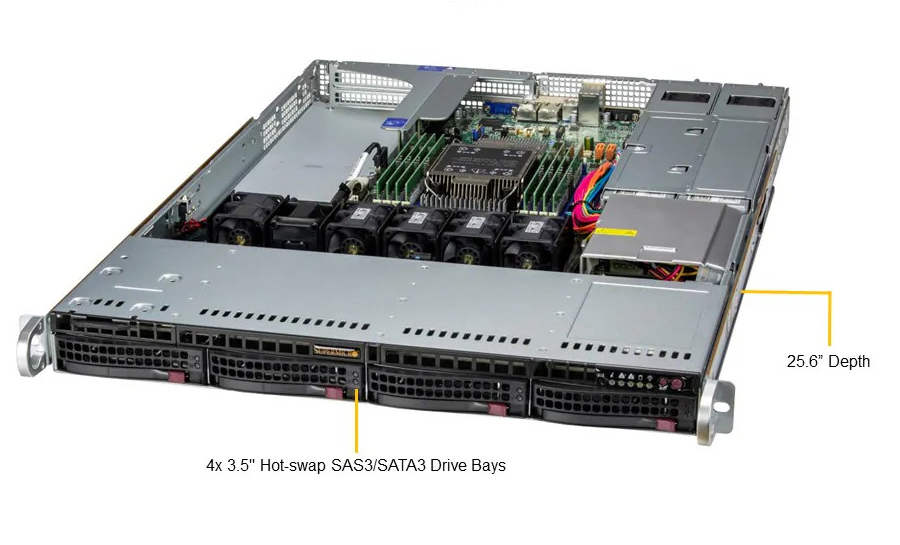

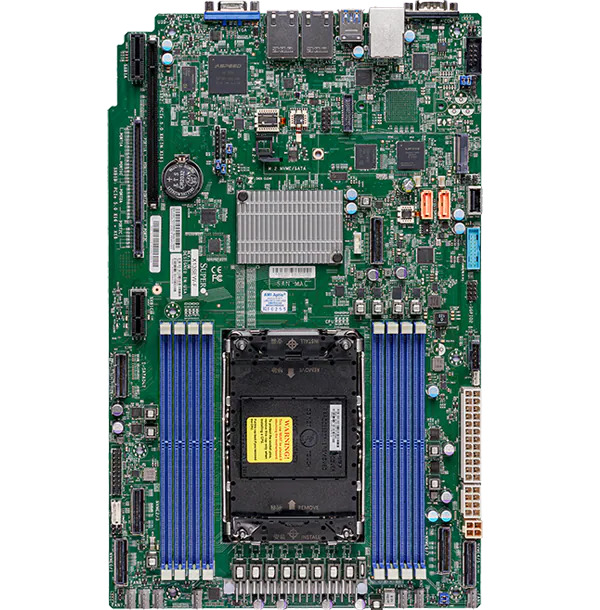

Images
