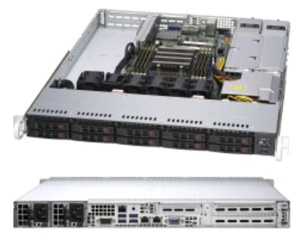

Colfax CX1175s-E8 1U Rackmount Server



  • 1x AMD EPYC™ 7002 Processor
  • 8x DDR4 DIMM Sockets
  • 8x Hot-Swap 2.5" SATA Drives + 2x U.2 NVMe SSDs
  • 2 PCI Express 4.0 x16 Slots (FH/FL)

Features

  • 1x AMD EPYC™ 7002 Series Processor
  • 8x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • 2 PCI Express 4.0 x16 Slots (FH/FL)
  • 1 PCI Express 4.0 x16 Slot* (LP)
  • 8x Hot-Swap 2.5" SATA Drives + 2x U.2 NVMe SSDs
  • 2x M.2 NVMe SSDs
  • Integrated 2x 10GbE LAN Ports via Broadcom BCM57416 Controller + Management LAN
  • 500W Redundant Power Supplies with PMbus, Platinum Level


* Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed

Technical Specifications

CPU • Socket SP3
• Single AMD EPYC™ 7000-series Processor
• Up to 240W TDP
Memory • 8 DIMM Sockets
• Supports up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
• 8-channel memory bus
I/O Expansion • 2 PCI-E 4.0 x16 (FH/FL) slots
• 1 PCI-E 4.0 x16 slot (LP)*
M.2
• 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots

* Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed
Onboard Devices SATA
• SATA3 (6 Gbps)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
• Dual 10GBase-T LAN with via Broadcom BCM57416
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 2x SATA3 (6Gbps) ports
LAN
• 2 RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
VGA
• 1 VGA port
DOM
• 2x SATA DOM ports
Chassis Form Factor • 1U Rackmount

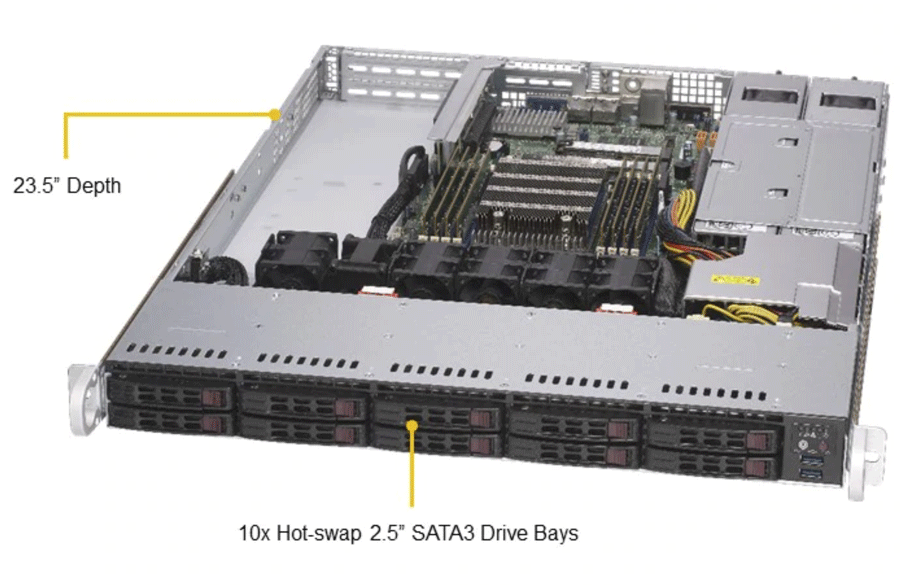

• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 23.5" (597mm)
Power Supply • 500W Redundant Power Supplies with PMbus
• Input
- 100-240Vac, 50-60Hz, 6.1-2.6A
• +12V
- Max: 42A / Min: 0.5A
• +5V sb
- Max: 4A / Min: 0A
• With Power Distributor
- +5V: 25A
- +3.3V: 12A
- -12V: 0.6A
• 80PLUS Platinum Certified

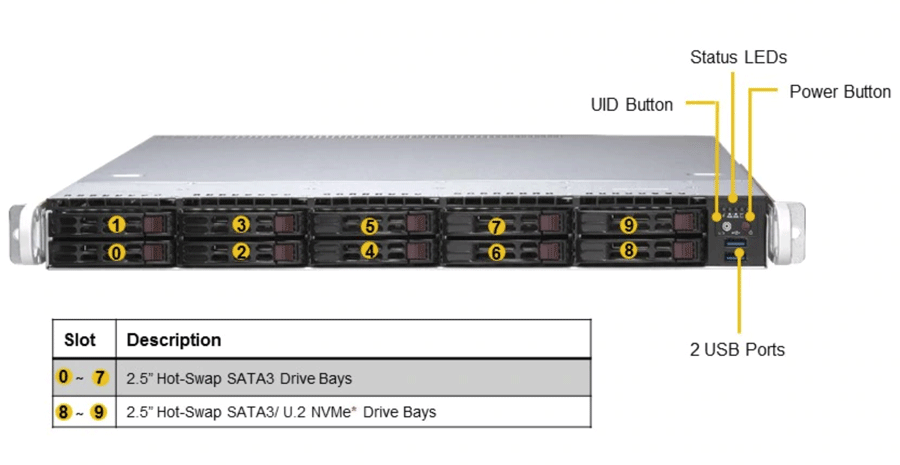

Storage • 10x 2.5" hot-swap drive bays
• Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Backplane • SAS/SATA HDD Backplane
System Cooling • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• UID LED
BIOS • AMI 32Mb SPI Flash EEPROM


Block Diagram


Images
