Colfax CX1185s-E9 1U Rackmount Server



  • 1x AMD EPYC™ 9004/9005 Series Processor
  • 24x DDR5 DIMM Sockets
  • 8x 2.5" Hot-Swap Drive Bays
  • 2 PCI Express 5.0 x16 Slots (FH/10.5"L)

Features

  • 1x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processor
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 2 PCIe 5.0 x16 Slots (FH/10.5"L)
    - 1 PCIe 5.0 x16 Slot (FH/6.6"L)
    - 1 PCIe 5.0 x16 AIOM Slot
  • 8x 2.5" Hot-Swap NVMe Drive Bays (Option for up to 12* Drives)
  • 2x M.2 NVMe SSDs (PCIe 3.0 x2 and x4)
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 800W/1200W** Redundant*** Power Supplies


* Imposes restrictions on CPU TDP
** 800W: 100-127Vac | 1200W: 200-240Vac
*** Full redundancy based on configuration and application load



Technical Specifications

Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 29.4" (747mm)
CPU • Socket SP5
• Single AMD EPYC™ 9004/9005 Series Processor
• Supports CPU TDP up to 400W*

* Air Cooled CPUs with TDP over 360W only supported under specific conditions.
Memory • 24x DIMM Sockets
• Memory Capacity
- Up to 3TB: DDR5-4800MHz (12 DIMM slots, 1DPC)
- Up to 6TB: DDR5-4000/3600MHz (24 DIMM slots, 2DPC)
• Memory Type 4800MHz (1DPC) or 4000/3600MHz (2DPC) ECC DDR5 RDIMM
I/O Expansion • 2 PCIe 5.0 x16 Slots (FH/10.5"L)
• 1 PCIe 5.0 x16 Slot (FH/6.6"L)
• 1 PCIe 5.0 x16 AIOM Slot
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• Via AIOM
VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 3x USB 3.0 ports (1x front; 2x rear)
VGA
• 1 VGA port
Power Supply • 1U 800W/1200W Redundant CRPS w/PMBus power supply
• AC Input
- 800W: 100-127Vac / 50-60Hz
- 1200W: 200-240Vac / 50-60Hz
• +12V
- Max: 66.7A / Min: 0A (100Vac-127Vac)
- Max: 100A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80 PLUS Titanium Certified
Storage Drive Bays
• 8x 2.5" hot-swap NVMe drive bays (Option for up to 12* Drives)
M.2
• 2x M.2 (PCIe 3.0 x2 and x4)

* Imposes restrictions on CPU TDP.
System Cooling • 8x 4cm heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Hard drive activity LED
• LAN1 activity LED
• Power status LED
• System information LED
BIOS • AMI 256MB SPI Flash

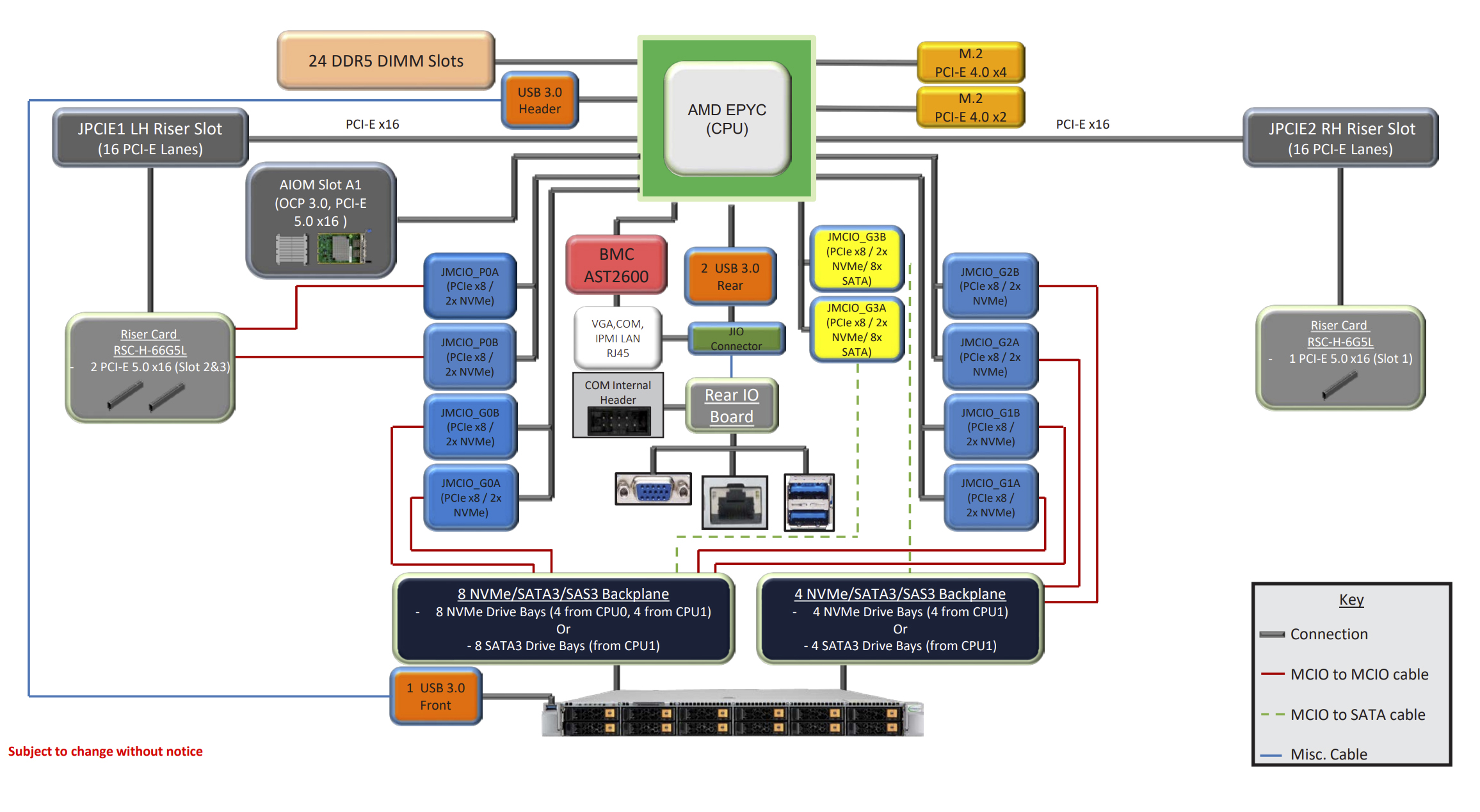

Block Diagram

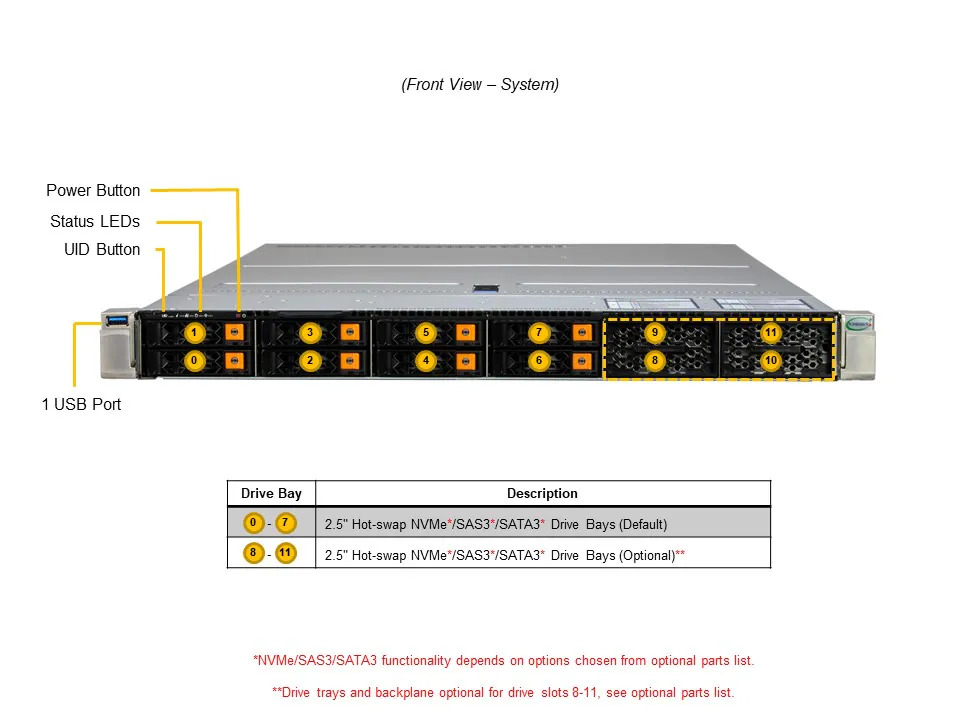

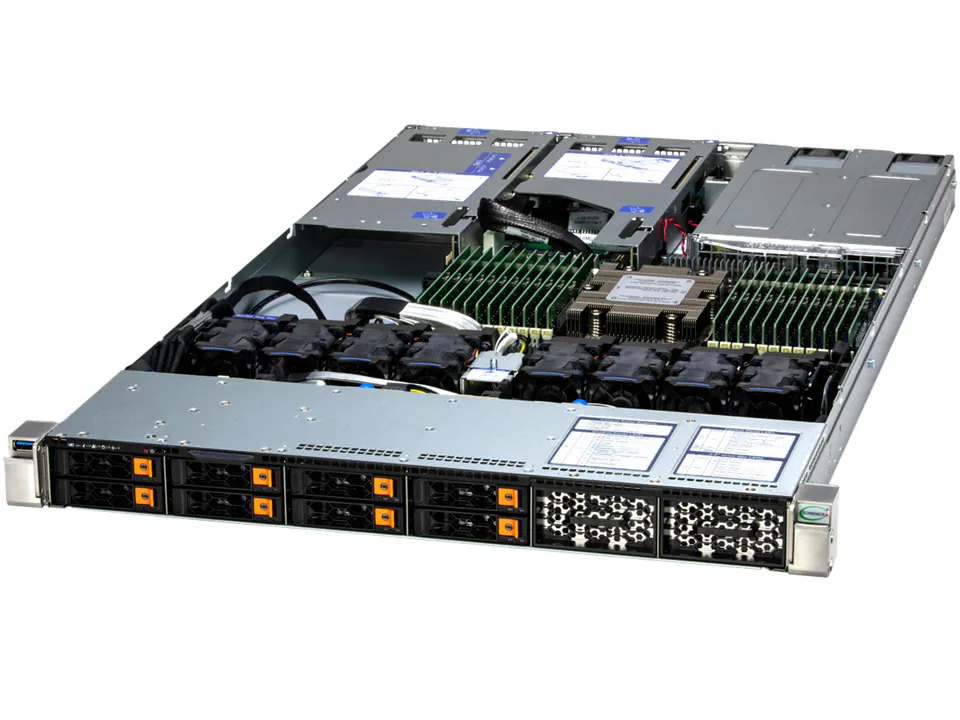

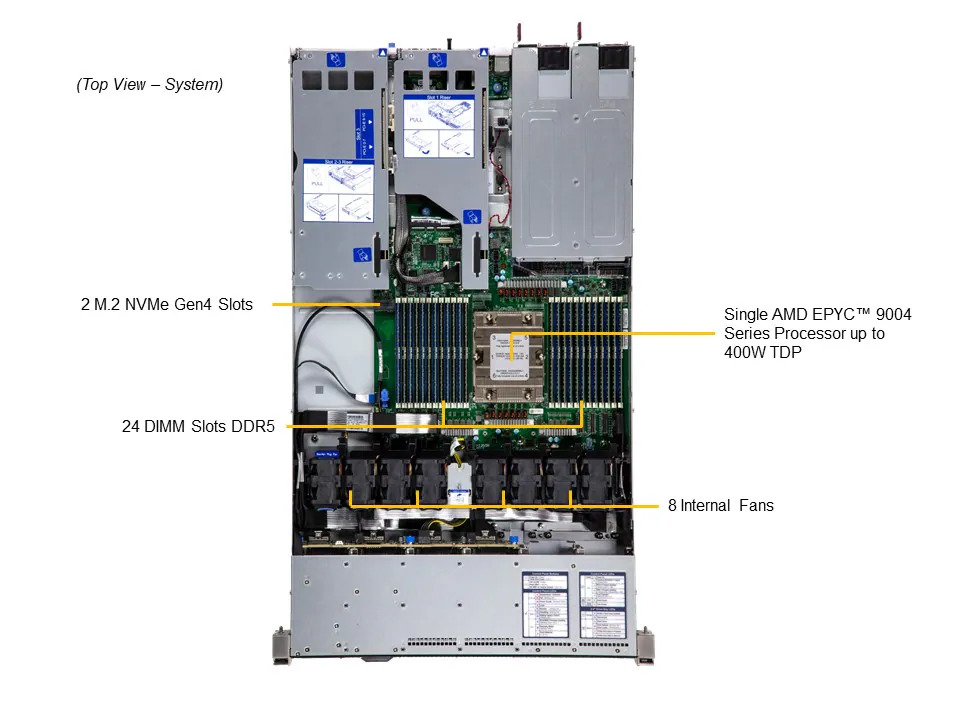

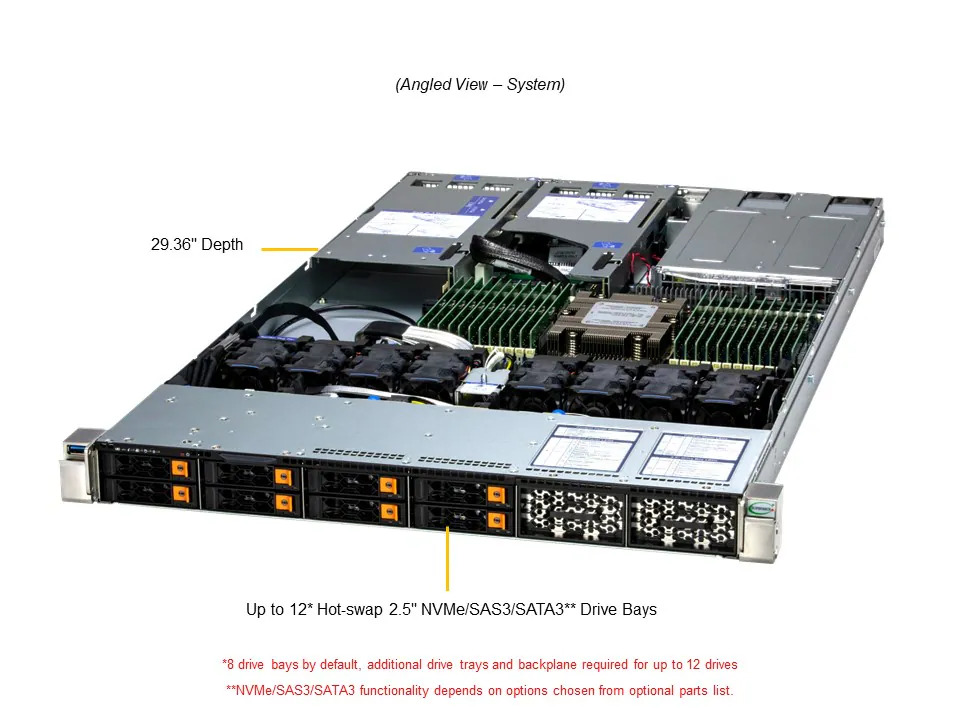

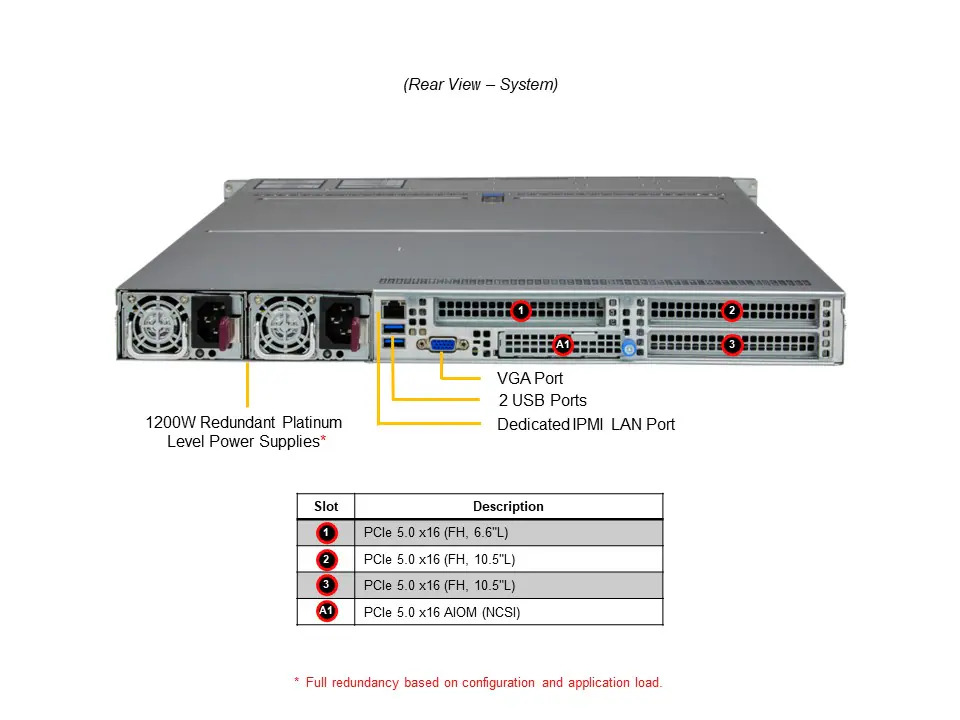

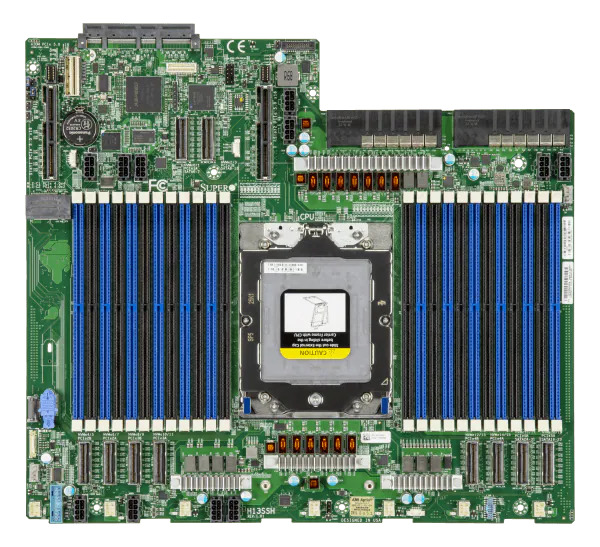

Images


$3,652.07


  Qty.Colfax CX1185s-E9 1U Rackmount Server, Cost As Configured $3,652.07
Base Platform 1
Primary CPU 1
Memory Socket 1 of 24    1

Set next    items (  ) like this
Memory Socket 2 of 24    1
Memory Socket 3 of 24    1
Memory Socket 4 of 24    1
Memory Socket 5 of 24    1
Memory Socket 6 of 24    1
Memory Socket 7 of 24    1
Memory Socket 8 of 24    1
Memory Socket 9 of 24    1
Memory Socket 10 of 24    1
Memory Socket 11 of 24    1
Memory Socket 12 of 24    1
Memory Socket 13 of 24    1
Memory Socket 14 of 24    1
Memory Socket 15 of 24    1
Memory Socket 16 of 24    1
Memory Socket 17 of 24    1
Memory Socket 18 of 24    1
Memory Socket 19 of 24    1
Memory Socket 20 of 24    1
Memory Socket 21 of 24    1
Memory Socket 22 of 24    1
Memory Socket 23 of 24    1
Memory Socket 24 of 24    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Disk Drive 5    1
Disk Drive 6    1
Disk Drive 7    1
Disk Drive 8    1
Supermicro AIOM 1
Infiniband HBA 1
Ethernet HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX1185s-E9 1U Rackmount Server, Cost As Configured $3,652.07
