Colfax CX1250g-NVMe5-S4-X6 1U Rackmount Server




  • 2x Intel® Xeon® 6 Processors
  • 24x DDR5 RDIMMs / MRDIMMs
  • 4x 3.5"/2.5" Drive Bays

Features

  • 2x Intel® Xeon® 6 Processors (Product Brief)   (Click here for Specifications and Comparison)
    - P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
    - Deep Dive: Intel® Xeon® 6 Processors with P-Cores
    - Deep Dive: Intel® Xeon® 6 Processors with E-Cores
  • 24x DIMM Sockets Support DDR5 ECC RDIMM/MRDIMM*
  • 2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 Gen5 x16 Slots
  • 4x 3.5"/2.5" Drive Bays (SATA/Gen5 NVMe SSDs)
  • 3x M.2 SSDs (2 PCIe 5.0 x4; 1 PCIe 5.0 x2)
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 1x Dedicated Management Port
  • 2x 2000 Watts RPSU, 80PLUS Titanium
  • Dual ROM Architecture Supported

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores





Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.7" x 32.09" (438 x 43.5 x 815 mm)
CPU • Socket BR (2x LGA 7529)
• Intel® Xeon® 6 processors
• Supports CPU TDP up to 500W
Chipset • System on Chip
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Memory speed:
- RDIMM: Up to 6400 MT/s
- MRDIMM*: Up to 8800 MT/s

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores
Expansion Slots • Riser Card 1: 1x PCIe 5.0 x16 slot (FHHL) from CPU_0
• Riser Card 2: 1x PCIe 5.0 x16 slot (FHHL) from CPU_1
• 1x OCP 3.0 Gen5 x16 slot from CPU_0
- Supports NCSI function
• 1x OCP 3.0 Gen5 x16 slot from CPU_1
- Supports NCSI function
Storage • 4x 2.5" hot-swap drive bays
- NVMe from CPU_0
M.2
• 2x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0
• 1x M.2 (2280), PCIe Gen5 x2, from CPU_0 (I/O board - CDCR010)
Networking • 2x 1Gb/s LAN (Intel® I350-AM2)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x Mini-DP
Power Supply • 2x 2000W redundant PSUs
• AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
• DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
• 80PLUS Titanium
System Cooling • 8 x 40x40x56mm (38,000rpm)
Front I/O • 1x USB 3.2 Gen1 port (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 2x LAN activity LEDs
• 1x Storage activity LED
• 1x System status LED

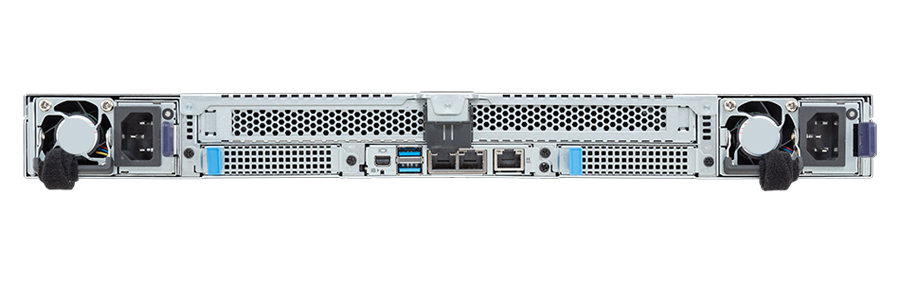

Rear I/O I/O board - CDCR010:
• 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 2x RJ45 ports
• 1x MLAN
• 1x ID LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

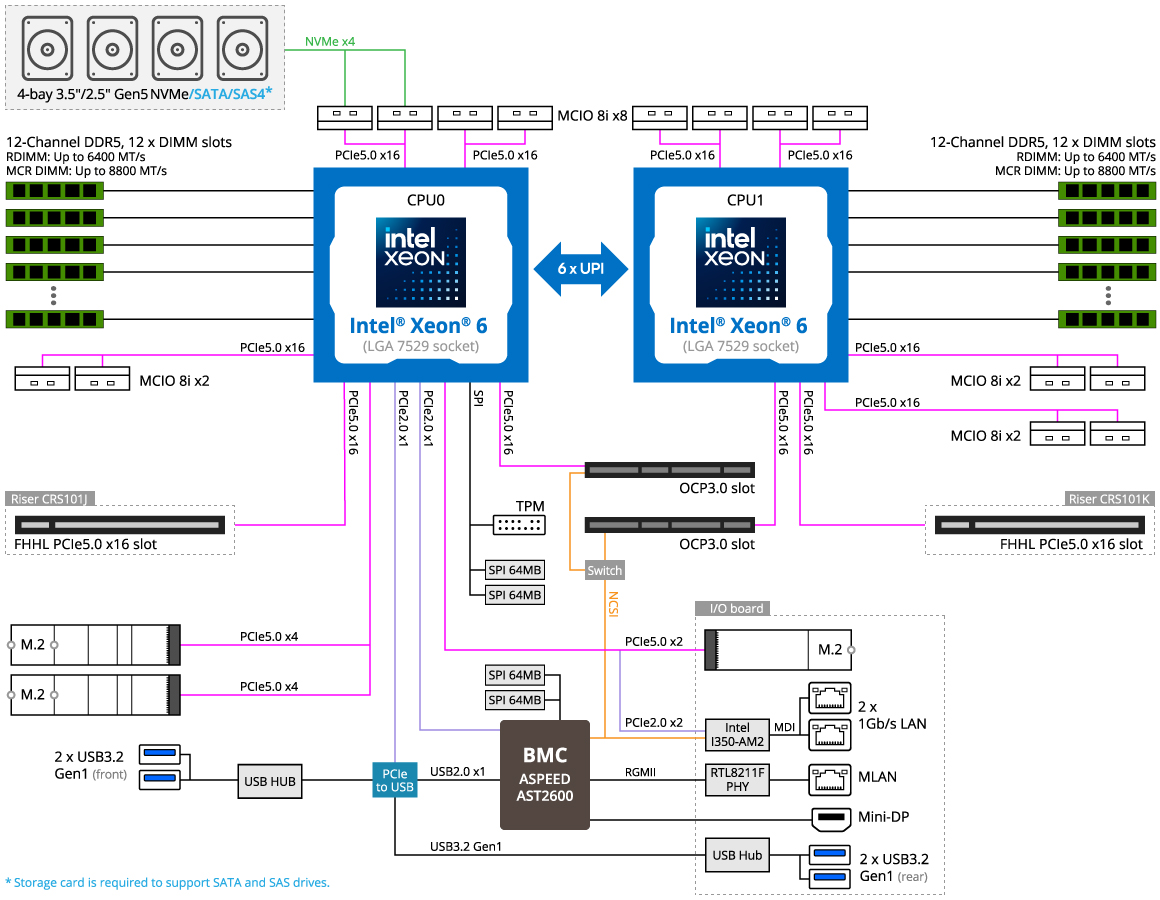

Block Diagram

Images
