Colfax CX1255g-NVMe5-S12-AAV1-E9 1U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 24x DDR5 DIMM Sockets
  • 12x 2.5" Gen5 NVMe Drive Bays
  • 2x PCIe 5.0 x16 FHHL Slots

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 Gen5 x16 Slots
  • 12x 2.5" Hot-Swap Gen5 NVMe Drive Bays
  • 3x M.2 with PCIe 3.0 x4 and x2 Interface
  • 2x 1Gb/s Intel® I350-AM2 LAN Ports
  • 1x Dedicated Management Port
  • 2x 1600 Watts RPSU, 80 PLUS Titanium
  • Dual ROM Architecture Supported





Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.7" x 32.09" (438 x 43.5 x 815 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports cTDP up to 300W
- OCP NIC 3.0 ≦ 21W at 30°C ambient, cTDP up to 400W
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s
• AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Expansion Slots • PCIe Cable x 2:
- 1x PCIe 5.0 x16 FHHL slot from CPU_0
- 1x PCIe 5.0 x16 FHHL slot from CPU_1
• 2x OCP 3.0 Gen5 x16 slots (1x from CPU_0 and 1x from CPU_1)
- Supported NCSI function
Storage Front
• 12x 2.5" hot-swappable Gen5 NVMe drive bays
- 4x NVMe from CPU_0, 8x NVMe from CPU_1
Internal M.2
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
• 1x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
Networking • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1 x Mini-DP
Power Supply • 2x 1600W redundant PSUs
• AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
• DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 8x 40x40x56mm (32,000 rpm)
Front I/O • 1x USB 3.2 Gen1 port (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 2x LAN activity LEDs
• 1x Storage activity LED
• 1x System status LED
Rear I/O G-SCM board - CDCR114:
• 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 2x RJ45
• 1x MLAN
• 1x ID LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings


Block Diagram

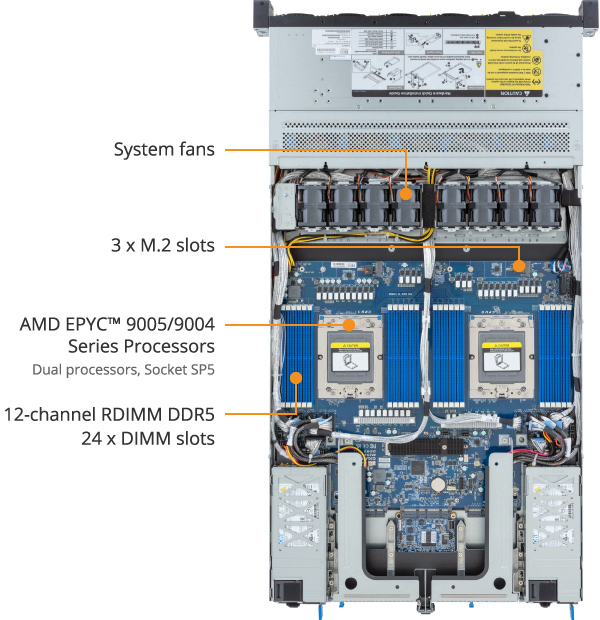

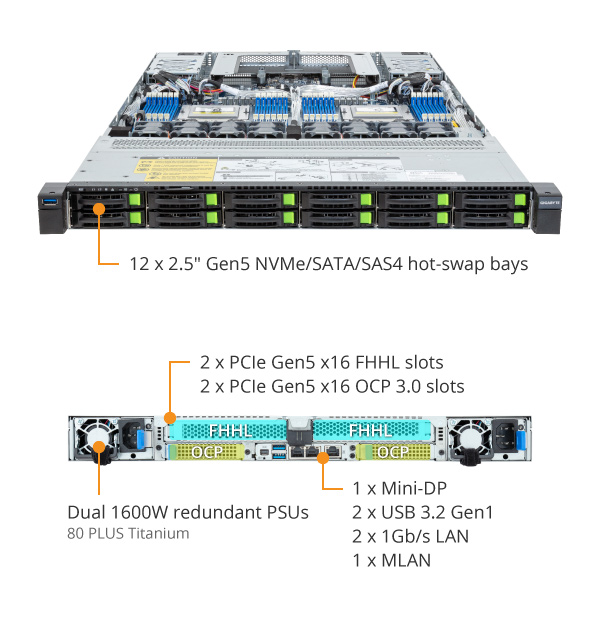

Images
