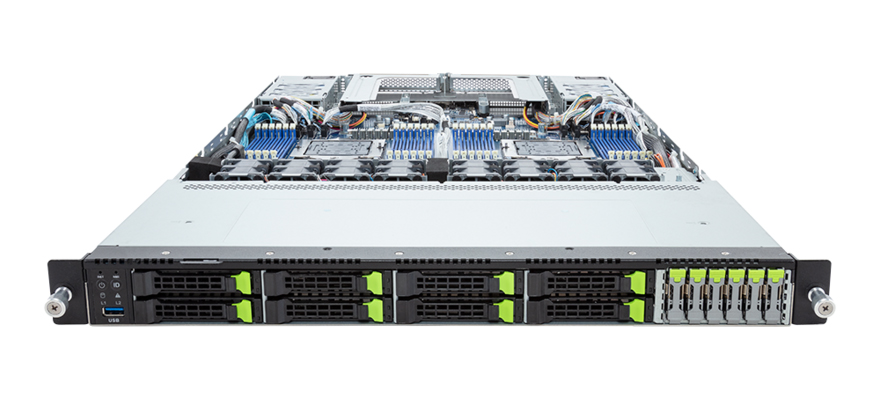

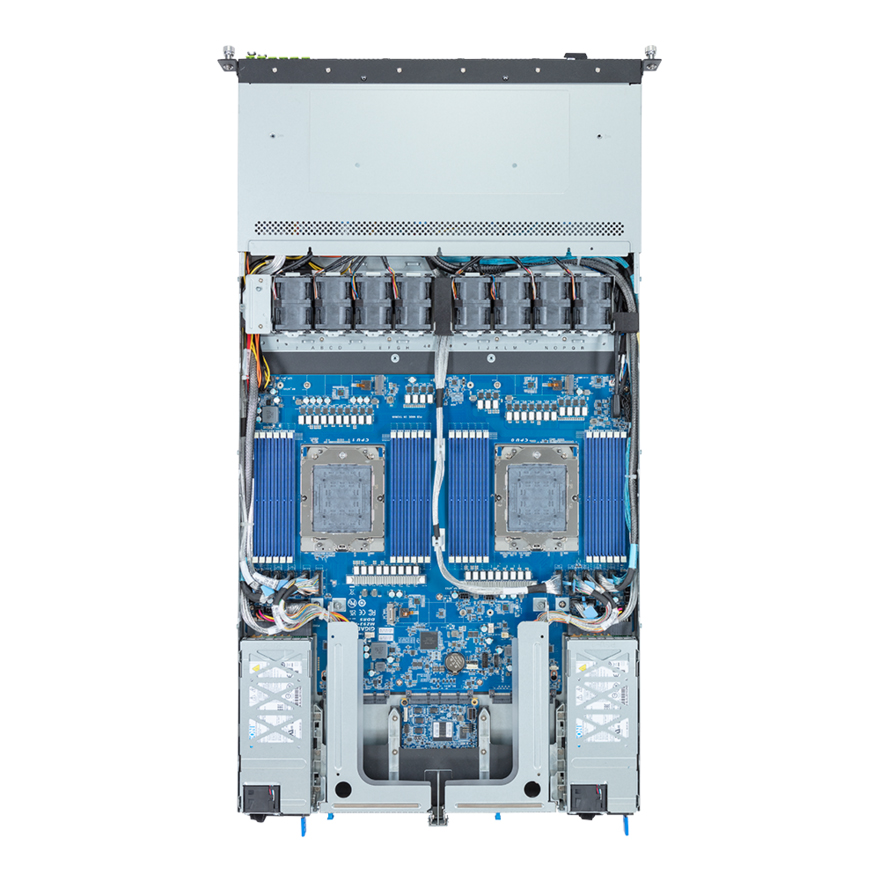

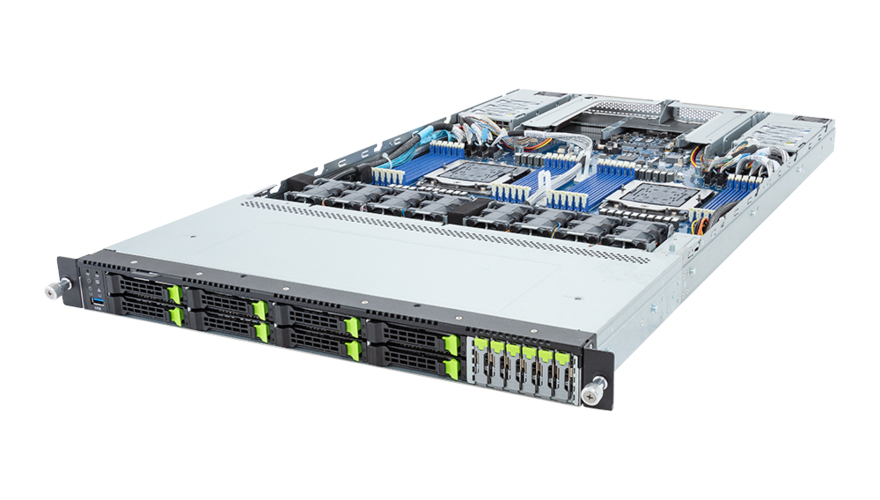

Colfax CX1255g-NVMe5-SH14-E9 1U Rackmount Server

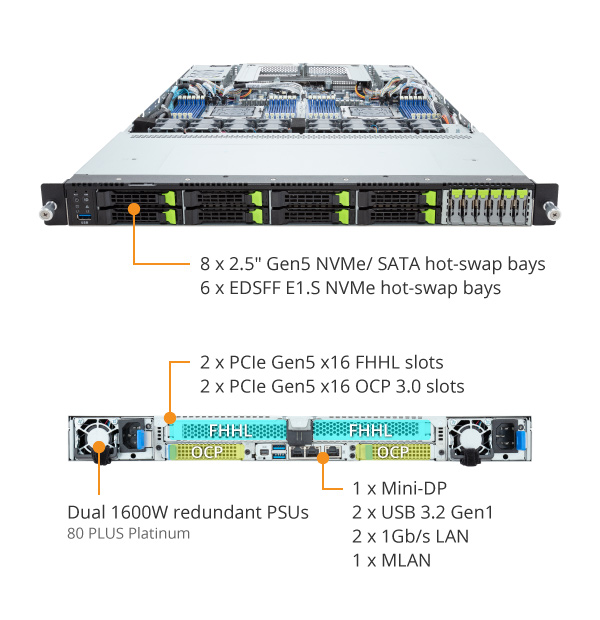

  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 24x DDR5 DIMM Sockets
  • 8x 2.5" Gen5 NVMe Drive Bays
  • 6x E1.S NVMe Drive Bays

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 Gen5 x16 Slots
  • 8x 2.5" Gen5 NVMe Drive Bays
  • 6x E1.S NVMe Drive Bays
  • 2x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1x Dedicated Management Port
  • 2x 1600W (240V) RPSU
  • Dual ROM Architecture Supported




GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.7" x 32.09" (438 x 43.5 x 815 mm)
CPU • 2x LGA 6096; Socket SP5
• AMD EPYC™ 9004/9005 Series Processors
• Supports cTDP up to 300W at ambient 35°C
• Supports CPU TDP up to 400W under limited thermal conditions

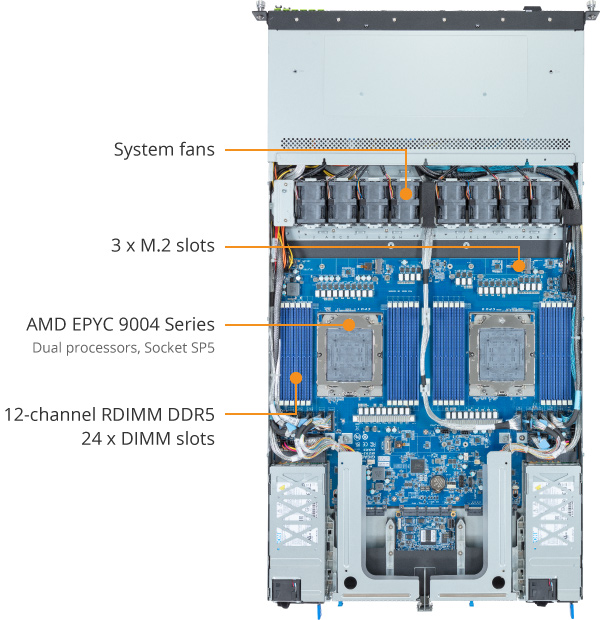

Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Memory speed: Up to 4800 MHz
Expansion Slots • PCIe Cable x2:
- 1x PCIe 5.0 x16 slot (FHHL) from CPU_0
- 1x PCIe 5.0 x16 slot (FHHL) from CPU_1
• 1x OCP 3.0 Gen5 x16 slot from CPU_0
- Supported NCSI function
• 1x OCP 3.0 Gen5 x16 slot from CPU_1
- Supported NCSI function
M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_0
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_1
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x2 from CPU_1
- Supports 2280/22110 cards
Storage • 6x 9.5mm E1.S NVMe hot-swappable bays
• 8x 2.5" Gen5 NVMe/SATA hot-swappable bays

(6x NVMe from CPU_0, 8x NVMe from CPU_1)
Networking • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply • Dual 1600W (240V) redundant PSUs
• AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
• DC Input:
- 240Vdc/ 10A
• DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
• 80 PLUS Platinum
System Cooling • 8x 40x40x56mm (32,000rpm)
Internal I/O • 3x M.2 slots
• 1x TPM header
• 2x OCP 3.0 slots
Front I/O • 1x USB 3.2 Gen1
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED
Rear I/O • 2x USB 3.2 Gen1
• 1x Mini-DP
• 2x RJ45
• 1x MLAN
• 1x ID LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

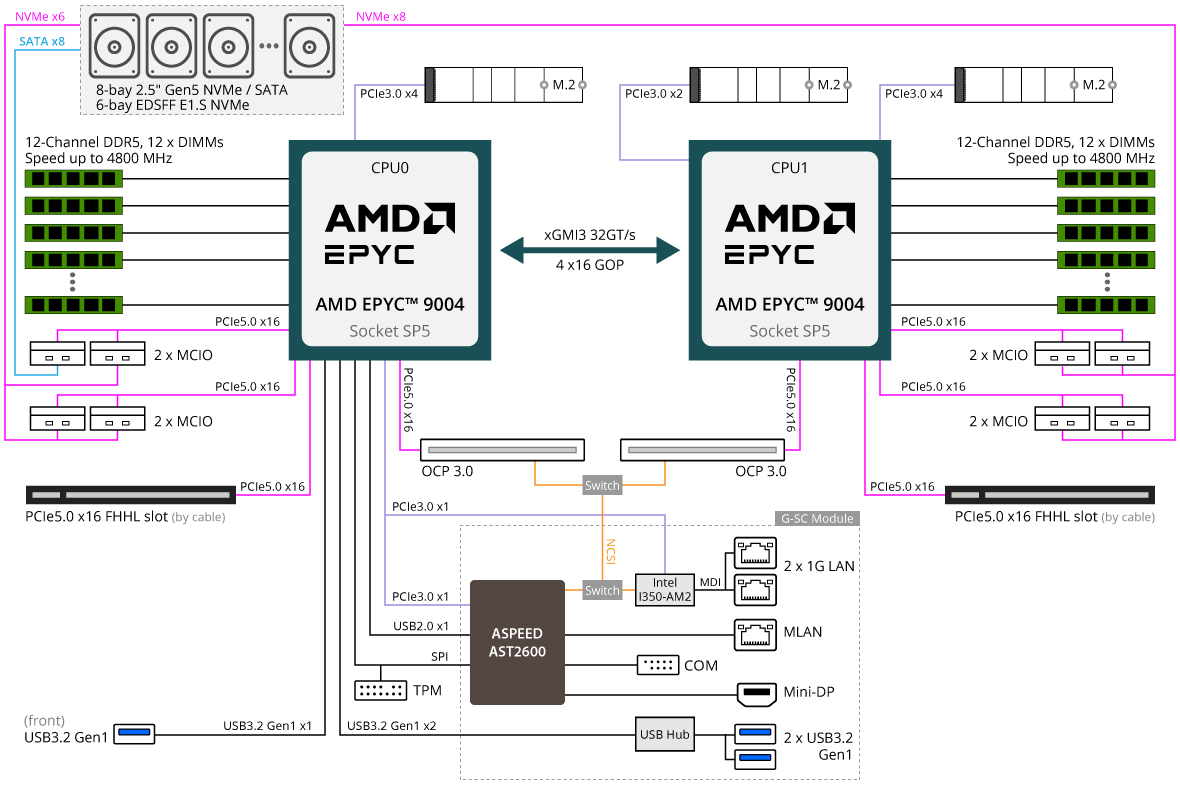

Block Diagram

Images
