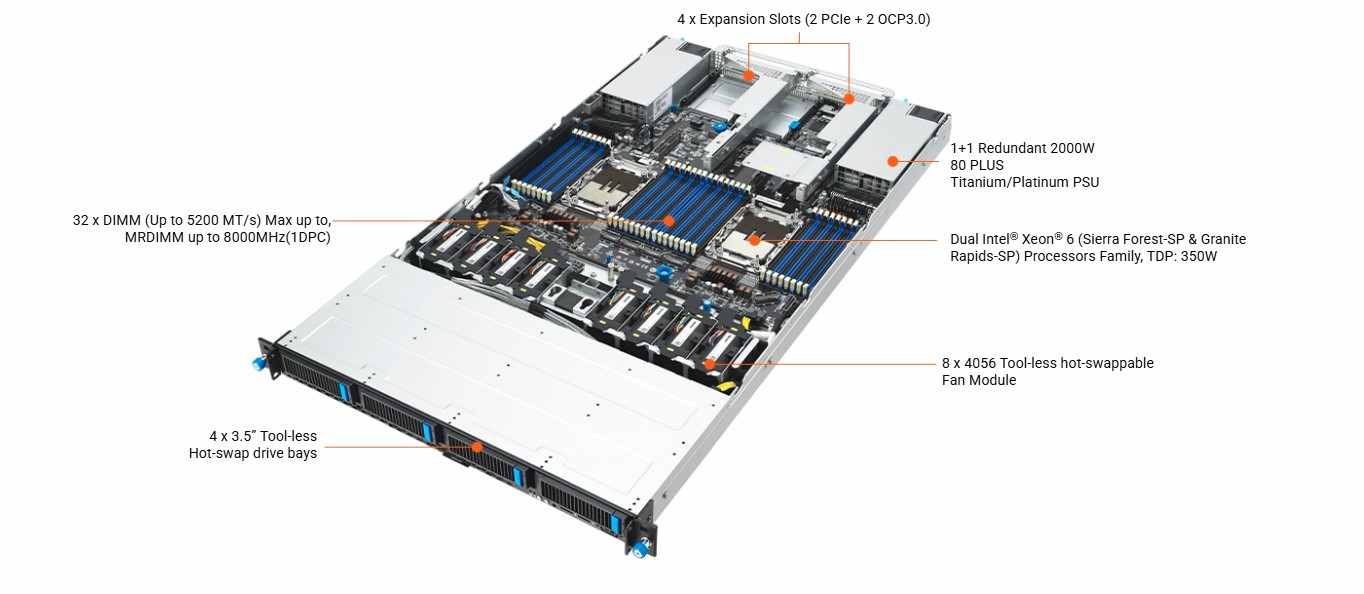

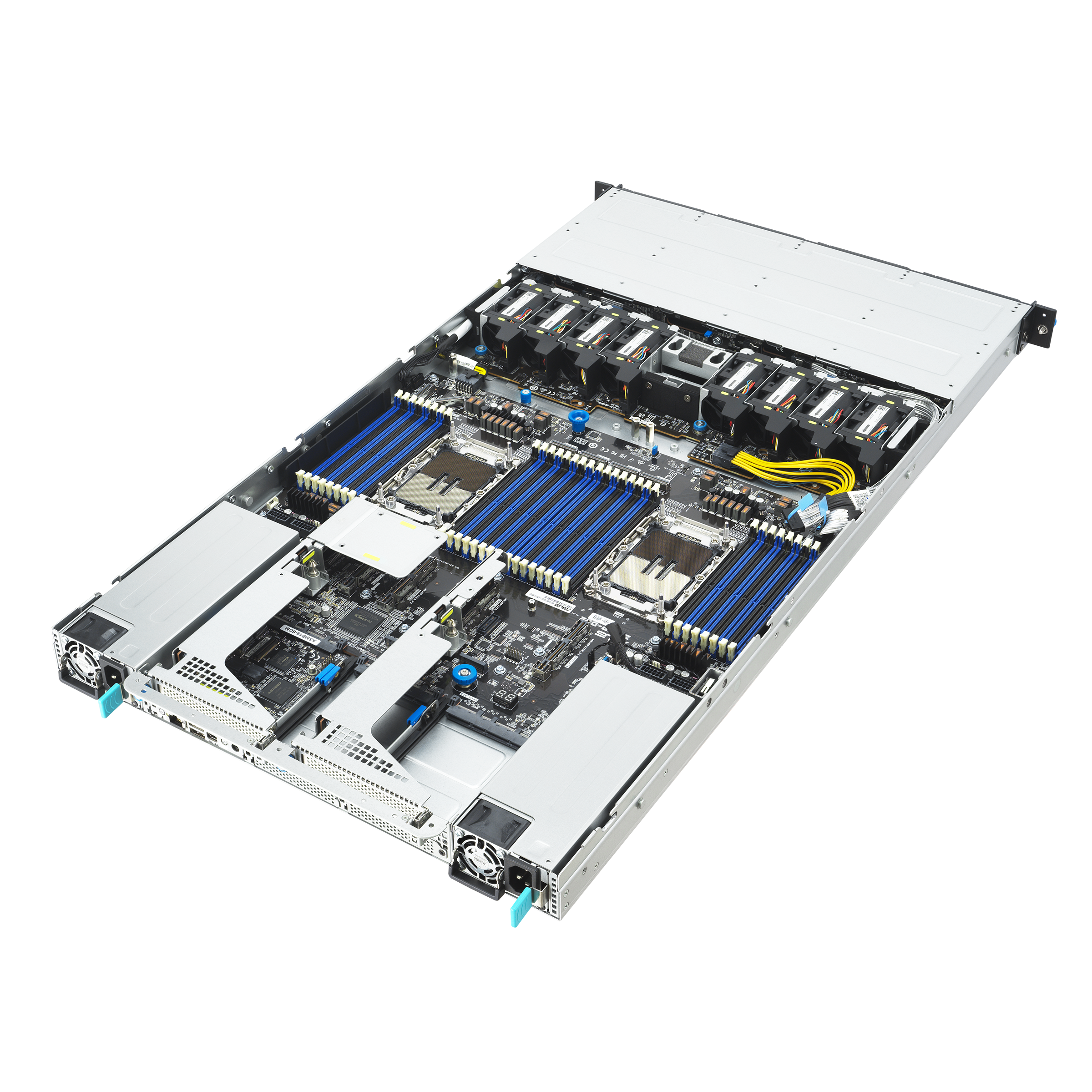

Colfax CX1260a-NVMe5-S4-X6 1U Rackmount Server

2x Intel® Xeon® 6 Scalable processors
32x DIMM Sockets Support DDR5 ECC RDIMM
Expansion Slots:
- 2x PCIE Gen5 x16 (FHHL)
- 1x OCP3.0 Gen5 x16 (SFF)
- 1x OEI-10G/X710-2T

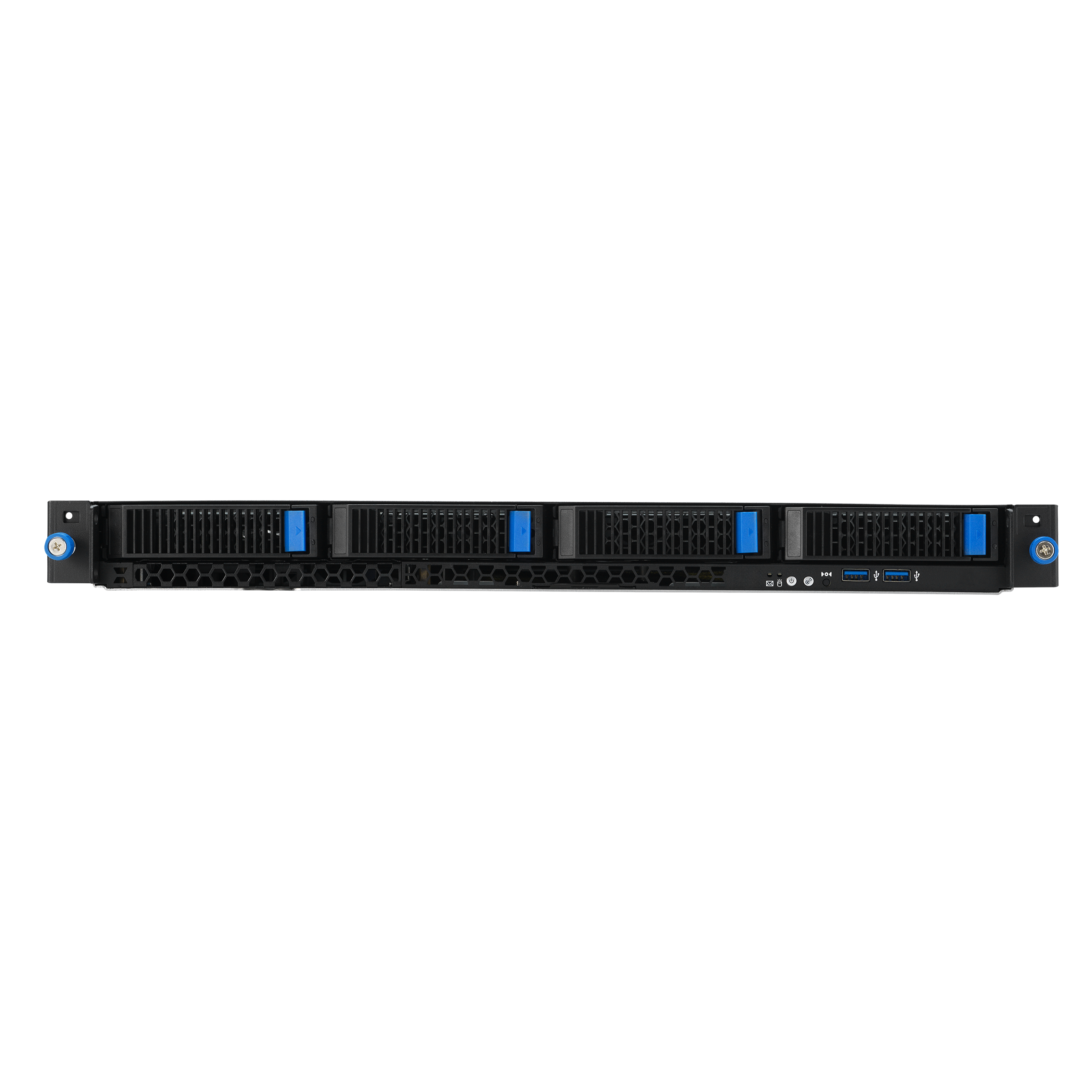

4x 2.5"/3.5" hot-swap drive bays
2x M.2 SSDs
1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU


Dimensions	• 821.7(L) x 483(W) x 43.2(H) mm • 32.35(L) x 19(W) x 1.7(H) inch
CPU	• Intel® Xeon® Processor Scalable Family • Generation: E12
Memory	• Total Slots: 32 (8-channel per CPU, 16 DIMM per CPU) • Capacity: Maximum up to 4TB • Memory Type: DDR5 6400MHz (1DPC) / 5200MHz (2DPC) • Supported Sizes: 64GB, 32GB, 16GB RDIMM; 256GB, 128GB RDIMM 3DS
Expansion Slots	• Total 4 expansion slots • 2x PCIe Gen5 x16 (FHHL) • 1x OCP 3.0 Gen5 x16 (SFF) • 1x OCP 3.0 Asus X710-2T

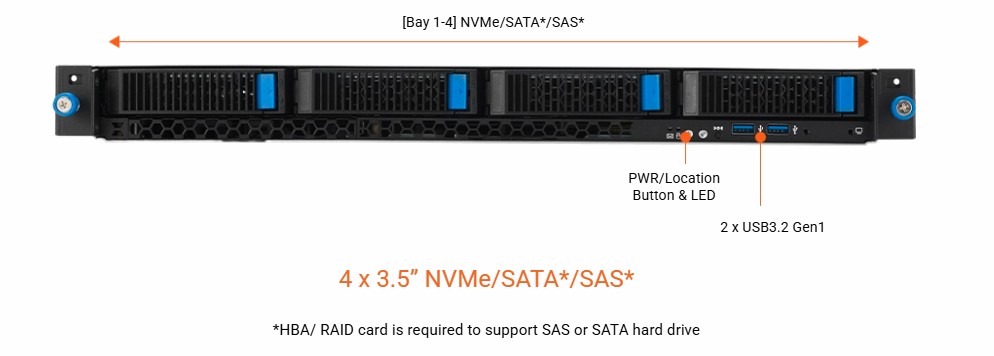

Drive Bays	• 4x 2.5"/3.5" hot-swap drive bays (NVMe/SATA/SAS) • *HBA/RAID card required for SAS or SATA drives • 2x M.2 Gen5
Network	• 1x Management Port

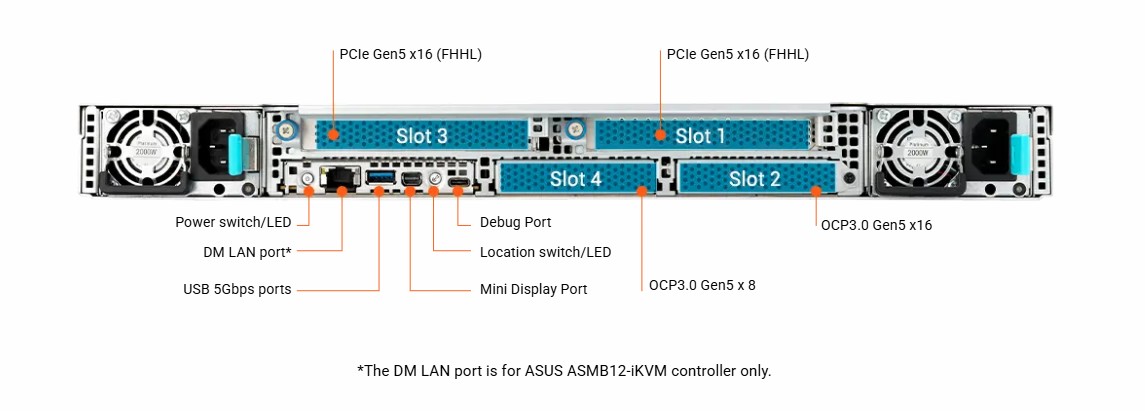

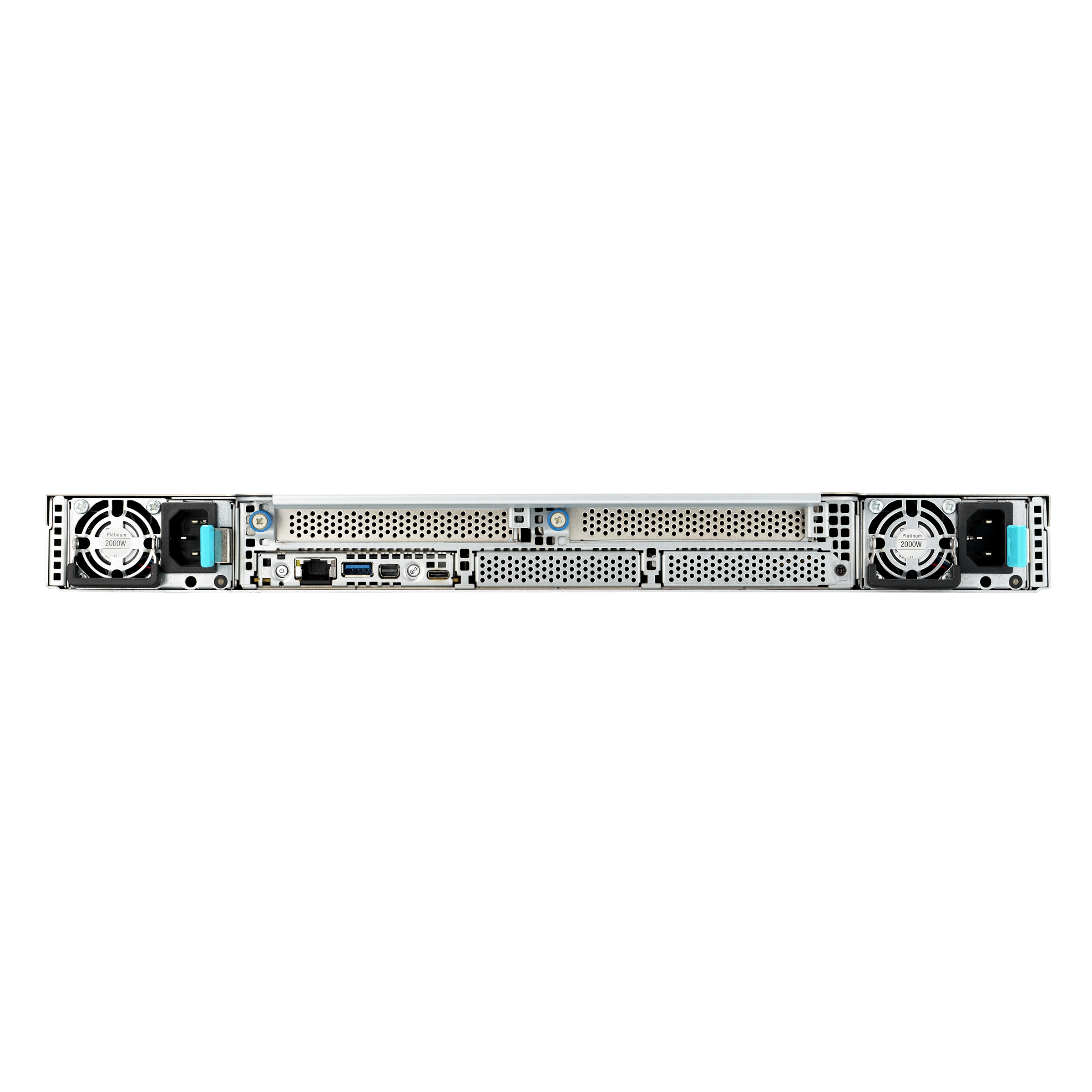

Rear I/O Ports	• 2x USB 3.2 Gen1 ports • 1x Mini-DP port • 1x RJ-45 Management LAN port • 1x Debug port
Switch / LED	Front • Power Switch w/ LED • Reset Switch • Location Switch w/ LED • HDD Access LED • Message LED Rear • Power Switch w/ LED • Location Switch w/ LED • Message LED
Power Supply	• 1+1 Redundant 2000W PSU (80 PLUS Titanium/Platinum) • AC Input Rating: 100–127V~/220–240V~, 12A/10A (x2), 50/60Hz
System Management	• On-board ASMB12-iKVM (KVM over IP) • ASUS Control Center Enterprise (Optional)

$4,026.12

	Qty.	Colfax CX1260a-NVMe5-S4-X6 1U Rackmount Server, Cost As Configured $4,026.12
Base Platform	1
Primary CPU	1	Set next items ( ) like this
Secondary CPU	1
CPU 1 - Socket 1 of 16	1	Set next items ( ) like this
CPU 1 - Socket 2 of 16	1
CPU 1 - Socket 3 of 16	1
CPU 1 - Socket 4 of 16	1
CPU 1 - Socket 5 of 16	1
CPU 1 - Socket 6 of 16	1
CPU 1 - Socket 7 of 16	1
CPU 1 - Socket 8 of 16	1
CPU 1 - Socket 9 of 16	1
CPU 1 - Socket 10 of 16	1
CPU 1 - Socket 11 of 16	1
CPU 1 - Socket 12 of 16	1
CPU 1 - Socket 13 of 16	1
CPU 1 - Socket 14 of 16	1
CPU 1 - Socket 15 of 16	1
CPU 1 - Socket 16 of 16	1
CPU 2 - Socket 1 of 16	1	Set next items ( ) like this
CPU 2 - Socket 2 of 16	1
CPU 2 - Socket 3 of 16	1
CPU 2 - Socket 4 of 16	1
CPU 2 - Socket 5 of 16	1
CPU 2 - Socket 6 of 16	1
CPU 2 - Socket 7 of 16	1
CPU 2 - Socket 8 of 16	1
CPU 2 - Socket 9 of 16	1
CPU 2 - Socket 10 of 16	1
CPU 2 - Socket 11 of 16	1
CPU 2 - Socket 12 of 16	1
CPU 2 - Socket 13 of 16	1
CPU 2 - Socket 14 of 16	1
CPU 2 - Socket 15 of 16	1
CPU 2 - Socket 16 of 16	1
M.2 Drive 1	1
M.2 Drive 2	1
NVM-E Drive 1	1	Set next items ( ) like this
NVM-E Drive 2	1
NVM-E Drive 3	1
NVM-E Drive 4	1
Ethernet HBA	1
Infiniband HBA	1
OCP 3.0 Gen5 x 16 1	1	Set next items ( ) like this
OCP 3.0 Gen5 x 16 2	1
TPM Module	1
Operating System SW	1
		Colfax CX1260a-NVMe5-S4-X6 1U Rackmount Server, Cost As Configured $4,026.12
