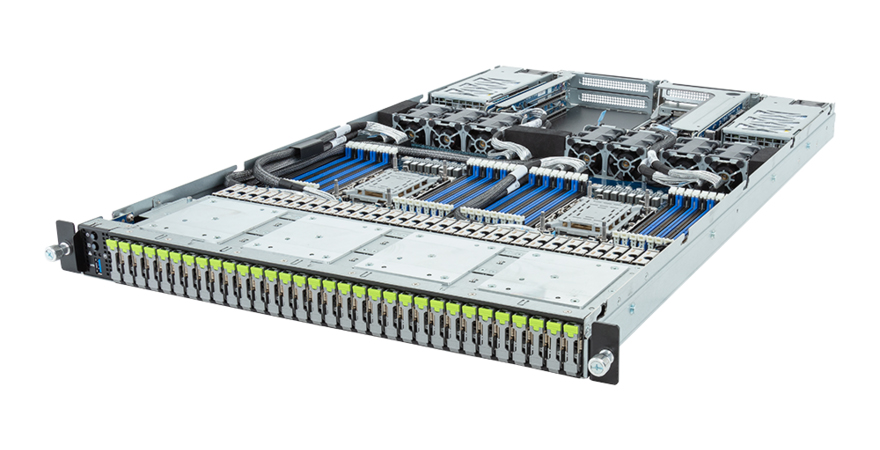

Colfax CX1260g-EDSFF-S32-X9 1U Rackmount Server

2x 4th Gen Intel® Xeon® Scalable Processors
32x DDR5 DIMM Sockets
32x E1.S NVMe Hot-Swap Drive Bays

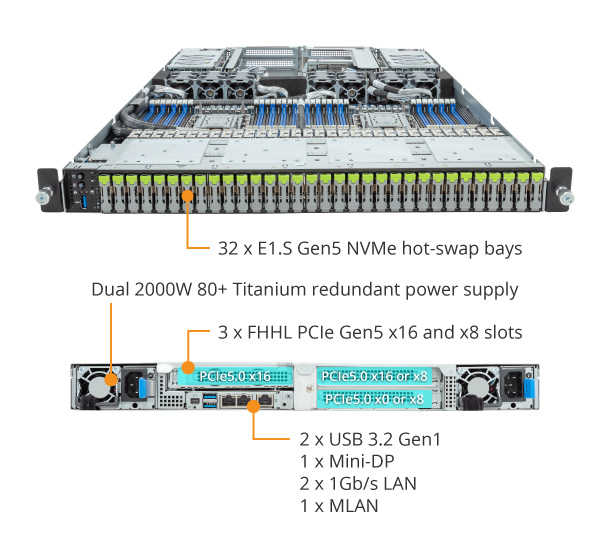

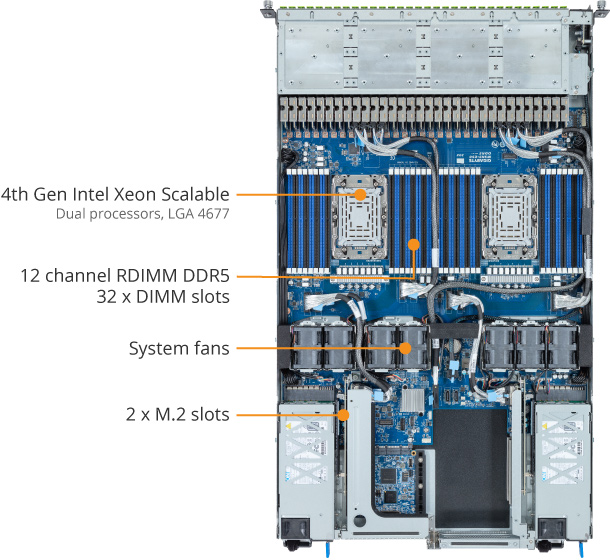

Features

2x 4th Gen Intel® Xeon® Scalable Processors
32x DIMM Sockets Support DDR5 ECC RDIMM
Expansion Slots:
- Riser Card 1: 1x PCIe 5.0 x16 Slot (FHHL)
- Riser Card 2: 1x PCIe 5.0 x16 or x8 Slot (FHHL) and 1x PCIe 5.0 x0 or x8 Slot (FHHL)
32x E1.S NVMe Hot-Swap Drive Bays
2x M.2 with PCIe 3.0 x4 Interface
2x 1Gb/s LAN Ports (Intel® I350-AM2)
1x Dedicated Management Port
1+1 2000 Watts RPSU
Dual ROM Architecture Supported

GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI - A command-line interface for monitoring and managing remotely.
GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Technical Specifications


Enclosure	• 1U • Dimension (W x H x D) 17.24" x 1.7" x 28.74" (438 x 43.5 x 730 mm)
CPU	• Socket E (LGA 4677) • 2x 4th Gen Intel® Xeon® Scalable processors • Supports CPU TDP up to 350W
Chipset	• Intel® C741
Memory	• 32x DIMM sockets • DDR5 memory supported only • 8-channel memory architecture • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
Expansion Slots	• Riser Card 1: - 1x PCIe 5.0 x16 slot (FHHL) • Riser Card 2: - 1x PCIe 5.0 x16 0r x8 slot (FHHL) - 1x PCIe 5.0 x0 0r x8 slot (FHHL) M.2 • 2x M.2 slots - M-key - PCIe Gen3 x4 or SATA 3.0 from PCH - Supports 2280/22110 cards
Storage	• 32x 9.5mm E1.S NVMe hot-swappable bays (16x from CPU_0, 16x from CPU_1)
Networking	• 2x 1Gb/s LAN ports (Intel® I350-AM2) • 1x 10/100/1000 management LAN
Video	• Integrated in ASPEED AST2600 controller • 2D Video Graphic Adapter with PCIe bus interface • Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply	• 1+1 2000W redundant PSUs • AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 10A, 50-60Hz • DC Input: - 240Vdc/ 10A • DC Output: - Max 1000W/ 100-127V~ + 12.2V/ 82A + 12Vsb/ 3A - Max 1800W/ 200-207V~ + 12.2V/ 147.5A + 12Vsb/ 3A - Max 1900W/ 208-219V~ + 12.2V/ 155.7A + 12Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input + 12.2V/ 164A + 12Vsb/ 3A • 80PLUS Titanium
System Cooling	• 7x 40x40x56mm (32,000rpm)
Internal I/O	• 2x M.2 slots • 1x TPM header • 1x VROC connector • 2x SATA connectors (for SATA DOM)
Front I/O	• 1x USB 3.2 Gen1 • 1x Power button with LED • 1x ID button with LED • 1x HDD activity LED • 1x System status LED

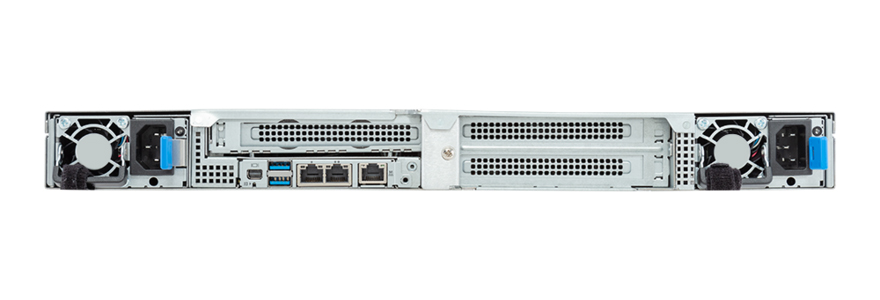

Rear I/O	• 2x USB 3.2 Gen1 • 1x Mini-DP • 2x RJ45 • 1x MLAN • 1x ID LED
Backplane I/O	• N/A
TPM	• 1x TPM header with SPI interface • Optional TPM2.0 kit
Server Management	• Onboard Chipset - Aspeed AST2600 • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface - Dashboard - HTML5 KVM - Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) - Sensor Reading History Data - FRU Information - SEL Log in Linear Storage / Circular Storage Policy - Hardware Inventory - Fan Profile - System Firewall - Power Consumption - Power Control - LDAP / AD / RADIUS Support - Backup & Restore Configuration - Remote BIOS/BMC/CPLD Update - Event Log Filter - User Management - Media Redirection Settings - PAM Order Settings - SSL Settings - SMTP Settings

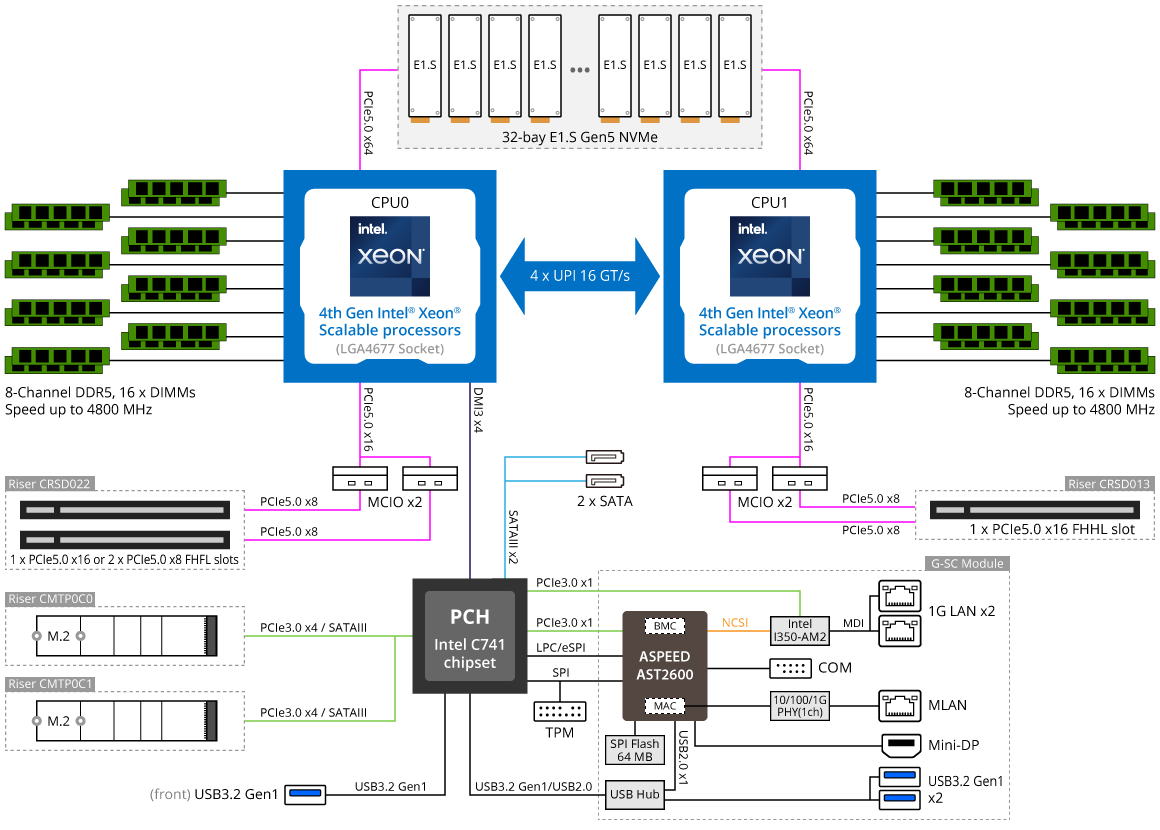

Block Diagram

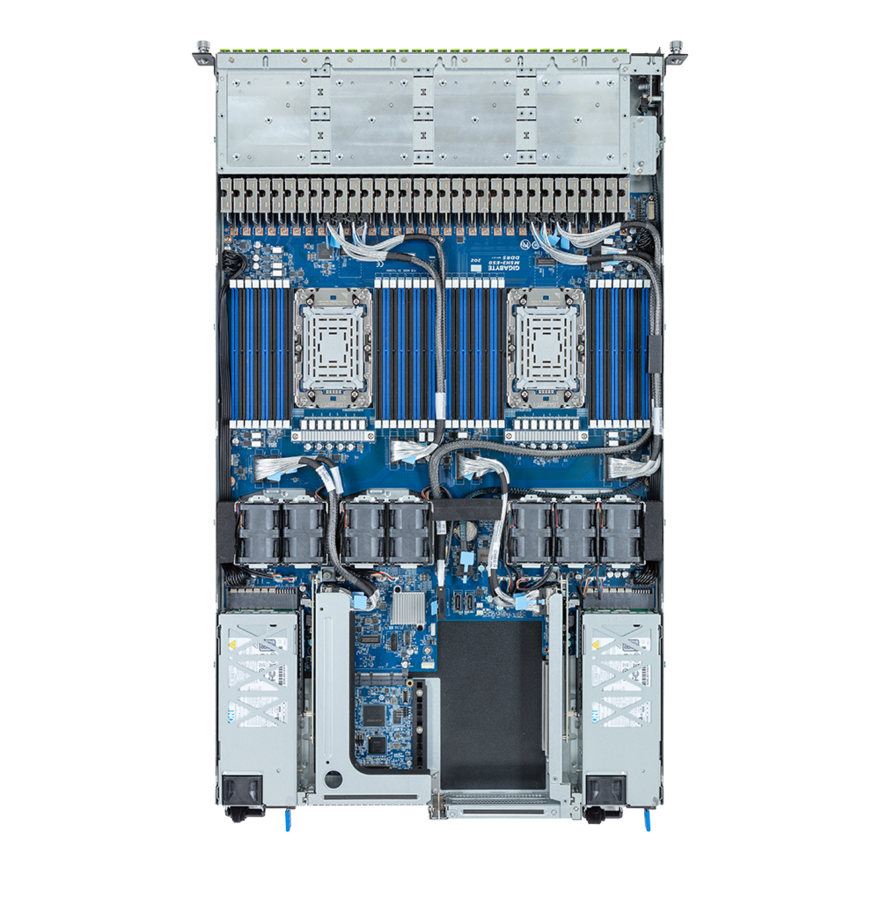

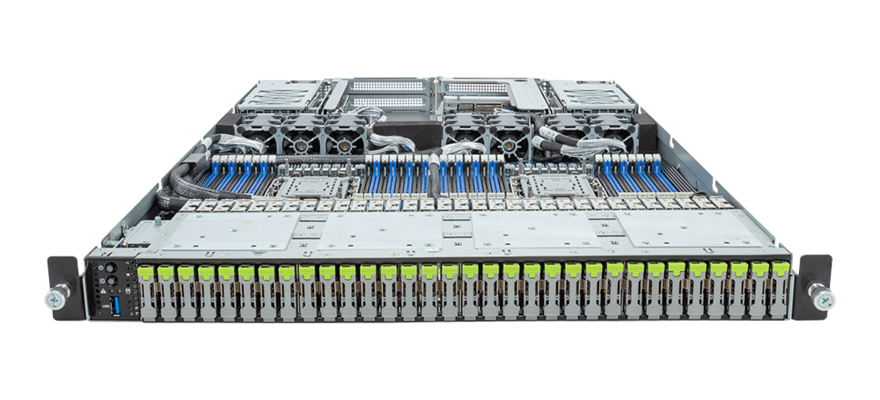

Images

$8,170.26

	Qty.	Colfax CX1260g-EDSFF-S32-X9 1U Rackmount Server, Cost As Configured $8,170.26
Base Platform	1
Primary CPU	1
Secondary CPU	1
CPU 1 - Socket 1 of 16	1	Set next items ( ) like this
CPU 1 - Socket 2 of 16	1
CPU 1 - Socket 3 of 16	1
CPU 1 - Socket 4 of 16	1
CPU 1 - Socket 5 of 16	1
CPU 1 - Socket 6 of 16	1
CPU 1 - Socket 7 of 16	1
CPU 1 - Socket 8 of 16	1
CPU 1 - Socket 9 of 16	1
CPU 1 - Socket 10 of 16	1
CPU 1 - Socket 11 of 16	1
CPU 1 - Socket 12 of 16	1
CPU 1 - Socket 13 of 16	1
CPU 1 - Socket 14 of 16	1
CPU 1 - Socket 15 of 16	1
CPU 1 - Socket 16 of 16	1
CPU 2 - Socket 1 of 16	1	Set next items ( ) like this
CPU 2 - Socket 2 of 16	1
CPU 2 - Socket 3 of 16	1
CPU 2 - Socket 4 of 16	1
CPU 2 - Socket 5 of 16	1
CPU 2 - Socket 6 of 16	1
CPU 2 - Socket 7 of 16	1
CPU 2 - Socket 8 of 16	1
CPU 2 - Socket 9 of 16	1
CPU 2 - Socket 10 of 16	1
CPU 2 - Socket 11 of 16	1
CPU 2 - Socket 12 of 16	1
CPU 2 - Socket 13 of 16	1
CPU 2 - Socket 14 of 16	1
CPU 2 - Socket 15 of 16	1
CPU 2 - Socket 16 of 16	1
M.2 Drive 1	1	Set next items ( ) like this
M.2 Drive 2	1
EDSFF E1.S Drive 1	1	Set next items ( ) like this
EDSFF E1.S Drive 2	1
EDSFF E1.S Drive 3	1
EDSFF E1.S Drive 4	1
EDSFF E1.S Drive 5	1
EDSFF E1.S Drive 6	1
EDSFF E1.S Drive 7	1
EDSFF E1.S Drive 8	1
EDSFF E1.S Drive 9	1
EDSFF E1.S Drive 10	1
EDSFF E1.S Drive 11	1
EDSFF E1.S Drive 12	1
EDSFF E1.S Drive 13	1
EDSFF E1.S Drive 14	1
EDSFF E1.S Drive 15	1
EDSFF E1.S Drive 16	1
EDSFF E1.S Drive 17	1
EDSFF E1.S Drive 18	1
EDSFF E1.S Drive 19	1
EDSFF E1.S Drive 20	1
EDSFF E1.S Drive 21	1
EDSFF E1.S Drive 22	1
EDSFF E1.S Drive 23	1
EDSFF E1.S Drive 24	1
EDSFF E1.S Drive 25	1
EDSFF E1.S Drive 26	1
EDSFF E1.S Drive 27	1
EDSFF E1.S Drive 28	1
EDSFF E1.S Drive 29	1
EDSFF E1.S Drive 30	1
EDSFF E1.S Drive 31	1
EDSFF E1.S Drive 32	1
Ext SAS Controller	1
Ethernet HBA	1
Infiniband HBA	1
Operating System SW	1
		Colfax CX1260g-EDSFF-S32-X9 1U Rackmount Server, Cost As Configured $8,170.26
