Colfax CX1265s-NVMe4-S8-E9 1U Rackmount Server

2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
24x DIMM Sockets Support DDR5 ECC RDIMM
Expansion Slots
- 2 PCIe 5.0 x16 Slots (Full-Height, 10.5" Length)
- 1 PCIe 5.0 x16 Slot (Full-Height, 6.6" Length)
- 1 PCIe 5.0 x16 AIOM Slot for Flexible Networking Options
8x 2.5" Hot-Swap Gen3/Gen4 NVMe Drive Bays (Option for up to 12* Drives)
2x M.2 NVMe SSDs (PCIe 3.0 x4)
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
800W/1200W** Redundant*** Power Supplies, Titanium Level

* Imposes restrictions on CPU TDP
** 800W: 100-127Vac | 1200W: 200-240Vac
*** Full redundancy based on configuration and application load

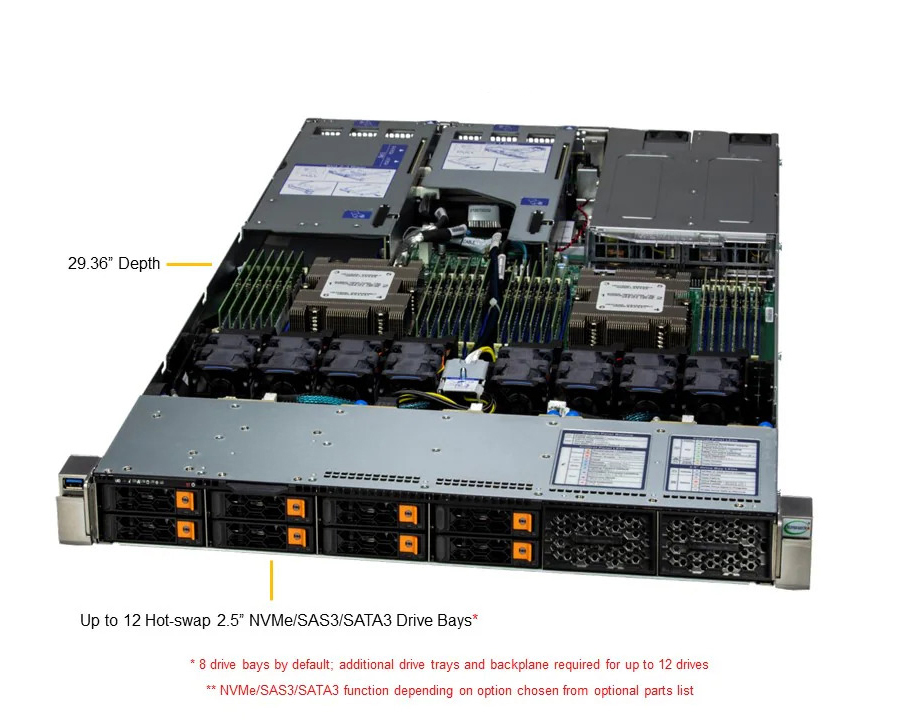

Chassis Form Factor	• 1U Rackmount • Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 29.4" (747mm)
CPU	• Socket SP5 • Dual AMD EPYC™ 9004/9005 Series Processors • Supports up to 400W TDP CPUs under specific conditions
Memory	• 24 DIMM Sockets • Supports DDR5 ECC RDIMM • Memory Type 4800 MHz Registered ECC

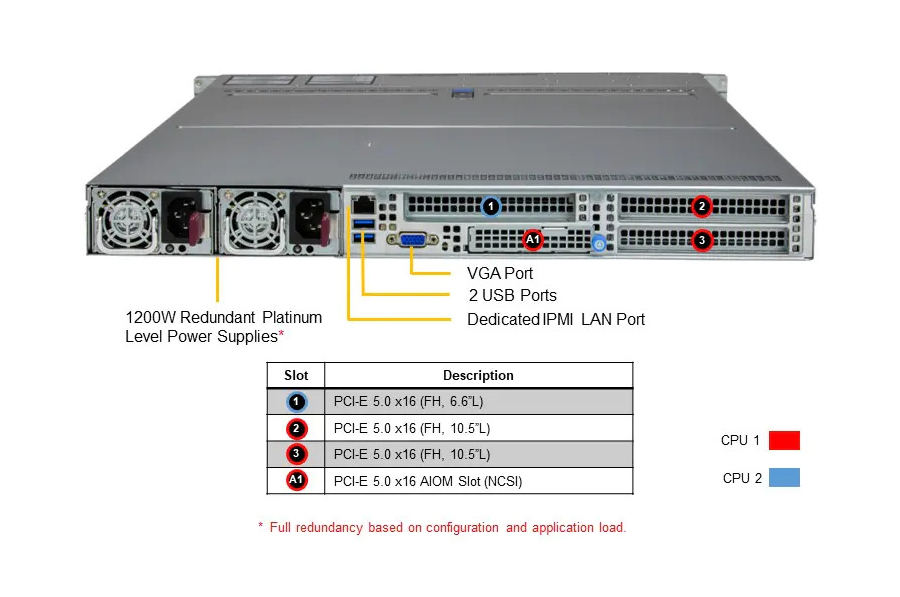

I/O Expansion	• 2 PCIe 5.0 x16 slots (FH/10.5"L) • 1 PCIe 5.0 x16 Slot (FH/6.6"L) • 1 PCIe 5.0 x16 AIOM Slot
Onboard Devices	IPMI • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controller • Via AIOM VGA • ASPEED AST2600 BMC
Input / Output	LAN • 1x RJ45 Dedicated IPMI LAN port USB • 3x USB 3.0 ports (2 rear + 1 front) VGA • 1 VGA port
Power Supply	• 1U 800W/1200W Redundant CRPS w/PMBus power supply • AC Input - 800W: 100-127Vac / 50-60Hz - 1200W: 200-240Vac / 50-60Hz • +12V - Max: 66.7A / Min: 0A (100Vac-127Vac) - Max: 100A / Min: 0A (200Vac-240Vac) • 12V sb - Max: 2.1A / Min: 0A • 80 PLUS Titanium Certified
Storage	Drive Bays • 8x 2.5" hot-swap NVMe drive bays (Option for up to 12* Drives) M.2 • 2x M.2 (PCIe 3.0 x4) * Imposes restrictions on CPU TDP.
System Cooling	• 8x 4cm heavy duty fans with optimal fan speed control
Front Panel	Buttons • Power On/Off button • UID button LEDs • Hard drive activity LED • LAN1 activity LED • Power status LED • System information LED
BIOS	• AMI 256MB SPI Flash

$4,160.67

	Qty.	Colfax CX1265s-NVMe4-S8-E9 1U Rackmount Server, Cost As Configured $4,160.67
Base Platform	1
Primary CPU	1
Secondary CPU	1
CPU 1 - Socket 1 of 12	1	Set next items ( ) like this
CPU 1 - Socket 2 of 12	1
CPU 1 - Socket 3 of 12	1
CPU 1 - Socket 4 of 12	1
CPU 1 - Socket 5 of 12	1
CPU 1 - Socket 6 of 12	1
CPU 1 - Socket 7 of 12	1
CPU 1 - Socket 8 of 12	1
CPU 1 - Socket 9 of 12	1
CPU 1 - Socket 10 of 12	1
CPU 1 - Socket 11 of 12	1
CPU 1 - Socket 12 of 12	1
CPU 2 - Socket 1 of 12	1	Set next items ( ) like this
CPU 2 - Socket 2 of 12	1
CPU 2 - Socket 3 of 12	1
CPU 2 - Socket 4 of 12	1
CPU 2 - Socket 5 of 12	1
CPU 2 - Socket 6 of 12	1
CPU 2 - Socket 7 of 12	1
CPU 2 - Socket 8 of 12	1
CPU 2 - Socket 9 of 12	1
CPU 2 - Socket 10 of 12	1
CPU 2 - Socket 11 of 12	1
CPU 2 - Socket 12 of 12	1
M.2 Drive 1	1	Set next items ( ) like this
M.2 Drive 2	1
Disk Drive 1	1	Set next items ( ) like this
Disk Drive 2	1
Disk Drive 3	1
Disk Drive 4	1
Disk Drive 5	1
Disk Drive 6	1
Disk Drive 7	1
Disk Drive 8	1
Supermicro AIOM	1
Infiniband HBA	1
Ethernet HBA	1
Operating System SW	1
		Colfax CX1265s-NVMe4-S8-E9 1U Rackmount Server, Cost As Configured $4,160.67
