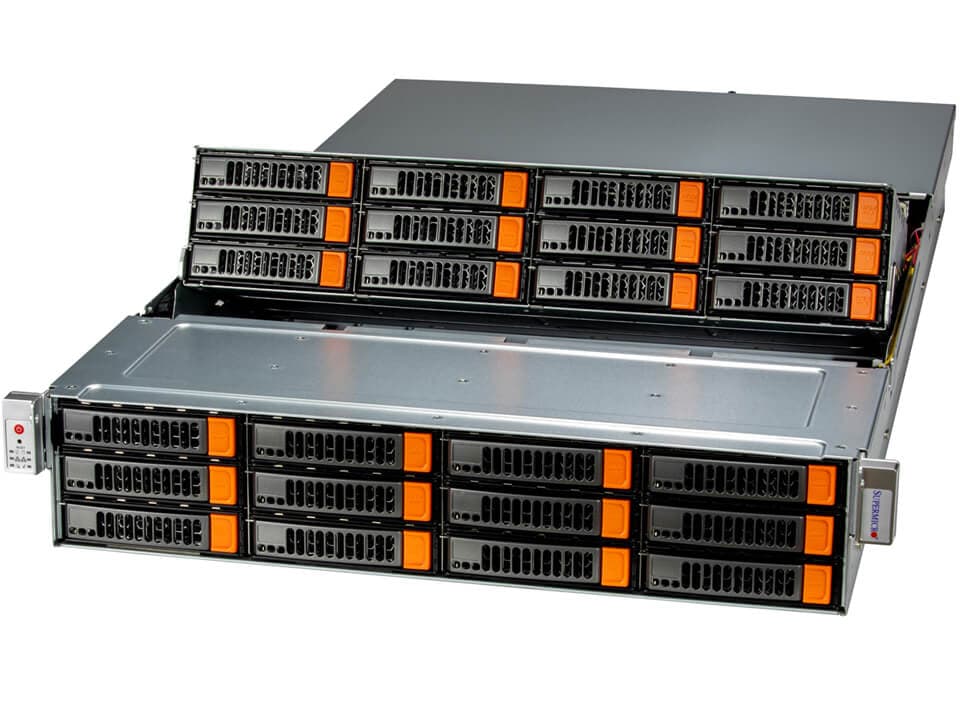

Colfax CX2130LPs-S24-JBOD-X9 2U Rackmount Server



  • 1x 4th/5th Gen Intel® Xeon® Scalable Processor
  • 24x 3.5" Hot-Swap SAS/SATA Drive Bays
  • Up to 6x 2.5" Hot-Swap Rear Drive Bays
  • Broadcom 3808 HBA Controller

Features

  • 1x 4th/5th Gen Intel® Xeon® Scalable Processor
  • Intel C741 Chipset
  • 16x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots (See options below)
  • Drive Bays

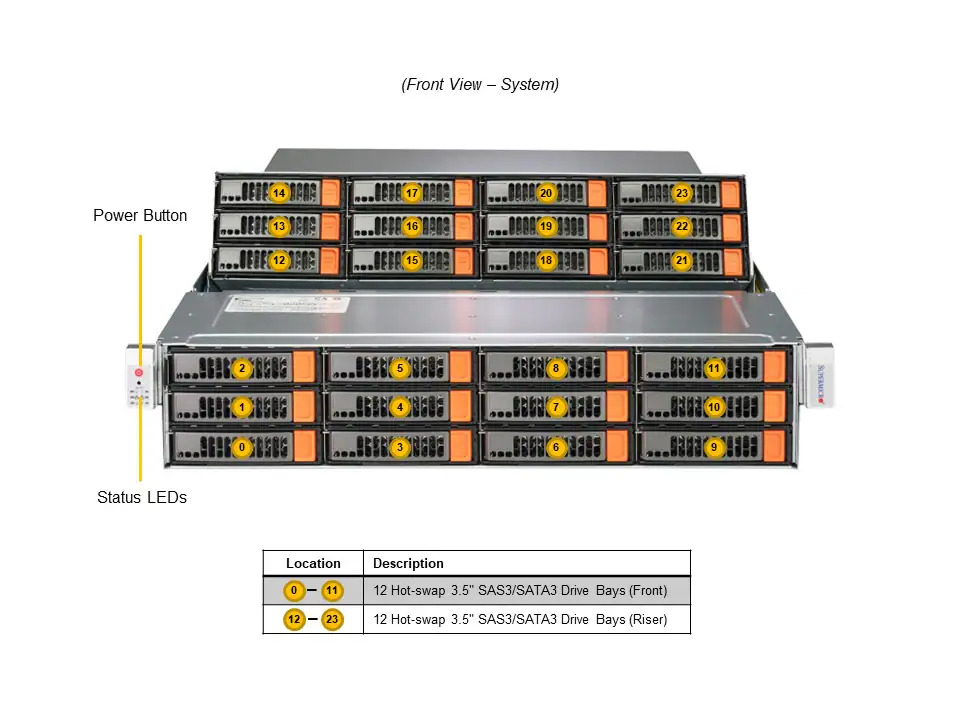

    - 12x 3.5" Front Hot-Swap SAS/SATA Drive Bays
    - 12x 3.5" Top-Loading Hot-Swap SAS/SATA Drive Bays
    - Up to 6x 2.5" Rear Hot-Swap Drive Bays (See options below)
  • Integrated Broadcom 3808 HBA Controller
  • 1600W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN


Expansion Slots and Storage Options

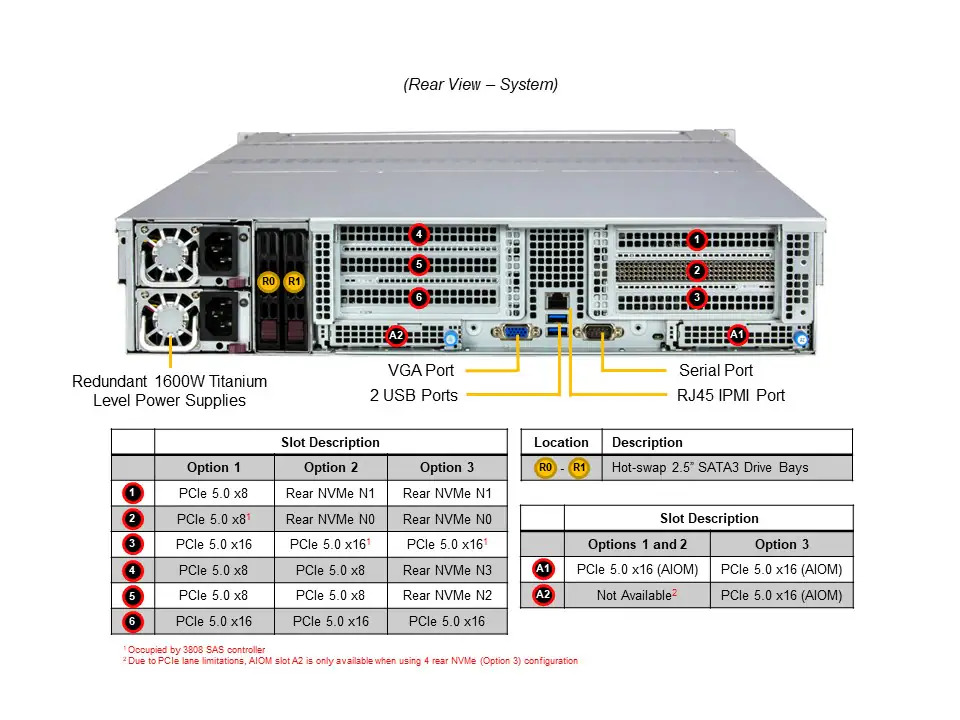

Expansion Slots Options

Slot

Config A (Default)

Config B1

Config C1

Slot 1

PCIe 5.0 x8

PCIe 5.0 x16*

PCIe 5.0 x16*

Slot 2

PCIe 5.0 x8*

PCIe 5.0 x8

PCIe 5.0 x16

Slot 3

PCIe 5.0 x16

PCIe 5.0 x8

N/A

Slot 4

PCIe 5.0 x8

PCIe 5.0 x16

N/A

Slot 5

PCIe 5.0 x8

N/A

N/A

Slot 6

PCIe 5.0 x16

N/A

N/A

A1

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

A2

N/A

N/A

PCIe 5.0 x16 AIOM

1 Config A is default, for Config B and C, please contact sales@colfax-intl.com
* Occupied by Broadcom 3808 HBA controller

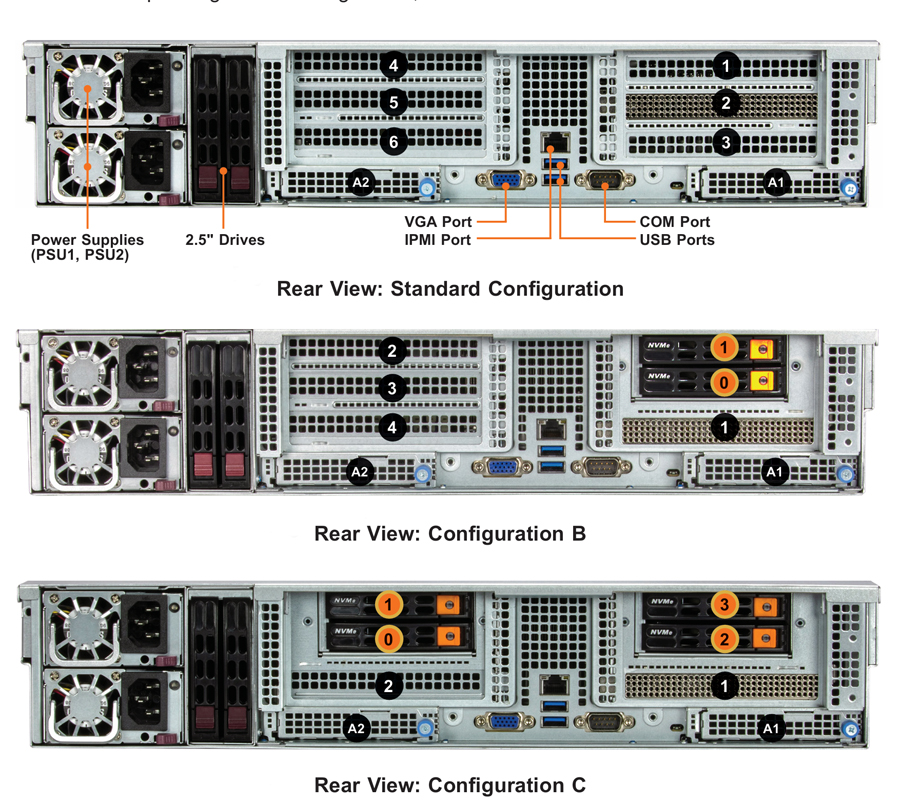

Storage Options

Rear Drive Bays

Config A (Default)

2x 2.5" Rear Hot-Swap SATA Drive Bays

Config B

2x 2.5" Rear Hot-Swap SATA Drive Bays
2x 2.5" Rear Hot-Swap NVMe Drive Bays

Config C

2x 2.5" Rear Hot-Swap SATA Drive Bays
4x 2.5" Rear Hot-Swap NVMe Drive Bays

1 Config A is default, for Config B and C, please contact sales@colfax-intl.com
* Occupied by Broadcom 3808 HBA controller


Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension: 17.2" W (437mm) x 3.5" H (89mm) x 34" D (863mm)
CPU • Socket E (LGA-4677)
• Supports 4th/5th Gen Intel® Xeon® Scalable Processor
• Supports 120W - 300W TDP CPUs (Air Cooled)
Memory • 16x DDR5 DIMM slots
• Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chipset • Intel® C741
I/O Expansion Config A (Default)
• 4x PCIe 5.0 x8 FHHL slots
• 2x PCIe 5.0 x16 FHHL slots
• 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Config B
• 2x PCIe 5.0 x8 FHHL slots
• 2x PCIe 5.0 x16 FHHL slots
• 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Config C
• 2x PCIe 5.0 x16 FHHL slots
• 2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Storage Config A (Default)

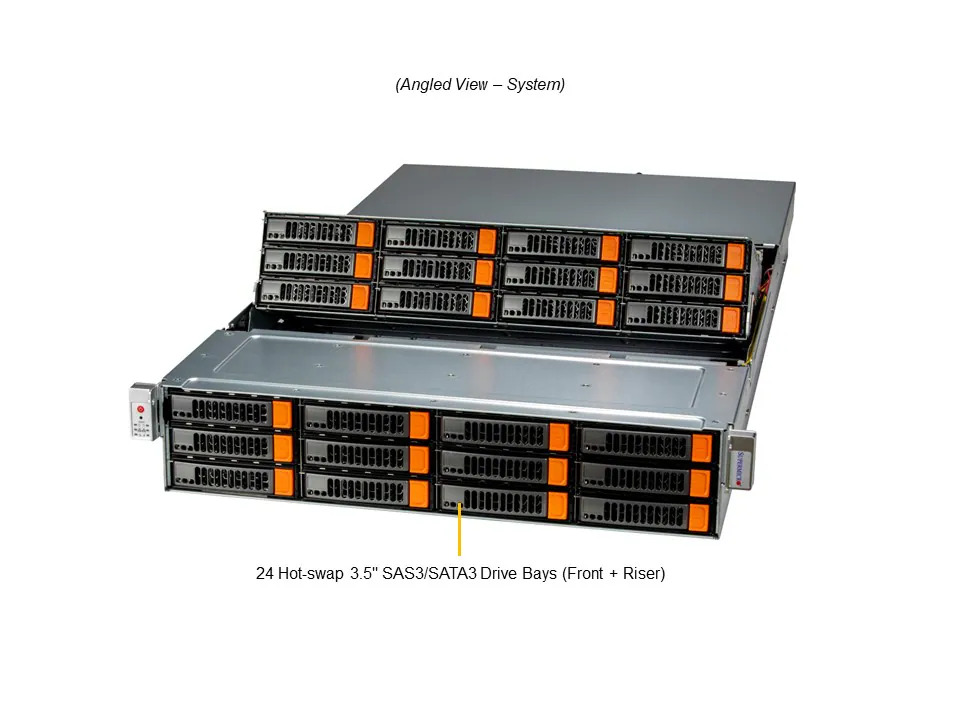

• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
Config B
• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
• 2x hot-swap 2.5" NVMe drive bays (rear)
Config C
• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
• 4x hot-swap 2.5" NVMe drive bays (rear)

M.2
• 2x M.2 NVMe slots (M-key 2280/22110)
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1x VGA port
DOM
• 2x SuperDOM (Disk on Module) ports
Power Supply • 2x 1600W Redundant power supplies
• AC Input
- 1000W: 100-127Vac / 50-60Hz
- 1600W: 200-240Vac / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 133.3A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified

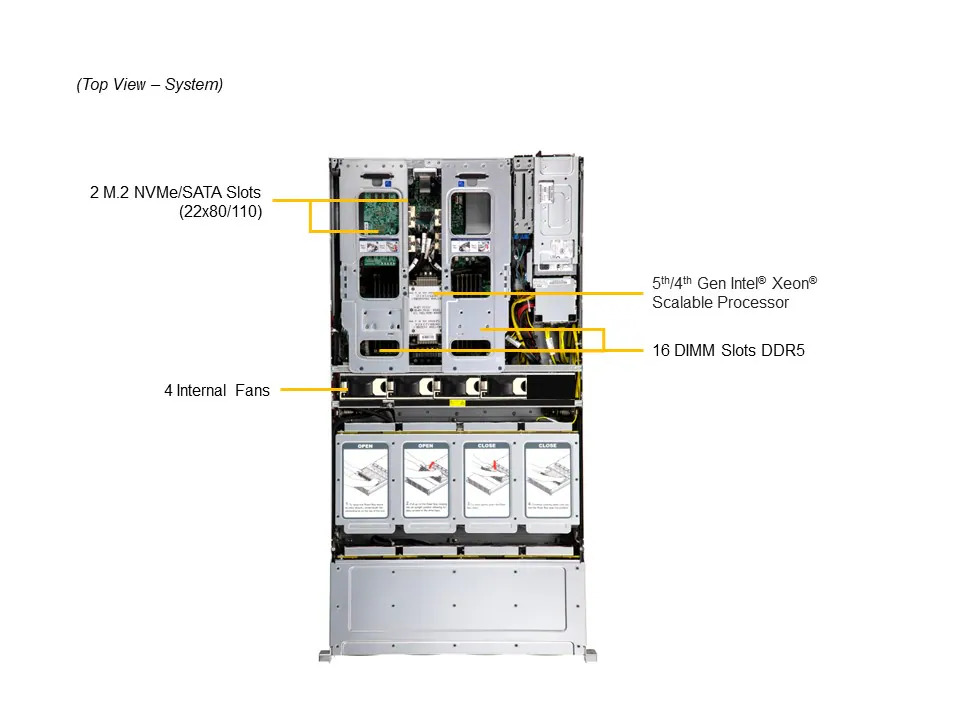

System Cooling • 4x 8cm heavy duty fans
Front Panel Buttons
• Power button
LEDs
• Hard drive activity LED
• Network activity LED
• System information LED
• Power status LED
BIOS • AMI 32MB SPI Flash EEPROM

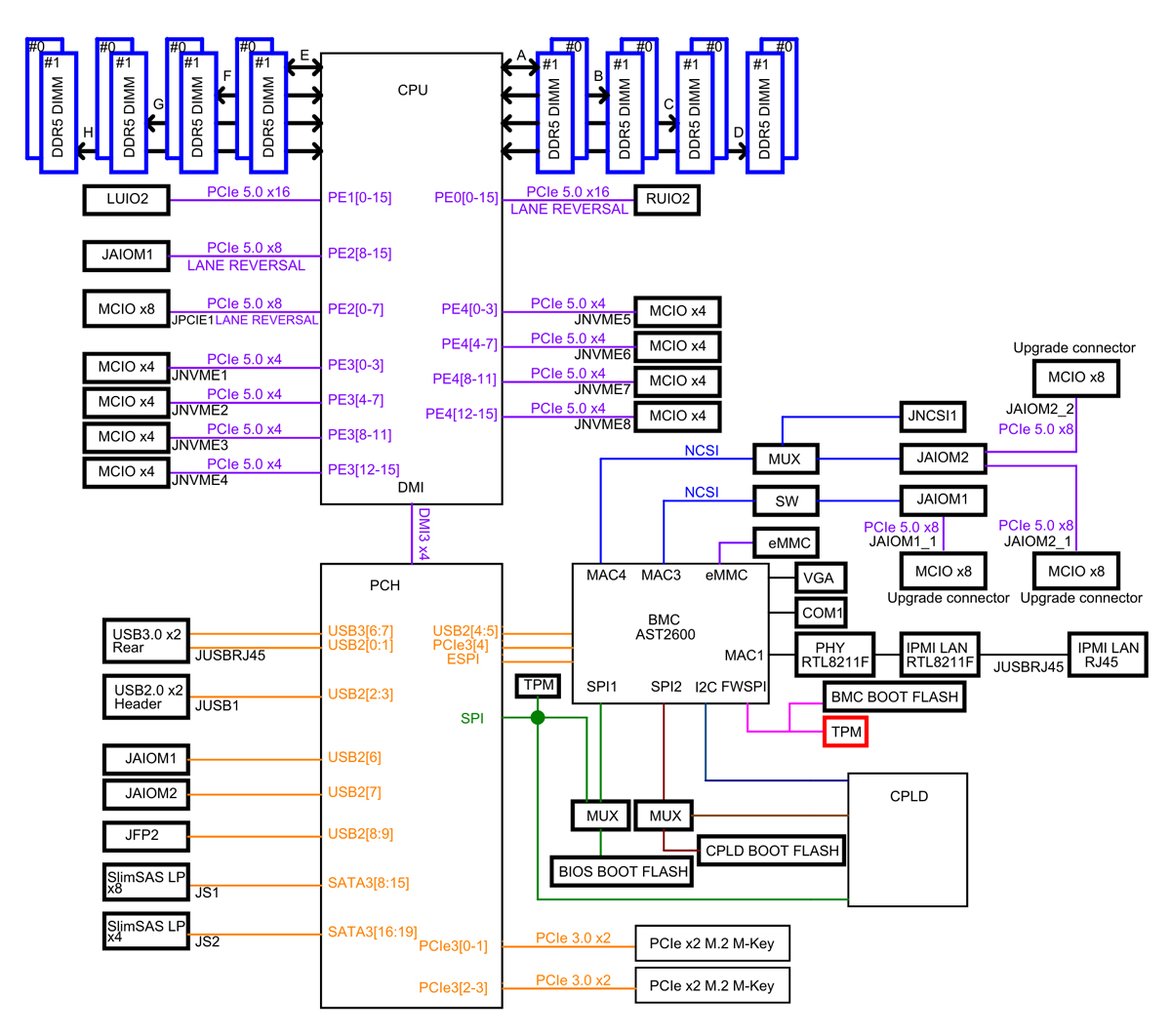

Block Diagram

Images
