Colfax CX21460s-NVMe4-E9 2U Rackmount Server



  • Hot-Swappable 4-Nodes in 2U
  • Total 4x AMD EPYC™ 9004 Series Processors
  • Total 48x DIMMS
  • Total 24x 2.5" Hot-Swap NVMe Drive Bays

Features

  • 2U, 4 Hot-Swap Nodes
  • 2200W Redundant Power Supplies, 80PLUS Titanium

Each node supports the following:

  • 1x AMD EPYC™ 9004 Series Processor
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x AIOM / OCP 3.0 Slots
  • 6x 2.5" Hot-Swap NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN Support


Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension: 17.67"W (449mm) x 3.46"H (88mm) x 28"D (711.2mm)
CPU / Node • Socket SP5
• Single AMD EPYC™ 9004 Series Processor
• Supports CPU TDP up to 290W
Memory / Node • 12x DDR5 DIMM slots
• Supports up to 3TB: 12x 256GB DRAM
• Memory Type: 4800MHz ECC DDR5 RDIMM
I/O Expansion / Node • 2x AIOM / OCP 3.0 slots
Onboard Devices / Node Chipset
• AMD SP5
Network
• Via IO module
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output / Node LAN
• Provided via SIOM (optional)
• 1x RJ45 Dedicated IPMI LAN port
USB (Shared by 2 Nodes)
• 2 USB 3.0 ports (rear)
VGA (Shared by 2 Nodes)
• 1x VGA port
Storage / Node • 6x 2.5" hot-swap NVMe drive bays
M.2
• Interface: 2x SATA/PCIe 4.0 x4
• Form Factor: 2280
• Key: M-key
Power Supply • 2200W Redundant Power Supplies with I2C and PMBus
AC Input
- 100-127Vdc (1200W for the Rest of the World)
- 200-220Vdc (1800W for the Rest of the World)
- 200-220Vdc (2090W for North America - UL & cUL)
- 220-230Vdc (1980W for the Rest of the World)
- 220-240Vdc (2200W for North America - UL & cUL)
- 230-240Vdc (2090W for the Rest of the World)
• 80PLUS Titanium Certified
System Cooling • 2x 17.6K RPM heavy duty 8cm fans
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• UID LED
BIOS • AMI 32MB SPI Flash EEPROM

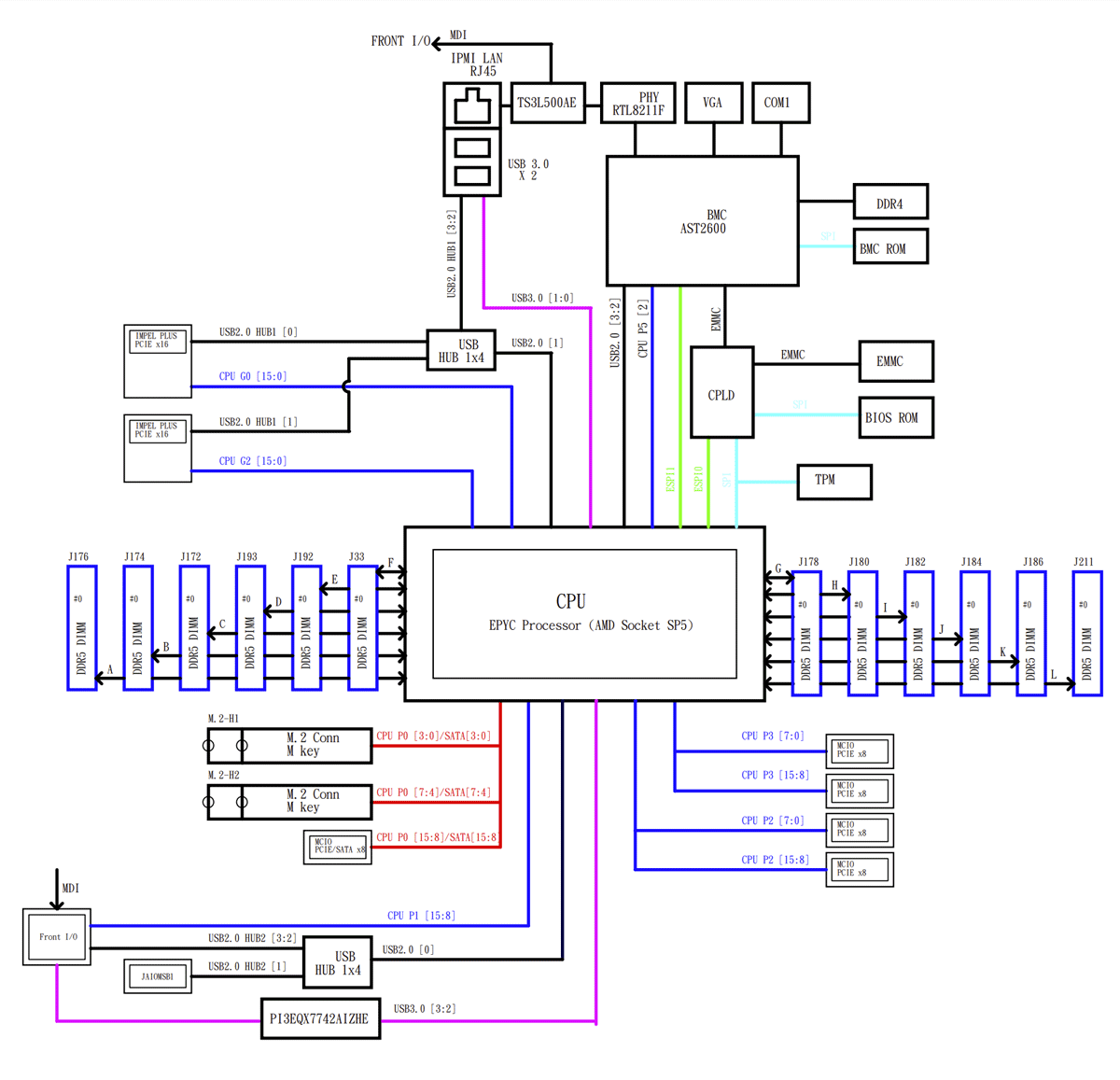

Block Diagram

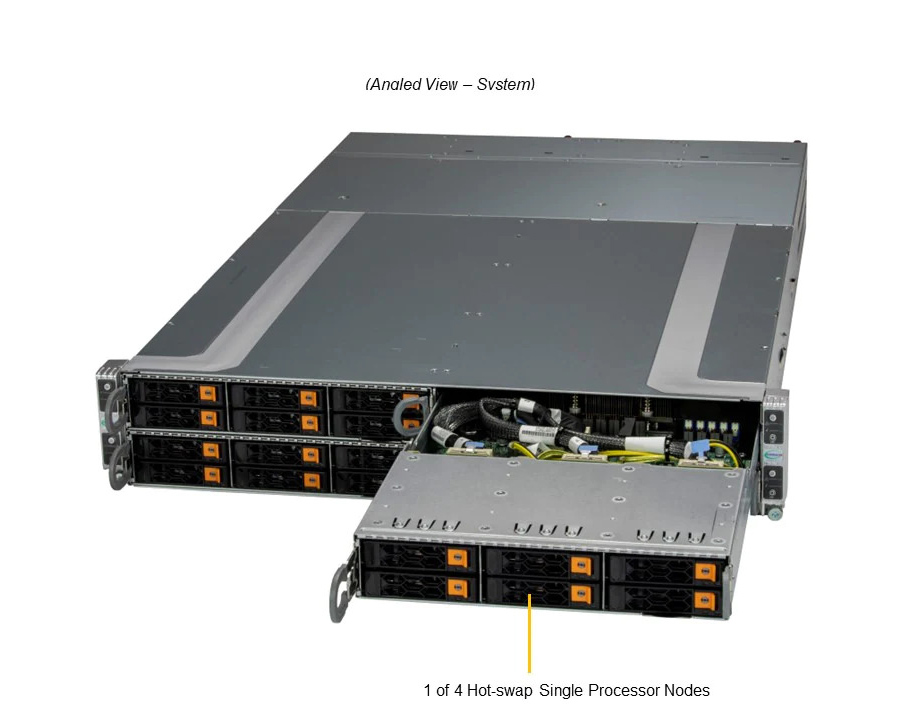

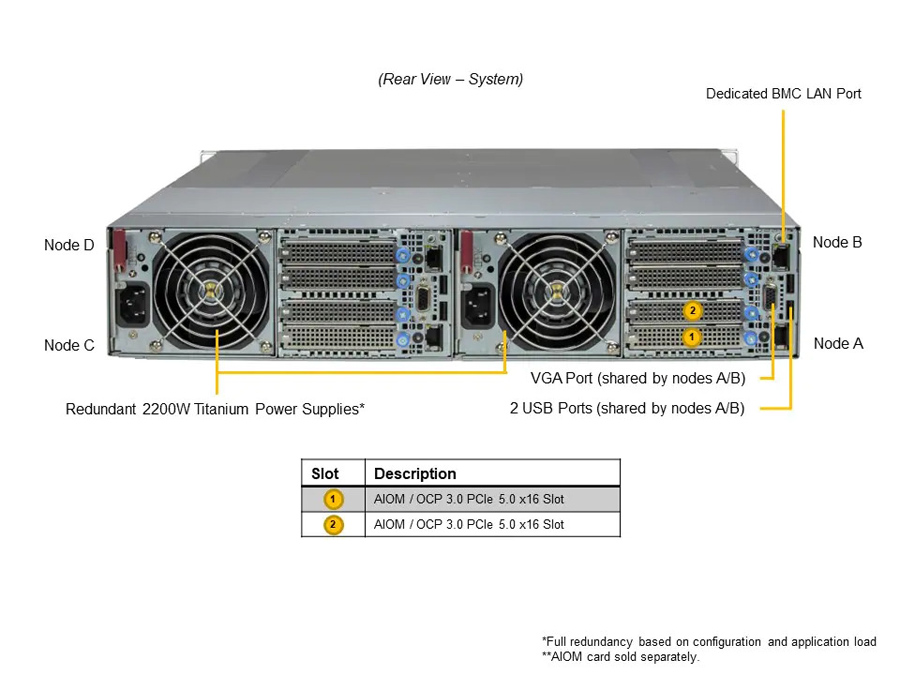

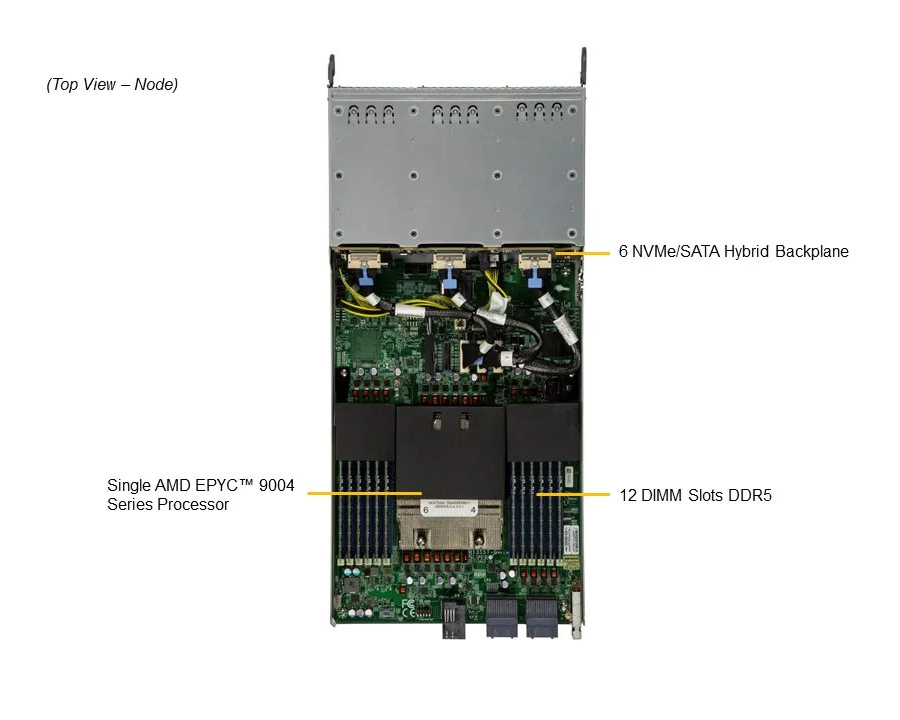

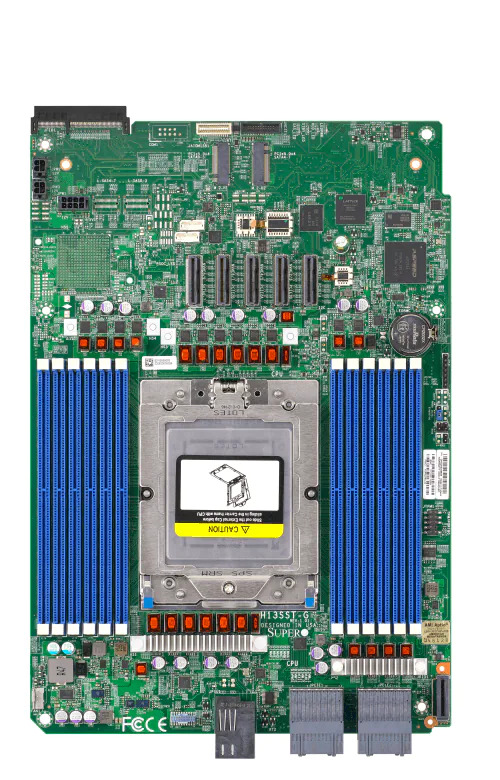

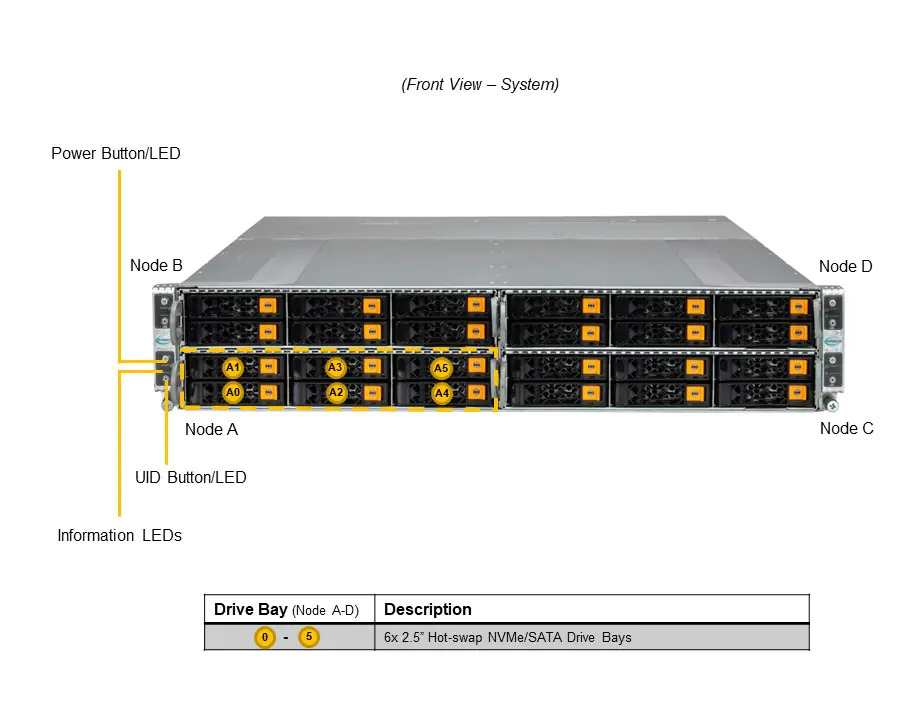

Images
