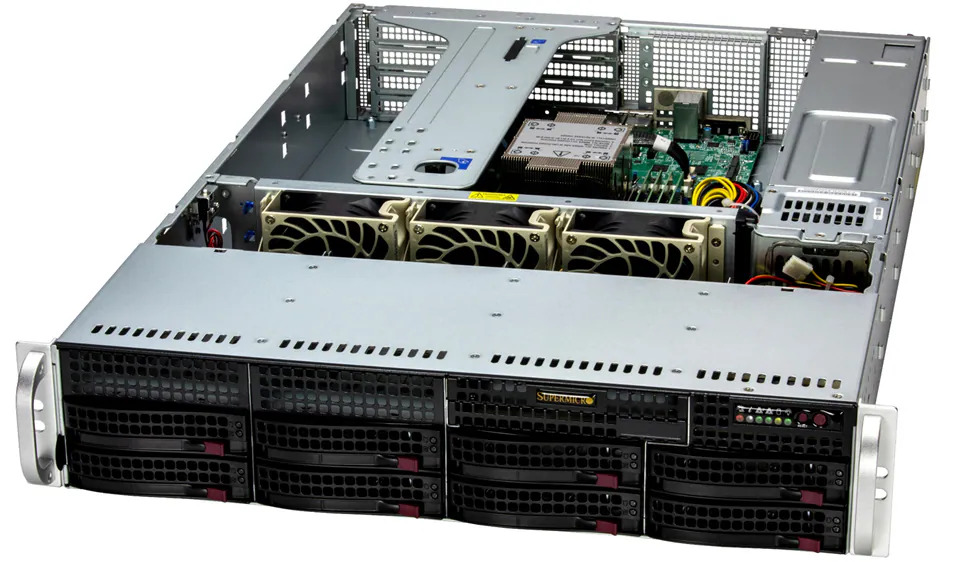

Colfax CX2150s-S8-X6 2U Rackmount Server

1x Intel® Xeon® 6 Processor (6700E/6700P/6500P)
8x DDR5 RDIMMs
8x 3.5" SATA OR 4x 3.5"/2.5" SAS/SATA + 4x 2.5" PCIe 5.0 x4 NVMe/SAS/SATA Drive Bays

Features

1x Intel® Xeon® 6 Processor (6700E/6700P/6500P) (Click here for Specifications and Comparison)
- P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
- Deep Dive: Intel® Xeon® 6 Processors with P-Cores
- Deep Dive: Intel® Xeon® 6 Processors with E-Cores
8x DIMM Sockets Support DDR5 ECC RDIMM
Expansion Slots
- 1x PCIe 5.0 x16 FHFL Double-Width Slot
- 1x PCIe 5.0 x16 or 2x PCIe 5.0 x8 (in x16) FHFL Slots
- 2x PCIe 5.0 x8 LP Slots
Storage Options
- 8x 3.5" Hot-Swap SATA Drive Bays
OR
- 4x 3.5"/2.5" Hot-Swap SAS/SATA + 4x 2.5" Hot-Swap PCIe 5.0 x4 NVMe/SAS/SATA
2x M.2 NVMe SSDs (PCIe Gen5 x2)
2x 1GbE LAN Ports
1x Dedicated BMC LAN Port
1+1 1000 Watts RPSU


Enclosure	• 2U • Dimensions (H x W x D) - 3.5" (89 mm) x 17.2" (437 mm) x 25.5" (647 mm)
CPU	• Socket E2 (1x LGA 4710) • Intel® Xeon® 6 processors - Intel® Xeon® 6700E-Series Processors - Intel® Xeon® 6700P-Series Processors - Intel® Xeon® 6500P-Series Processors • Supports CPU TDP up to 350W
Chipset	• System on Chip

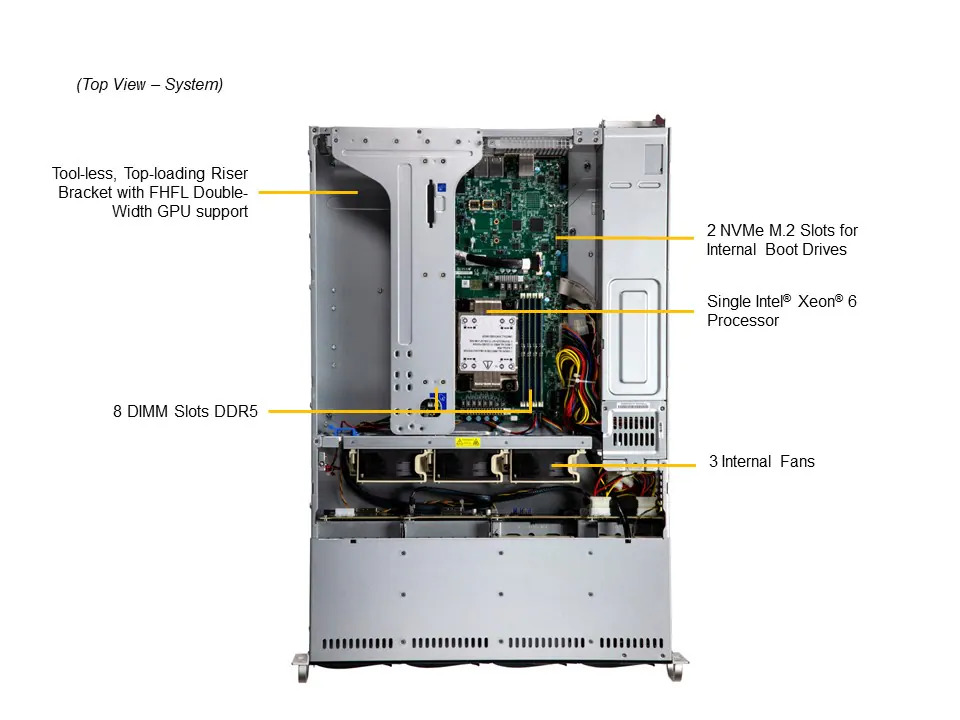

Memory	• 8x DIMM sockets • DDR5 memory supported only • 8-channel memory architecture • Memory speed: - RDIMM: Up to 6400 MT/s (1DPC)
Expansion Slots	• 1 PCIe 5.0 x16 double-width slot (FHFL) • 1x PCIe 5.0 x16 or 2x PCIe 5.0 x8 (in x16) slots (FHFL) • 2x PCIe 5.0 x8 slots (LP)

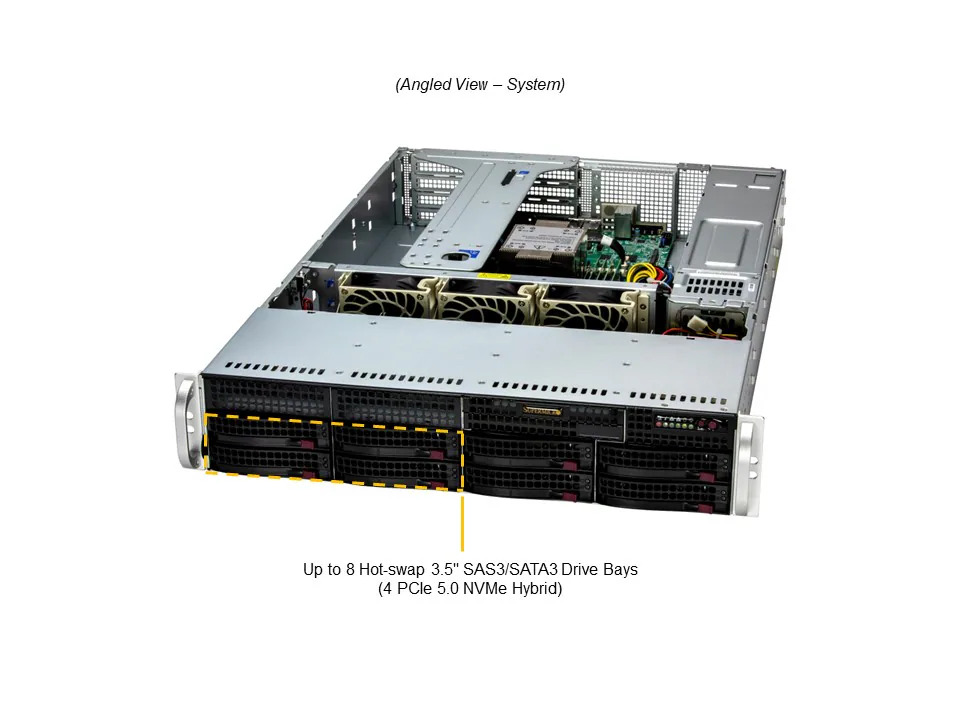

Storage	Front • 8x 3.5" hot-swap SATA drive bays OR • 4x 3.5"/2.5" hot-swap SAS/SATA + 4x 2.5" hot-swap PCIe 5.0 x4 NVMe/SAS/SATA Internal • 2x M.2 (2280/22110), PCIe Gen5 x2
Networking	• 2x 1GbE with Intel® I210 • 1x 10/100/1000 Mbps management LAN
Video	• 1x VGA port
Power Supply	• 1+1 1000W redundant PSUs • AC Input: - 800W: 100-127Vac / 50-60Hz - 1000W: 200-240Vac / 50-60Hz • +12 V: - Max: 66.67A / Min: 0A (100Vac-127Vac) - Max: 83A / Min: 0A (200Vac-240Vac) • 5V SB - Max: 4A / Min: 0A • 80PLUS Titanium
System Cooling	• 3x heavy duty PWM 80x80x38cm fans • 1x CPU air shroud

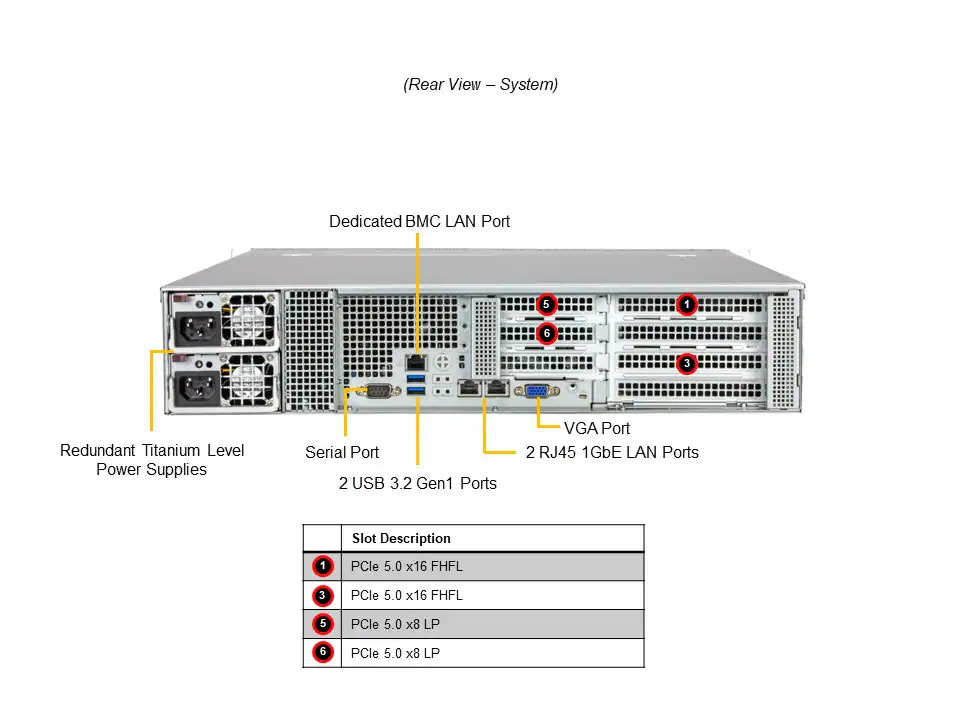

Input / Output	LAN • 2x RJ45 1 GbE LAN ports • 1x RJ45 Dedicated BMC LAN port (IPMI shared on LAN port 1) USB • 2x 3.2 Gen1 Type-A ports (rear) • 2x 3.2 Gen1 Type-A ports (header) Video • 1x VGA port (rear) Serial • 1x COM port (rear) • 1x COM port (header) TPM • 1x TPM header

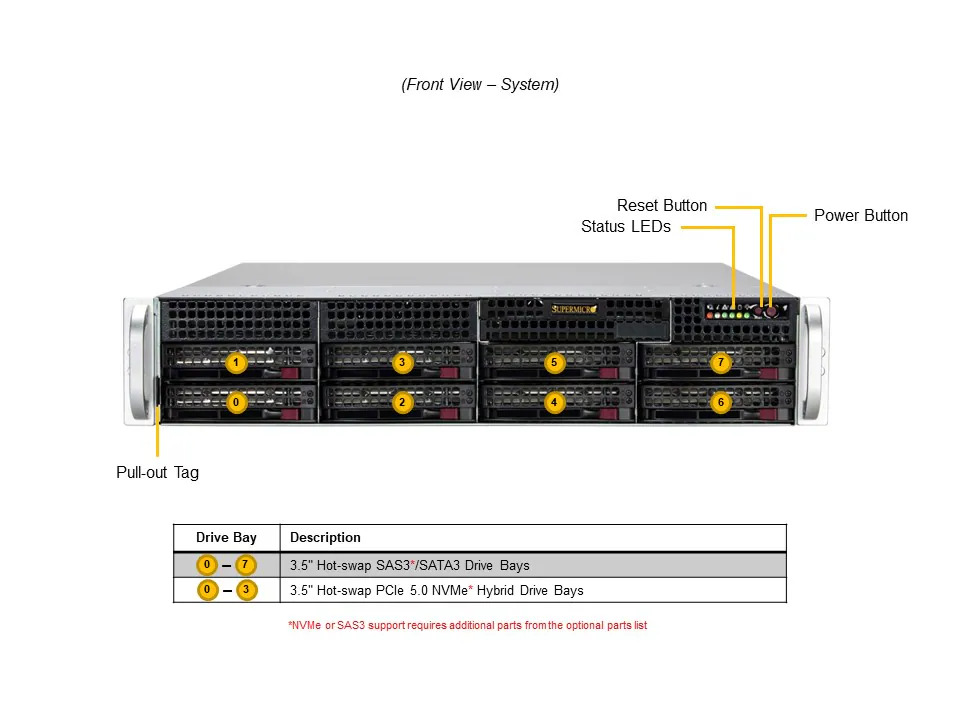

Front Panel	Buttons • Power On/Off button • System reset button LEDs • Device activity LED • Network activity LEDs • Power failure LED • Power status LED • System information LED
Management	Software • SuperCloud Composer • Supermicro Server Manager (SSM) • Super Diagnostics Offline (SDO) • Supermicro Thin-Agent Service (TAS) • SuperServer Automation Assistant (SAA) Power Configurations • ACPI/APM Power Management
Security	Hardware • Trusted Platform Module (TPM) 2.0 • Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features • Cryptographically Signed Firmware • Secure Boot • Secure Firmware Updates • Automatic Firmware Recovery • Supply Chain Security: Remote Attestation • Runtime BMC Protections • System Lockdown
Health Monitoring	CPU • Monitors for CPU Cores, Chipset Voltages, Memory • 8 Phase-switching voltage regulator Fan • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors Temperature • Monitoring for CPU and chassis environment • Thermal Control for fan connectors
BIOS	• AMI 64Mb SPI Flash EEPROM
