Colfax CX2165r-EK9 2U Rackmount Server




  • 2U Rackmount GPU Server
  • Single AMD EPYC™ 9005/9004 or 97x4 Series Processor
  • 12x DIMM Slots Supporting DDR5 RDIMM / RDIMM-3DS
  • 2x FHFL Dual-Slot PCIe 5.0 x16 Slots for GPUs or Accelerators up to 600W Each*
  • 1x HHHL PCIe 5.0 x16 Slot
  • 1x OCP NIC 3.0 Slot (PCIe 5.0 x16)
  • 2x Hot-Swap 2.5" NVMe Drive Bays (PCIe 4.0 x4)
  • 2x M.2 Slots (PCIe 5.0 x4 or SATA 6Gb/s)
  • Dedicated IPMI Remote Management
  • 1+1 Redundant 2700W CRPS Power Supplies; 80 PLUS Titanium

Features

  • 2U Rackmount GPU Server
  • Single Socket SP5 (LGA 6096) Supporting AMD EPYC™ 9005/9004 Series Processors, Including Models with AMD 3D V-Cache™ Technology, and 97x4 Series Processors
  • 12x DIMM Slots (1DPC) Supporting DDR5 RDIMM and RDIMM-3DS Memory
  • 2x FHFL Dual-Slot PCIe 5.0 x16 Slots Supporting GPUs and Accelerator Cards up to 600W TDP Each at 25°C Ambient Temperature
  • 1x HHHL PCIe 5.0 x16 Expansion Slot
  • 1x OCP NIC 3.0 Slot (PCIe 5.0 x16)
  • 2x Hot-Swap 2.5" NVMe Drive Bays (PCIe 4.0 x4)
  • 2x M.2 Slots Supporting PCIe 5.0 x4 or SATA 6Gb/s
  • IPMI Remote Management
  • 1+1 Redundant 2700W CRPS Power Supplies; 80 PLUS Titanium Certified




Technical Specifications

Enclosure • 2U Rackmount
• Dimension (W x H x D) 17.2" x 3.4" x 22.8" (438 x 87 x 580 mm)
Motherboard • ASRock Rack TURIND12M3/N/500W
CPU • Single Socket SP5 (LGA 6096P)
• Supports AMD EPYC™ 9005/9004 Series Processors, Including Models with AMD 3D V-Cache™ Technology, and 97x4 Series Processors
• Supports CPU TDP up to 500W
Chipset • System on Chip
Memory • 12x DIMM Slots (1DPC)
• Supports DDR5 288-Pin RDIMM and RDIMM-3DS
• Maximum Capacity per DIMM:
- RDIMM: 128GB (2Rx4)
- RDIMM-3DS: 256GB (2Rx4)
• Maximum DIMM Frequency: 6400 MHz
• Voltage: 1.1V
GPU Support • Supports 2x GPUs or Accelerator Cards
• Up to 600W TDP per Card at 25°C Ambient Temperature
• Up to 400W TDP per Card at 35°C Ambient Temperature
Expansion Slots • 2x FHFL Dual-Slot PCIe 5.0 x16
• 1x HHHL PCIe 5.0 x16
Storage • 2x Front Hot-Swap 2.5" NVMe Drive Bays (PCIe 4.0 x4)
• 2x M-Key Slots (PCIe 5.0 x4 or 4 SATA 6Gb/s)
• Supports M.2 22110/2280/2260 Form Factors
Backplane • 2-Port NVMe Passive Backplane
Networking • 1x OCP NIC 3.0 Slot (PCIe 5.0 x16)
Graphics • ASPEED AST2600 Graphics Controller
• 512MB DDR4 VRAM
Power Supply • 1+1 Hot-Swap CRPS
• Output: 1000W at 100-127Vac Input / 2700W at 200-240Vac Input
• 80 PLUS Titanium Certified
• AC Input:
- Low-Line: 100-127Vac, 50/60Hz
- High-Line: 200-240Vac, 50/60Hz
• Full Redundancy May Not Be Supported with Low-Line Input; Redundancy Depends on Total System Power Consumption Relative to Single PSU Capacity
System Cooling • Front: 4x PWM Hot-Swap 80 x 56 mm Fans
• Middle: 1x PWM Fixed 40 x 28 mm Fan
Front Panel Buttons
• Power Button with LED
• UID Button with LED
• System Reset

LEDs
• HDD Activity
• System Event

I/O Ports
• 2x USB 3.2 Gen1 Type-A
Rear I/O • 1x DB15 VGA Port
• 1x DB9 Serial (COM) Port
• 2x USB 3.2 Gen1 Type-A
• 1x RJ45 Dedicated IPMI Port
TPM • TPM-SPI Support
Server Management • ASPEED AST2600 BMC Controller
• 1x Realtek RTL8211F for Dedicated Management GLAN

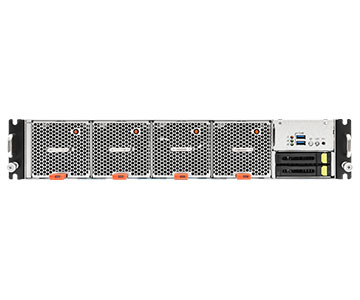

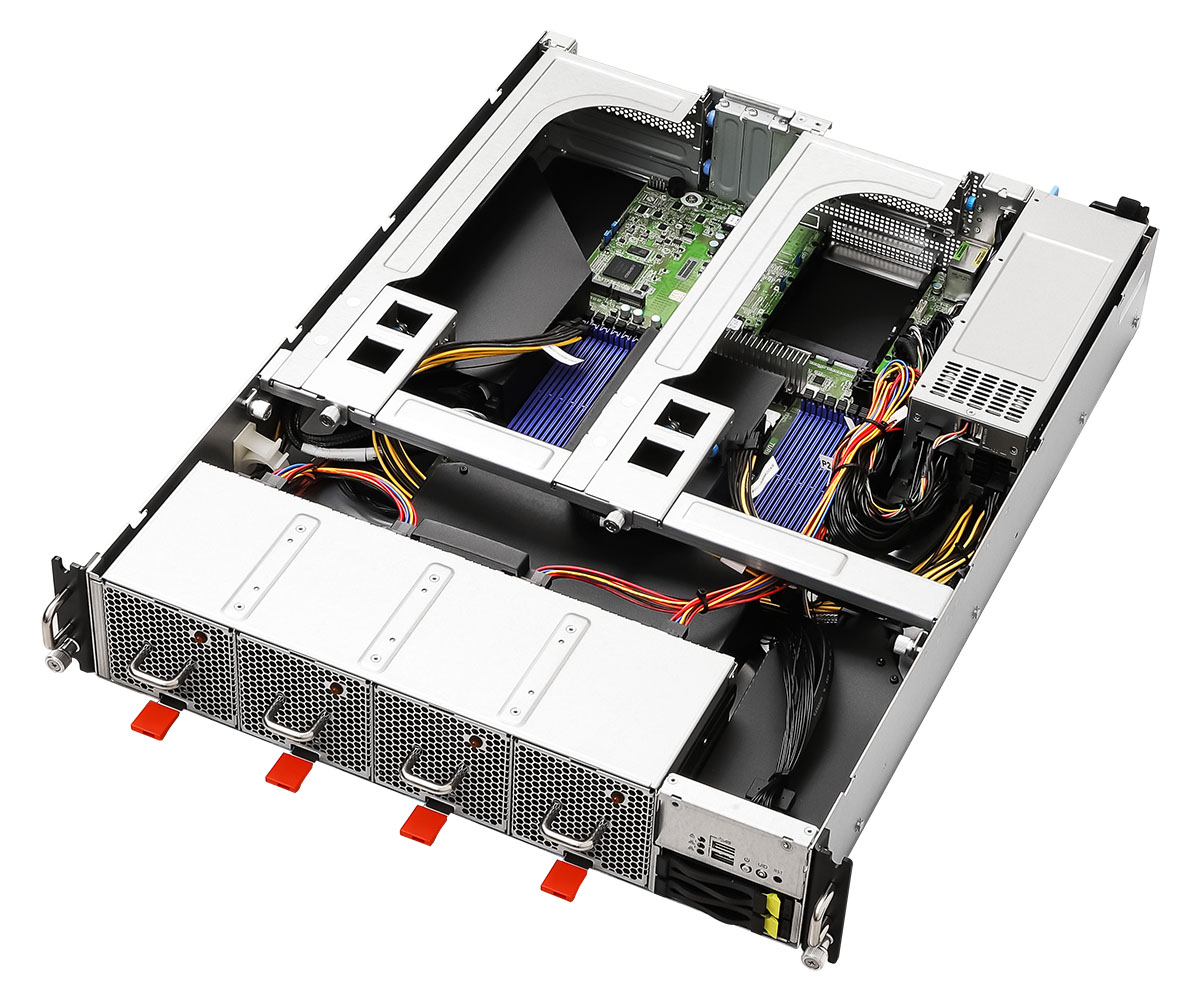

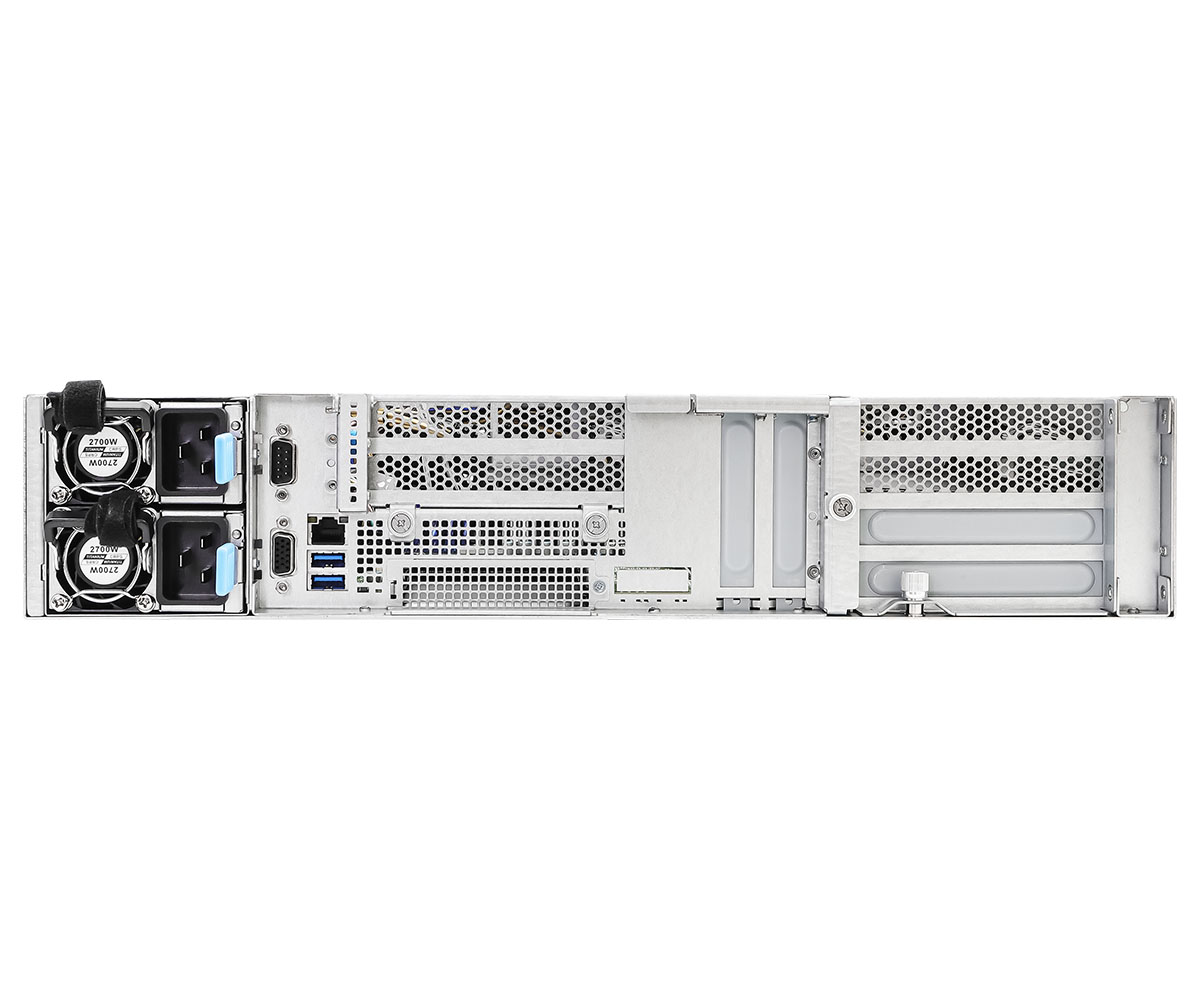

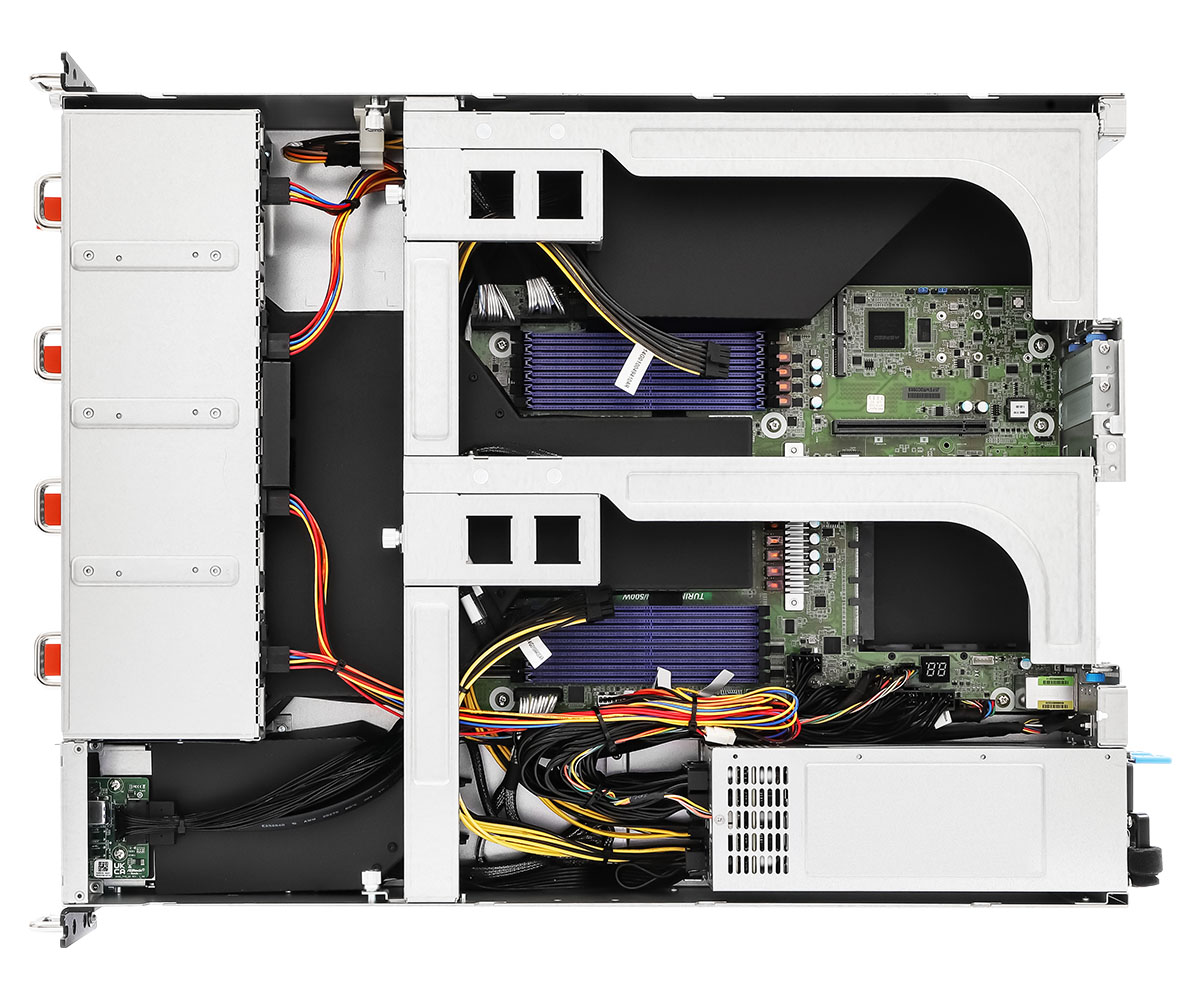

Images
