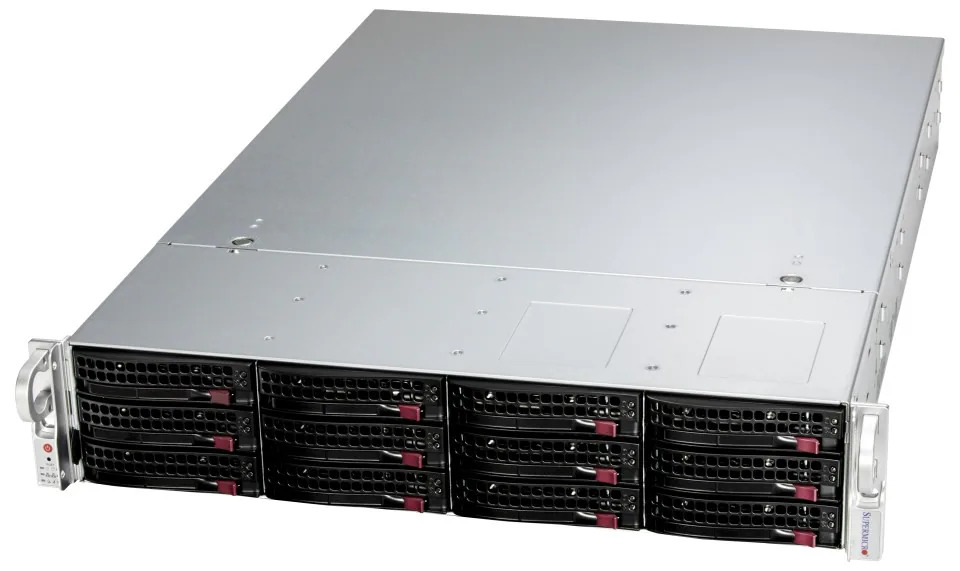

Colfax CX2170s-EL9 2U Rackmount Server



  • 1x AMD EPYC™ 8004 Series Processor
  • 6x DDR5 DIMM Sockets
  • 12x 3.5" Hot-Swap SATA Drive Bays
  • 2 PCIe 5.0 x16 Slots (FH/FL)

Features

  • 1x AMD EPYC™ 8004 Series Processor (Click here for Specifications and Comparison)
  • 6x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 2 PCIe 5.0 x16 Slots (FH/FL)
    - 3 PCIe 5.0 x16 Slots (LP)
  • 12x 3.5" Hot-Swap SATA Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 3.0 x4)
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 800W Redundant* Power Supplies, Titanium Level


* Full redundancy based on configuration and application load



Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 25.6" (650mm)
CPU • Socket SP6
• Single AMD EPYC™ 8004 Series Processor
• Supports up to 225W TDP CPUs (Air Cooled)
Memory • 6x DIMM Sockets
• Supports DDR5 ECC RDIMM
• Memory Type 4800 MHz Registered ECC
I/O Expansion • 2 PCIe 5.0 x16 slots (FH/FL)
• 2 PCIe 5.0 x16 slots (LP)
Onboard Devices NVMe
• Optional
SATA
• SATA (6Gbps)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• 2x 10Gb BaseT with Broadcom BCM57416
• Single LAN with Realtek RTL8211F PHY VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 2 RJ45 10 GbE LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 1x COM port
TPM
• 1x Trusted Platform Module (TPM) 2.0 header
Others
• 3x PCIe 5.0 x8 MCIO connectors
• 8x SATA3 / PCIe 5.0 Hybrid via 2 PCIe 5.0 x8 MCIO
Power Supply • 1U 800W Redundant power supply
• AC Input
- 800W: 100-240Vac / 50-60Hz
- 800W: 200-240Vdc / 50-60Hz
• +12V
- Max: 66A / Min: 0A (100Vac-240Vac)
- Max: 66A / Min: 0A (200Vdc-240Vdc)
• 5V sb
- Max: 4A / Min: 0A
• 80 PLUS Titanium Certified
Storage • 12x 3.5" hot-swap SATA/SAS/NVMe drive bays (6x 3.5" NVMe hybrid)
• 2x M.2 PCIe 4.0 x4 NVMe (2280/22110)
System Cooling • 3x 80x80x38mm heavy duty fans
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Hard drive activity LED
• Network activity LED
• Power status LED
• UID LED
BIOS • AMI 256Mb SPI Flash EEPROM


Block Diagram

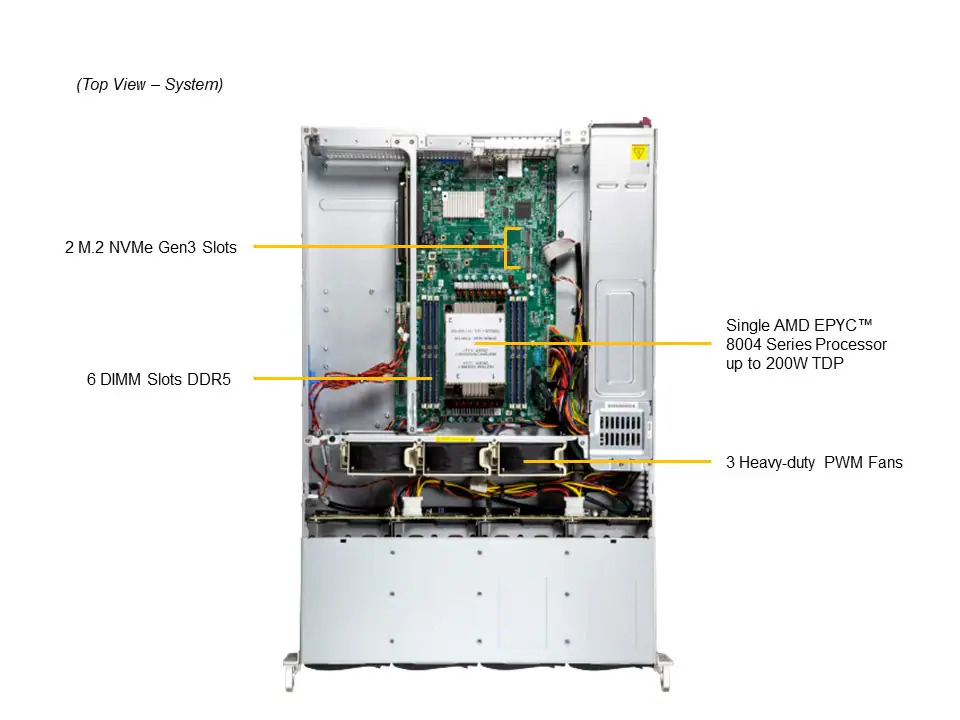

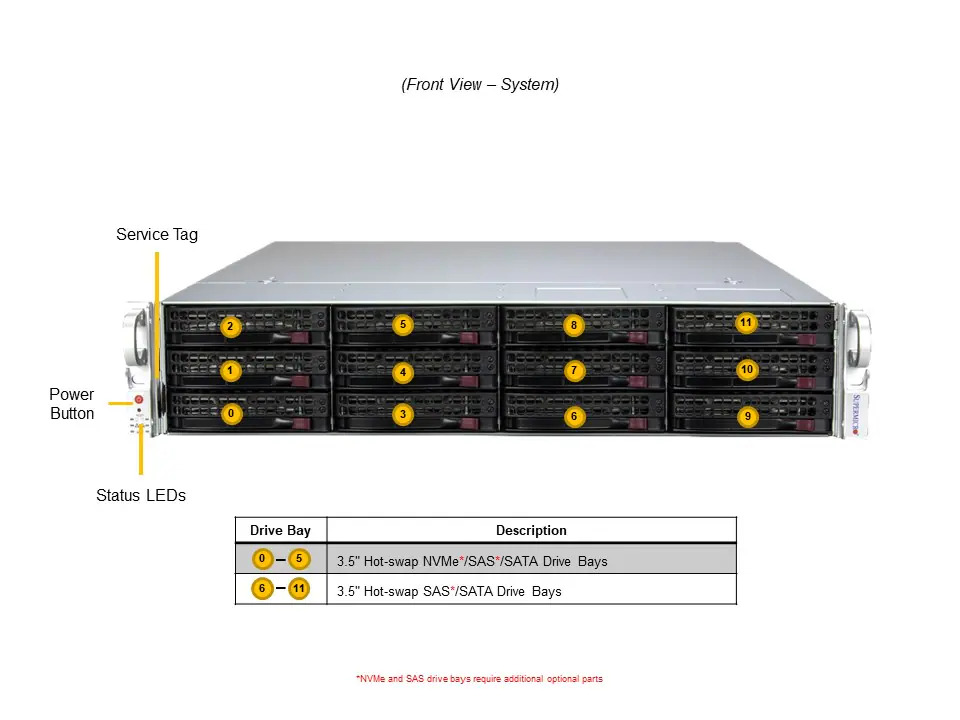

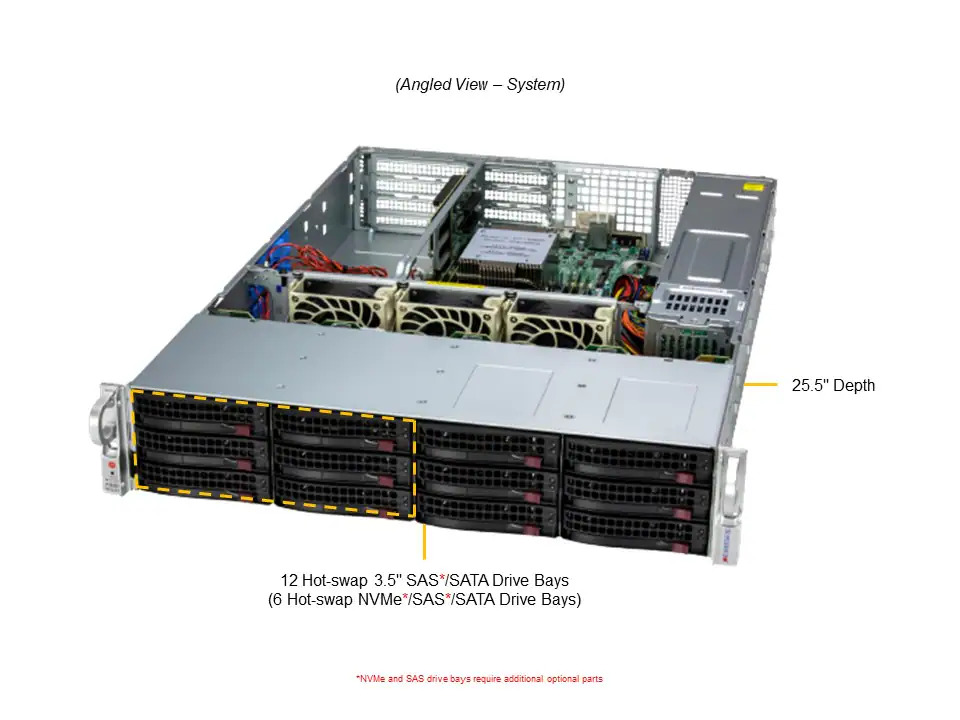

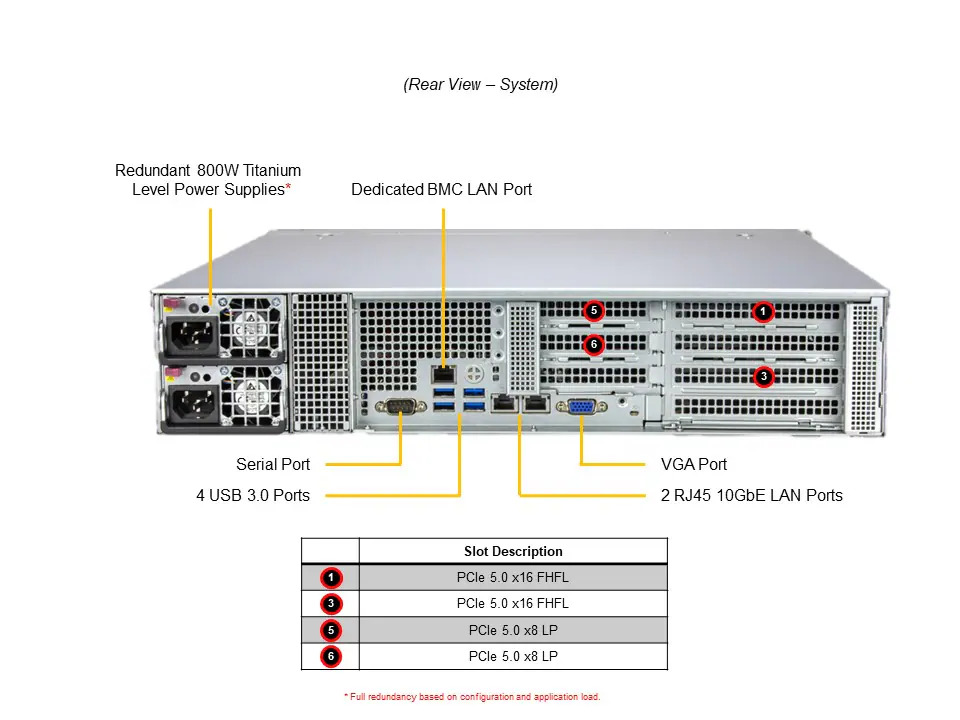

Images
