Colfax CX2250a-NVMe5-S12-X6 1U Rackmount Server




  • 2x Intel® Xeon® 6 Scalable processors
  • 32x DDR5 RDIMM
  • 12 x 2.5"hot-swap drive bays
  • 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
  • 2x PCIE Gen5 x16 (FHHL)
  • 1x OCP3.0 Gen5 x16 (SFF)
  • 1x OEI-10G/X710-2T
  • 1+1 Redundant 80 PLUS 3200W Titanium PSU
  • 1+1 Redundant 2700W

Features

  • 2x Intel® Xeon® 6 Scalable processors
  • 32x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots:
    - 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
    - 2x PCIE Gen5 x16 (FHHL)
    - 1x OCP3.0 Gen5 x16 (SFF)
    - 1x OEI-10G/X710-2T
  • 12 x 2.5"hot-swap drive bays
  • 2x M.2 SSDs
  • 1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
  • 1+1 Redundant 2700W


Technical Specifications

Dimensions • 87.3 (W) x 484.65(H) x 822.16 (D) mm
• 19.08 (W) x 3.44 (H) x 32.37 (D) inches
CPU • Intel® Xeon® Processor Scalable Family
• Generation: E12
Memory • Total Slots: 32 (8-channel per CPU, 16 DIMM per CPU)
• Capacity: Maximum up to 4TB
• Memory Type: DDR5 6400MHz (1DPC) / 5200MHz (2DPC)
• Supported Sizes: 64GB, 32GB, 16GB RDIMM; 256GB, 128GB RDIMM 3DS
Expansion Slots • Total 10 expansion slots
• 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
• 2x PCIe Gen5 x16 (FHHL)
• 1x OCP 3.0 Gen5 x16 (SFF)
• 1x OCP 3.0 Asus X710-2T

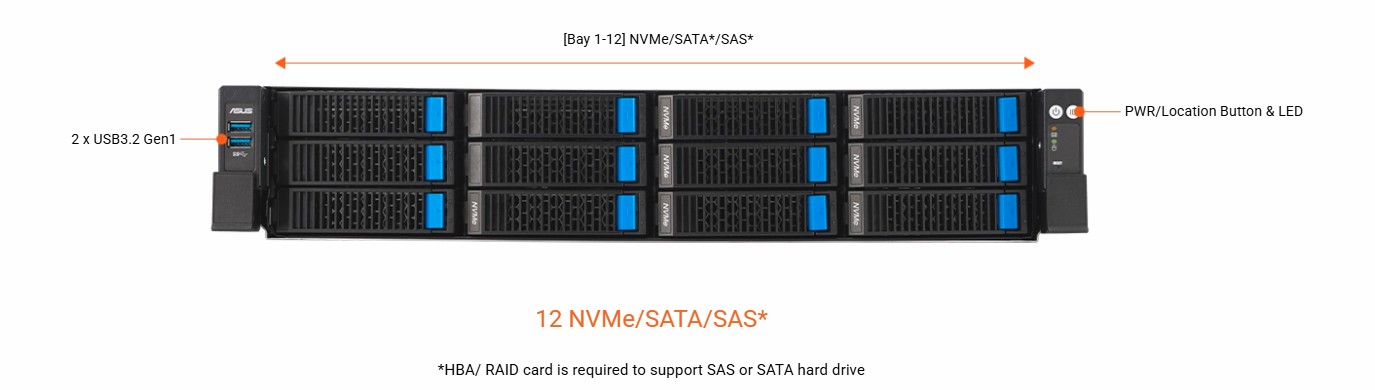

Drive Bays • 12 x 2.5"/3.5" hot-swap drive bays (NVMe/SATA*/SAS*)
• *HBA/RAID card required for SAS or SATA drives

• 2x M.2 Gen5
Network • 1x Management Port
Front I/O Ports • 2x USB 3.2 Gen1 ports

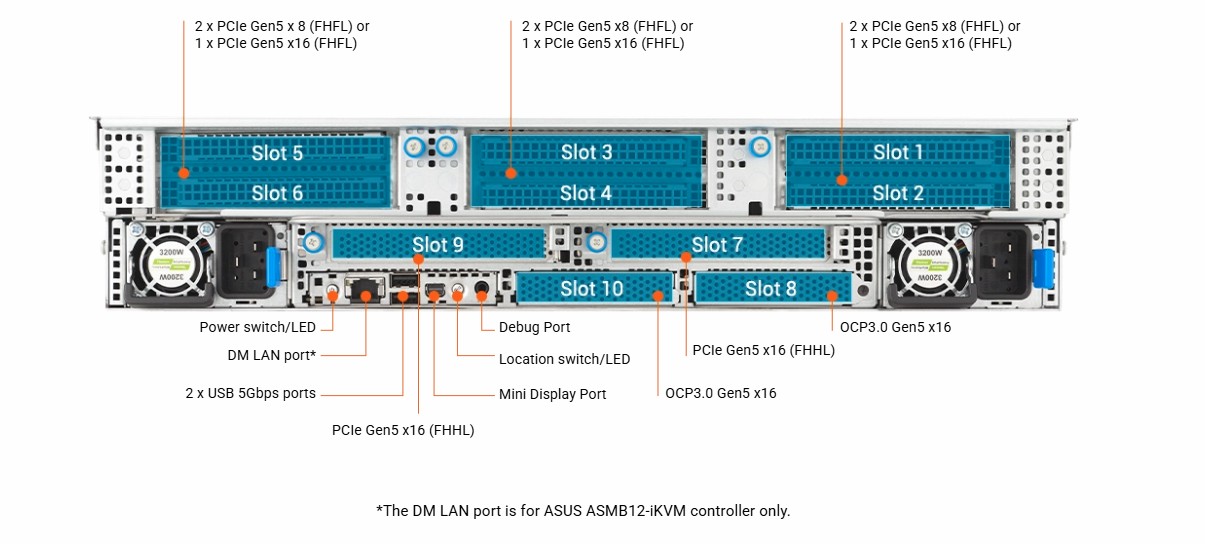

Rear I/O Ports • 2x USB 3.2 Gen1 ports
• 1x Mini-DP port
• 1x RJ-45 Management LAN port
• 1x Debug port
Switch / LED Front
• Power Switch w/ LED
• Reset Switch
• Location Switch w/ LED
• HDD Access LED
• Message LED

Rear
• Power Switch w/ LED
• Location Switch w/ LED
• Message LED
Power Supply • 1+1 Redundant 80 PLUS 3200W Titanium PSU
• 1+1 Redundant 2700W
• AC Input Rating:
-100-120V~/220-240V~, 16A (x2), 50/60Hz
-100-127V~/220-240V~, 12A/16A (x2), 50-60Hz
System Management • On-board ASMB12-iKVM (KVM over IP)
• ASUS Control Center Enterprise (Optional)


Block Diagram

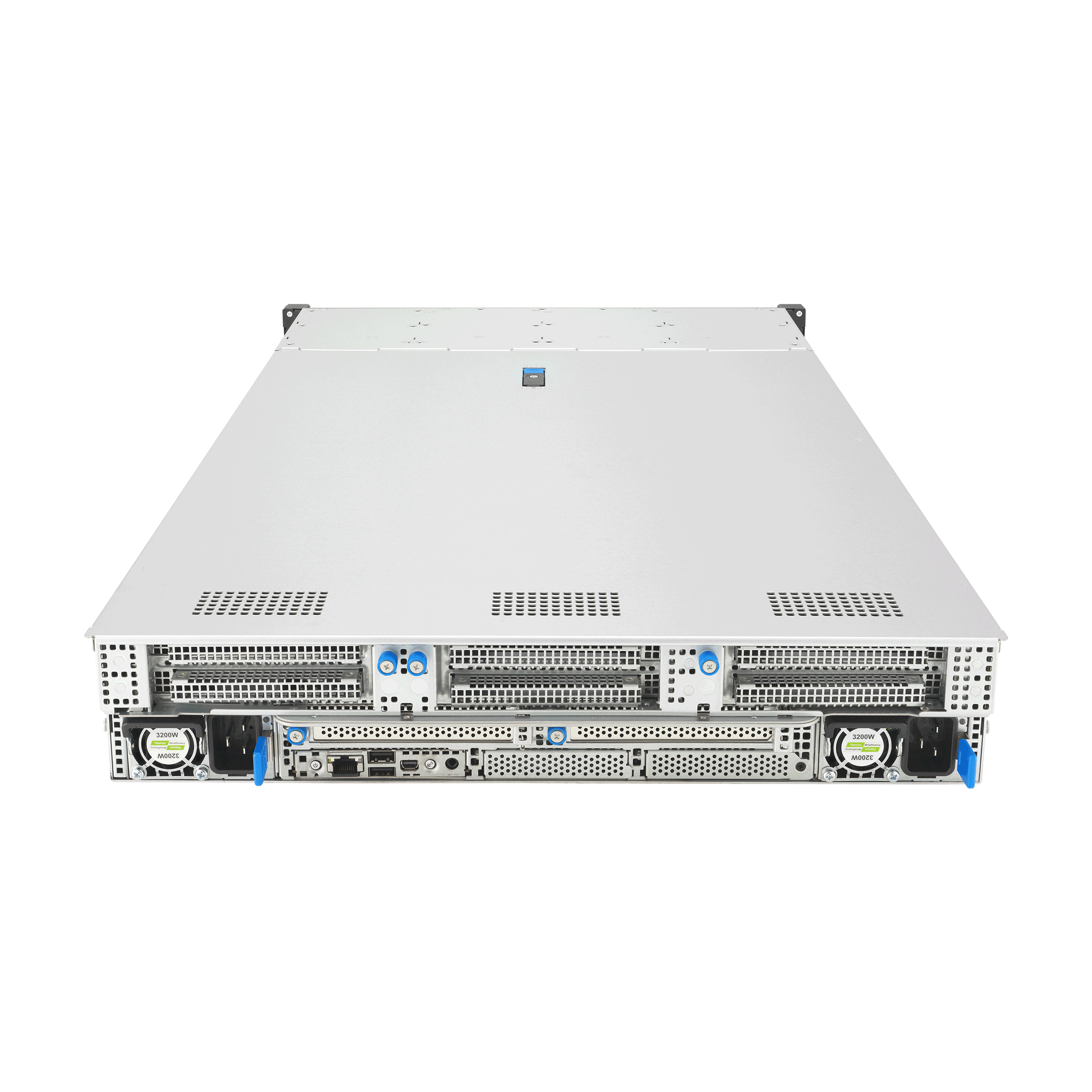

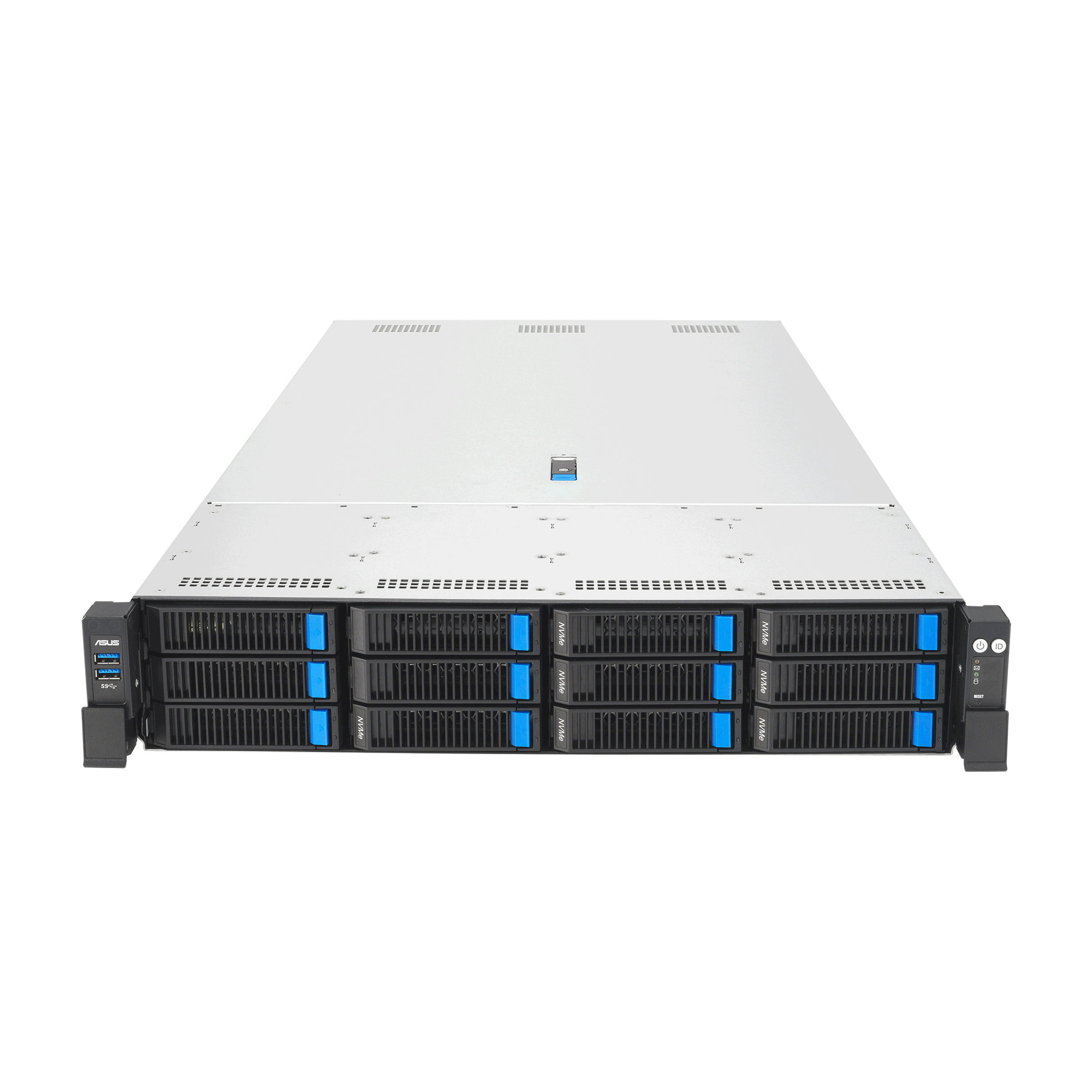

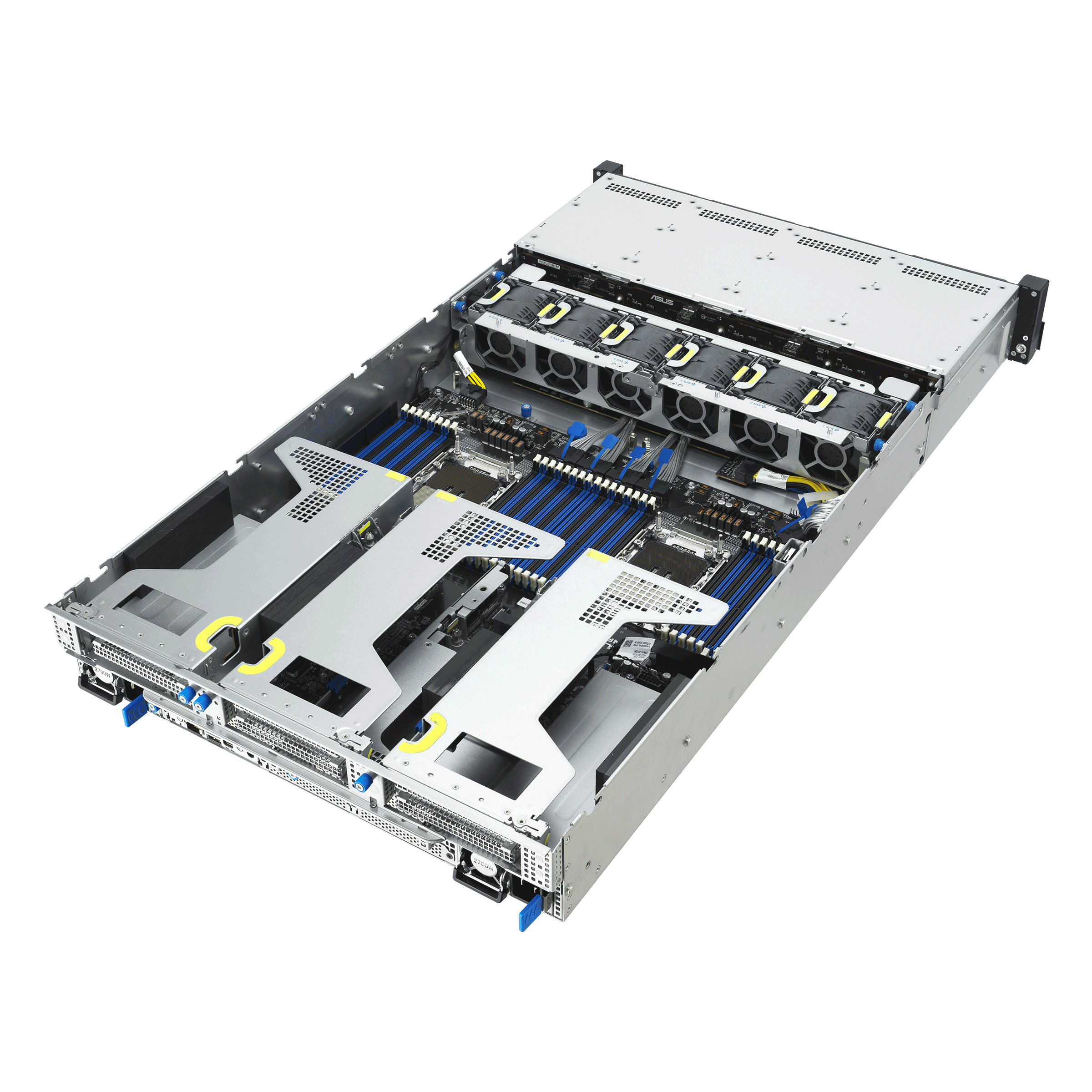

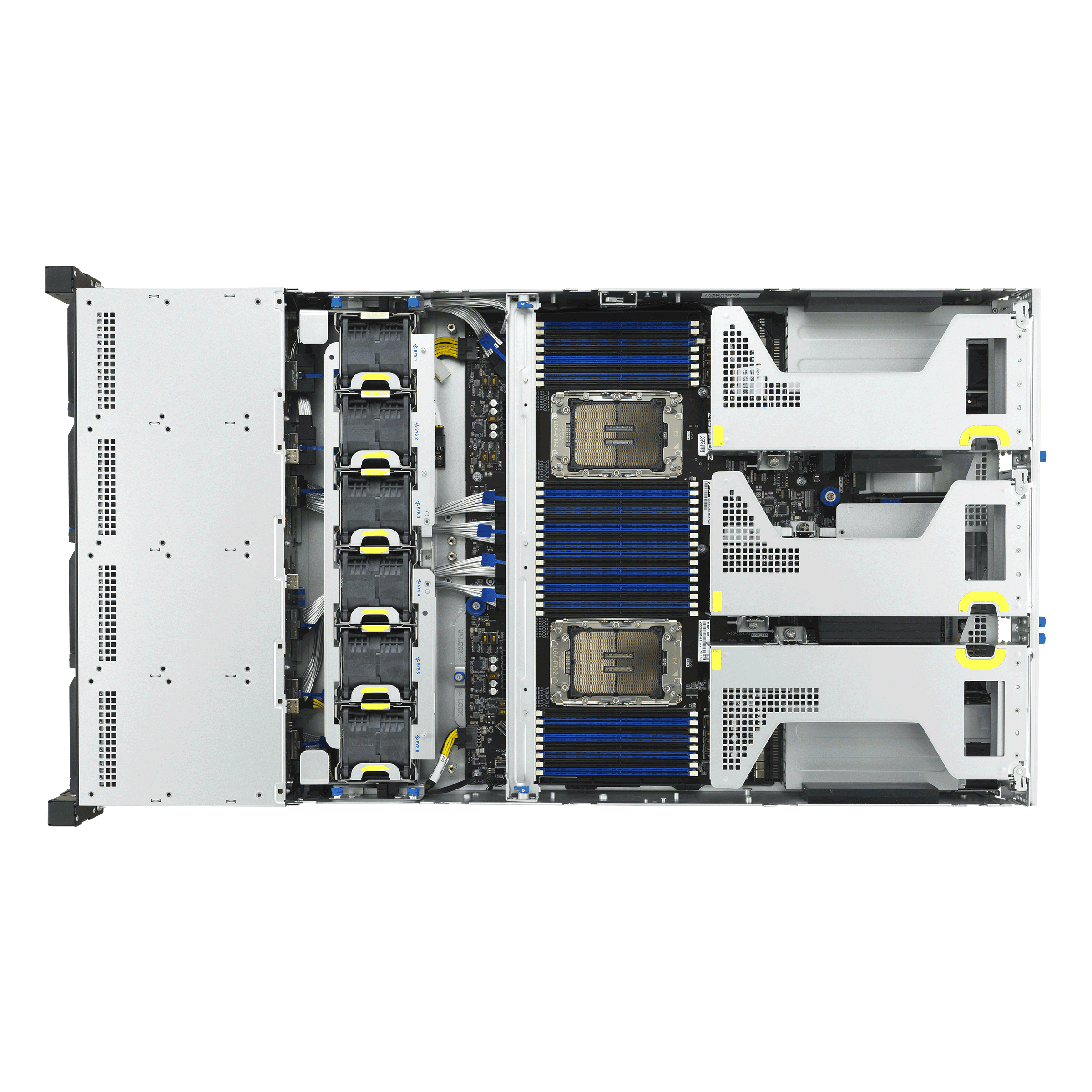

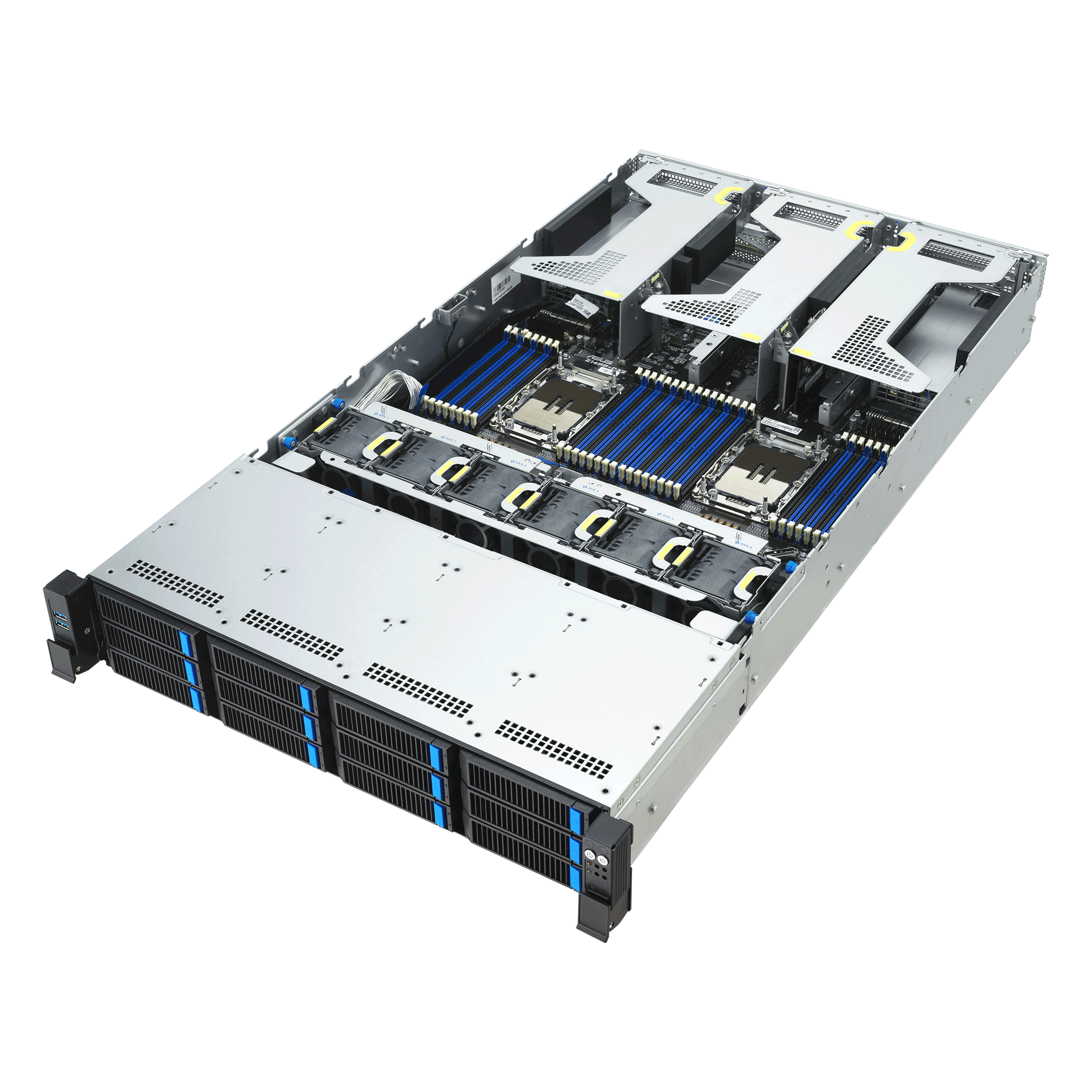

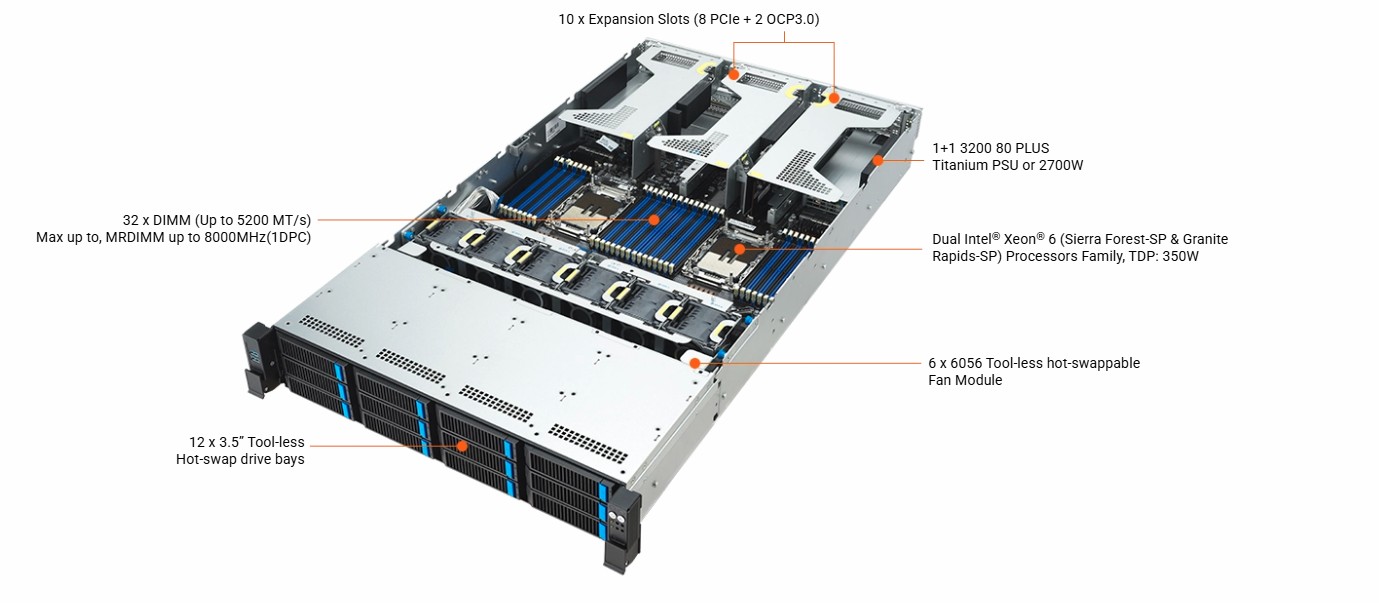

Images
$4,569.70


  Qty.Colfax CX2250a-NVMe5-S12-X6 2U Rackmount Server, Cost As Configured $4,569.70
Base Platform 1
Primary CPU    1

Set next    items (  ) like this
Secondary CPU    1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
M.2 Drive 1 1
M.2 Drive 2 1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
NVM-E Drive 7    1
NVM-E Drive 8    1
NVM-E Drive 9    1
NVM-E Drive 10    1
NVM-E Drive 11    1
NVM-E Drive 12    1
Ethernet HBA 1
Infiniband HBA 1
OCP 3.0 Gen5 x 16 1    1

Set next    items (  ) like this
OCP 3.0 Gen5 x 16 2    1
TPM Module 1
Operating System SW 1
   Colfax CX2250a-NVMe5-S12-X6 2U Rackmount Server, Cost As Configured $4,569.70
