Colfax CX2250s-NVMe-S8-E8 2U Rackmount Server



  • 2x AMD EPYC™ 7002/7003 Series
  • 16x DDR4 DIMM Sockets
  • 8x SATA + 4x NVMe Drive Bays

Features

  • 2x AMD EPYC™ 7002/7003 Series
  • 16x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots
    - 3 PCI Express 4.0 x16 Slots (LP)
    - 3 PCI Express 4.0 x8 Slots (LP)
  • 12x Hot-Swap 3.5" Drive Bays
    - 8x SATA
    - 4x NVMe
  • Integrated 2x Gigabit LAN ports + Management LAN
  • 920W Redundant Power Supplies


Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 25.5" (648mm)
CPU • Socket SP3
• Dual AMD EPYC™ 7002/7003 series processors
• Supports CPU TDP up to 240W
Memory • 16 DIMM Sockets
• Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
• Memory Type 3200 MHz Registered ECC
I/O Expansion • 3 PCIe 4.0 x16 slots (LP)
• 3 PCIe 4.0 x8 slots (LP)
Onboard Devices Network Controllers
• Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 2 1GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB
• 4 USB 3.0 ports (2 rear, 2 headers)
• 2 USB 2.0 ports (rear)
VGA
• 1 VGA port
Other
• 1 COM port (rear)
• 2x SATA DOM power connectors
• 4 PCI-E 4.0 NVMe x4 internal ports
• TPM 2.0 header
Power Supply • 1U 920W redundant power supply
• AC Input
- 920W: 100-127Vac / 8.5A-11A / 50-60Hz
- 920W: 200-240Vac / 4.5A-5.5A / 50-60Hz
• 80PLUS Platinum Certified
Storage • 12x hot-swap 3.5" drive bays (8x SATA3 + 4x NVMe)
M.2
• Interface: 1 PCI-E 4.0 x4
• Form Factor: 2280, 22110
• Key: M-key
Backplane • Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDDs
System Cooling • 3x 80mm middle fans
BIOS • AMI 256Mb SPI Flash EEPROM

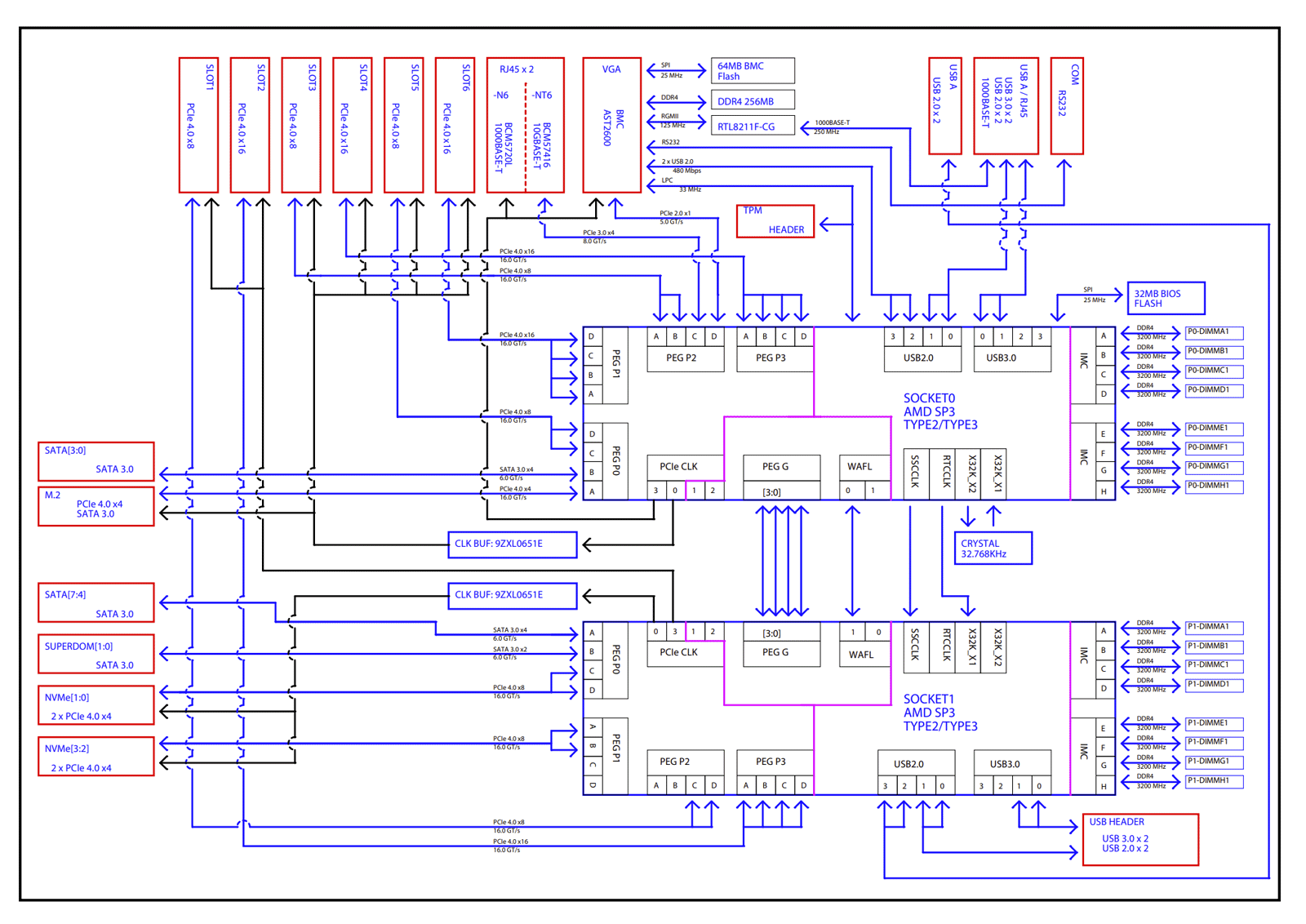

Block Diagram

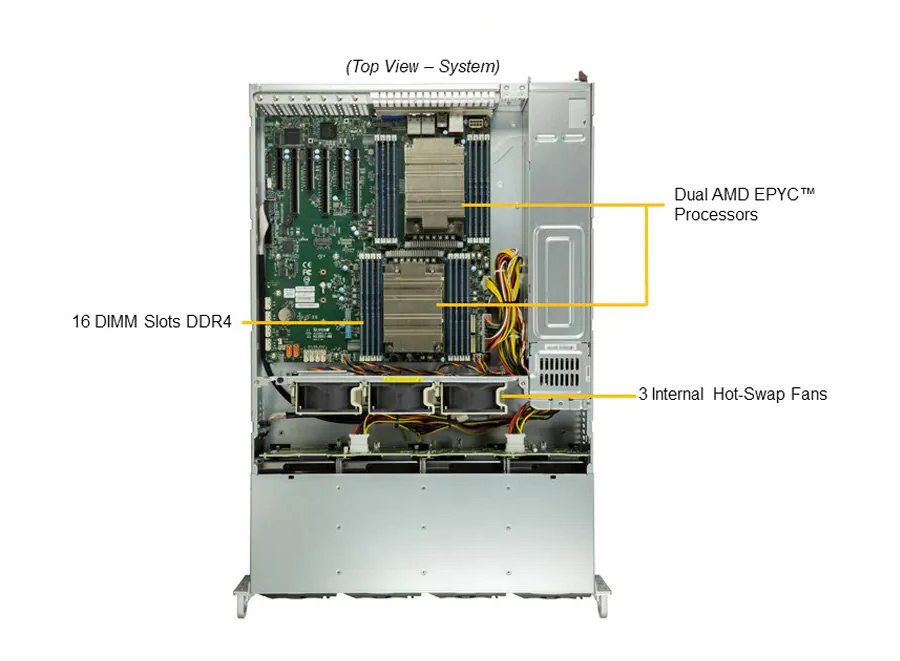

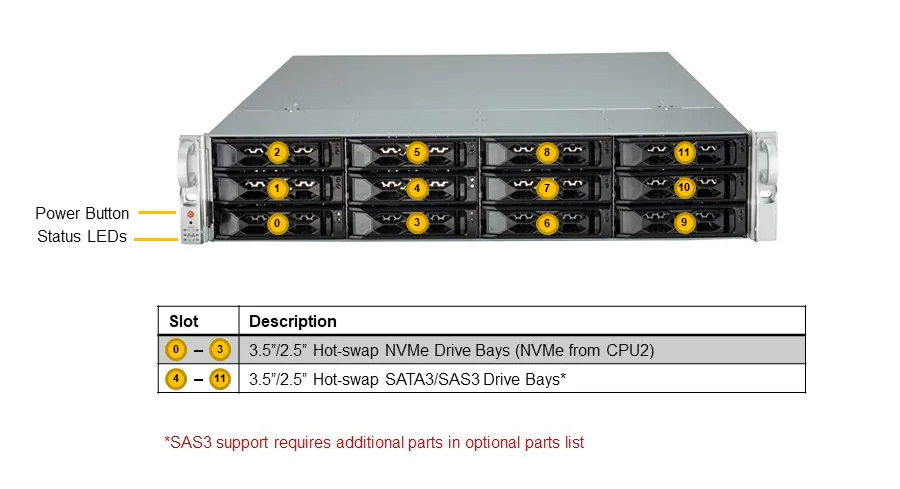

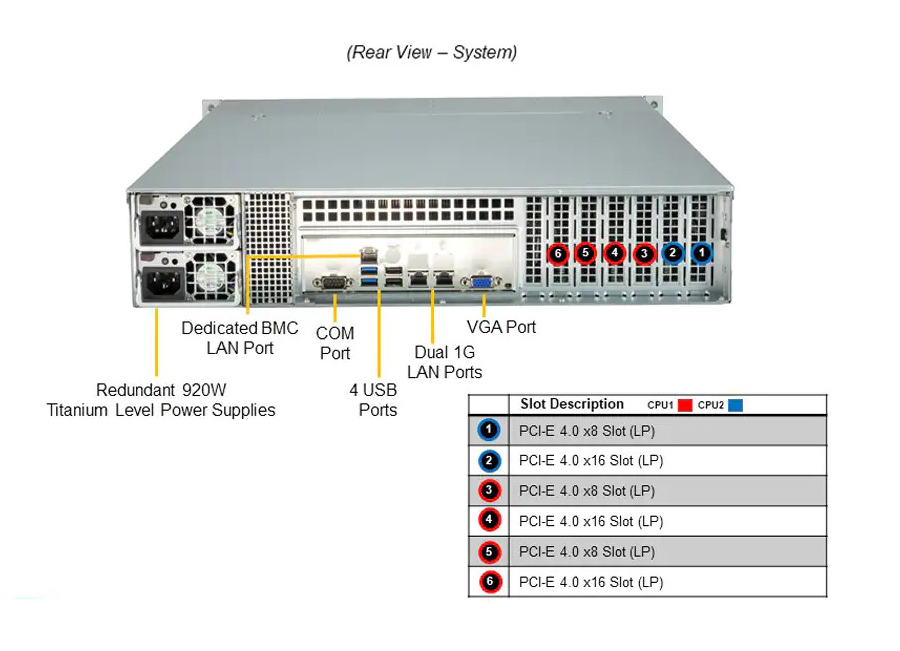

Images
