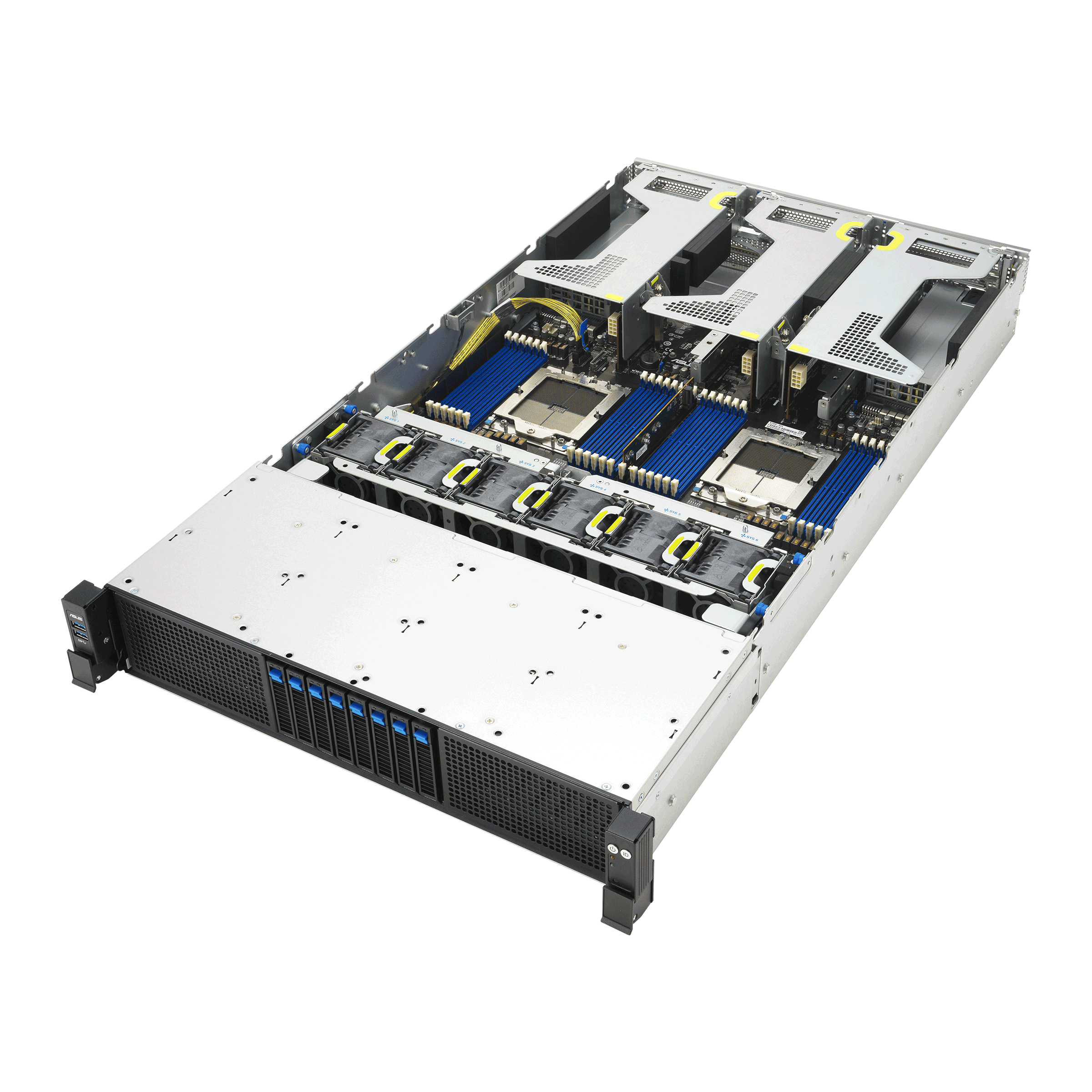

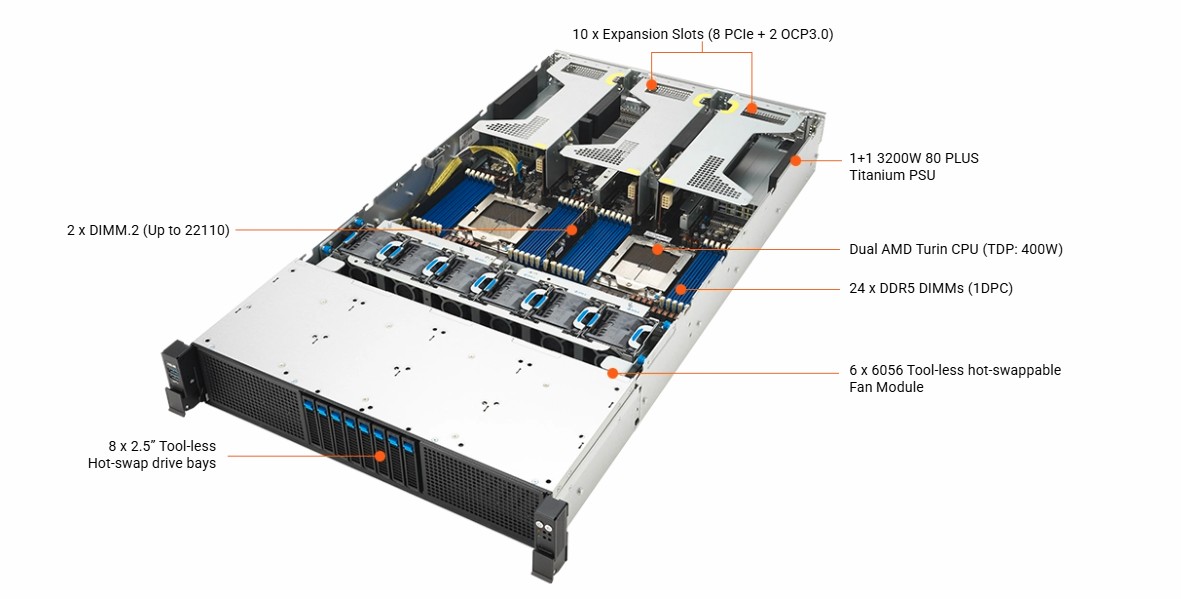

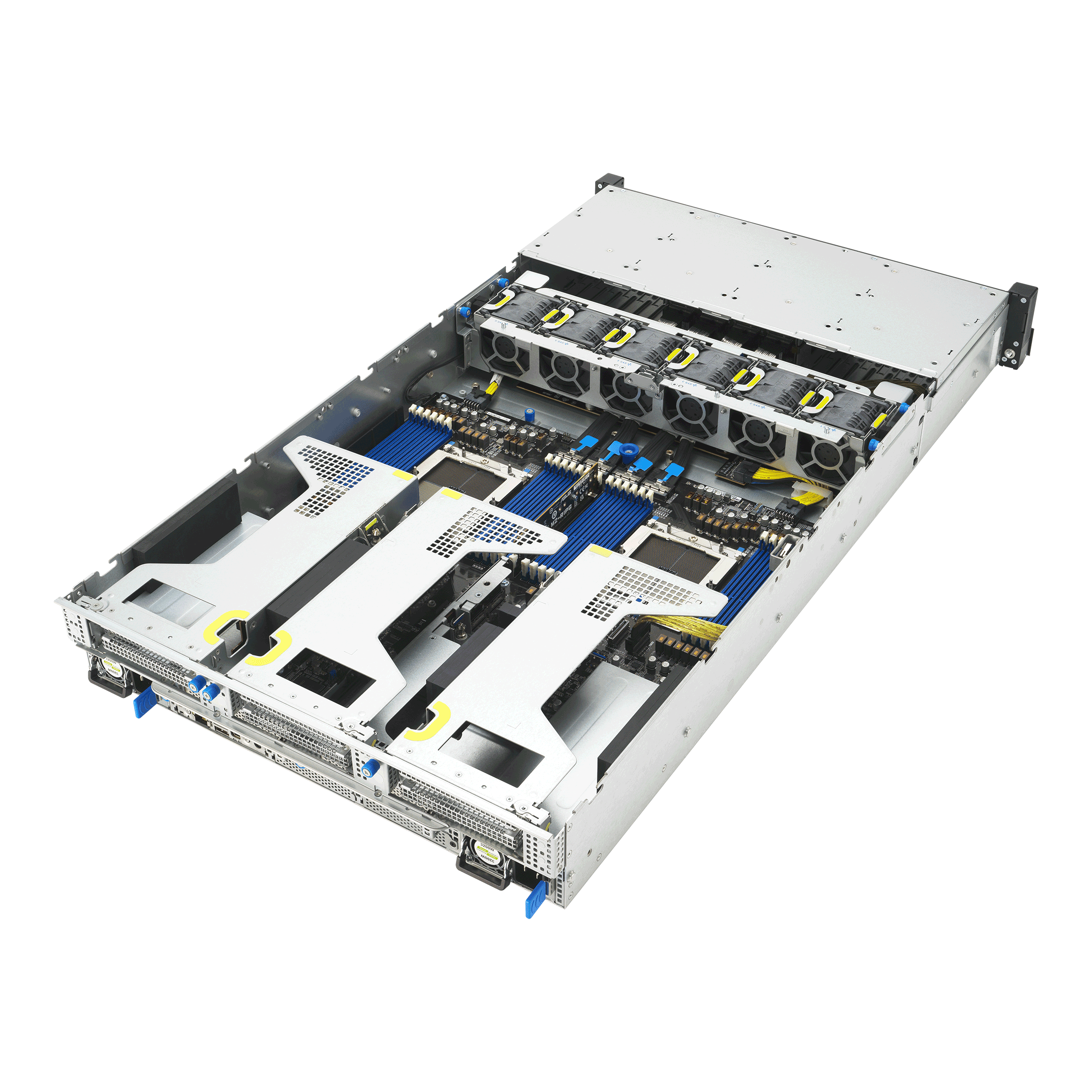

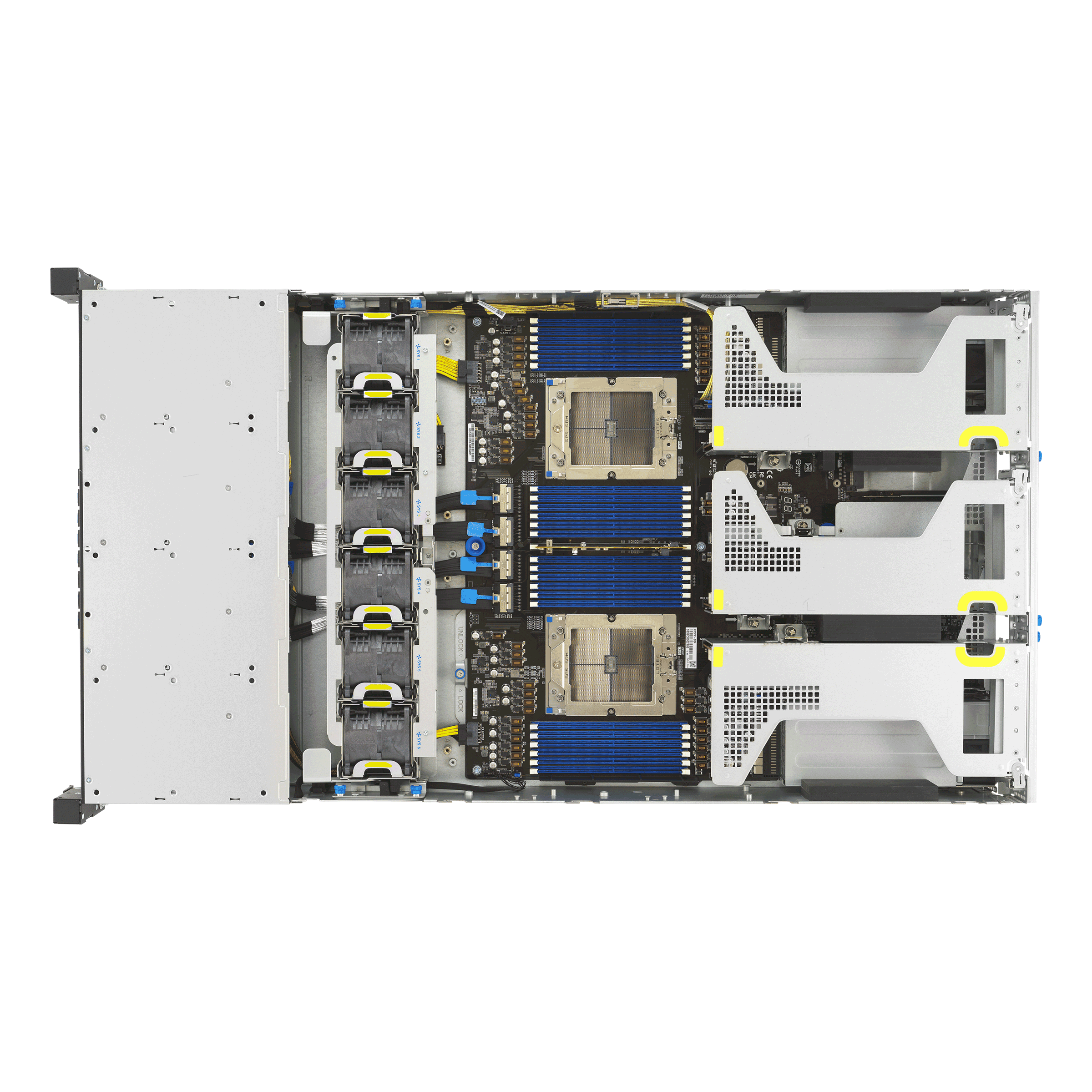

Colfax CX2255a-NVMe5-S8-E9 1U Rackmount Server

2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
24x DIMM Sockets Support DDR5 ECC RDIMM
Expansion Slots:
- 6x PCIE Gen5 x8 or 3x PCIE Gen5 x16 (FHFL)
- 2x PCIE Gen5 x16 (FHHL)
- 1x OCP3.0 Gen5 x16 (SFF)
- 1x OEI-10G/X710-2T
8x 2.5" SATA/NVMe Drive Bays
2x M.2 SSDs
1x Mgmt LAN
1+1 Redundant 3200W 80 PLUS Titanium/Platinum PSU


Dimensions	• 32.37(L) x 19.08(W) x 3.44(H) inch • 822.16(L) x 484.65(W) x 87.3(H) mm
CPU	• 2x Socket SP5 (LGA 6096) • AMD EPYC™ 9004/9005 Series Processors • TDP up to 400W
Memory	• Total Slots: 24 (12-channel per CPU, 1 DIMM per CPU) • Capacity: Maximum up to 3072GB per socket • Memory Type: DDR5 6400/5600 RDIMM/ 3DS RDIMM • Supported Sizes: 128GB, 96GB, 64GB, 32GB RDIMM; 128GB, 96GB, 64GB, 32GB RDIMM 3DS
Expansion Slots	• Total 10 expansion slots • 6x PCIE Gen5 x8 or 3x PCIE Gen5 x16 (FHFL) • 2x PCIe Gen5 x16 (FHHL) • 1x OCP 3.0 Gen5 x16 (SFF) • 1x OCP 3.0 Asus X710-2T
Drive Bays	• 8x 2.5" SATA/NVMe Drive Bays
Network	• 1x Mgmt LAN

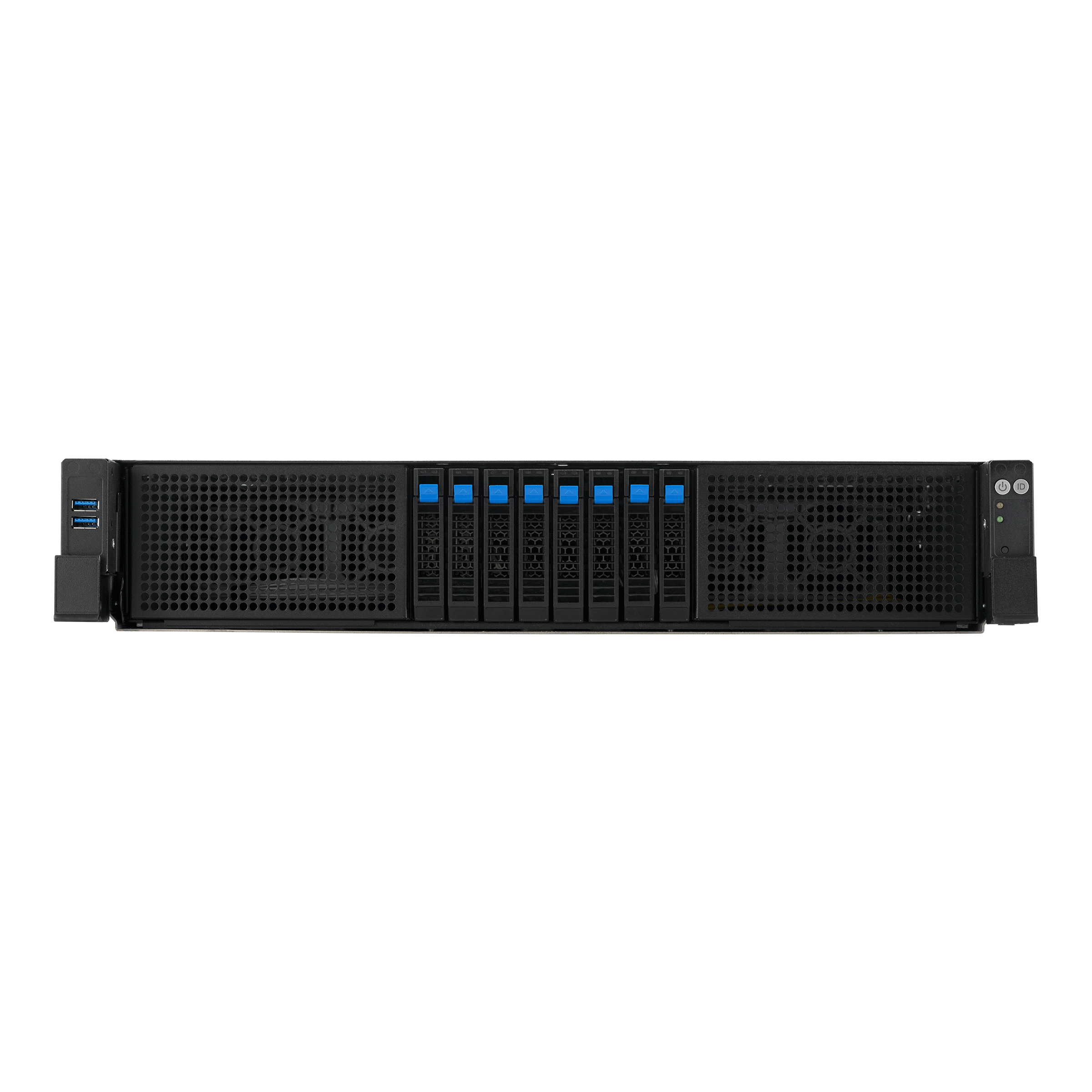

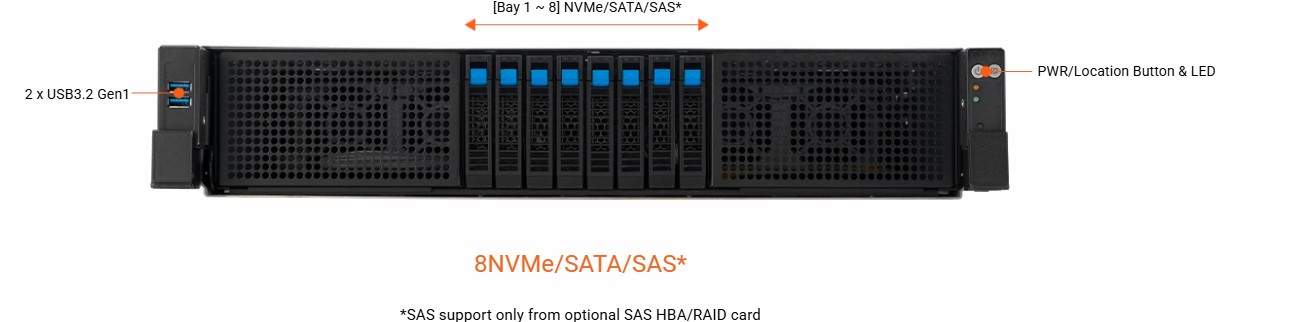

Front I/O Ports	• 2x USB 3.2 Gen1 ports

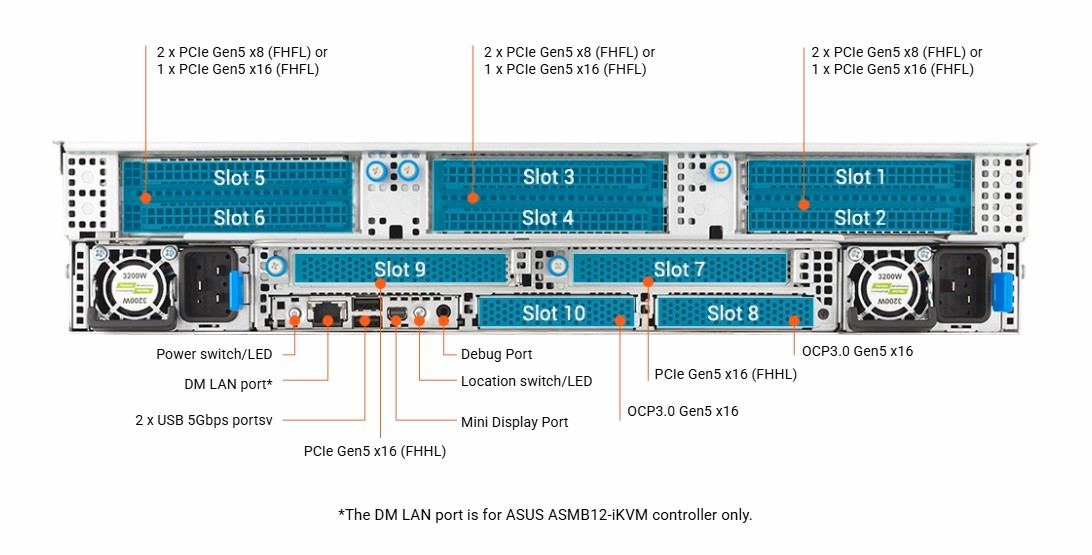

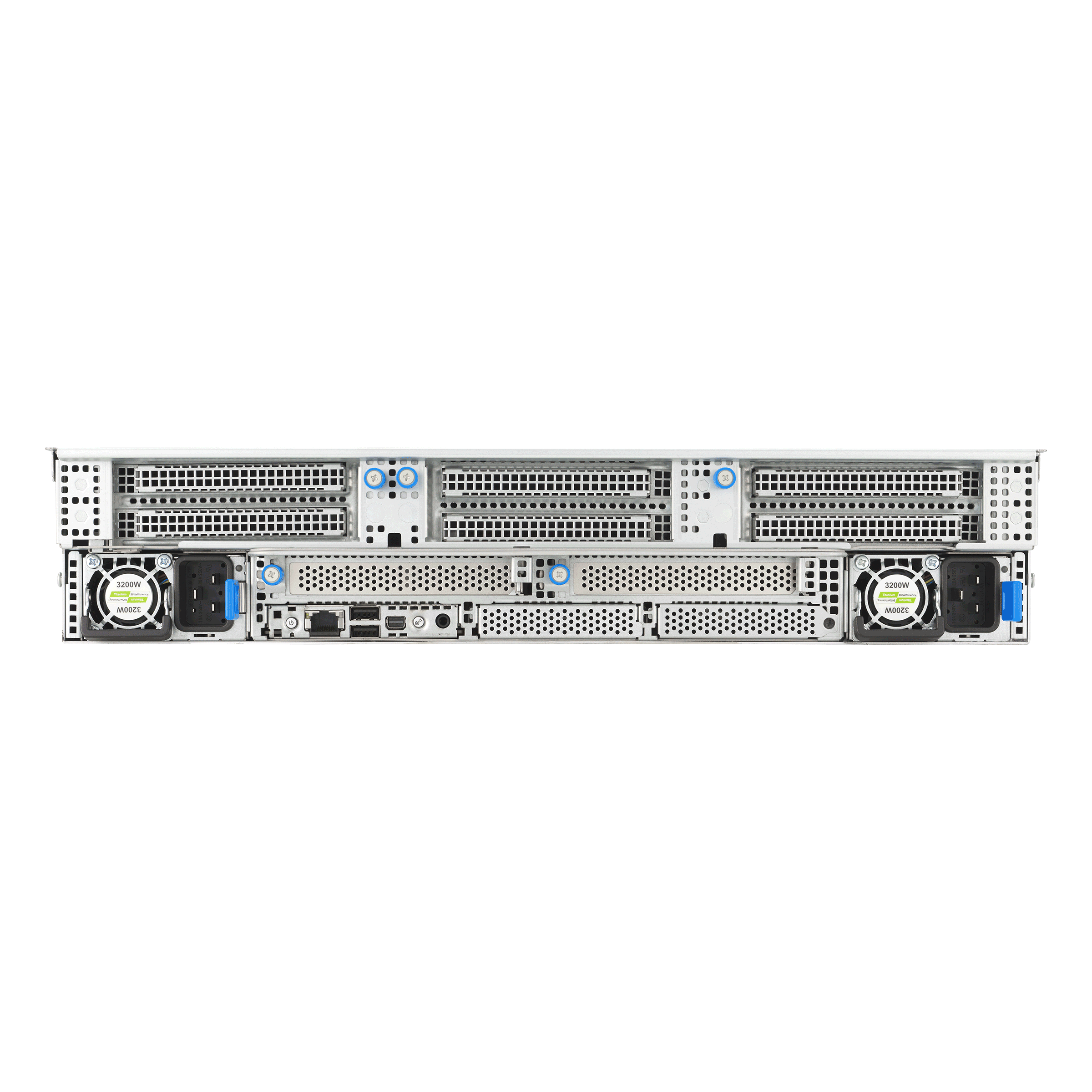

Rear I/O Ports	• 2x USB 3.2 Gen1 ports • 4x 1GbE LAN ports • 1x RJ-45 Mgmt LAN port • 1x Mini-DP port
Switch / LED	Front • 1x Power Switch (w/ LED) • 1x Location Switch (w/ LED) • 1x Reset Switch • 1x HDD Access LED • 1x Message LED • LAN LEDs Rear • 1x Port 80 LED (Q-Code) • 1x Power Switch (w/ LED) • 1x Location Switch (w/ LED) • 1x Message LED
Power Supply	• 1+1 Redundant 3200W Power Supply • 80PLUS Titanium certified • AC Rating: 100-120V~/220-240V~, 16A (x2), 50/60Hz
System Management	• Asus ASMB12-iKVM

$5,246.46

	Qty.	Colfax CX2255a-NVMe5-S8-E9 2U Rackmount Server, Cost As Configured $5,246.46
Base Platform	1
Primary CPU	1
Secondary CPU	1
CPU 1 - Socket 1 of 12	1	Set next items ( ) like this
CPU 1 - Socket 2 of 12	1
CPU 1 - Socket 3 of 12	1
CPU 1 - Socket 4 of 12	1
CPU 1 - Socket 5 of 12	1
CPU 1 - Socket 6 of 12	1
CPU 1 - Socket 7 of 12	1
CPU 1 - Socket 8 of 12	1
CPU 1 - Socket 9 of 12	1
CPU 1 - Socket 10 of 12	1
CPU 1 - Socket 11 of 12	1
CPU 1 - Socket 12 of 12	1
CPU 2 - Socket 1 of 12	1	Set next items ( ) like this
CPU 2 - Socket 2 of 12	1
CPU 2 - Socket 3 of 12	1
CPU 2 - Socket 4 of 12	1
CPU 2 - Socket 5 of 12	1
CPU 2 - Socket 6 of 12	1
CPU 2 - Socket 7 of 12	1
CPU 2 - Socket 8 of 12	1
CPU 2 - Socket 9 of 12	1
CPU 2 - Socket 10 of 12	1
CPU 2 - Socket 11 of 12	1
CPU 2 - Socket 12 of 12	1
M.2 Drive 1	1
M.2 Drive 2	1
NVM-E Drive 1	1	Set next items ( ) like this
NVM-E Drive 2	1
NVM-E Drive 3	1
NVM-E Drive 4	1
NVM-E Drive 5	1
NVM-E Drive 6	1
NVM-E Drive 7	1
NVM-E Drive 8	1
Nvidia GPU 1	1	Set next items ( ) like this
Nvidia GPU 2	1
Nvidia GPU 3	1
Ethernet HBA	1
Infiniband HBA	1
OCP 3.0 Gen5 x 16 1	1
OCP 3.0 Gen5 x 16 2	1
TPM Module	1
Operating System SW	1
		Colfax CX2255a-NVMe5-S8-E9 2U Rackmount Server, Cost As Configured $5,246.46
