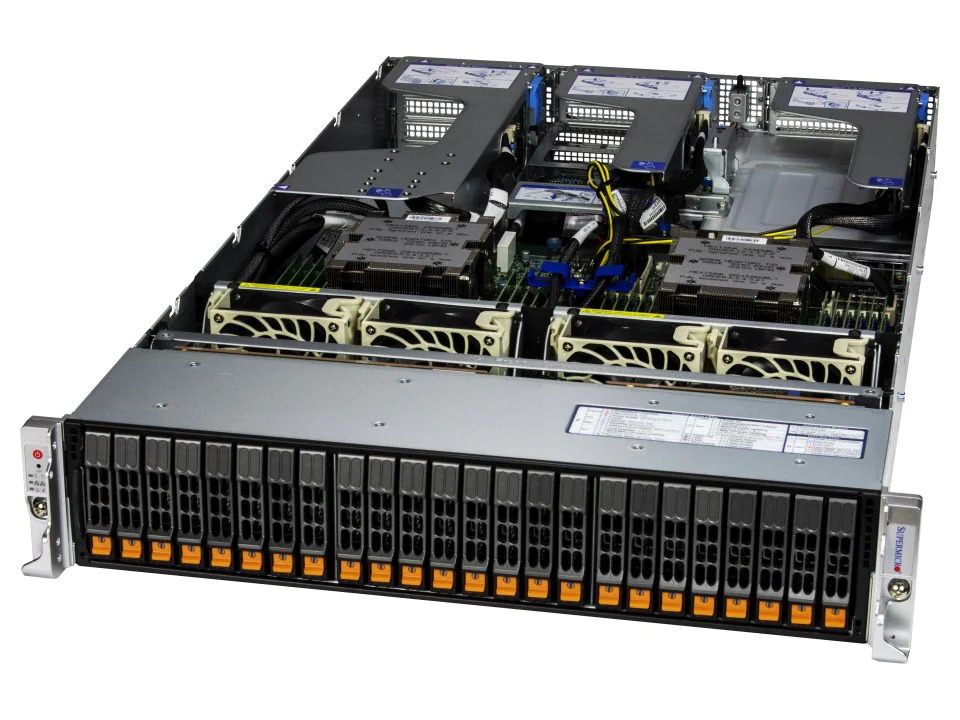

Colfax CX2265s-NVMe4-S24-E9 2U Rackmount Server



  • 2x AMD EPYC™ 9004 Series Processors
  • 24x DDR5 DIMM Sockets
  • 24x 2.5" Hot-Swap Gen3/Gen4 U.2 NVMe Drive Bays

Features

  • 2x AMD EPYC™ 9004 Series Processors (Click here for Specifications and Comparison)
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots (Check Image below for Riser Options)
    - Configurable PCIe Slot Options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FH/10.5"L)
    - 1 PCIe 5.0 x16 AIOM Slot for Flexible Networking Options

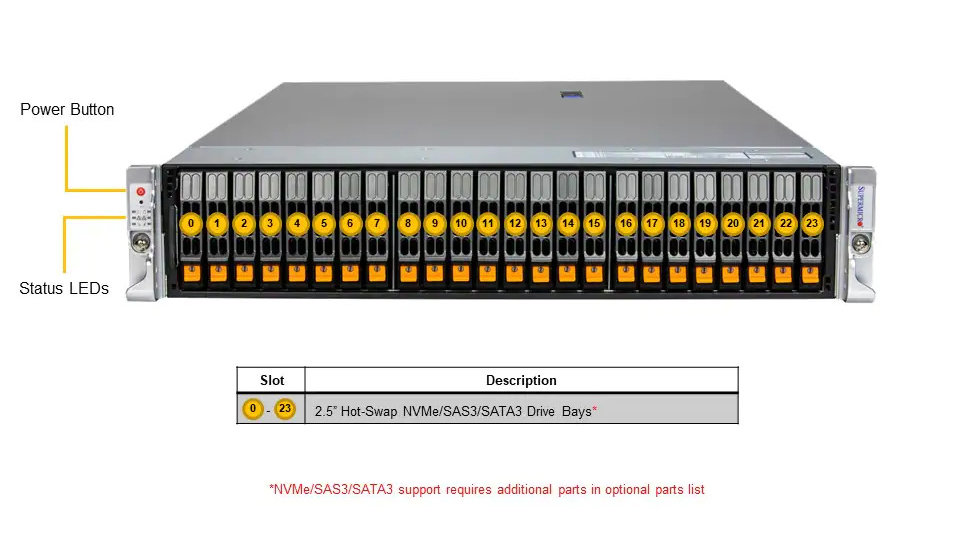

  • 24x 2.5" Hot-Swap Gen3/Gen4 U.2 NVMe Drive Bays
  • 2x Gen3 M.2 NVMe SSDs
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 1000W/1600W* Redundant** Power Supplies, Titanium Level

* 1000W: 100-127Vac | 1600W: 200-240Vac
** Full redundancy based on configuration and application load

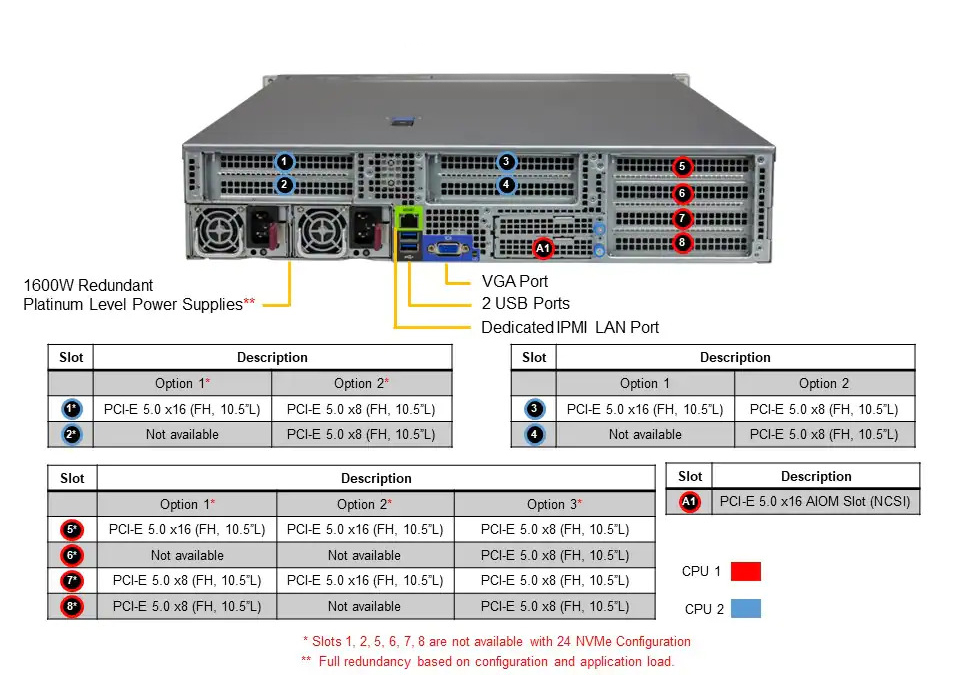

Riser Options

Technical Specifications

Chassis Form Factor • 2U Rackmount

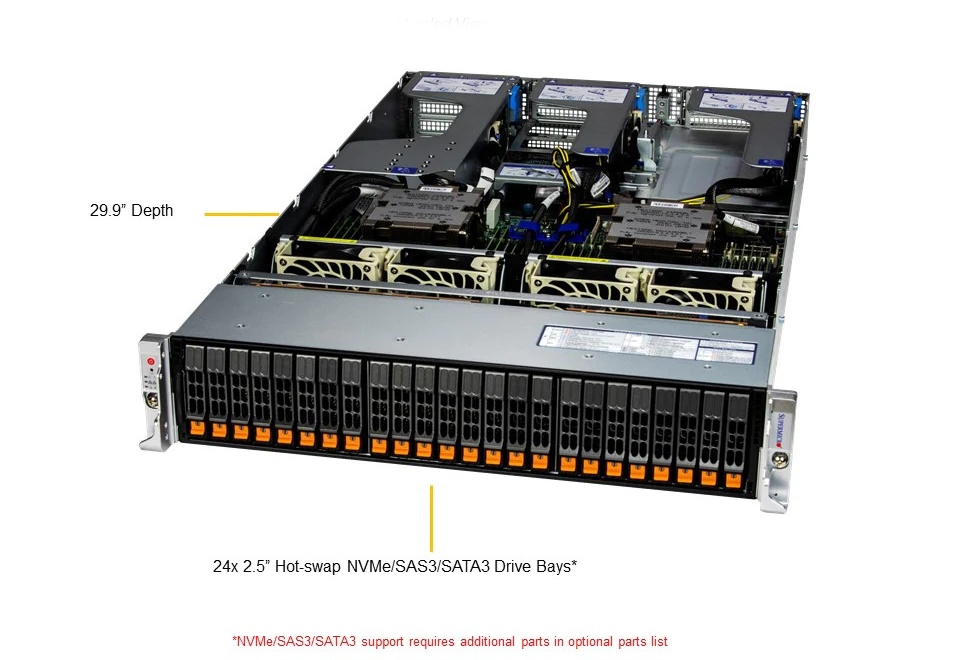

• Dimension (HxWxD): 3.5" (88.9mm) x 17.2" (437mm) x 29.9" (760mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004 Series Processors
• Supports CPU TDP up to 360W*
• Supports CPU cTDP up to 400W*

* Certain CPUs with high TDP may be supported only under specific conditions.

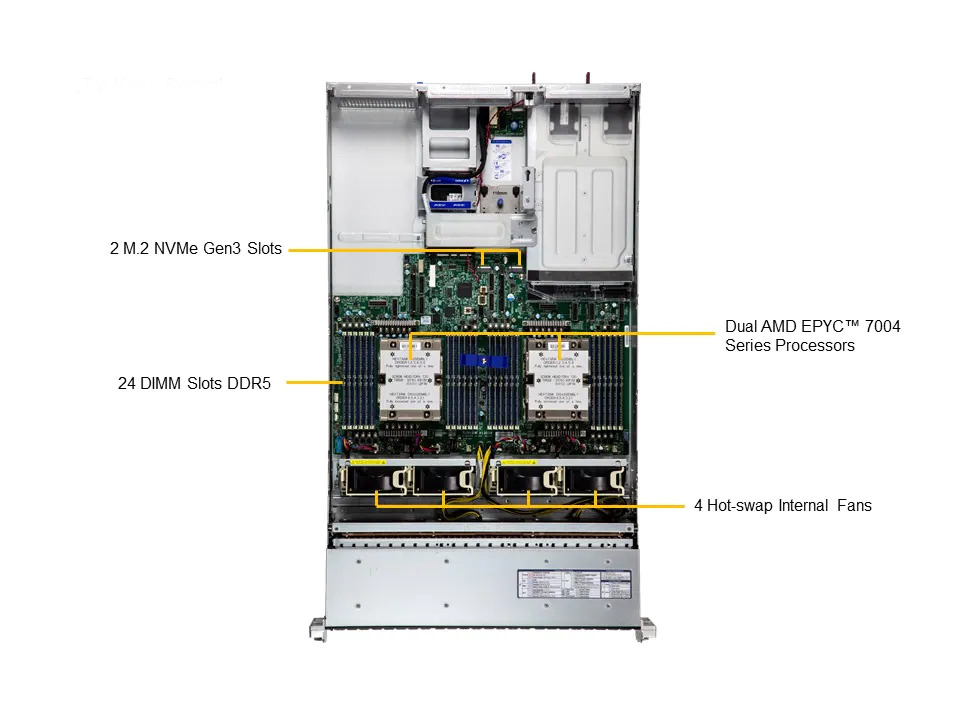

Memory • 24 DIMM Sockets
• Supports DDR5 ECC RDIMM
• Memory Type 4800 MHz Registered ECC
I/O Expansion • Configurable PCIe slot options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FH/10.5"L)
• 1 PCIe 5.0 x16 AIOM Slot
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• Via AIOM
VGA
• ASPEED AST2600 BMC
Input / Output NVMe
• 24x U.2 NVMe
LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1 VGA port
Power Supply • 1U 1000W/1600W Redundant CRPS w/PMBus power supply
• AC Input
- 1000W: 100-127Vac / 12A-9A / 50-60Hz
- 1600W: 200-240Vac / 9A-7.5A / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 133.3A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 3.5A / Min: 0A
• 80PLUS Titanium Certified
Storage Drive Bays
• 24x 2.5" hot-swap U.2 NVMe drive bays
M.2
• 2x Gen 3 M.2
System Cooling • 4x 8cm heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Hard drive activity LED
• Network activity LEDs
• Power status LED
• UID LED
BIOS • AMI 256MB SPI Flash


Images

PLEASE NOTE:
The server is estimated to ship around January 2023. Specifications and pricing are subject to change. Please use the configurator as a starting point to fine tune the server.
