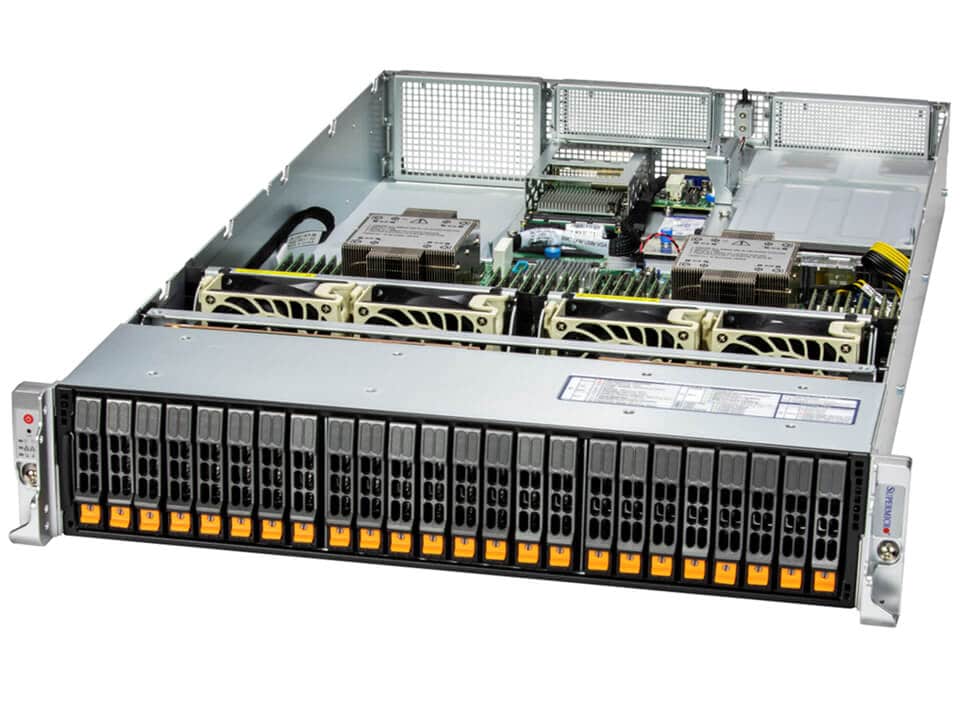

Colfax CX2265s-NVMe4-S24-X9 2U Rackmount Server



  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors

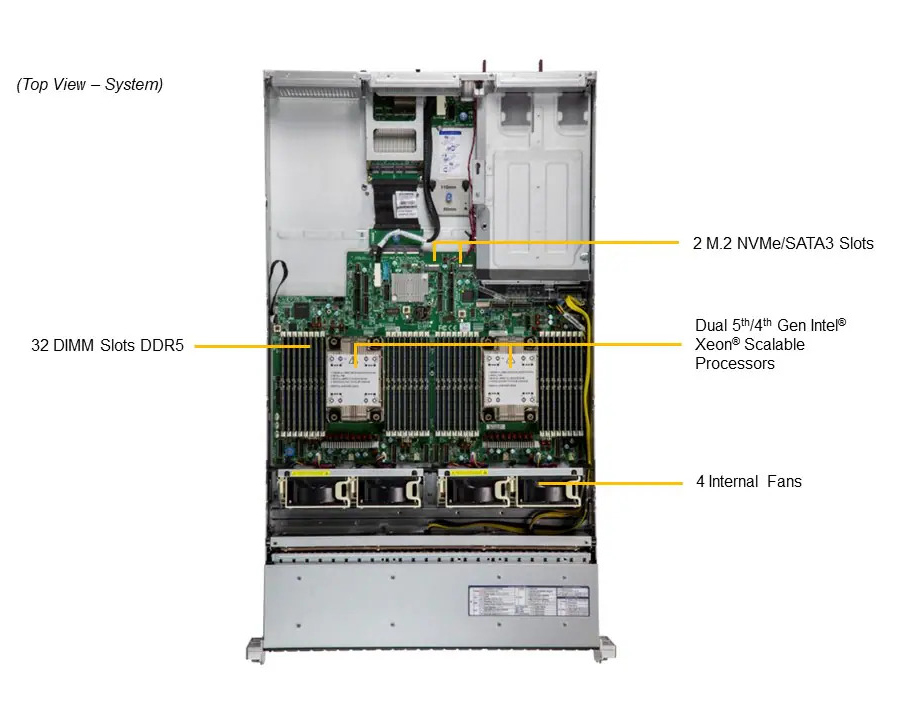

  • 32x DDR5 DIMM Sockets

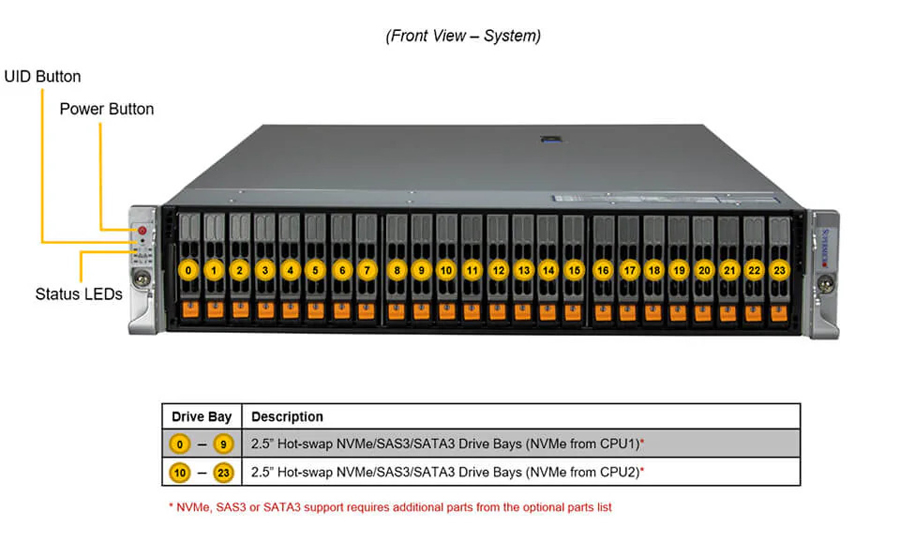

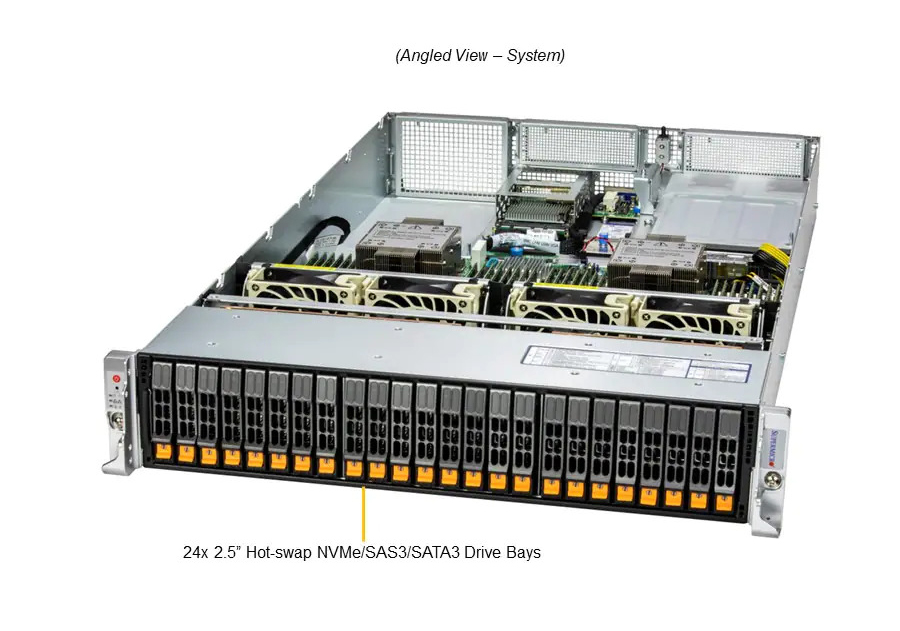

  • 24x 2.5" Hot-Swap Gen4 NVMe Drive Bays

Features

  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • 32x DIMM Sockets Support DDR5 ECC RDIMM

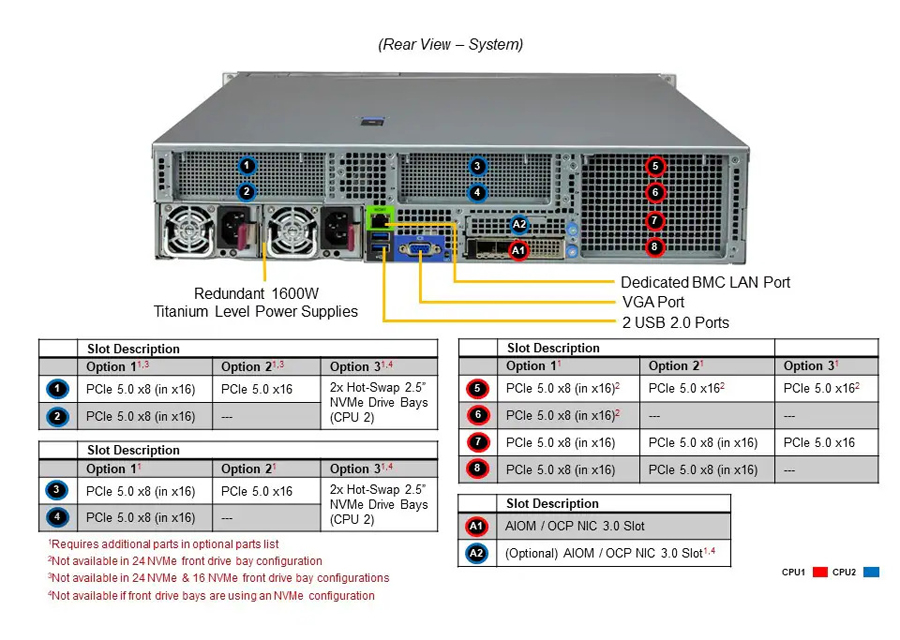

  • Expansion Slots (Check Image below for Riser Options)
    - Configurable PCIe Slot Options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FH/10.5"L)
    - 2 PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible) for Flexible Networking Options
  • 24x 2.5" Hot-Swap Gen4 NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 1000W/1600W* Redundant Power Supplies, Titanium Level

* 1000W: 100-127Vac | 1600W: 200-240Vac



Riser Options

Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (88.9mm) x 17.2" (437mm) x 29.9" (760mm)

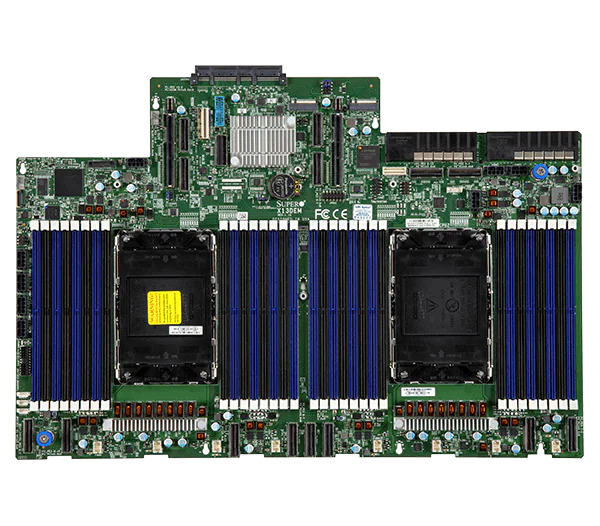

CPU • Socket E (2x LGA 4677)
• 2x 4th/5th Gen Intel® Xeon® Scalable Processors
• Supports CPU TDP up to 350W
Chipset • Intel® C741
Memory • 32x DIMM sockets
• DDR5 memory supported only
• Memory speed:
- RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) (5th Gen Intel® Xeon® Scalable)
- RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) (4th Gen Intel® Xeon® Scalable)
I/O Expansion • Configurable PCIe slot options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FH/10.5"L)
• 2 PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible)
Storage Drive Bays
• 24x 2.5" hot-swap NVMe drive bays
M.2
• 2x M.2 (M-key 2280/22110)
Input / Output LAN
• 1x RJ45 Dedicated BMC LAN port
USB
• 2x USB 2.0 ports (rear)
• 2x USB 3.0 ports(header)
VGA
• 1x VGA port
Power Supply • 2x 1600W Redundant power supplies
• AC Input
- 1000W: 100-127Vac / 50-60Hz
- 1600W: 200-240Vac / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 133.3A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 3.5A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 4x 8cm heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• HDD activity LED
• LAN 1 LED
• Power status LED
• System information LED
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Supermicro Update Manager (SUM)
• Supermicro SuperDoctor® 5 (SD5)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• ACPI Power Management
• Power-on mode for AC power recovery
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring CPU
• Monitors for CPU Cores, Chipset Voltages, Memory
Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
BIOS • AMI 64MB SPI Flash

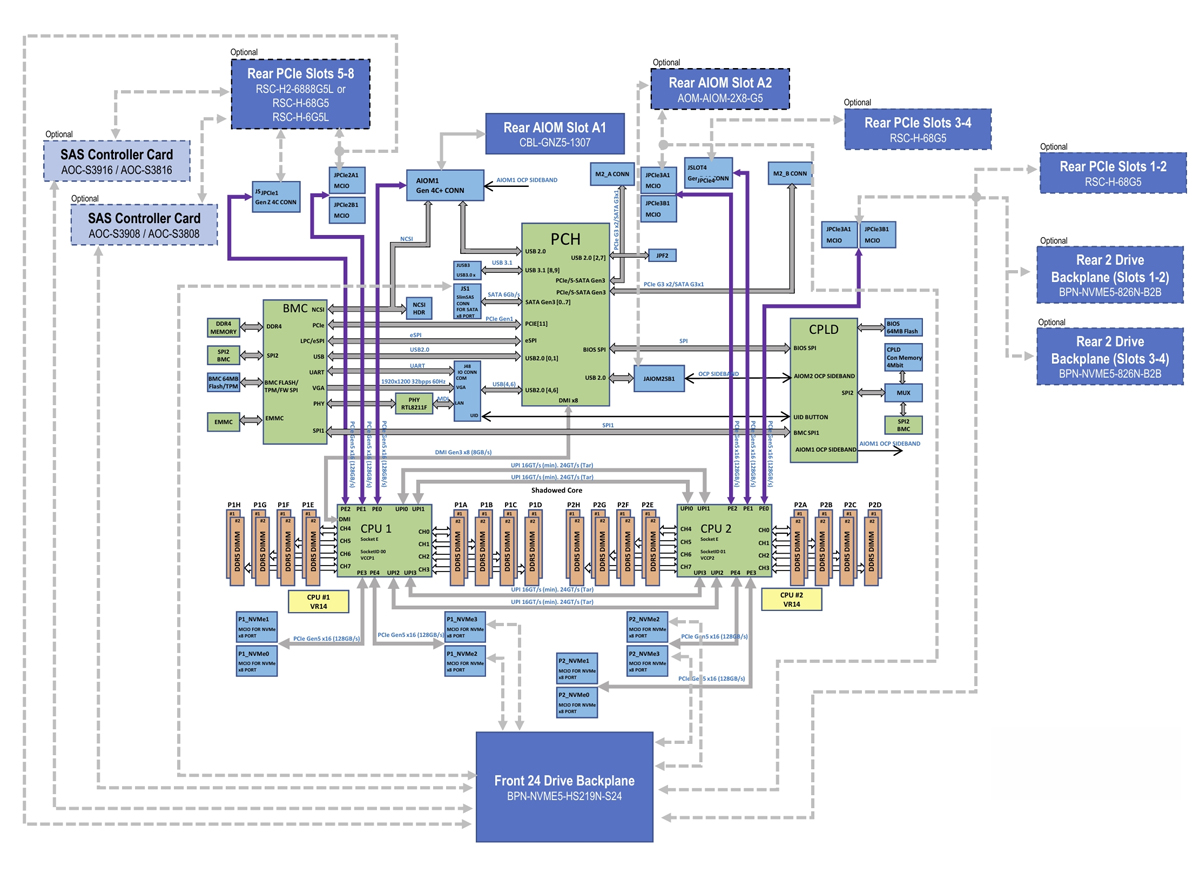

Block Diagram

Images
