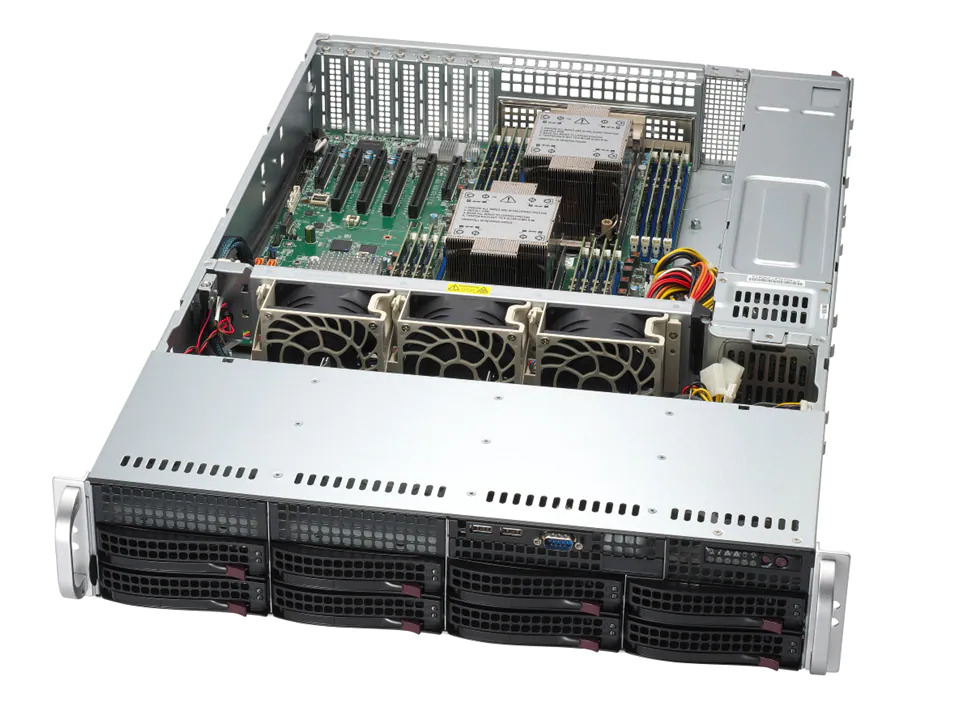

Colfax CX2270s-X9 2U Rackmount Server



  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 16x DDR5 DIMM Sockets
  • 8x 3.5" Hot-Swap Drive Bays
  • 4 PCIe 5.0 x16 (LP) + 2 PCIe 5.0 x8 (LP) Slots

2 Models:

  • CX2270s-X9 - Integrated 2x 1GbE
  • CX2270s-2T-X9 - Integrated 2x 10GbE

Features

  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 16x DIMM Sockets Support DDR5 ECC RDIMM
  • 4 PCIe 5.0 x16 (LP) + 2 PCIe 5.0 x8 (LP) Slots
  • 8x 3.5" Hot-Swap Drive Bays
  • 2x 2.5" Rear Hot-Swap Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 4.0 x2)
  • 2x 1GbE (Broadcom 5720) or 2x 10GbE (Broadcom 57416)*
  • 1200W Redundant Power Supply


* Note: Two Ethernet LAN ports (LAN1/LAN2) and a dedicated BMC LAN (BMC_LAN) are located on the rear I/O panel. LAN1/LAN2 ports support 1 GbE LAN connection (via the Broadcom 5720 LAN controller) on the CX2270s-X9, and support 10 GbE LAN connection (via the Broadcom 57416 LAN controller) on the CX2270s-2T-X9.

To avoid LAN port overheating, the CX2270s-2T-X9 will disable LAN2 in S5 mode.

Technical Specifications

Chassis Form Factor • 2U
• Dimensions (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 25.5" (647mm)

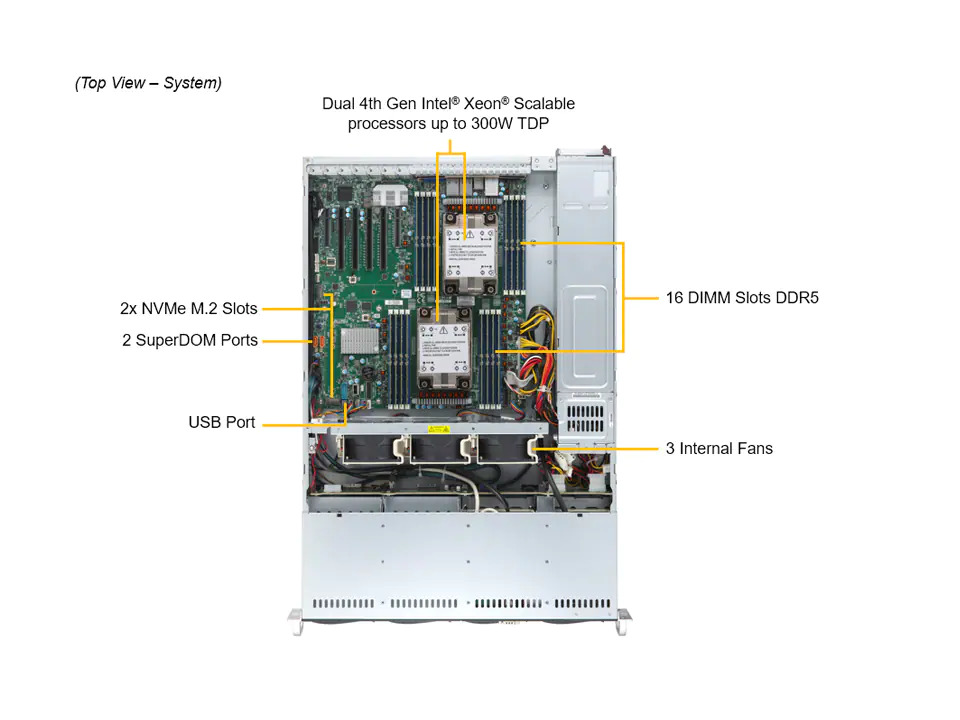

CPU • Dual Socket E (LGA-4677)
• 4th Gen Intel® Xeon® Scalable Processors
• Supports up to 300W TDP CPUs (Air Cooled)
Chipset • Intel® C741
Memory • 16x DIMM Sockets
• Up to 4TB: 16x 256GB DRAM
• Memory Type: 4800MHz ECC DDR5 RDIMM
I/O Expansion • Slot 1: PCIe 5.0 x8 (LP) (CPU1)
• Slot 2: PCIe 5.0 x16 (LP) (CPU1)
• Slot 3: PCIe 5.0 x16 (LP) (CPU1)
• Slot 4: PCIe 5.0 x16 (LP) (CPU2)
• Slot 5: PCIe 5.0 x16 (LP) (CPU2)
• Slot 6: PCIe 5.0 x8 (LP) (CPU2)

• 2x PCIe 4.0 x2 M.2 slots (supports M-Key 2280 and 22110)

• 2x PCIe 5.0 x8 MCIO ports (supported by four NVME connections)

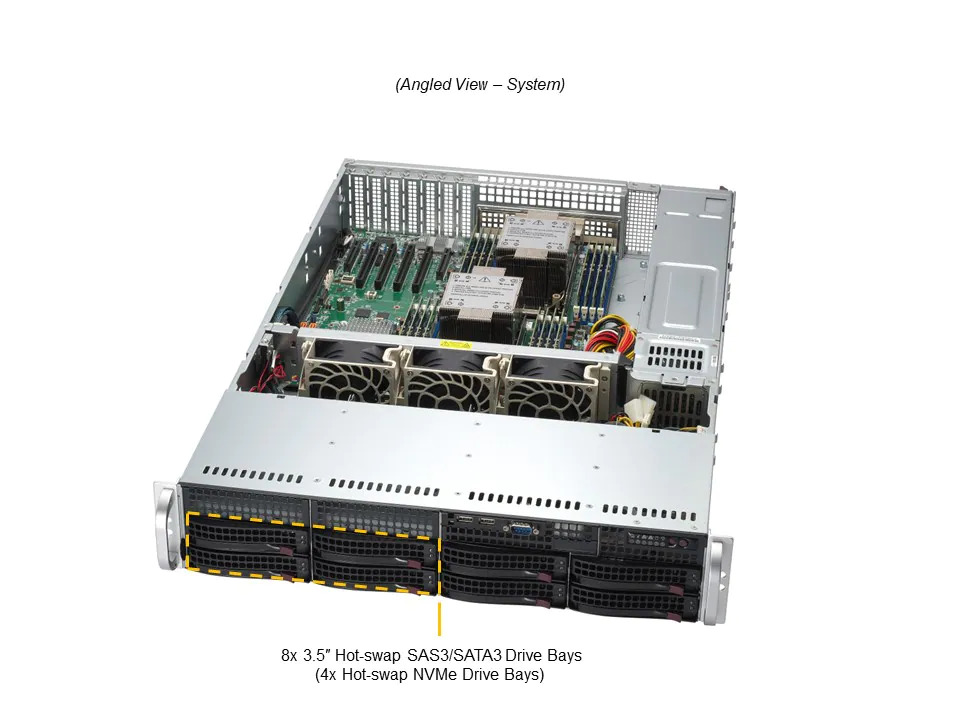

Drive Bays / Storage • 8x 3.5" hot-swap drive bays
• 2x 2.5" rear hot-swap drive bays
• Optional 2x 2.5" fixed drive bays
• Optional 1x slim DVD drive bay
M.2
• 2 PCIe 4.0 x 2
• M-Key, 2280/22110
Onboard Devices SATA
• SATA3 (6Gbps)t
Network Controllers
• 2x 1GbE (Broadcom 5720 LAN controller) or 2x 10GbE (Broadcom 57416 LAN controller)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC

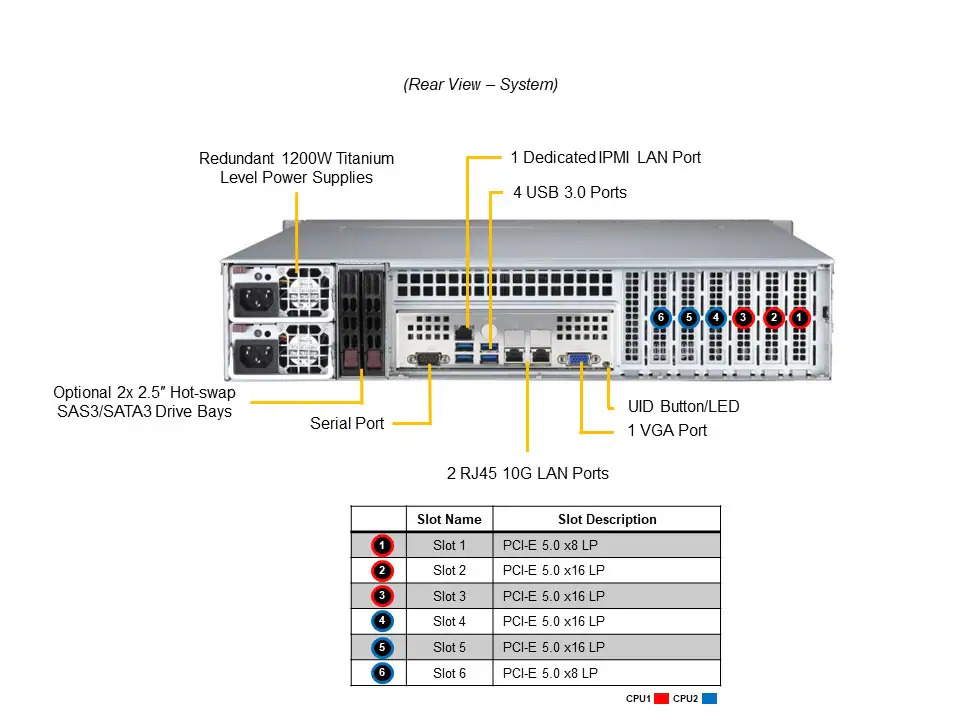

Input / Output LAN
• 2x RJ45 Gigabit Ethernet ports (CX2270s-X9)
• 2x RJ45 10GBase-T Ethernet ports (CX2270s-2T-X9)*
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
• 2x USB 2.0 ports (front)
VGA
• 1x VGA port
Serial Port
• 2x COM ports ((1 front; 1 rear)
DOM
• 2x SuperDOM (Disk on Module) ports

* Note: Two Ethernet LAN ports (LAN1/LAN2) and a dedicated BMC LAN (BMC_LAN) are located on the rear I/O panel. LAN1/LAN2 ports support 1 GbE LAN connection (via the Broadcom 5720 LAN controller) on the CX2270s-X9, and support 10 GbE LAN connection (via the Broadcom 57416 LAN controller) on the CX2270s-2T-X9.

To avoid LAN port overheating, the CX2270s-2T-X9 will disable LAN2 in S5 mode.
Power Supply • 1200W redundant power supplies
• AC Input
- 1000W: 100-127Vac / 15A-12A / 50-60Hz
- 1200W: 200-240Vac / 8.5A-7A / 50-60Hz
• +12V
- Max: 83A / Min: 0A (100Vac-127Vac)
- Max: 100A / Min: 0A (200Vac-240Vac)
• 5V SB
- Max: 4A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 3x 8cm fans
Front Panel Buttons
• Power On/Off
• System Reset
LEDs
• Power status
• Drive activity
• Network activity
• System information (overheat/UID)
BIOS • AMI 32MB SPI Flash EEPROM

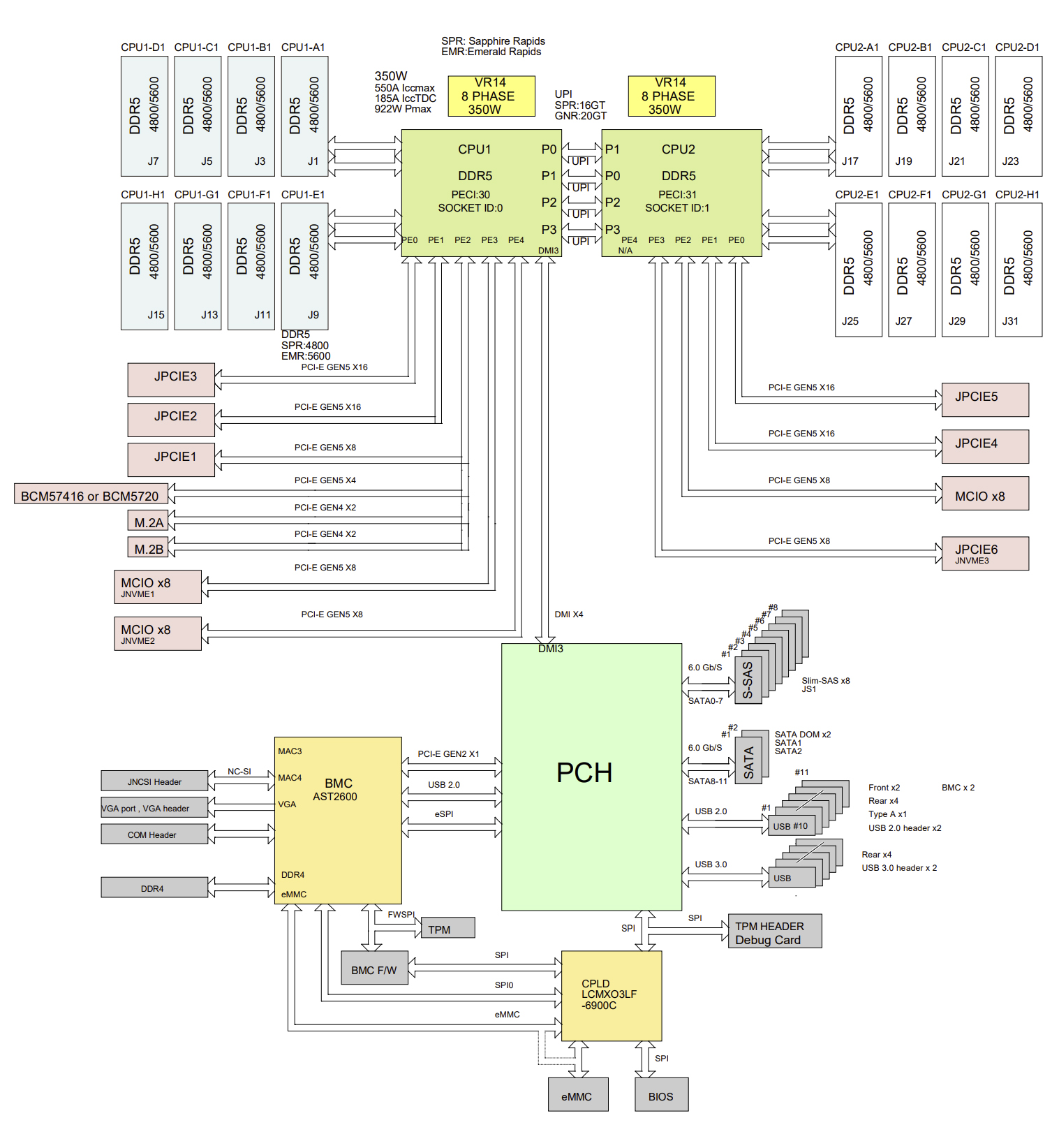

Block Diagram

Images
