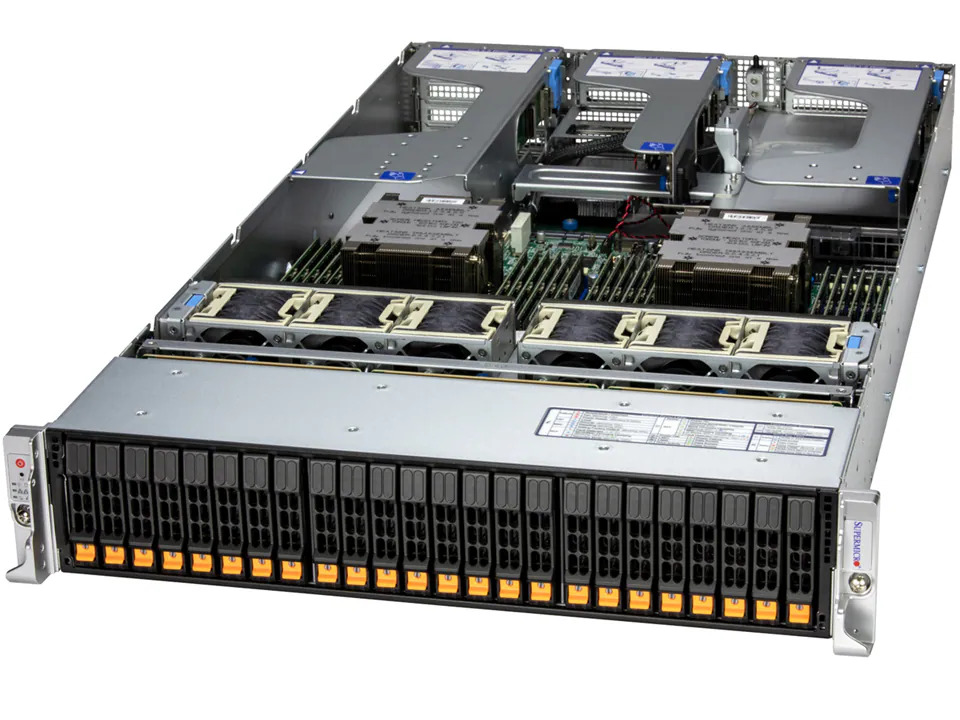

Colfax CX2275s-NVMe4-S24-E9 2U Rackmount Server



  • 2x AMD EPYC™ 9005 Series Processors
  • 24x DDR5 DIMM Sockets

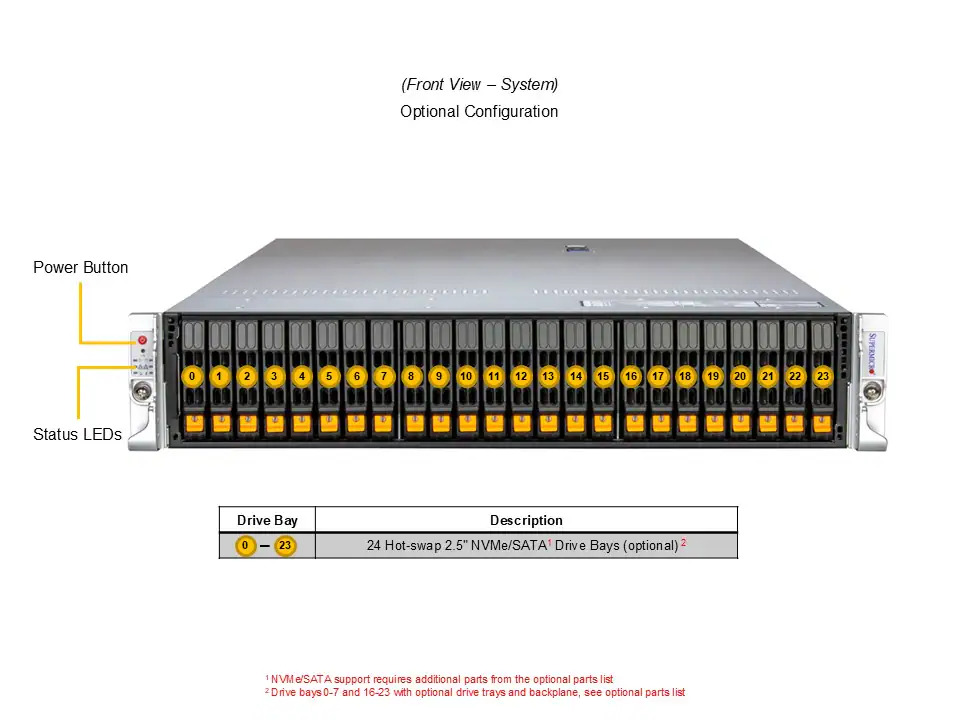

  • 24x 2.5" Hot-Swap Drive Bays

Features

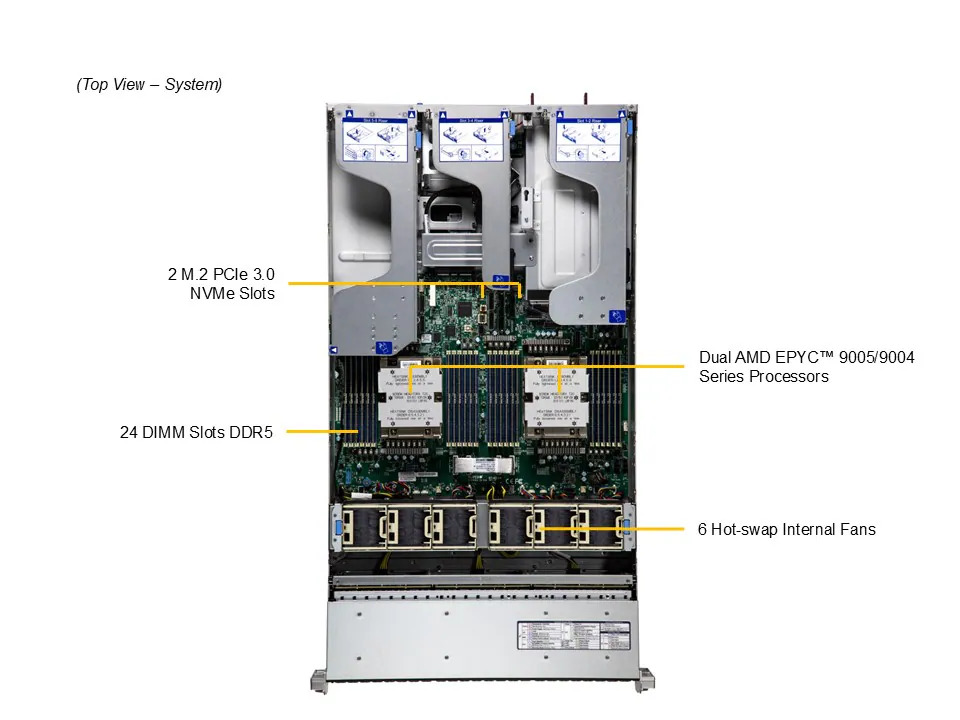

  • 2x AMD EPYC™ 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM

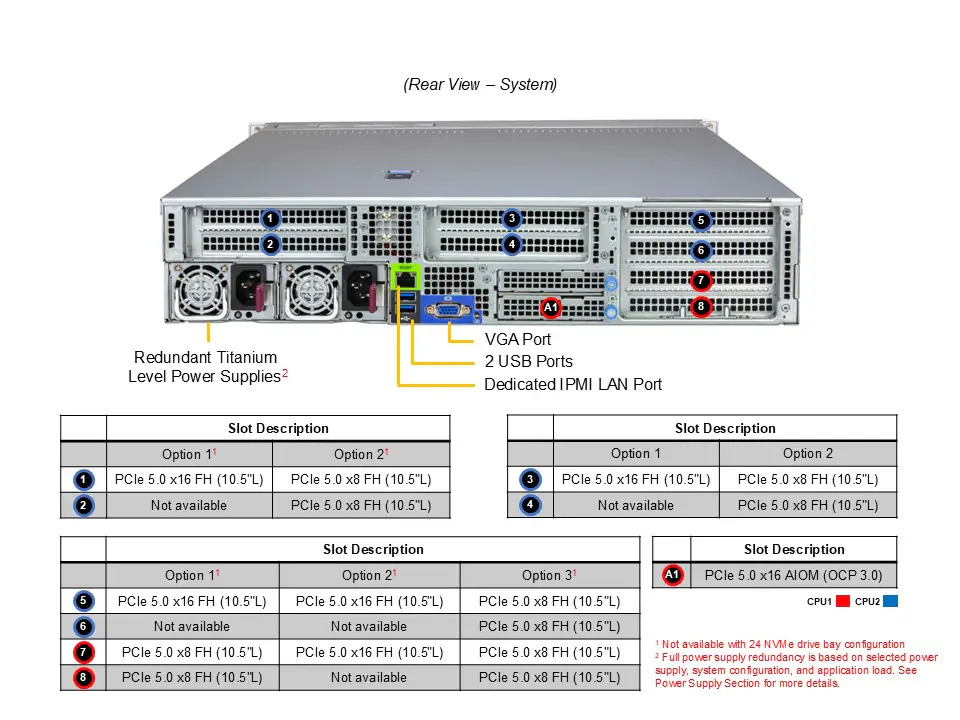

  • Expansion Slots (Check Image below for Riser Options)
    - Configurable PCIe Slot Options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FHFL)
    - 1 PCIe 5.0 x16 AIOM Slot for Flexible Networking Options
  • 24x 2.5" Hot-Swap NVMe Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 3.0 x4)
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 1+1 1200W/1600W/2000W/2600W Redundant Power Supplies


Riser Options



Technical Specifications

Chassis Form Factor • 2U Rackmount

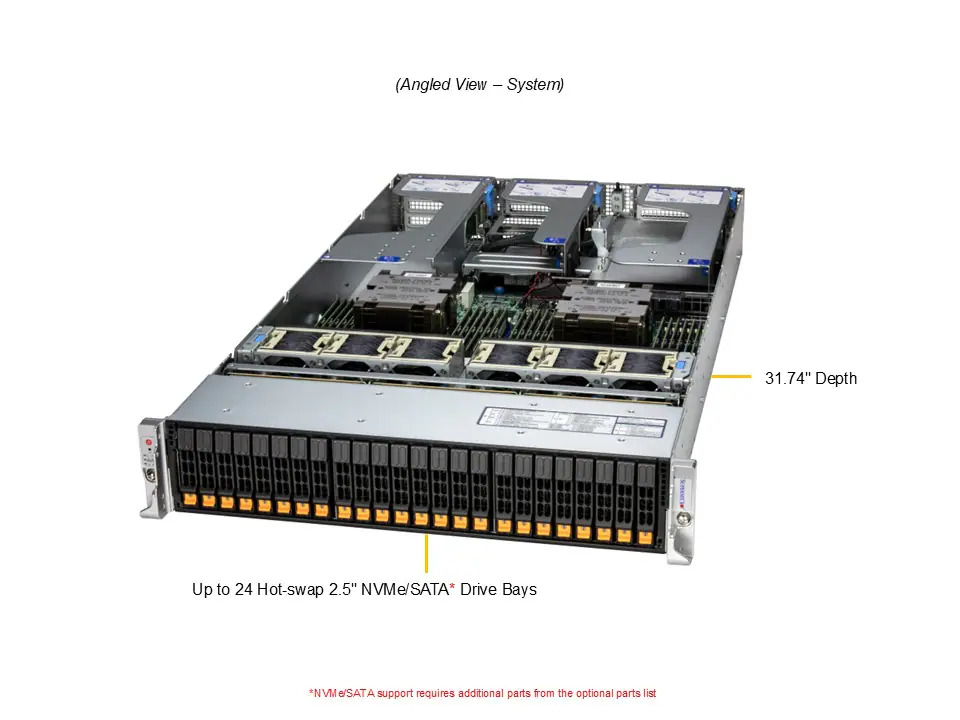

• Dimension (HxWxD): 3.5" (88.9mm) x 17.2" (437mm) x 31.74" (806.2 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9005 Series Processors
• Supports CPU TDP up to 500W*

* Air cooled CPUs with TDP over 400W only supported under specific conditions.
Memory • 24x DIMM Sockets
• Memory Capacity (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
I/O Expansion PCIe
• Configurable PCIe slot options up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 (FHFL)
• 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible)

CXL Support
• Up to 4 CXL 2.0 x16 devices
Storage Drive Bays
• 24x 2.5" hot-swap NVMe drive bays

M.2
• 2x M.2 (PCIe 3.0 x4)
• M-key 2280/22110
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controller
• Via AIOM
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1x VGA port (rear)
TPM
• 1x TPM onboard/port 80
Power Supply • 2x 1200W/1600W/2000W/2600W Redundant (1+1)
• 80 PLUS Titanium Certified
System Cooling • 6x counter-rotating 60x60x56mm fans
Front Panel Buttons
• Power On/Off button
• UID button

LEDs
• Hard drive activity LED
• LAN1 activity LED
• Power status LED
• System information LED
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• KVM with dedicated LAN
• IPMI 2.0
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)
• IPMIView

Power Configurations
• ACPI/APM Power Management • Power-on mode control for AC power loss recovery • Power button override mechanism
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

Voltage
• System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
BIOS • AMI 64MB SPI Flash EEPROM

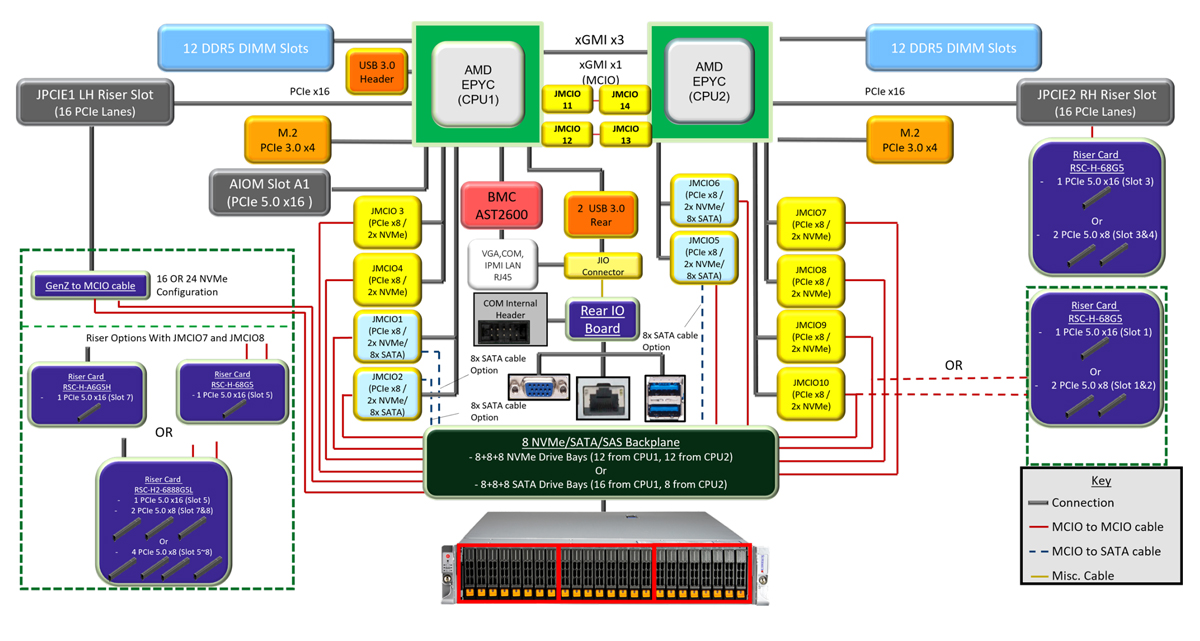

Block Diagram


Images
$3,588.84


  Qty.Colfax CX2275s-NVMe4-S24-E9 2U Rackmount Server, Cost As Configured $3,588.84
