Colfax CX2420a-EK9 2U Rackmount Server




  • 1x AMD EPYC™ 9004 Series Processor
  • 4x PCIe 5.0 x16 Slots for Dual-Slot GPUs
  • 12x DIMMS
  • 4x 3.5" SATA + 2x 2.5" SATA/NVMe Drive Bays

Features

  • 1x AMD EPYC™ 9004 Series Processor (Click here for Specifications and Comparison)
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots:
    - 4x PCIe 5.0 x16 for Dual-Slot GPUs (FHFL)
    OR
    - 8x PCIe 5.0 x16 for Single-Slot GPUs (FHFL)
    - 1x PCIe 5.0 x16 Slot (FHHL)
    - 1x PCIe 5.0 x16 Slot (x16 / x8) (FHHL) or OCP Socket Option
    - 1x PCIe 5.0 x8 Slot (x0 / x8) (LPHL)
    - FRONT: 1x PCIe 5.0 x8 Slot (LPHL)
  • 4x 3.5" SATA + 2x 2.5" SATA/NVMe Drive Bays
  • RAID:
    - Optional ASUS PIKE II 3008 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,1E,10
    - Optional ASUS PIKE II 3108 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,10,5,50,6,60
  • Integrated 1x Dual-Port Intel® I350-AM2 GbE + 1x Mgmt LAN
  • 1+1 Redundant 2600W 80PLUS Titanium Power Supplies




Technical Specifications

Dimensions • 3.5" x 17.3" x 31.50" (HxWxD) • 88.9mm x 440mm x 800mm
CPU • 1x Socket SP5 (LGA 6096)
• Supports Single AMD EPYC™ 9004 Series Processors
• Supports CPU TDP up to 400W
Memory • Total Slots: 12 (12-channel)
• Capacity: Maximum up to 3TB RDIMM
• Memory Type: DDR5 4800/4400 RDIMM/RDIMM 3DS
• Memory Size:
- 64GB, 32GB, 16GB RDIMM
- 256GB, 128GB 3DS RDIMM
Expansion Slots • 4x PCIe 5.0 x16 for double-slot GPU Cards (FHFL)
OR
• 8x PCIe 5.0 x16 for single-slot GPU Cards (FHFL)
• 1x PCIe 5.0 x16 Slot (FHHL)
• 1x PCIe 5.0 x16 Slot (x16 / x8) (FHHL) or OCP Socket Option
• 1x PCIe 5.0 x8 Slot (x0 / x8) (LPHL)
FRONT: 1x PCIe 5.0 x8 Slot (LPHL)
Drive Bays • 2x 3.5" SATA/SAS/NVMe + 2x 3.5" SATA/SAS
• 2x 2.5" SATA/SAS/NVMe
Storage Storage Controller
- CPU Integrated
Optional Kits
- ASUS PIKE II 3008 8-port SAS HBA card
- ASUS PIKE II 3108 8-port SAS HW RAID card<
Network • 1x Dual-Port I350-AM2 + 1x Mgmt LAN
Front I/O Ports • 1x Q-code/port-80 LED
• 4x USB 3.2 Gen1 ports
Rear I/O Ports • 2x USB 3.2 Gen1 ports
• 2x RJ-45 GbE LAN ports
• 1x RJ-45 Mgmt LAN port
• 1x VGA port
Switch / LED Front
• 1x Power Button/LED
• 1x Location Button/LED
• 1x Message LED
• 1x Q-Code/Port 80 LED
• 2x LAN LED
Rear
• 1x Power Button/LED
• 1x Location LED
• 1x Message LED
Power Supply • 1+1 Redundant 2800W CRPS-R Power Supply
• 80 PLUS Titanium certified
System Management • Asus ASMB11-iKVM


Block Diagram

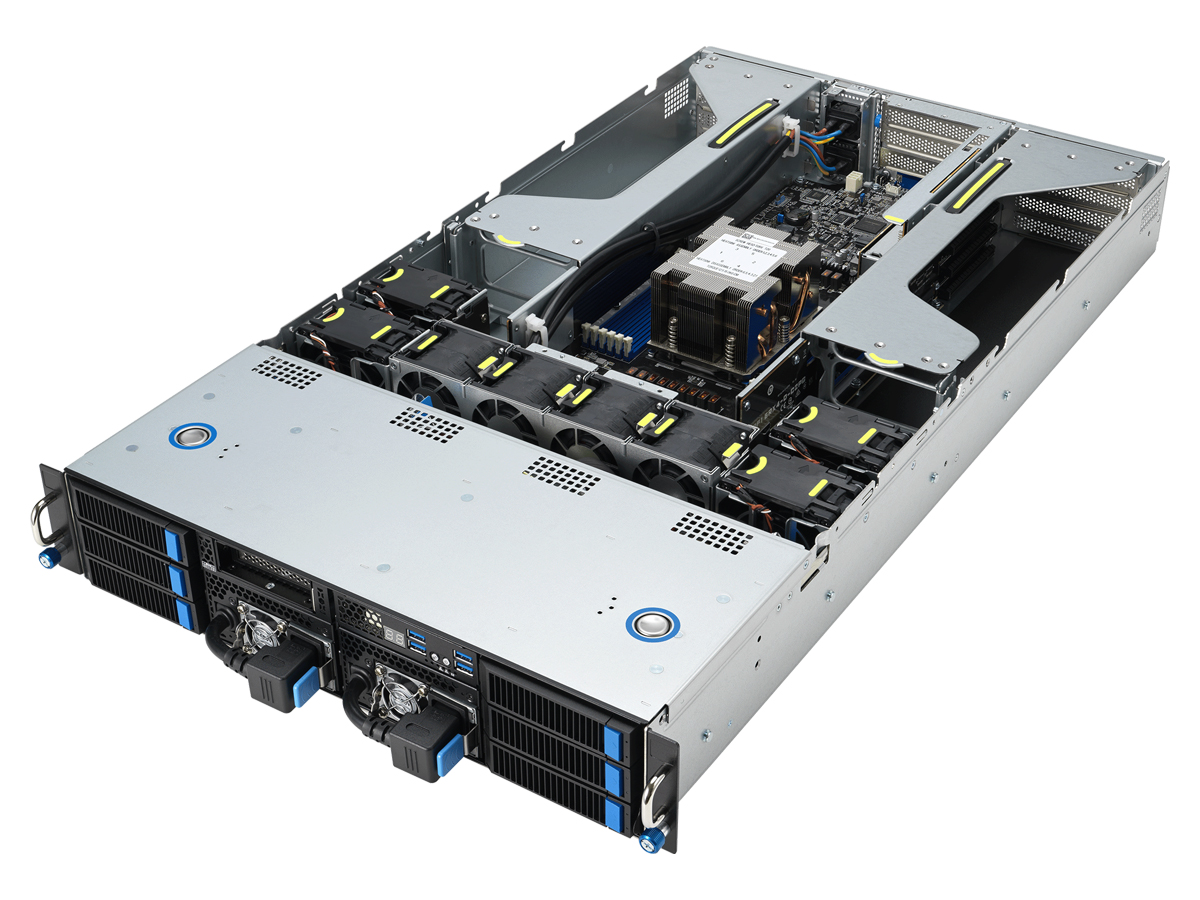

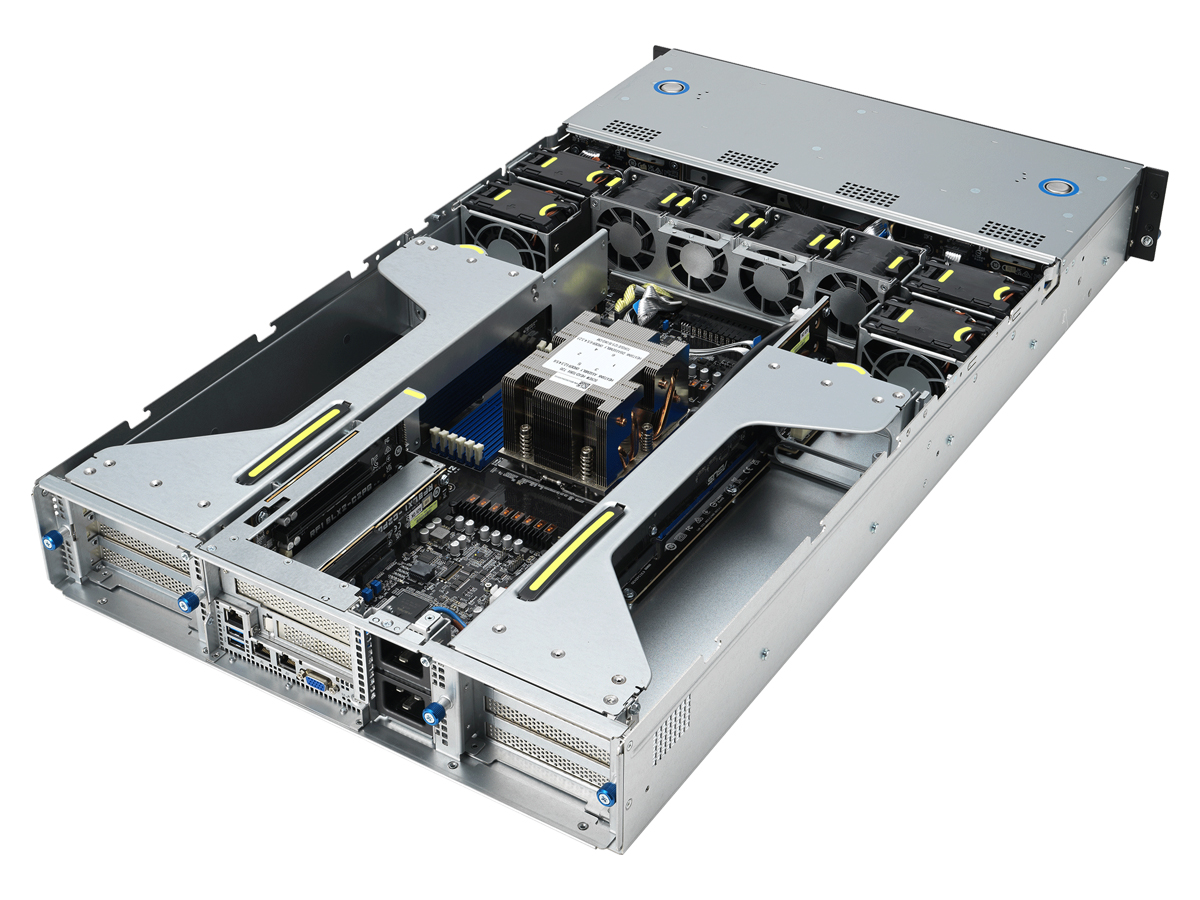

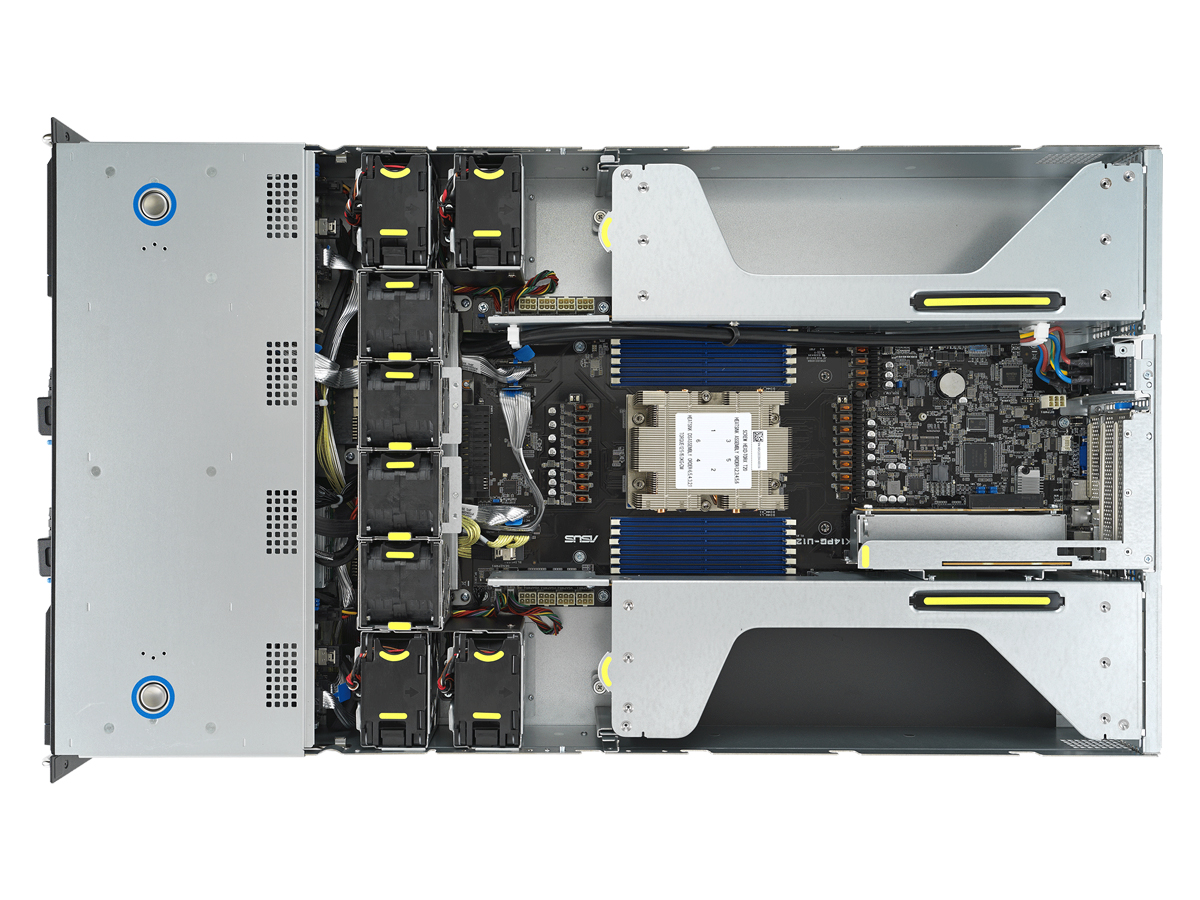

Images


$3,366.83


  Qty.Colfax CX2420a-EK9 2U Rackmount Server, Cost As Configured $3,366.83
Base Platform 1
Primary CPU 1
CPU 1 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 12    1
CPU 1 - Socket 3 of 12    1
CPU 1 - Socket 4 of 12    1
CPU 1 - Socket 5 of 12    1
CPU 1 - Socket 6 of 12    1
CPU 1 - Socket 7 of 12    1
CPU 1 - Socket 8 of 12    1
CPU 1 - Socket 9 of 12    1
CPU 1 - Socket 10 of 12    1
CPU 1 - Socket 11 of 12    1
CPU 1 - Socket 12 of 12    1
SATA/NVM-E SSD 1    1

Set next    items (  ) like this
SATA/NVM-E SSD 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Nvidia GPU 3    1
Nvidia GPU 4    1
Ethernet HBA 1
Infiniband HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX2420a-EK9 2U Rackmount Server, Cost As Configured $3,366.83
