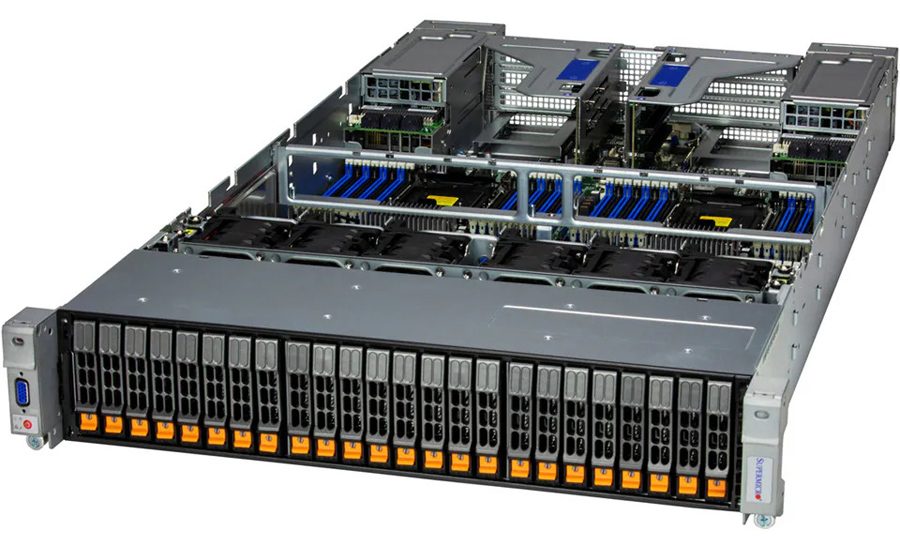

Colfax CX2465s-NVMe4-S24-X9 2U Rackmount Server




  • 4x 4th Gen Intel® Xeon® Scalable Processors
  • 64x DIMMs Support DDR5 RDIMM
  • 24x 2.5" NVMe/SAS3/SATA3 Drive Bays

Features

  • 2U Rackmount
  • 4x 4th Gen Intel® Xeon® Scalable Processors
  • Intel C741 Chipset
  • 64x DDR5 Memory Sockets Support RDIMM
  • Expansion Slots:
    - Slot 1: 1 PCIe 5.0 x8 FHHL Slot (x8 FL Optional)
    - Slot 2: 1 PCIe 5.0 x16 FHHL Slot (x16 FL Optional)
    - Slot 3: 1 PCIe 5.0 x16 FHHL Slot
    - Slot 4: 1 PCIe 5.0 x8 FHHL Slot (x16 FL Optional)
    - Slot 5: 1 PCIe 5.0 x8 FHHL Slot (x0 FL Optional)
    - Slot 6: 1 PCIe 5.0 x16 FHHL Slot
    - 2x AIOM Slots (OCP 3.0 Gen 5 x8 and x16)
  • 24x 2.5" NVMe/SAS3/SATA3 Drive Bays
  • 2x M.2 PCIe 3.0 x4 NVMe/SATA SSDs
  • 1600W Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimensions: Height 3.5" (87.9mm), Width 17.3" (438.4mm), Depth 33.4" (849.3mm)

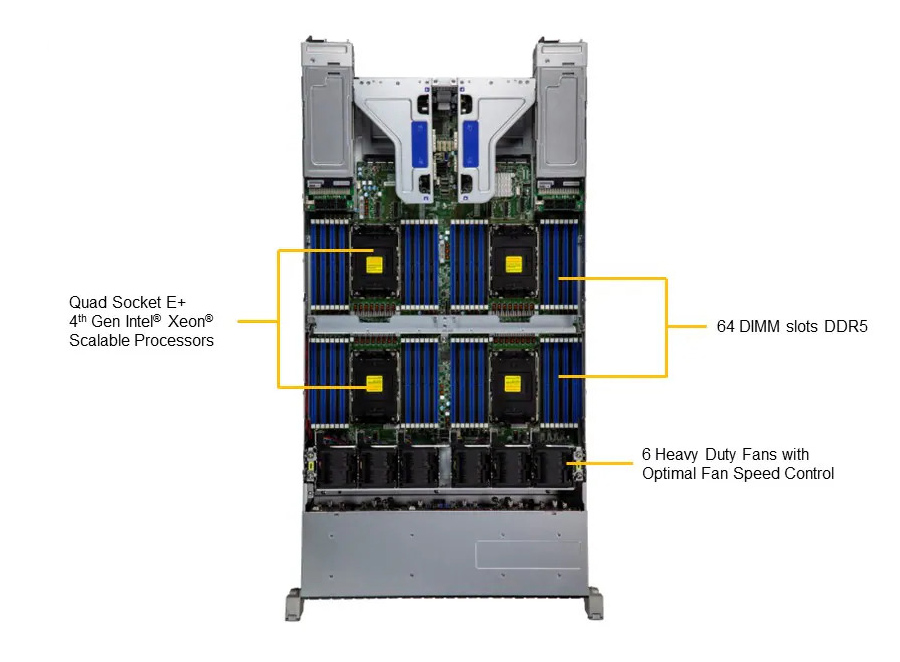

CPU • Quad Socket E (LGA-4677)
• Supports 4th Gen Intel® Xeon® Scalable processors
• TDP 165W-350W (Air Cooled)
Chipset • Intel® C741 chipset
Memory • 64x DDR5 DIMM slots
• Supports up to 16TB: 64x 256 GB DRAM
• Memory Type 4800MHz ECC DDR5 RDIMM/RDIMM-3DS

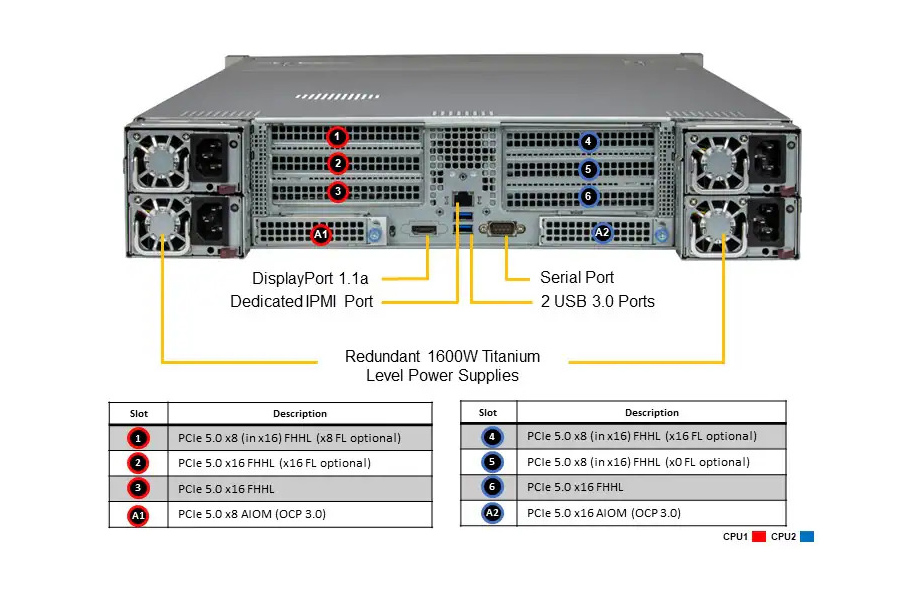

I/O Expansion • Slot 1: 1 PCIe 5.0 x8 (in x16) FHHL Slot (x8 FL Optional)
• Slot 2: 1 PCIe 5.0 x16 FHHL Slot (x16 FL Optional)
• Slot 3: 1 PCIe 5.0 x16 FHHL Slot
• Slot 4: 1 PCIe 5.0 x8 (in x16) FHHL Slot (x16 FL Optional)
• Slot 5: 1 PCIe 5.0 x8 (in x16) FHHL Slot (x0 FL Optional)
• Slot 6: 1 PCIe 5.0 x16 FHHL Slot
• 2x AIOM Slots (OCP 3.0 Gen 5 x8 and x16)
Onboard Devices Network Controller
• Via AIOM
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 2.0 ports (front)
• 2x USB 3.0 ports (rear)
Video
• 1x VGA port
• 1x DisplayPort
Serial
• 1x COM port
Power Supply • 4x 1600W Redundant Power Supplies
Certification
• 80PLUS Titanium Certified
Drive Bays Front
• 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays
M.2
• 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling • 6x 6cm heavy duty counter-rotating fans
BIOS Type • AMI 32Mb SPI Flash EEPROM


Block Diagram

Images
$8,643.88


  Qty.Colfax CX2465s-NVMe4-S24-X9 2U Rackmount Server, Cost As Configured $8,643.88
Base Platform 1
CPU 1 of 4    1

Set next    items (  ) like this
CPU 2 of 4    1
CPU 3 of 4    1
CPU 4 of 4    1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
CPU 3 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 3 - Socket 2 of 16    1
CPU 3 - Socket 3 of 16    1
CPU 3 - Socket 4 of 16    1
CPU 3 - Socket 5 of 16    1
CPU 3 - Socket 6 of 16    1
CPU 3 - Socket 7 of 16    1
CPU 3 - Socket 8 of 16    1
CPU 3 - Socket 9 of 16    1
CPU 3 - Socket 10 of 16    1
CPU 3 - Socket 11 of 16    1
CPU 3 - Socket 12 of 16    1
CPU 3 - Socket 13 of 16    1
CPU 3 - Socket 14 of 16    1
CPU 3 - Socket 15 of 16    1
CPU 3 - Socket 16 of 16    1
CPU 4 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 4 - Socket 2 of 16    1
CPU 4 - Socket 3 of 16    1
CPU 4 - Socket 4 of 16    1
CPU 4 - Socket 5 of 16    1
CPU 4 - Socket 6 of 16    1
CPU 4 - Socket 7 of 16    1
CPU 4 - Socket 8 of 16    1
CPU 4 - Socket 9 of 16    1
CPU 4 - Socket 10 of 16    1
CPU 4 - Socket 11 of 16    1
CPU 4 - Socket 12 of 16    1
CPU 4 - Socket 13 of 16    1
CPU 4 - Socket 14 of 16    1
CPU 4 - Socket 15 of 16    1
CPU 4 - Socket 16 of 16    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
NVM-E Drive 7    1
NVM-E Drive 8    1
NVM-E Drive 9    1
NVM-E Drive 10    1
NVM-E Drive 11    1
NVM-E Drive 12    1
NVM-E Drive 13    1
NVM-E Drive 14    1
NVM-E Drive 15    1
NVM-E Drive 16    1
NVM-E Drive 17    1
NVM-E Drive 18    1
NVM-E Drive 19    1
NVM-E Drive 20    1
NVM-E Drive 21    1
NVM-E Drive 22    1
NVM-E Drive 23    1
NVM-E Drive 24    1
Infiniband HBA 1
Ethernet HBA 1
Supermicro AIOM Gen5 x 8 1
Supermicro AIOM Gen5 x 16 1
TPM Module 1
Operating System SW 1
   Colfax CX2465s-NVMe4-S24-X9 2U Rackmount Server, Cost As Configured $8,643.88
