Colfax CX2860g-EH2 2U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 8x NVIDIA GPUs (Only 4x NVIDIA H200 NVL PCIe GPUs)
  • 24x DDR5 DIMM Sockets
  • 4x 2.5" SATA Drive Bays
  • 4x 2.5" SATA/Gen5 NVMe Drive Bays

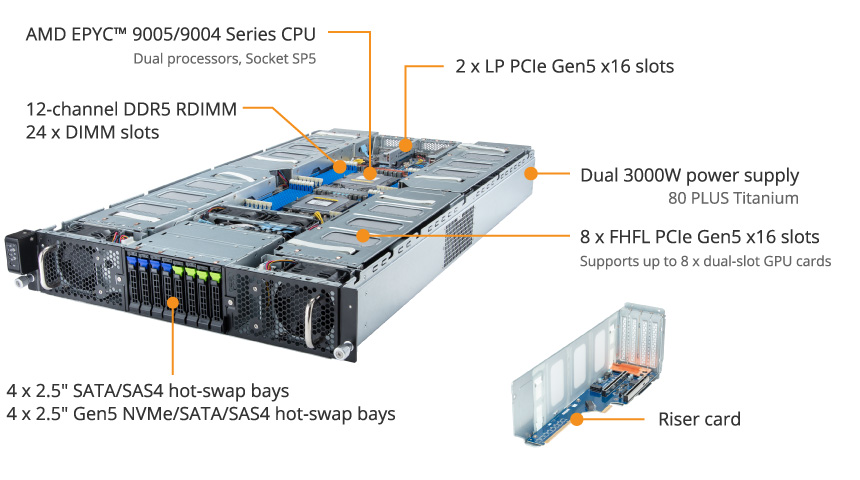

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 8x NVIDIA GPUs (Only 4x NVIDIA H200 NVL PCIe GPUs)
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots for AOC (LP)
  • 4x 2.5" SATA Drive Bays
  • 4x 2.5" SATA/Gen5 NVMe Drive Bays
  • 2x 10Gb/s LAN ports (Broadcom® BCM57416)
  • 1x Dedicated Management Port
  • 2x 3000 Watts RPSU, 80 PLUS Titanium
  • Dual ROM Architecture Supported




Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.64" x 3.4" x 33.46" (448 x 87.5 x 850 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 240W (At 30°C ambient, cTDP up to 300W)
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s
• AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Expansion Slots Riser Card CRSG620 x 2: • 4x PCIe 5.0 x16 FHFL slots from PEX89048 for GPUs
Riser Card CRSG621 x 2: • 4x PCIe 5.0 x16 FHFL slots from PEX89048 for GPUs
Riser Card CRSG01F x 2: • 2x PCIe 5.0 x16 slots from CPU_0 for AOC (LP)

Note:
- The system supports 4x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge
- Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5 mm
Storage • 8x 2.5" hot-swappable drive bays
- 4x 2.5" SATA Drive Bays
- 4x 2.5" SATA/Gen5 NVMe Drive Bays
Networking • 2x 10Gb/s LAN ports (1x Broadcom® BCM57416)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
- 1 x VGA port
Power Supply • 2x 3000W redundant PSUs
• AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
• DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 6x 80x80x80mm (17,500rpm)
• 2x 80x80x80mm (18,700rpm)
Front I/O • 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 2x LAN activity LEDs
• 1x Storage activity LED
• 1x System status LED

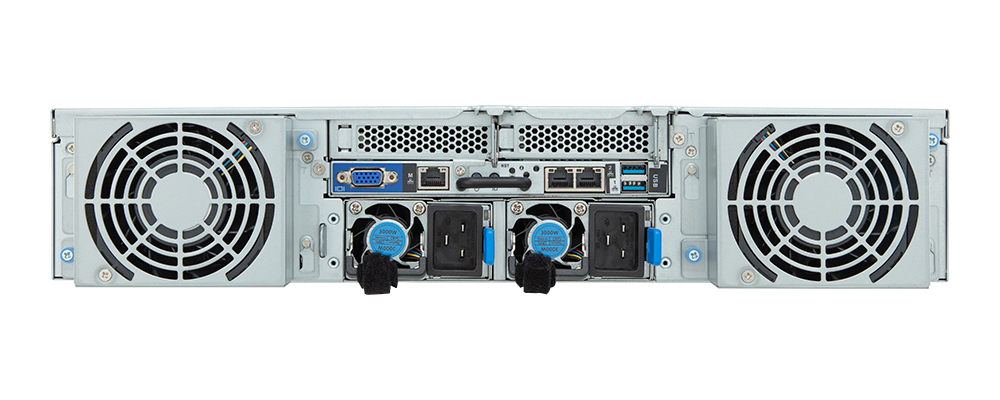

Rear I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x VGA
• 2x RJ45 ports
• 1x MLAN port
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 1x System status LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

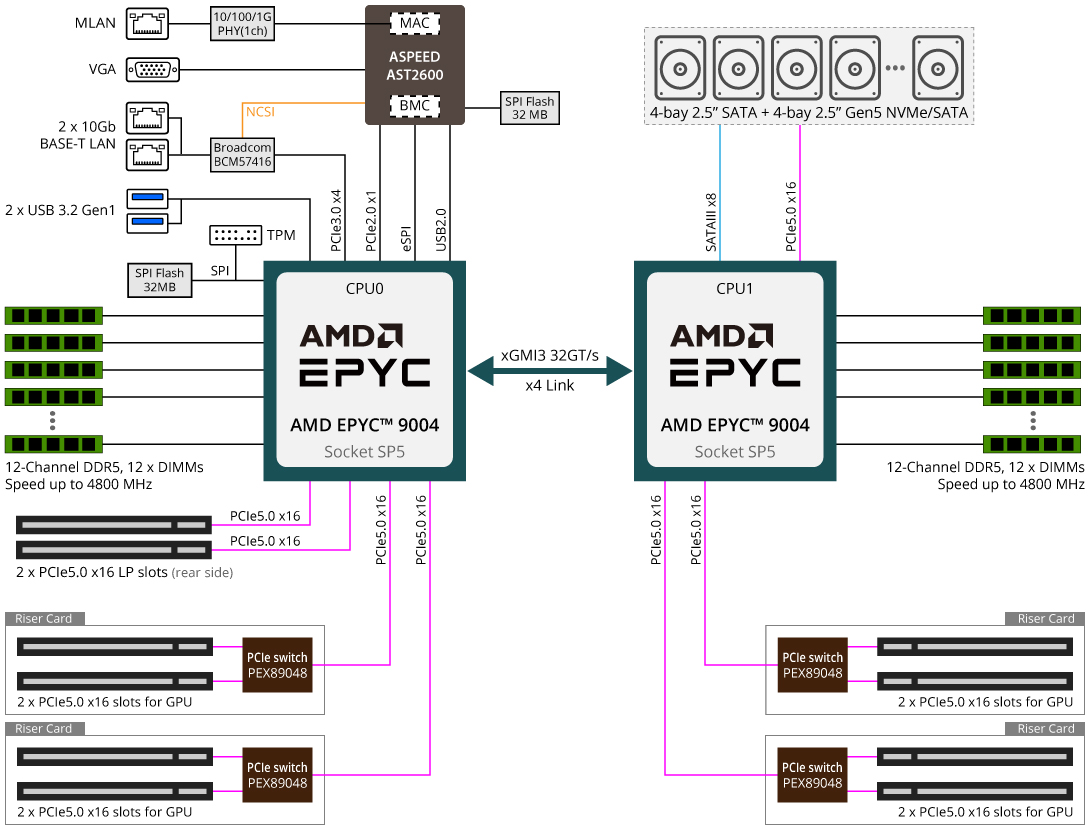

Block Diagram
