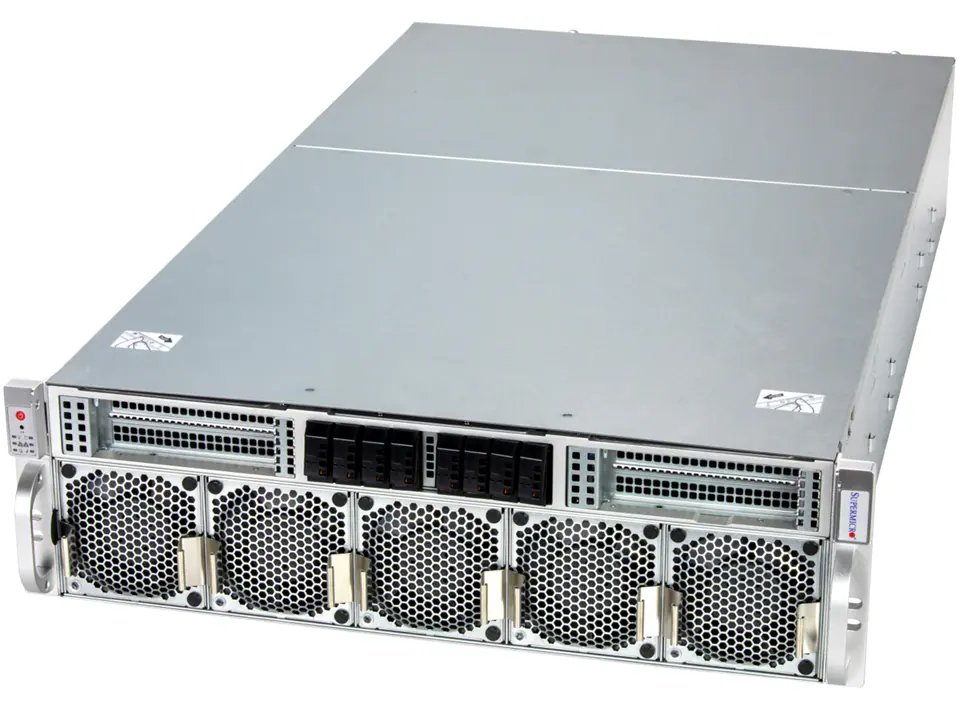

Colfax CX3860s-X6H2 3U Rackmount Server

Supports up to 8 double-width or 19 single-width GPUs
- Optimized for AI, HPC, and high-density GPU computing
- PCIe 5.0 high-bandwidth architecture
Dual Intel® Xeon® 6900-Series Processors
- Up to 500W TDP per CPU
- High core count with P-core architecture
24x DIMM Sockets supporting DDR5 ECC RDIMM / MRDIMM
- Up to 6TB system memory capacity
- Up to 6400 MT/s (RDIMM) or 8800 MT/s (MRDIMM)
Up to 10x PCIe 5.0 x16 slots (FHFL)
- Or up to 20x PCIe 5.0 x8 slots (FHFL)
Flexible storage configurations
- 6 / 8 / 14 hot-swap E1.S NVMe Gen5 drive bays
- Or 2 / 4 / 6 hot-swap 2.5" NVMe drive bays
2x M.2 NVMe SSDs (PCIe Gen5)
Networking via PCIe expansion (AOC support)
1x Dedicated Management Port (BMC)
3x 3200W or 2700W 80 PLUS Titanium redundant (2+1) power supplies
Advanced server management and monitoring support


Enclosure	• 3U Rackmount • Dimension (W x H x D) 17.26" x 5.2" x 31.5" (438.4 x 132.1 x 800 mm)
CPU	• Dual Socket BR (LGA-7529) • Dual Intel® Xeon® 6900 Series Processors • Supports CPU TDP up to 500W
Chipset	• System on Chip
Memory	• 24x DIMM sockets • DDR5 memory supported only • Memory capacity up to 6TB • Memory speed: - RDIMM: Up to 6400 MT/s - MRDIMM: Up to 8800 MT/s
Expansion Slots	• Up to 10x PCIe 5.0 x16 slots (FHFL) • Optional: Up to 20x PCIe 5.0 x8 slots • Supports up to 8 double-width GPUs or 19 single-width GPUs
Storage	• Up to 14x hot-swap E1.S PCIe Gen5 NVMe drive bays • Optional 2/4/6x 2.5" NVMe drive bays M.2 • 2x M.2 (22110/2280), PCIe Gen5 x2
Networking	• 1x RJ45 1GbE dedicated BMC LAN port • Networking via PCIe expansion (AOC support)
Video	• 1x VGA port • Integrated BMC graphics controller
Power Supply	• 3x 3200W or 2700W redundant PSUs (2+1) • AC Input: - 100-127V~/ 50-60Hz - 200-240V~/ 50-60Hz • 80PLUS Titanium

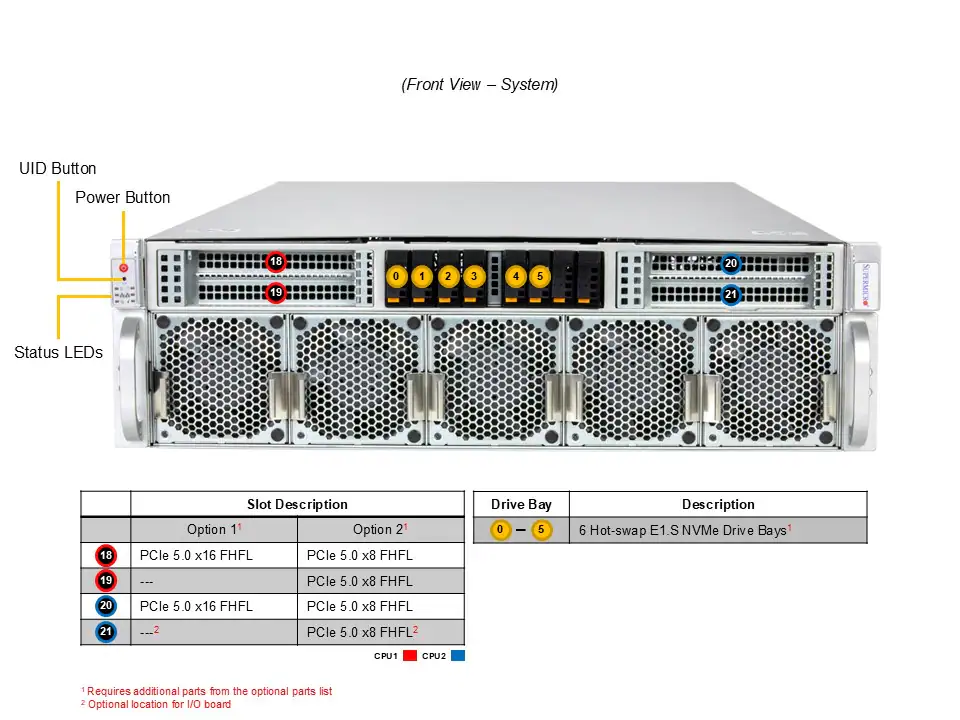

Front I/O	• 2x USB 3.2 Gen1 ports (Type-A) • 1x VGA port • 1x RJ45 BMC port

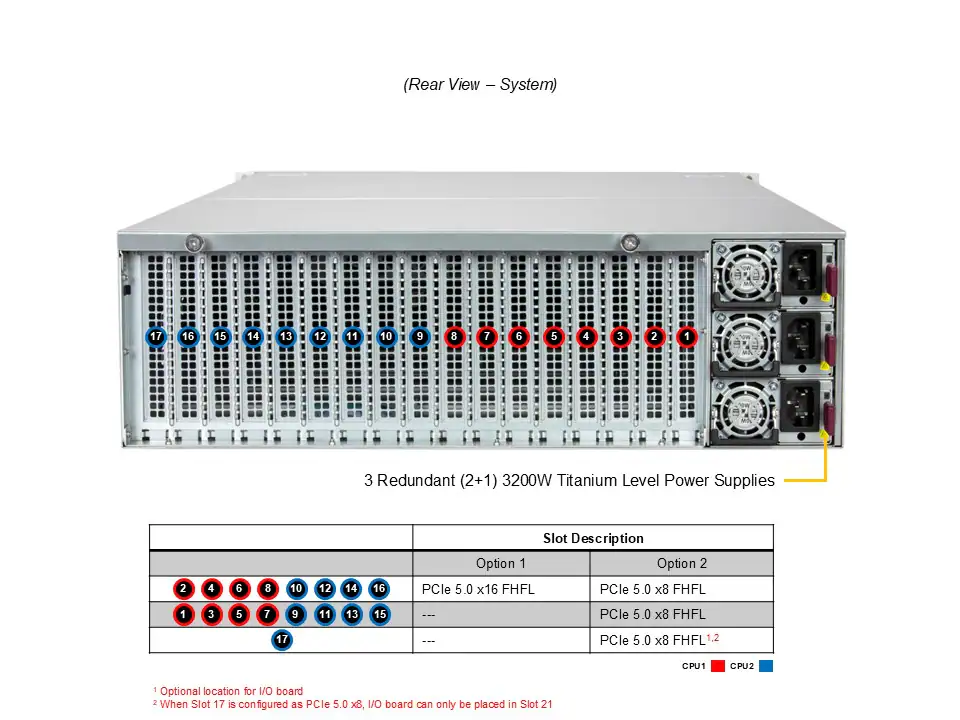

Rear I/O	• Expansion slot dependent (PCIe GPU / NIC configurations)
Backplane I/O	• PCIe Gen5 NVMe (E1.S / U.2 configurations)
TPM	• 1x TPM header
Server Management	• AMI BIOS (64MB SPI Flash) • Supermicro Server Manager (SSM) • SuperCloud Composer® • Super Diagnostics Offline (SDO) • Supermicro Thin-Agent Service (TAS) • SuperServer Automation Assistant (SAA)

$9,332.38

	Qty.	Colfax CX3860s-X6H2 3U Rackmount Server, Cost As Configured $9,332.38
Base Platform	1
Primary CPU	1
Secondary CPU	1
CPU 1 - Socket 1 of 12	1	Set next items ( ) like this
CPU 1 - Socket 2 of 12	1
CPU 1 - Socket 3 of 12	1
CPU 1 - Socket 4 of 12	1
CPU 1 - Socket 5 of 12	1
CPU 1 - Socket 6 of 12	1
CPU 1 - Socket 7 of 12	1
CPU 1 - Socket 8 of 12	1
CPU 1 - Socket 9 of 12	1
CPU 1 - Socket 10 of 12	1
CPU 1 - Socket 11 of 12	1
CPU 1 - Socket 12 of 12	1
CPU 2 - Socket 1 of 12	1	Set next items ( ) like this
CPU 2 - Socket 2 of 12	1
CPU 2 - Socket 3 of 12	1
CPU 2 - Socket 4 of 12	1
CPU 2 - Socket 5 of 12	1
CPU 2 - Socket 6 of 12	1
CPU 2 - Socket 7 of 12	1
CPU 2 - Socket 8 of 12	1
CPU 2 - Socket 9 of 12	1
CPU 2 - Socket 10 of 12	1
CPU 2 - Socket 11 of 12	1
CPU 2 - Socket 12 of 12	1
NVM-E Drive 1	1	Set next items ( ) like this
NVM-E Drive 2	1
Nvidia GPU 1	1	Set next items ( ) like this
Nvidia GPU 2	1
Nvidia GPU 3	1
Nvidia GPU 4	1
Nvidia GPU 5	1
Nvidia GPU 6	1
Nvidia GPU 7	1
Nvidia GPU 8	1
Ethernet HBA	1
Infiniband HBA	1
Operating System SW	1
		Colfax CX3860s-X6H2 3U Rackmount Server, Cost As Configured $9,332.38
