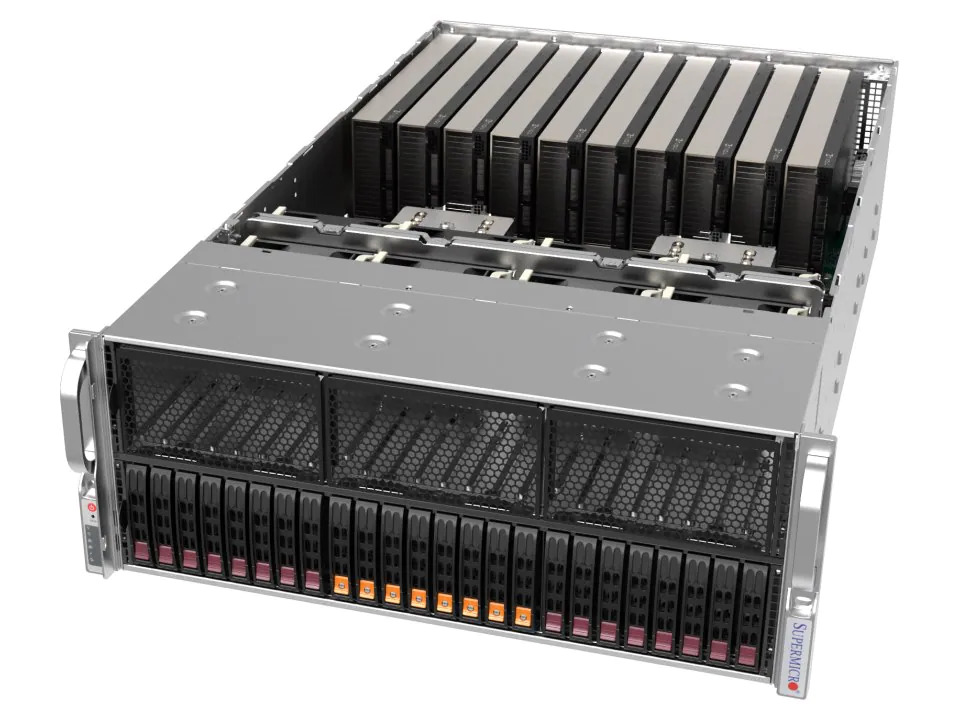

Colfax CX41010s-EK9 4U Rackmount Server



  • 1x AMD EPYC™ 9004 Series Processor
  • Up to 10x Double-Width, Full-Length GPUs
  • 12x DDR5 DIMM Sockets
  • 8x 2.5" Hot-Swap NVMe Drive Bays

Features

  • 1x AMD EPYC™ 9004 Series Processor (Click here for Specifications and Comparison)
  • Single Root Configuration with PCIe Switch for up to 10x Double-Width, Full-Length GPUs (See Image below)
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 10 PCIe 5.0 x16 for GPUs
    - 1 PCIe 5.0 x16 for AIC
    - 1 PCIe 5.0 x16 AIOM Slot for Flexible Networking Options
  • 8x 2.5" Hot-Swap NVMe Drive Bays
  • Integrated 2x 10GbE BaseT
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 4x 2000W Redundant Power Supplies, Titanium Level



Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimension (HxWxD): 7" (178mm) x 17.2" (437mm) x 29" (737mm)
CPU • Single Socket SP5
• AMD EPYC™ 9004 Series Processor
• Supports CPU TDP up to 400W
GPU CPU-GPU Interconnect
• PCIe 5.0 x16 Switch Single-Root
GPU-GPU Interconnect
• NVIDIA® NVLink™ Bridge (optional)
Memory • 12 DIMM Sockets
• Supports DDR5 ECC RDIMM
• Memory Type 4800 MHz Registered ECC
I/O Expansion • 10 PCIe 5.0 x16 for GPUs
• 1 PCIe 5.0 x16 for AIC
• 1 PCIe 5.0 x16 AIOM Slot for Flexible Networking Options
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• 2x 10GbE BaseT
VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
VGA
• 1 VGA port
Power Supply • 4x 2000W Redundant Power Supplies
• AC Input
- 1000W: 100-127Vac / 50-60Hz
- 1800W: 200-220Vac / 50-60Hz
- 1980W: 220-230Vac / 50-60Hz
- 2000W: 220-240Vac / 50-60Hz
- 2000W: 230-240Vac / 50-60Hz
- 2000W: 230-240Vdc
• +12V
- Max: 83A / Min: 0A (100Vac-127Vac)
- Max: 150A / Min: 0A (200Vac-220Vac)
- Max: 165A / Min: 0A (220Vac-230Vac)
- Max: 166A / Min: 0A (230Vac-240Vac)
• 12V sb
- Max: 3.5A / Min: 0A
• 80PLUS Titanium Certified
Storage Drive Bays
• 8x 2.5" hot-swap NVMe drive bays
System Cooling • 8x heavy duty fans with optimal fan speed control
BIOS • AMI 32MB SPI Flash EEPROM


Images


$10,118.55


  Qty.Colfax CX41010s-EK9 4U Rackmount Server, Cost As Configured $10,118.55
Base Platform 1
Primary CPU 1
CPU 1 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 12    1
CPU 1 - Socket 3 of 12    1
CPU 1 - Socket 4 of 12    1
CPU 1 - Socket 5 of 12    1
CPU 1 - Socket 6 of 12    1
CPU 1 - Socket 7 of 12    1
CPU 1 - Socket 8 of 12    1
CPU 1 - Socket 9 of 12    1
CPU 1 - Socket 10 of 12    1
CPU 1 - Socket 11 of 12    1
CPU 1 - Socket 12 of 12    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
NVM-E Drive 7    1
NVM-E Drive 8    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Nvidia GPU 3    1
Nvidia GPU 4    1
Nvidia GPU 5    1
Nvidia GPU 6    1
Nvidia GPU 7    1
Nvidia GPU 8    1
Nvidia GPU 9    1
Nvidia GPU 10    1
Supermicro AIOM 1
Ethernet HBA 1
Infiniband HBA 1
Operating System SW 1
   Colfax CX41010s-EK9 4U Rackmount Server, Cost As Configured $10,118.55
