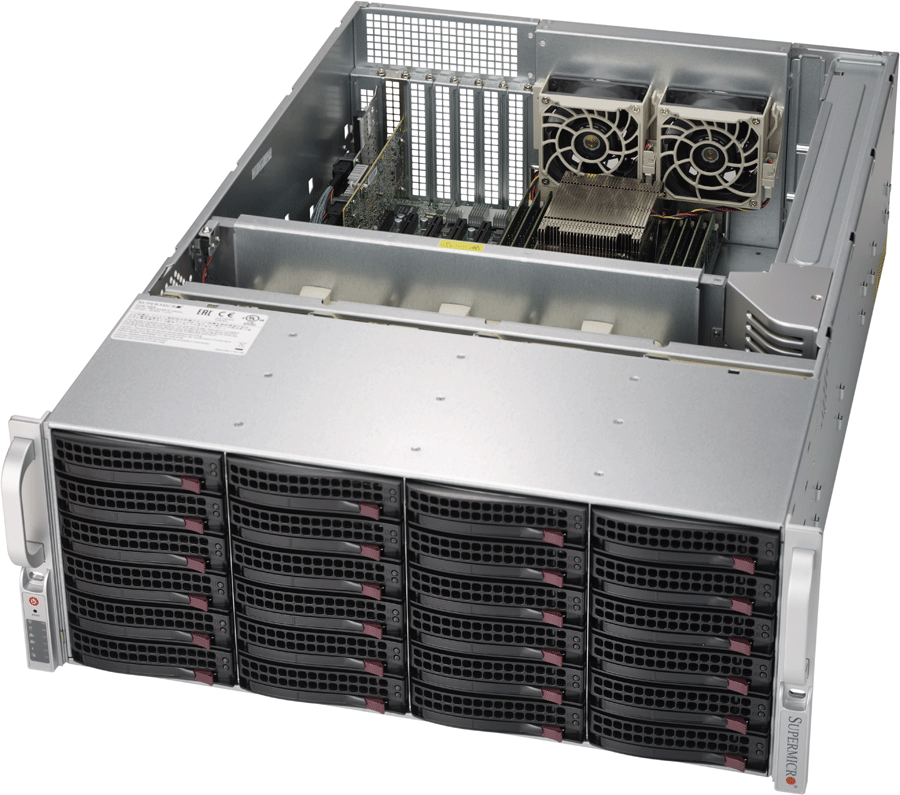

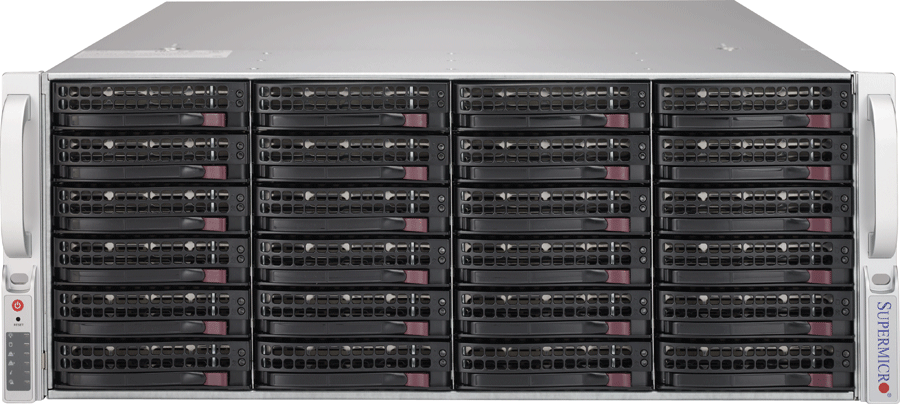

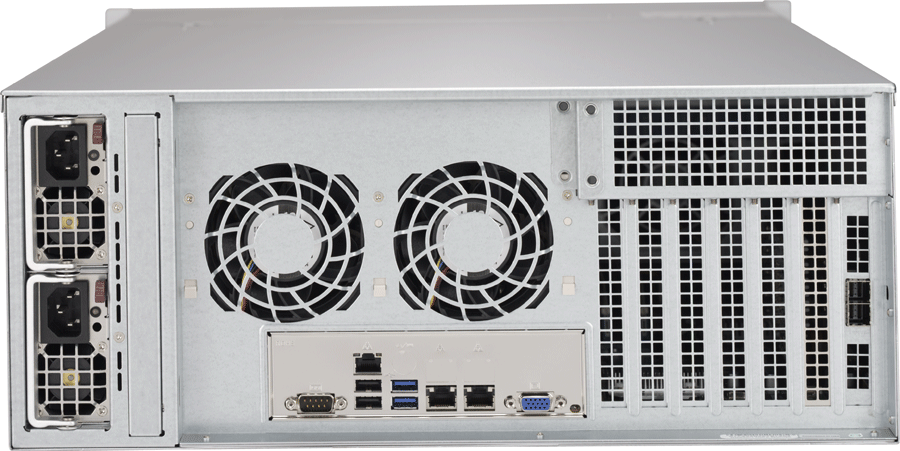

Colfax CX4220LPs-S24-X7 4U Rackmount Server



  • 2x Intel® Xeon® Scalable Processors
  • 24x 3.5" Hot-Swap SAS3 Drive Bays
  • 2x 2.5" Hot-Swap Rear Drive Bays
  • Broadcom 3108 SAS3 Controller

Features

  • 2x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C624 Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 3x PCI-E 3.0 x16 Slots
    - 4x PCI-E 3.0 x8 Slots
  • 24x 3.5" Hot-Swap SAS3 12Gb/s Drive Bays + 2x 2.5" Hot-Swap Rear Drive Bays
  • 2x PCIe NVMe 3.0 x4 SSDs
  • Integrated Broadcom 3108 SAS3 (12Gbps) Controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap Option
  • Dual 10GBase-T LAN with Intel® X722 + X557
  • 1200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 16x DDR4 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C624
I/O Expansion • 3x PCI-E 3.0 x16 slots
• 4x PCI-E 3.0 x8 slots

Note: Slot 2 & 3 occupied by controller and JBOD expansion port
Onboard Devices SATA
• SATA3 (6Gbps) via C624 controller
• RAID 0, 1, 5, 10 support
SAS
• Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap option
Network Controllers
• Dual 10GBase-T LAN with Intel® X722 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (rear)
• 1x Type A
VGA
• 1x VGA port
Serial Port / Header
• 1 Fast UART 16550 port / 1 Header
Chassis Form Factor • 4U Rackmount
• Dimension: 17.2"W (437mm) x 7" (178mm) x 26.5" (673mm)
Power Supply • 1200W 1U Redundant Power Supplies with PMBus
Total Output Power
• 1000W/1200W
Input
• 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
+12V
• Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
5V sb
• Max: 4A / Min: 0A
Certification
• 80PLUS Titanium Certified
Storage • 24x hot-swap 3.5" SAS3/SATA3 drive bays
• 2x hot-swap 2.5" NVMe/SATA drive bays (rear)
Backplane • 24-port 4U SAS3 12Gbps single-expander backplane, supports up to 24x 3.5-inch SAS3/SATA3 HDDs/SSDs
System Cooling • 3 hot-swap 8cm redundant PWM cooling fans
• 2 hot-swap 8cm rear exhaust PWM fans
Front Panel Buttons
• Power switch
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
• Power fail LED
BIOS • 256Mb AMI UEFI


Block Diagram


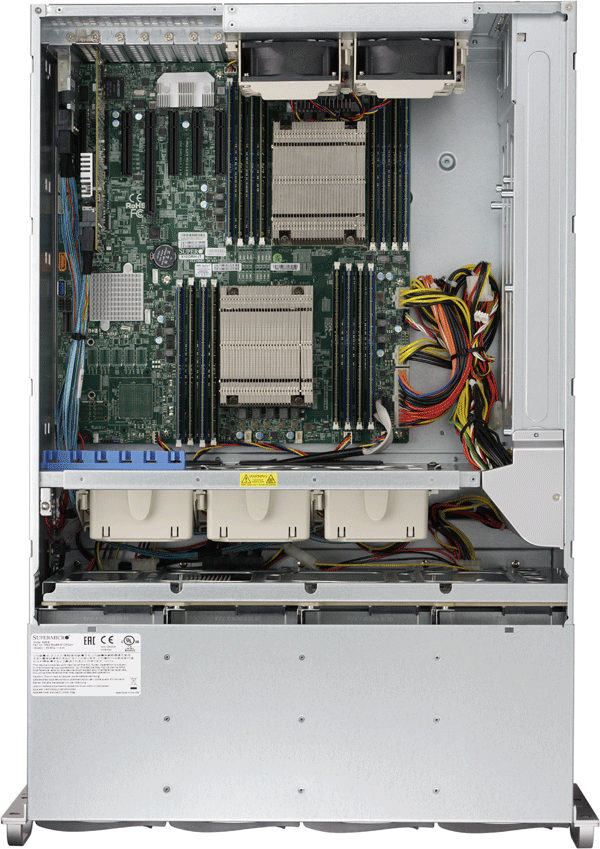

Images


$3,281.23


  Qty.Colfax CX4220LPs-S24-X7 4U Rackmount Server, Cost As Configured $3,281.23
