Colfax CX4860g-EH2 4U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 8x NVIDIA GPUs
  • 48x DDR5 DIMM Sockets
  • 12x 2.5" Gen5 NVMe Drive Bays

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 8x NVIDIA GPUs including 8x NVIDIA H200 NVL PCIe GPUs with 4-way NVLink Bridges
  • 48x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots:
    - 3x PCIe 5.0 x16 FHHL Slots (1x Front)
    - 3x PCIe 5.0 x16 LP Slots
  • 12x 2.5" SATA/Gen5 NVMe Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 3.0 x4)
  • 2x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1x Dedicated Management Port
  • 4x 3000 Watts RPSU, 80 PLUS Titanium
  • Dual ROM Architecture Supported







Technical Specifications

Enclosure • 4U
• Dimension (W x H x D) 17.64" x 6.93" x 34.65" (448 x 176 x 880 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 400W (At 30°C ambient, cTDP up to 500W)

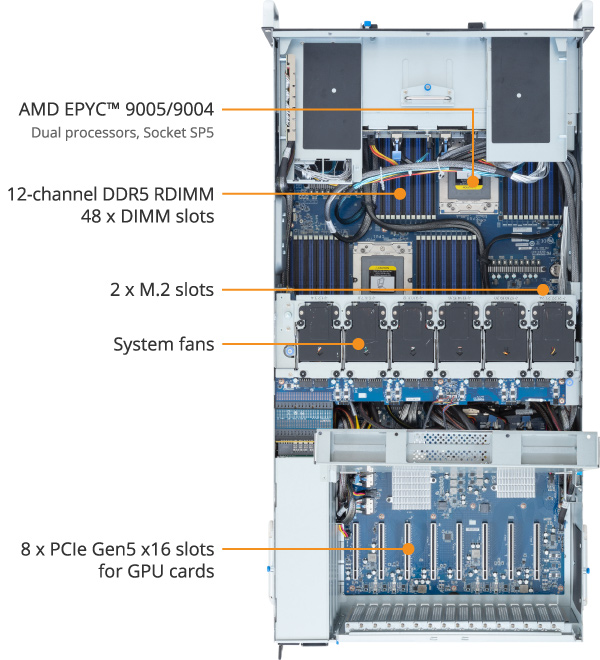

Memory • 48x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• AMD EPYC™ 9005:
- RDIMM: Up to 5200 MT/s (1DPC)
- RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
• AMD EPYC™ 9004:
- RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Expansion Slots • 4x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
• 4x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs
• 1x FHHL x16 (Gen5 x16), from CPU_0
• 1x FHHL x16 (Gen5 x16), from CPU_1
• 1x FHHL x16 (Gen5 x16), from PEX89144_1
• 2x LP x16 (Gen5 x16), from PEX89144_0
• 1x LP x16 (Gen5 x16), from PEX89144_1

Note: The system supports 8x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 4-GPU sets, each with a 4-way NVLink bridge. Support requires an optional fan kit
Storage Front
• 12x 2.5" hot-swappable SATA/Gen5 NVMe drive bays
- 4x NVMe from PEX89144_0, 4x NVMe from PEX89144_1
- 2x NVMe from CPU_0, 2x NVMe from CPU_1
- SATA from CPU_0
Internal M.2
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
Networking Front (G-SCM board - CDCG110):
• 2x 1Gb/s LAN ports (Intel® I350-AM2)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x VGA port
Power Supply • 4x 3000W redundant power supplies
• AC Input:
- 100-127V~/ 14.5A, 50-60Hz
- 200-220V~/ 16A, 50-60Hz
- 220-240V~/ 16A, 50-60Hz
• DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~
+12.2V/ 246A
+12Vsb/ 3A
• 80 PLUS Titanium

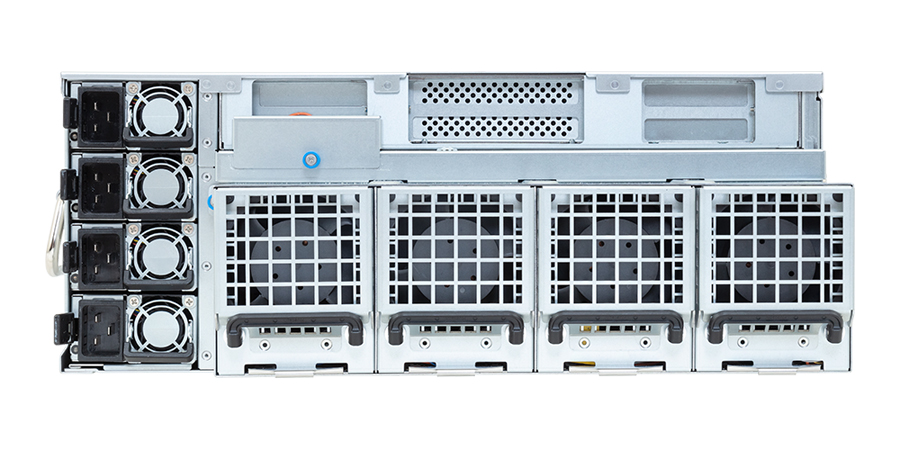

System Cooling • 2x 40x40x28mm (34,000rpm)
• 12x 60x60x56mm (23,000rpm)

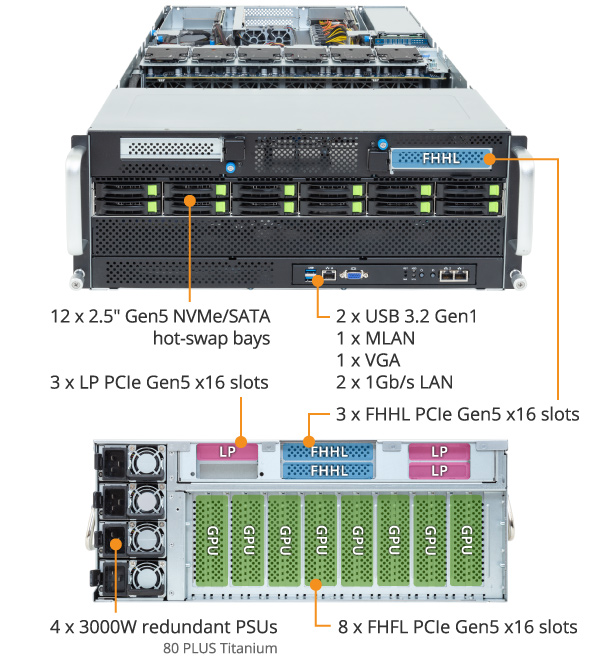

Front I/O G-SCM board - CDCG110:
• 2x USB 3.2 Gen1 ports (Type-A)
• 1x VGA ports
• 2x RJ45 ports
• 1x MLAN port
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 1x NMI button
• 1x System status LED
• 1x Storage activity LED
Rear I/O N/A
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

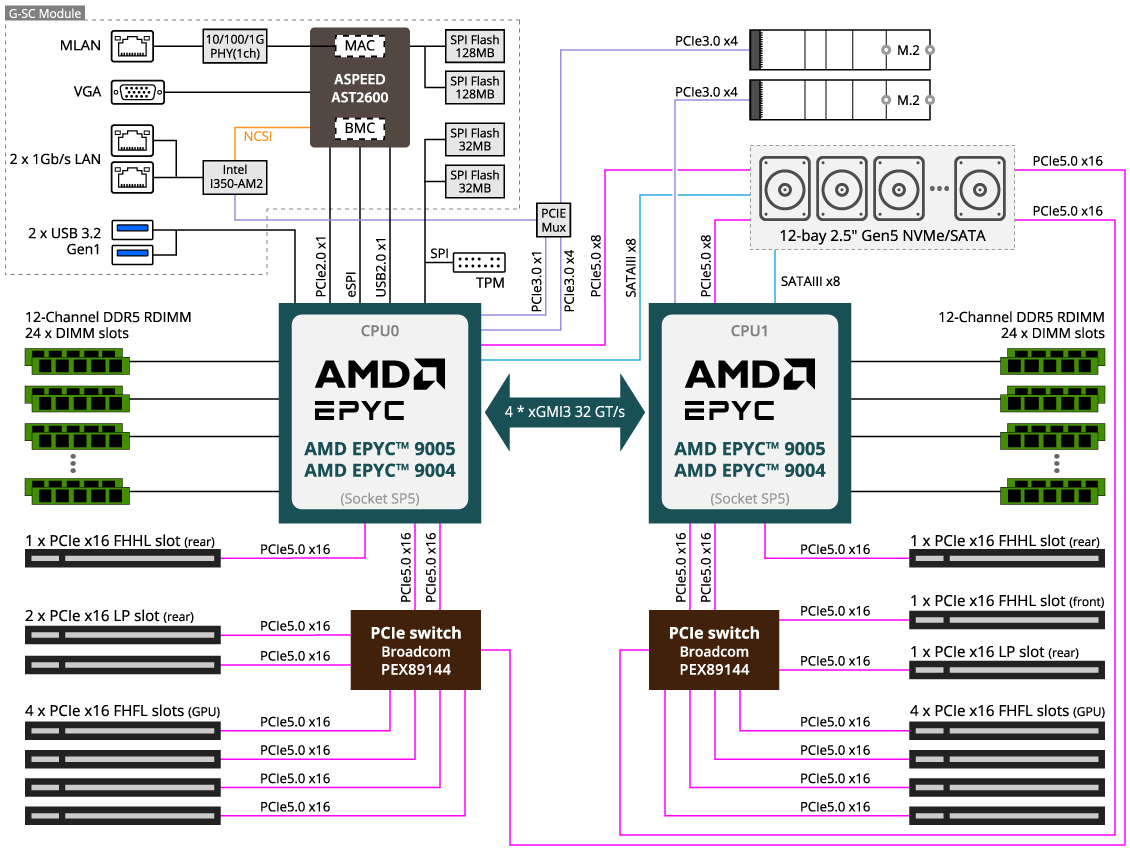

Block Diagram

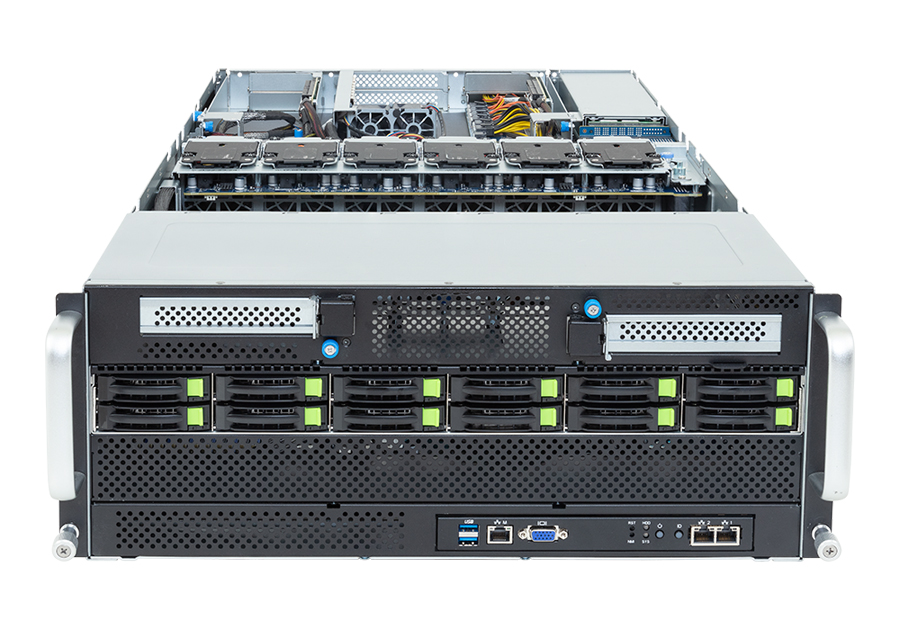

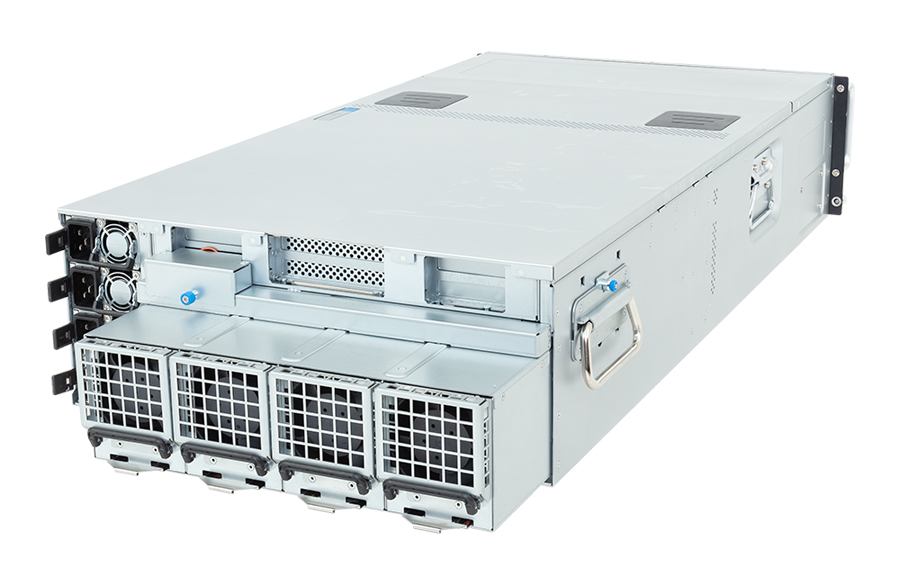

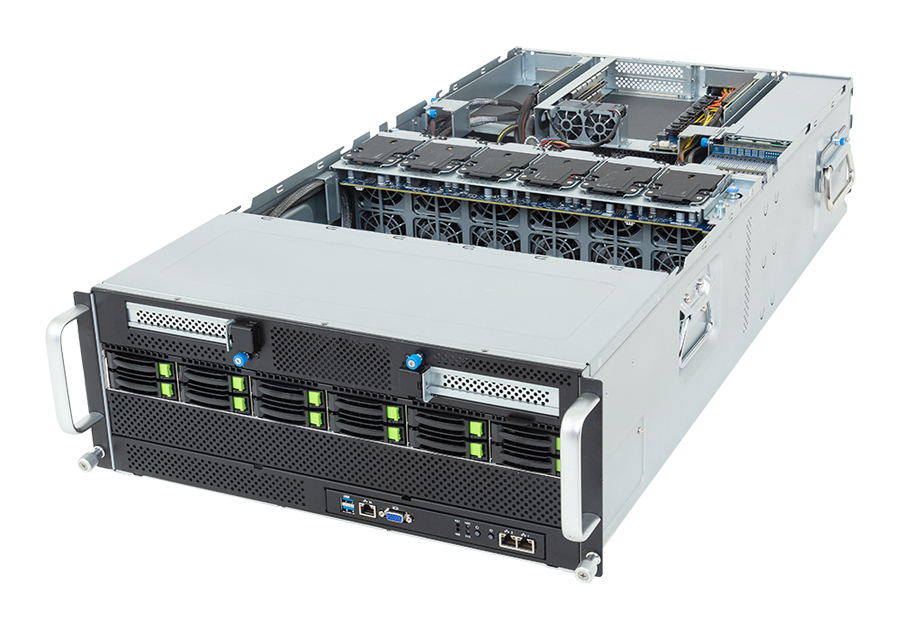

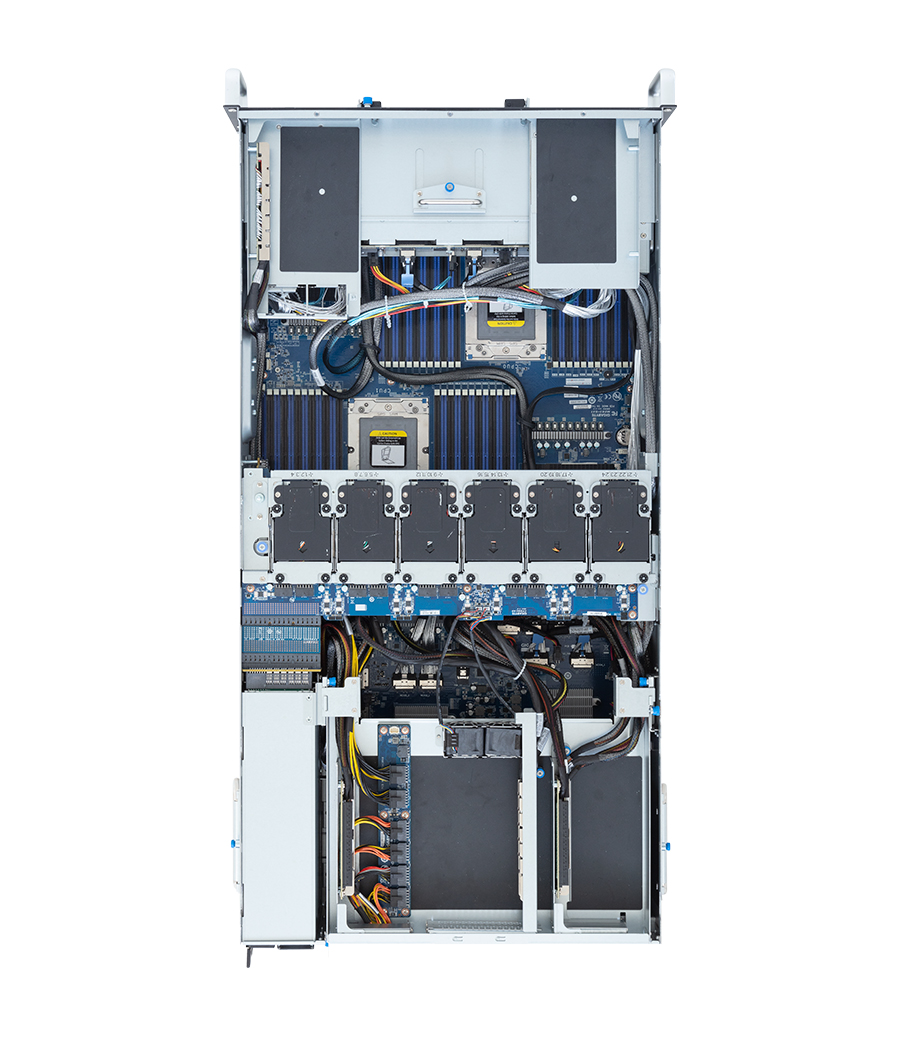

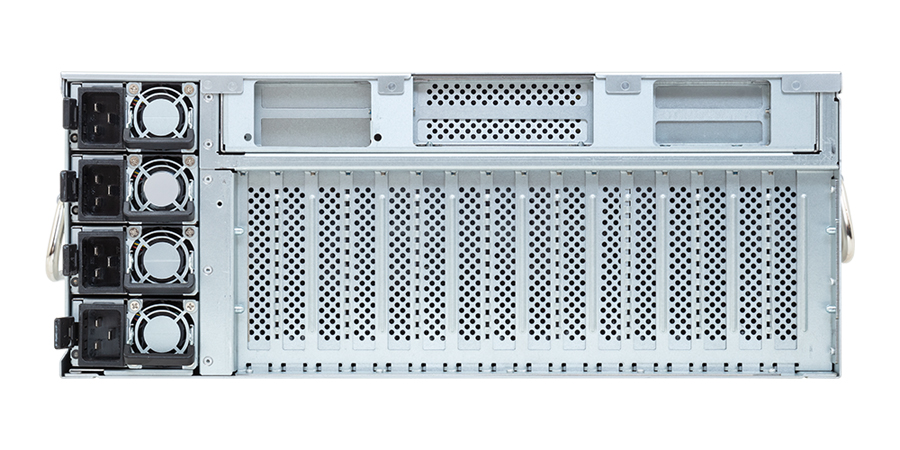

Images
