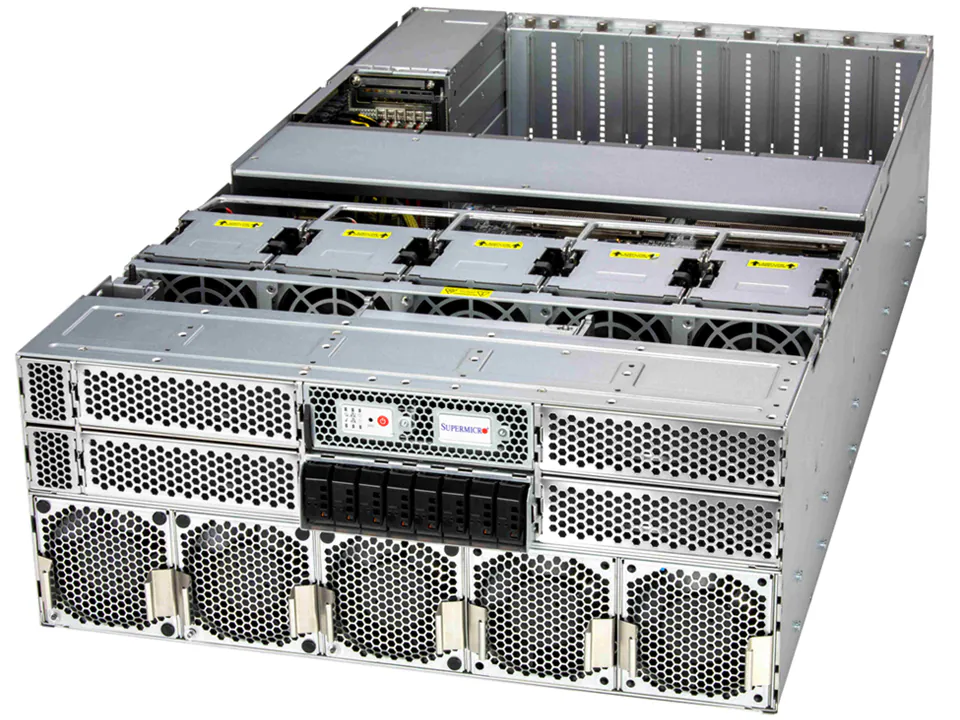

Colfax CX4860s-NVMe5-S8-X6RTX 4U MGX™ Rackmount Server




  • NVIDIA 4U MGX™ Server
  • 2 x Intel Xeon 6 6900 series Processors
  • 24x ECC DDR5 DIMMs at 6400 MT/s
  • 8 x PCI-E Gen5 x16 for GPU
  • 4 x PCI-E Gen5 x16 for NIC
  • 1 x PCI-E Gen5 x 16 for NIC/DPU (Via CPU)
  • Dedicated LAN for System Management
  • 8 x E1.S NVM-E drive bays
  • 3200W 3+1 80 PLUS Titanium Redundant Power Supplies

Features

  • SuperServer SYS-422GL-NR 4U Rackmount platform
    - Configurable with up to 8 x double-width NVIDIA GPUs (H100 NVL, H200 NVL 141GB, RTX PRO™ 6000 Blackwell Server Edition, L40S)
    - Configurable with Dual Socket BR (LGA-7529) Intel® Xeon® 6900 Series Processors (up to 72C/144T, 500W TDP air-cooled)
  • 24 DIMM sockets supporting up to 6.0TB DDR5 ECC RDIMM (6400MT/s) or MRDIMM (8800MT/s)
  • 8 x front hot-swap E1.S NVMe drive bays
  • 2 x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280)
  • 1 x RJ45 1GbE port with ASPEED AST2600 BMC
  • PCIe 5.0 x16 dual-root switch for CPU–GPU connectivity
    - Optional NVIDIA NVLink® GPU–GPU interconnect
  • 8 x PCIe 5.0 x16 FH double-width slots + 4 x PCIe 5.0 x16 HHHL slots (Option A: 1 x PCIe 5.0 x16 FHHL)
  • 4 x 3200W 80 PLUS Titanium (96%) redundant power supplies (3+1)

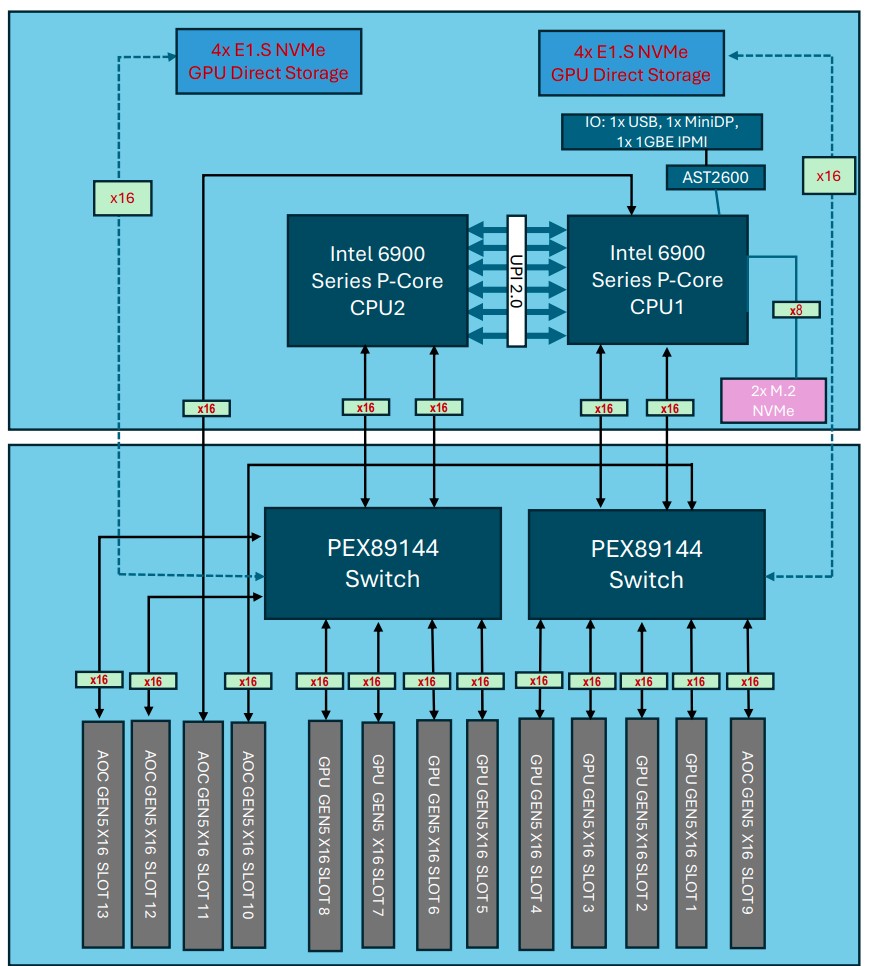

CX4860s-NVMe5-S8-X6RTX Block Diagram

Technical Specifications

Enclosure • 4U Rackmount
• Model: CSE-MG401TS-R0ANDFP1
• Dimension (W x H x D): 17.26" x 6.93" x 31.5" (438.4 x 176 mm x 800 mm)
• Net Weight: 49.5 lbs (22.45 kg)
• Gross Weight: 96.45 lbs (43.75 kg)
• Color: Silver
CPU • Dual Socket BR (LGA-7529)
• Intel® Xeon® 6900 Series Processors (with P-cores)
• Max Core Count: 72C/144T
• Supports CPU TDP up to 500W (Air Cooled)
Memory • 24x DIMM slots
• Max 6.0TB ECC DDR5 RDIMM (6400MT/s)
• Max 6.0TB ECC DDR5 MRDIMM (8800MT/s)
• Memory Voltage: 1.1V
GPU / Expansion Slots • Up to 8x double-width GPUs
• Supported GPUs: NVIDIA H100 NVL, H200 NVL (141GB), RTX PRO™ 6000 Blackwell Server Edition, L40S
• CPU-GPU Interconnect: PCIe 5.0 x16 Dual-Root Switch
• GPU-GPU Interconnect: NVIDIA NVLink® Bridge (optional)
Expansion:
• 8 PCIe 5.0 x16 FH double-width slots
• 4 PCIe 5.0 x16 HHHL slots
• Option A: 1 PCIe 5.0 x16 FHHL slot
Storage • 8x front hot-swap E1.S NVMe drive bays
M.2:
• 2x PCIe 4.0 x4 NVMe slots (M-key 2280)
Networking • 1x RJ45 1GBASE-T with ASPEED AST2600
• Expansion via AOC Options
Video • 1x mini-DP port
Power Supply • 4x 3200W Redundant (3+1) Titanium Level (96%) PSUs
• Input: 1000W–3200W AC, 50–60Hz
• +12V Max: up to 262.3A (220–240V input)
System Cooling • 10x 80mm Fans
Front I/O • 1x USB 3.0 Type-A
• Power On/Off Button
Security • TPM 2.0
• Silicon Root of Trust (NIST 800-193 compliant)
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates + Auto Recovery
• Runtime BMC Protections
• System Lockdown
Server Management • SuperCloud Composer®
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)
Environmental • Operating Temp: 10°C to 35°C (50°F to 95°F)
• Non-Operating Temp: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 8% to 90% (non-condensing)
• Non-Operating Humidity: 5% to 95% (non-condensing)

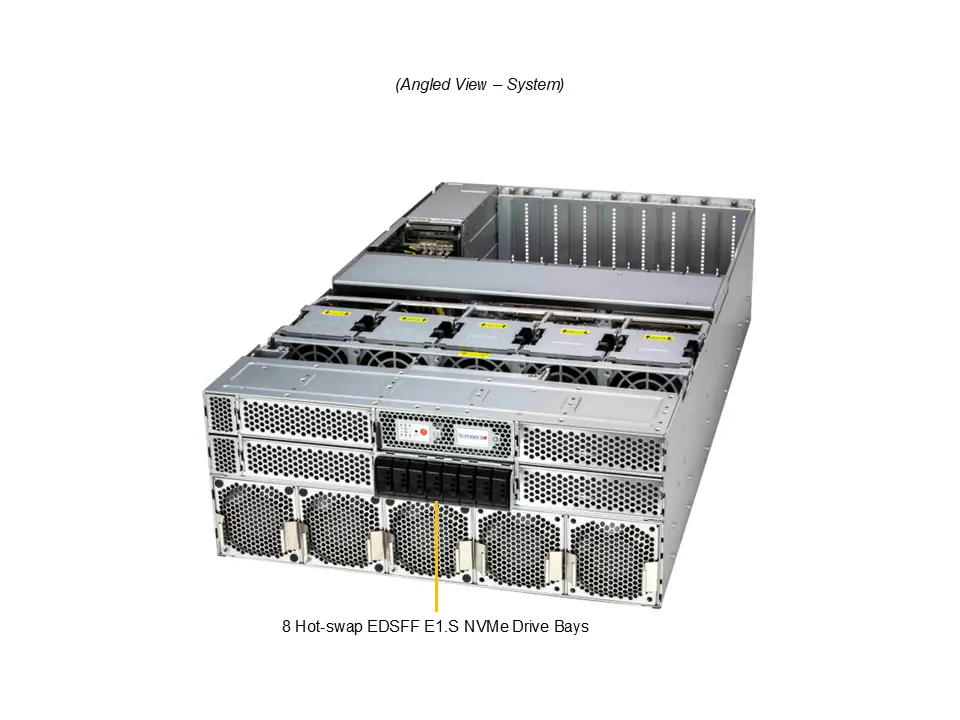

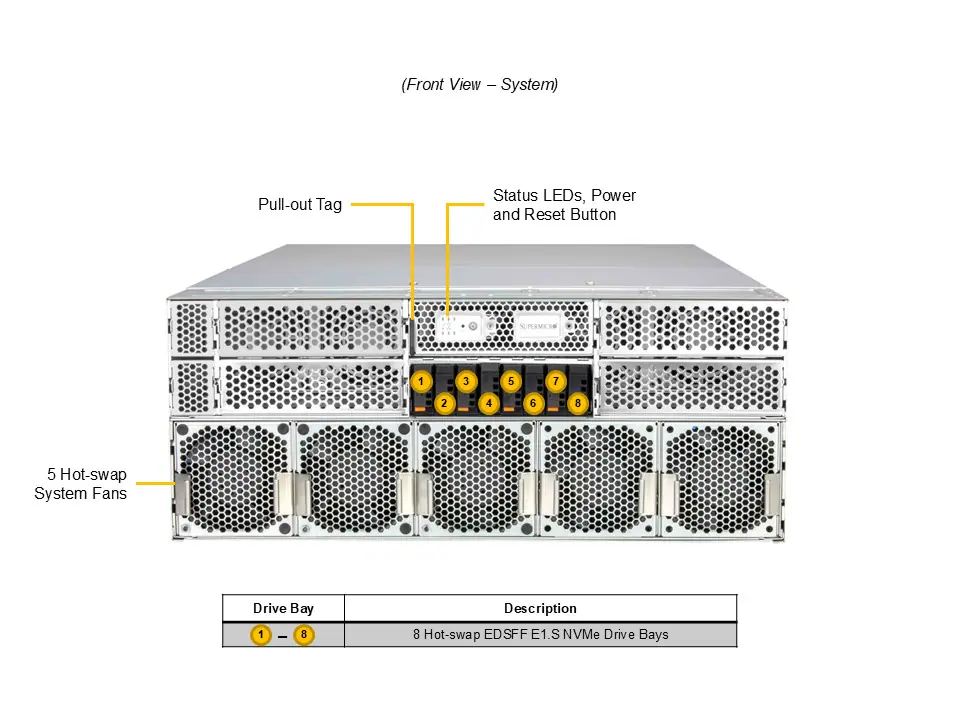

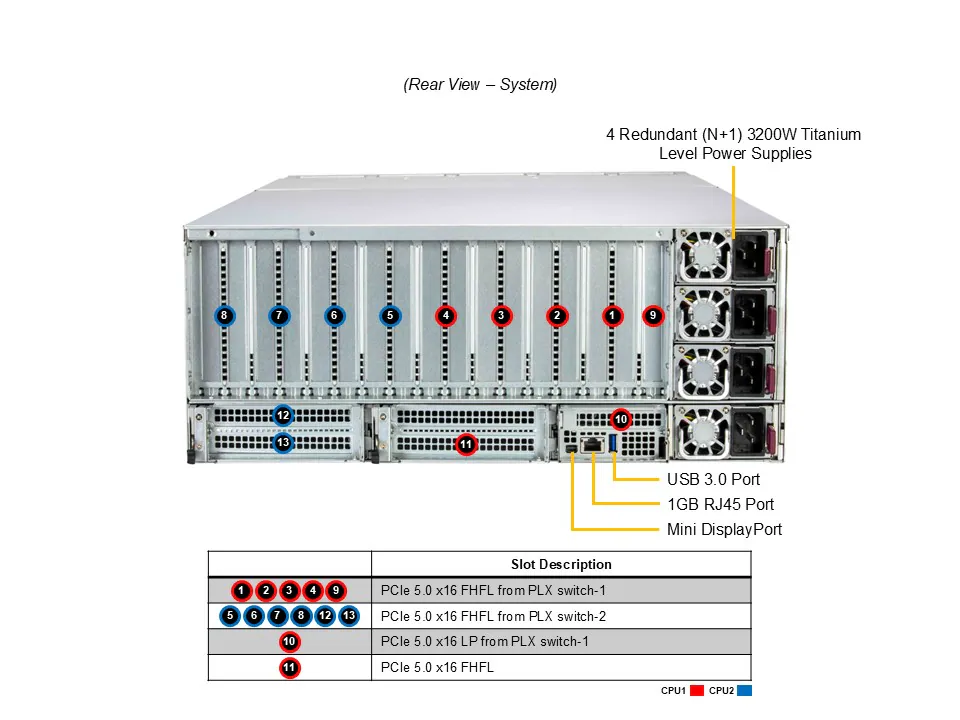

Images
