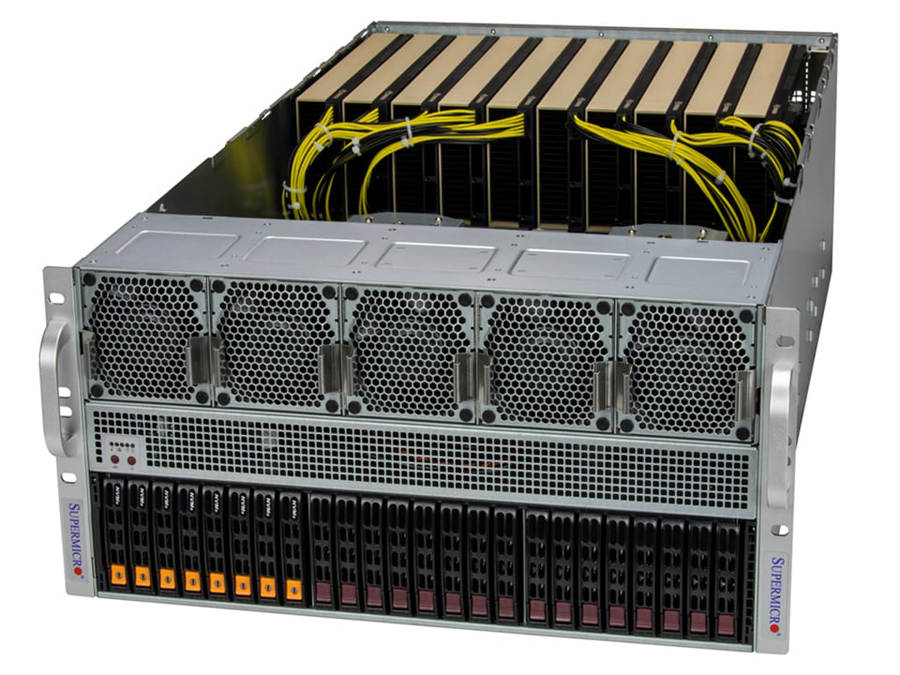

Colfax CX51050s-XK9 5U Rackmount Server




  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA H100 Tensor Core GPUs
  • 8x 2.5" SATA Drive Bays
  • 8x 2.5" NVMe Drive Bays

Features

  • 5U Rackmount
  • 2x 4th Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA H100 Tensor Core GPUs
  • Intel C741 Chipset
  • 32x DIMMS, Supports DDR5 ECC RDIMMM
  • 13 PCIe 5.0 x16 Slots
  • 16x 2.5" Drive Bays (8x NVMe, 8x SATA)
  • 2x M.2 NVMe SSDs
  • 4x 2700W (2+2) Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 5U Rackmount
• Dimensions: Height 8.75" (222.5mm), Width 17.2" (437mm), Depth 29" (737mm)
CPU • Dual Socket E (LGA-4677)
• Supports 4th Gen Intel® Xeon® Scalable processors
• TDP up to 350W

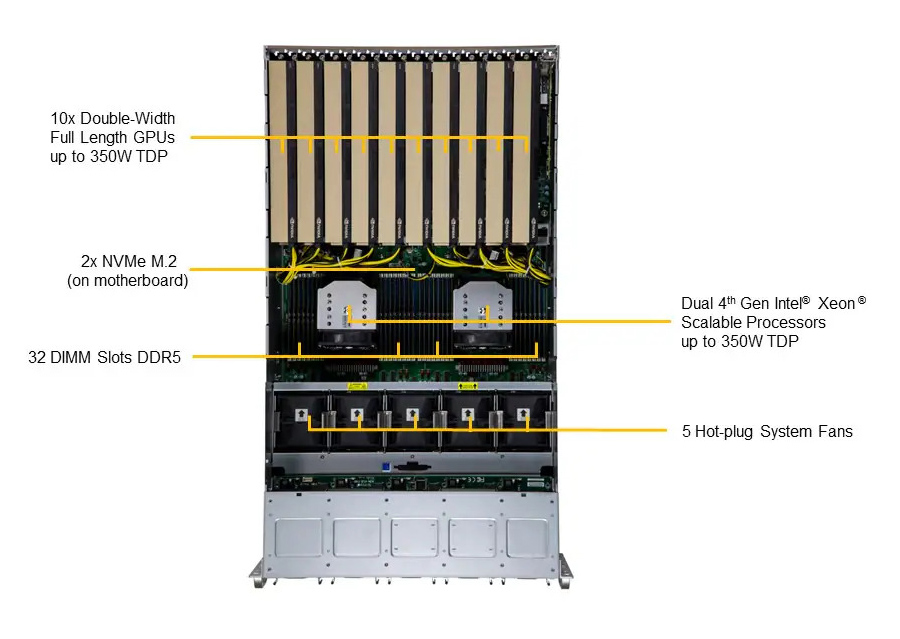

GPU Supported GPU
• NVIDIA H100 Tensor Core GPU
CPU-GPU Interconnect
• PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
• NVIDIA® NVLink® bridge (Optional)
Memory • 32x DDR5 DIMM slots
• Supports up to 8TB: 32x 256 GB DRAM
• Memory Type: 4800MHz ECC DDR5 DRAM
Chipset • Intel® C741 chipset
I/O Expansion • 13 PCIe 5.0 x16 slots
Onboard Devices SATA
• Intel® C741 controller for 8 SATA 3.0 ports
Network Controllers
• 2x 10GBASE-T with Intel® X710-AT2
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

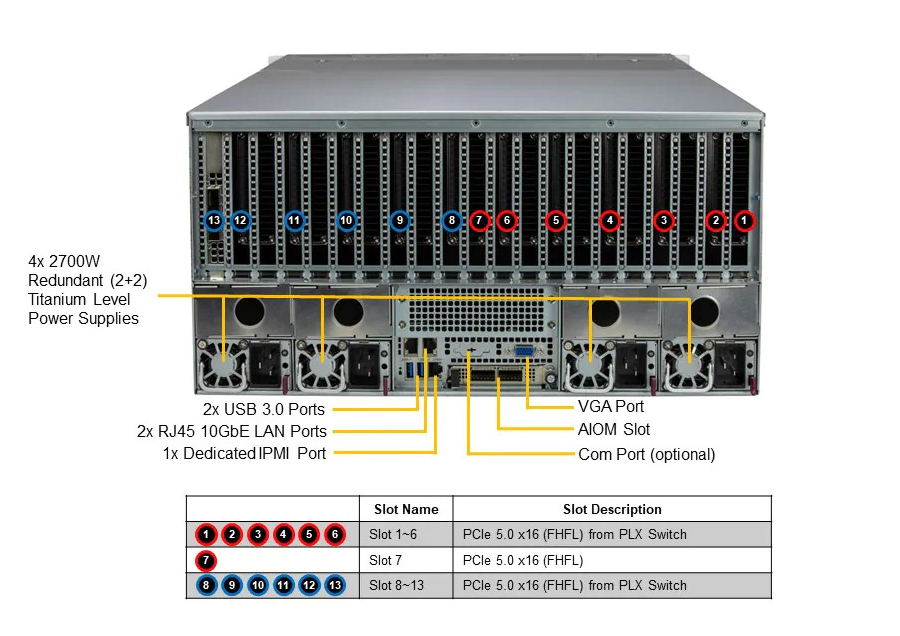

Input / Output SATA
• 8x SATA 3.0 ports (6Gbps)
LAN
• 2x 10GBASE-T LAN ports (Intel® X710-AT2)
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB ports (rear)
Video
• 1x VGA connector
Power Supply • 2700W Redundant Power Supplies
AC Input
• 2700W: 200-240Vac / 50-60Hz
+12V
• Max: 225A / Min: 0A (200Vac-240Vac)
12Vsb
• Max: 3.5A / Min: 0A
Certification
• 80PLUS Titanium Certified

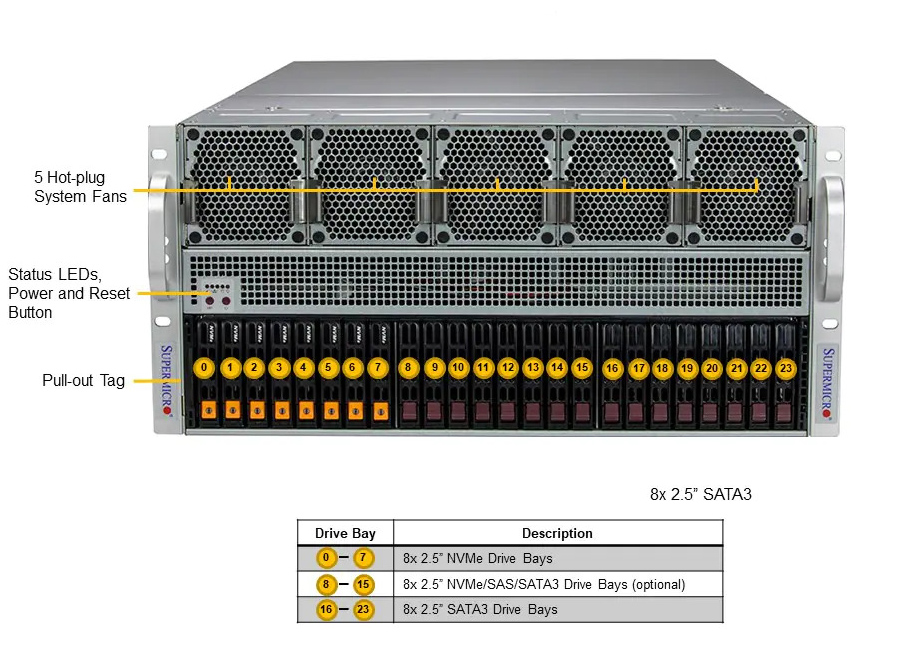

Drive Bays / Storage Front
• 16x 2.5" Drive Bays (8x NVMe, 8x SATA)
M.2
• M.2 Interface: 2 PCIe 4.0 x4
• Form Factor: 22110, 2280
• Key: M-Key
System Cooling Fans
• 5 heavy duty fans with optimal fan speed control
BIOS Type • AMI 32MB SPI Flash EEPROM


Images
$11,671.25
