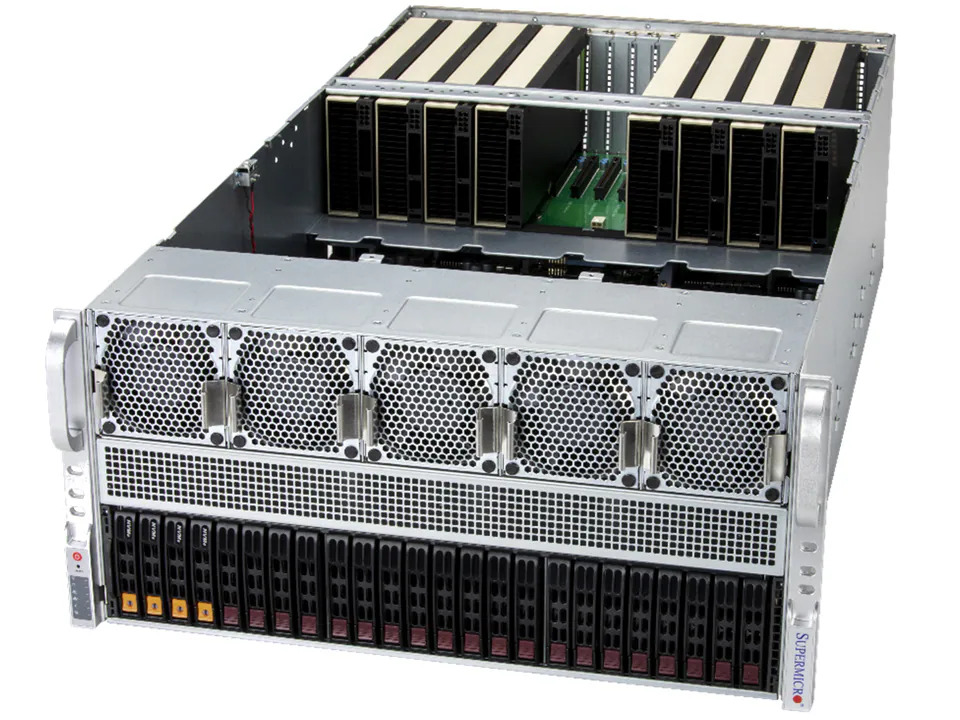

Colfax CX5860s-EH2 5U Rackmount Server



  • 2x AMD EPYC™ 9005 Series Processors
  • Up to 8x H200 NVL PCIe GPUs
  • 24x DDR5 DIMM Sockets
  • 4x 2.5" Gen4 NVMe + 2x 2.5" SATA Drive Bays

Features

  • 2x AMD EPYC™ 9005 Series Processors (Model Specs)
  • Up to 8x H200 NVL PCIe GPUs Datasheet
    - 141GB of HBM3e GPU Memory
    - 4.8TB/s of Memory Bandwidth
    - Form Factor: Dual-Slot Air-Cooled
    - Interconnect: 2- or 4-way NVIDIA® NVLink® Bridge* (Optional); 900GB/s per GPU; PCIe Gen5: 128GB/s
    - Max Thermal Design Power (TDP): Up to 600W (configurable)
    - Included 5-Year Subscription for NVIDIA AI Enterprise
    * Please indicate in the Configurator notes, if NVIDIA® NVLink® Bridge is required.
  • CPU-GPU Interconnect: Direct Attached
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 9 PCIe 5.0 x16 FHFL Slots

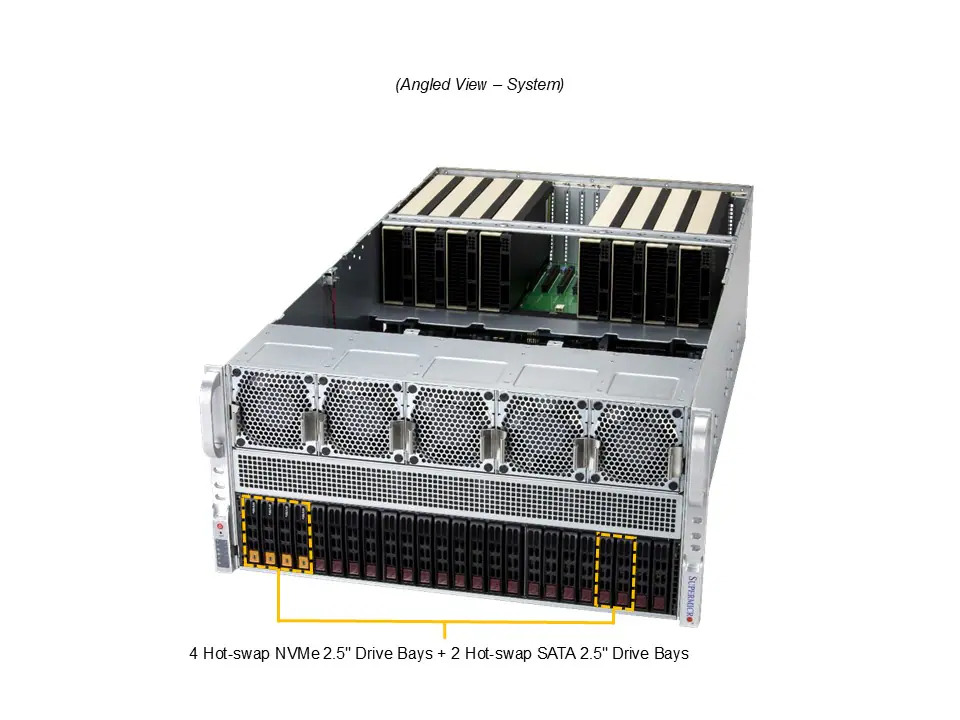

  • 4x 2.5" Hot-Swap Gen4 NVMe + 2x 2.5" Hot-Swap SATA Drive Bays
  • 1x M.2 NVMe SSD (PCIe 3.0 x4)
  • Integrated 2x 10GbE BaseT
  • 1GbE Dedicated BMC LAN
  • 6x 2700W Redundant (3+3) Power Supplies, Titanium Level



Technical Specifications

Chassis Form Factor • 5U Rackmount
• Dimension (HxWxD): 8.75" (222.5 mm) x 17.2" (437mm) x 29" (737mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU TDP up to 500W
GPU CPU-GPU Interconnect
• Direct Attached
GPU-GPU Interconnect
• NVIDIA® NVLink® Bridge (optional)

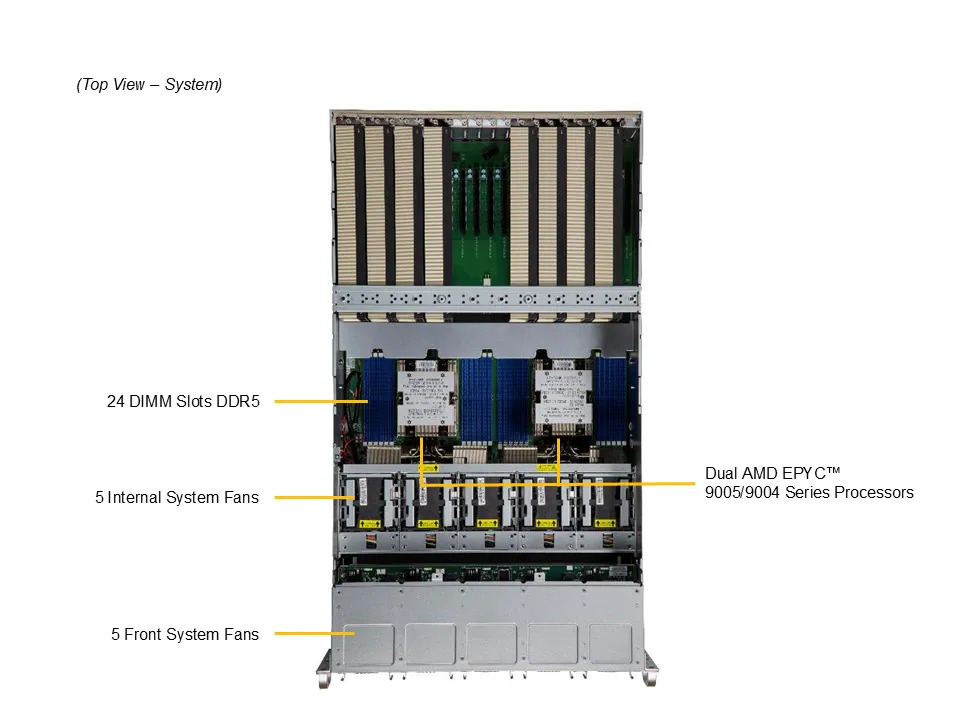

Memory • 24 DIMM Sockets
• Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)

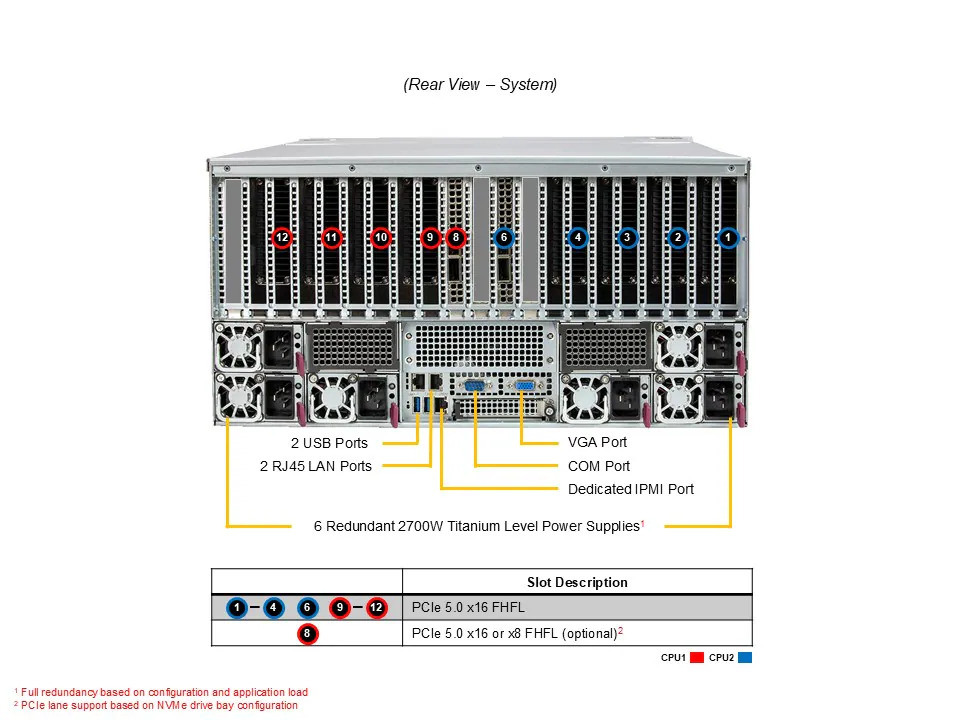

I/O Expansion • Slots 1-4 - PCIe 5.0 x16 (FHFL)
• Slots 9-12 - PCIe 5.0 x16 (FHFL)
• Slots 6 & 8 - PCIe 5.0 2 x8 or 1 x16 (FHFL) based on NVMe Configuration

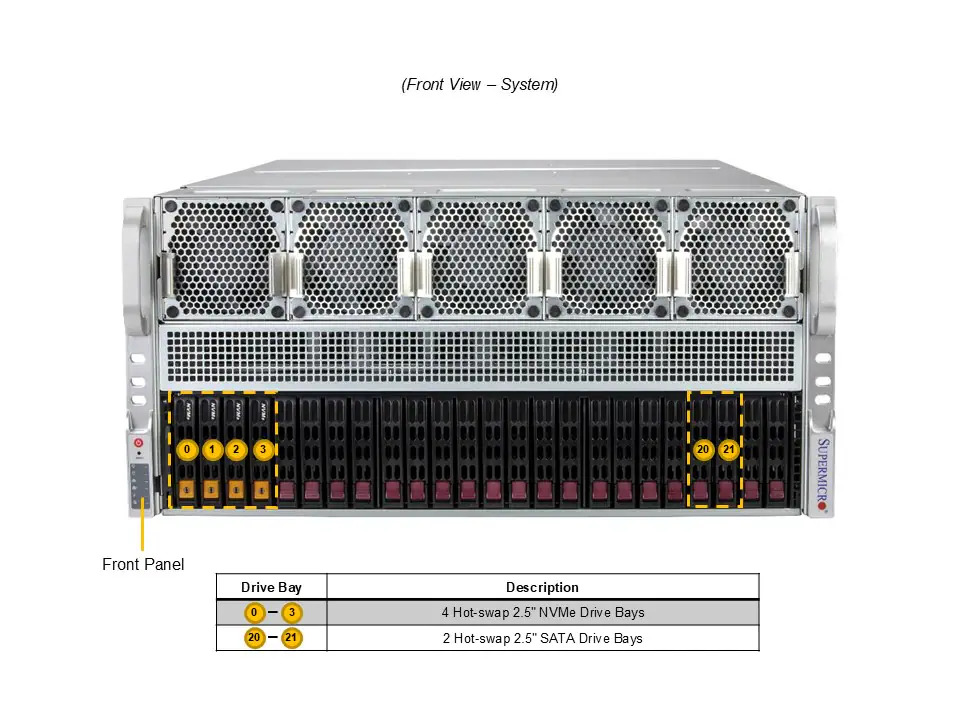

Storage Drive Bays
• 4x 2.5" hot-swap NVMe drive bays
• 2x 2.5" hot-swap SATA drive bays
M.2
• 1x M.2 PCIe 3.0 x4 NVMe slot (M-key)
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• 2x 10GbE BaseT
VGA
• ASPEED AST2600 BMC
Input / Output LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB ports (rear)
VGA
• 1 VGA port
TPM
• 1x TPM header
Power Supply • 6x 2700W Redundant (3 + 3) Power Supplies
• Input
- 2700W: 200-240Vac / 50-60Hz
• +12V
- Max: 225A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 3.5A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 10x heavy duty fans with optimal fan speed control
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Supermicro Update Manager (SUM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• ACPI Power Management
• Power-on mode for AC power recovery
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

Voltage
• System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
BIOS • AMI 64MB SPI Flash EEPROM


Images
$11,677.98


  Qty.Colfax CX5860s-EH2 5U Rackmount Server, Cost As Configured $11,677.98
Base Platform 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 12    1
CPU 1 - Socket 3 of 12    1
CPU 1 - Socket 4 of 12    1
CPU 1 - Socket 5 of 12    1
CPU 1 - Socket 6 of 12    1
CPU 1 - Socket 7 of 12    1
CPU 1 - Socket 8 of 12    1
CPU 1 - Socket 9 of 12    1
CPU 1 - Socket 10 of 12    1
CPU 1 - Socket 11 of 12    1
CPU 1 - Socket 12 of 12    1
CPU 2 - Socket 1 of 12    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 12    1
CPU 2 - Socket 3 of 12    1
CPU 2 - Socket 4 of 12    1
CPU 2 - Socket 5 of 12    1
CPU 2 - Socket 6 of 12    1
CPU 2 - Socket 7 of 12    1
CPU 2 - Socket 8 of 12    1
CPU 2 - Socket 9 of 12    1
CPU 2 - Socket 10 of 12    1
CPU 2 - Socket 11 of 12    1
CPU 2 - Socket 12 of 12    1
M.2 Drive 1
SATA Drive 1    1

Set next    items (  ) like this
SATA Drive 2    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Nvidia GPU 3    1
Nvidia GPU 4    1
Nvidia GPU 5    1
Nvidia GPU 6    1
Nvidia GPU 7    1
Nvidia GPU 8    1
Ethernet HBA 1
Infiniband HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX5860s-EH2 5U Rackmount Server, Cost As Configured $11,677.98
