Colfax CX8860g-E9B2 8U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • NVIDIA HGX™ B200 8-GPU Baseboard (Blackwell)
  • 24x DDR5 RDIMMs
  • 8x 2.5" Gen5 NVMe Drive Bays

Features

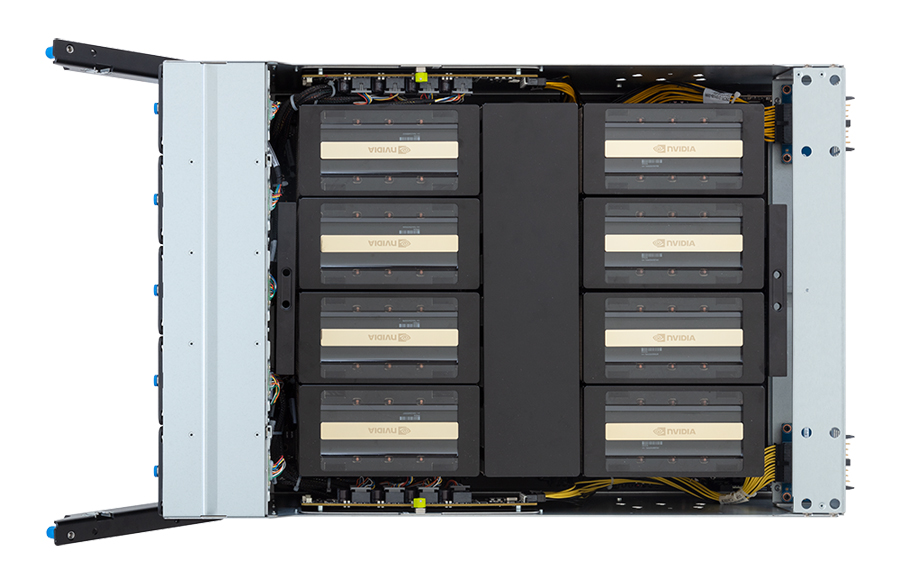

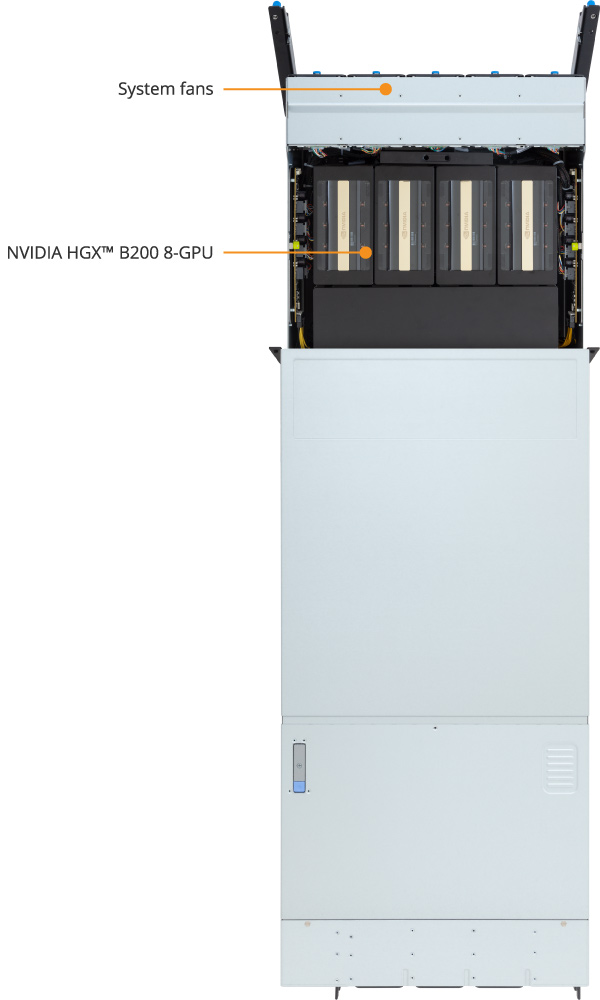

  • NVIDIA HGX™ B200 8-GPU Baseboard NVIDIA Blackwell Architecture Technical Brief
    - Form Factor: SXM
    - 180GB of HBM3e GPU Memory (1.44TB Aggregate)
    - Up to 8TB/s of Memory Bandwidth (Up to 64TB/s Aggregate)
    - 5th Generation NVIDIA NVLink™
    - 1.8TB/s of NVIDIA NVSwitch™ GPU-to-GPU Bandwidth (14.4TB/s Aggregate)
  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 8x PCIe 5.0 x16 Slots from PEX89104 (FHHL)
  • 4x PCIe 5.0 x16 Slots from PEX89048 (FHHL)
  • 8x 2.5" Gen5 NVMe Drive Bays
  • 2x M.2 NVMe SSDs (PCIe Gen3 x4 amd PCIe Gen3 x1)
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 1x Dedicated Management Port
  • 12x 3000 Watts RPSU
  • Dual ROM Architecture Supported






Technical Specifications

Enclosure • 8U
• Dimension (W x H x D) 17.6" x 13.82" x 35.43" (447 x 351 x 900 mm)
CPU • Socket SP5 (2x LGA 6096)
• 2x AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 500W
Chipset • System on Chip
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Memory speed:
- RDIMM: Up to 6000 MT/s (AMD EPYC™ 9005)
- RDIMM: Up to 4800 MT/s (AMD EPYC™ 9004)

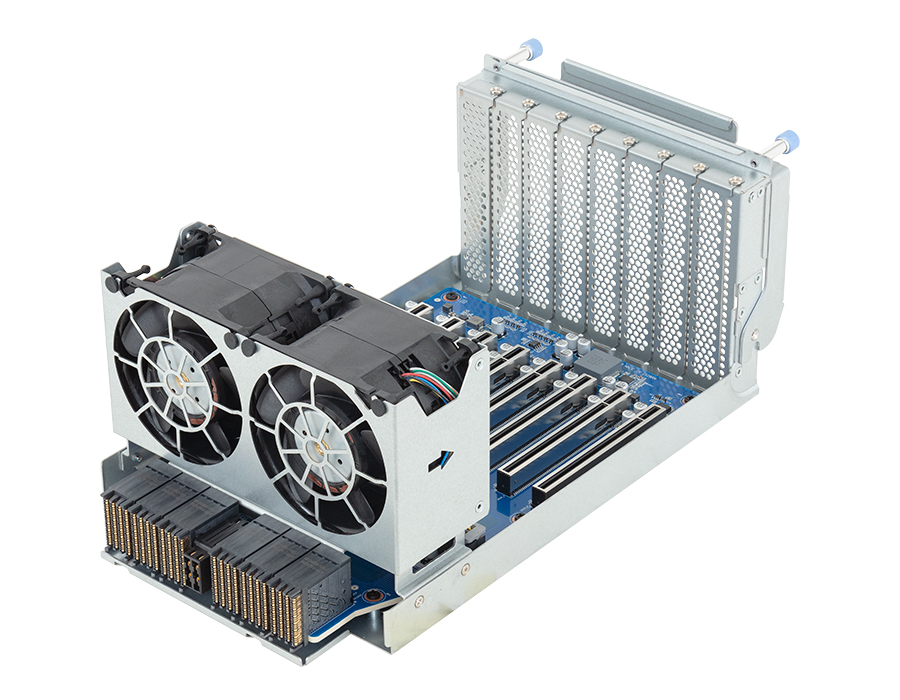

Expansion Slots • PCIe Bridge Board - CBG76
- 8x PCIe 5.0 x16 slots (FHHL) from PEX89104

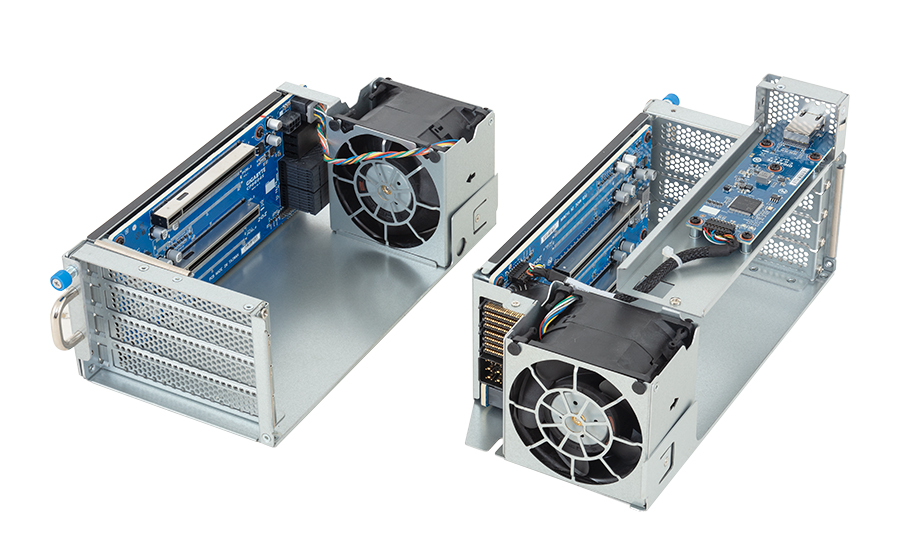

• PCIe Bridge Board - CPBG045 x 2
- 4x PCIe 5.0 x16 slots (FHHL) from PEX89048
Storage • 8x 2.5" hot-swap Gen5 NVMe drive bays
- NVMe from PEX89104
M.2
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
• 1x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
Networking • 2x 10Gb/s LAN (Intel® X710-AT2)
• 1x 10/100/1000 Mbps management LAN
Rear (MLAN board - CDB66)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x VGA port
Power Supply • 12x 3000W redundant PSUs
• AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
• DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
• 80PLUS Titanium
System Cooling Motherboard
• 2 x 60x60x56mm (24,600rpm)
• 4 x 60x60x76mm (21,800rpm)

PCIe Slots
• 4 x 80x80x56mm (15,500rpm)

GPU Tray
• 21 x 80x80x80mm (20,400rpm)
Front I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x VGA port
• 2x RJ45 ports
• 1x MLAN port (default)
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 1x Storage activity LED
• 1x System status LED
Rear I/O MLAN board - CDB66
• 1x MLAN port
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

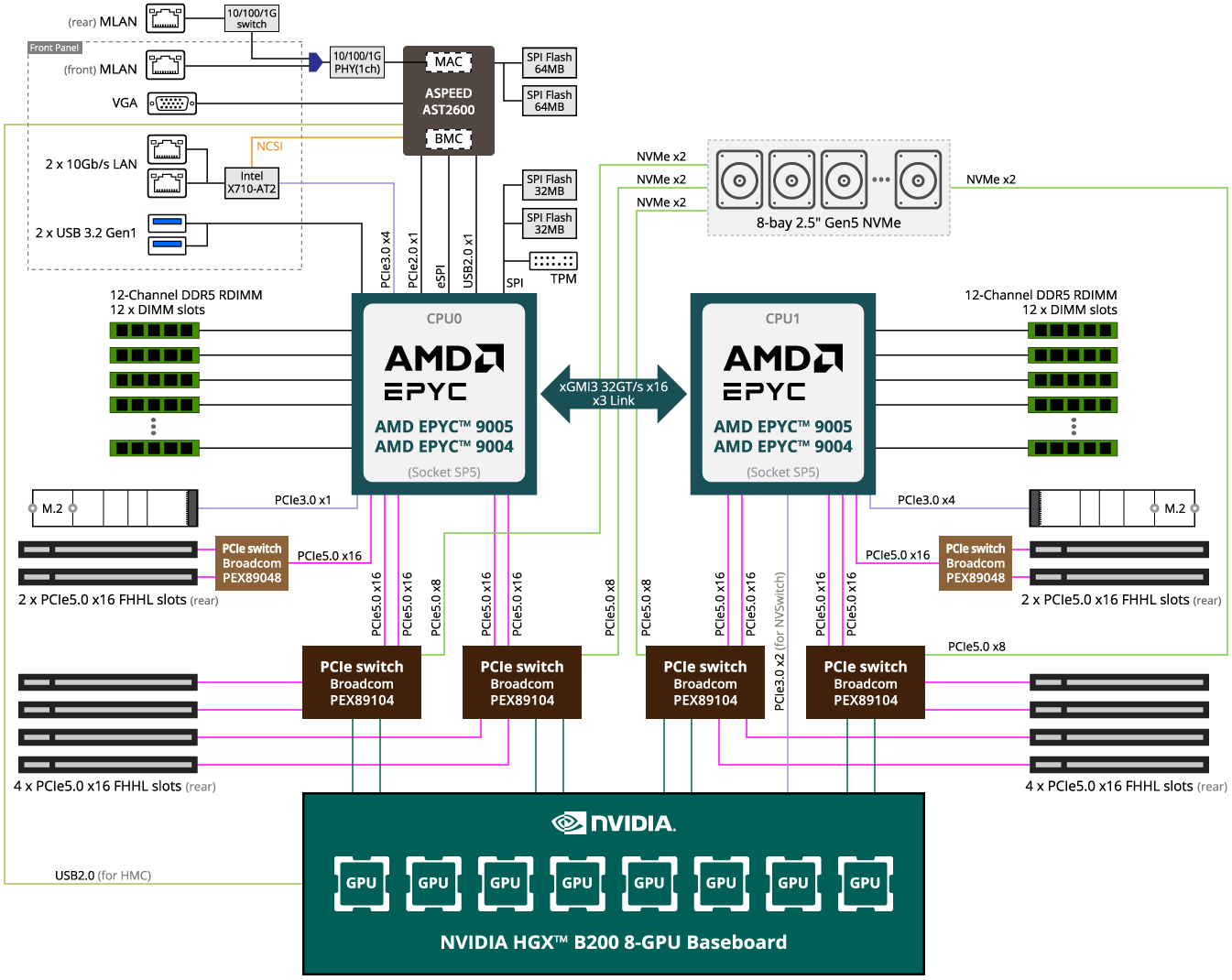

Block Diagram
