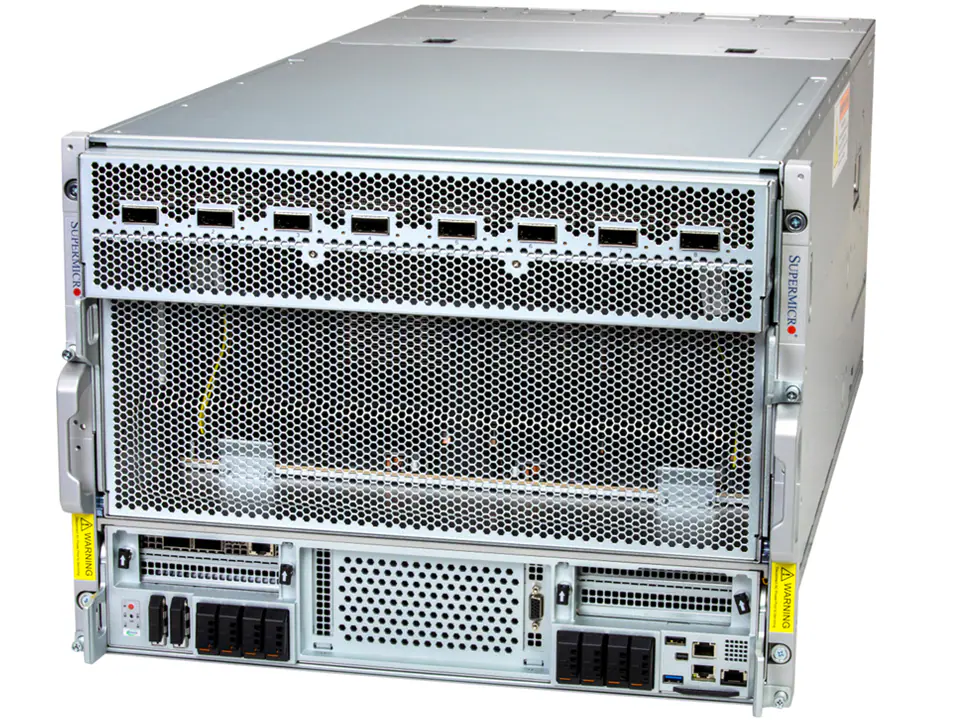

Colfax CX8860s-X6B3 8U Rackmount Server




  • 2x Intel® Xeon® 6700 Series Processors
  • NVIDIA HGX™ B300 8-GPU Baseboard (Blackwell)
  • 32x DDR5 RDIMMs

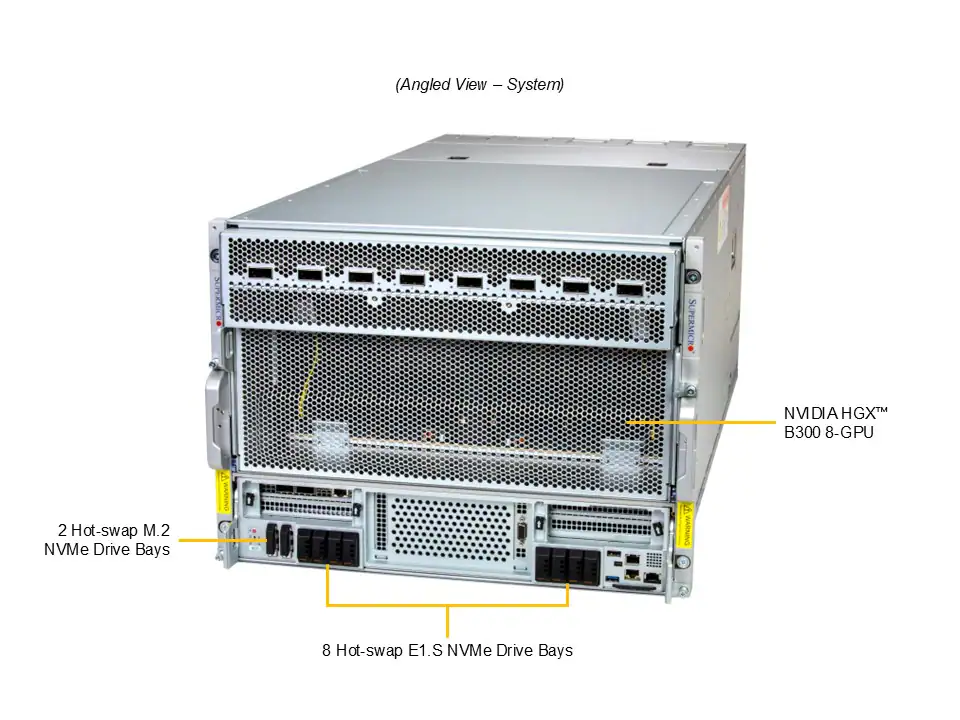

  • 8x front hot-swap E1.S + 2x M.2 NVMe drive bay

Features

  • NVIDIA HGX™ B300 8-GPU Baseboard NVIDIA Blackwell Architecture Technical Brief
    - Form Factor: SXM
    - 288GB of HBM3e GPU Memory (2.3TB Aggregate)
    - Up to 8TB/s of Memory Bandwidth (Up to 64TB/s Aggregate)
    - 5th Generation NVIDIA NVLink™
    - 1.8TB/s of NVIDIA NVSwitch™ GPU-to-GPU Bandwidth (14.4TB/s Aggregate)
  • 2x Intel® Xeon® 6700 Series Processors
  • 32x DIMM Sockets Support DDR5 ECC RDIMM
  • 8x PCIe 5.0 x16 (LP)
  • 2x PCIe 5.0 x16 Slots (FHHL)
  • 8x front hot-swap E1.S Drive Bays
  • 2x M.2 NVMe SSDs
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 1x Dedicated Management Port

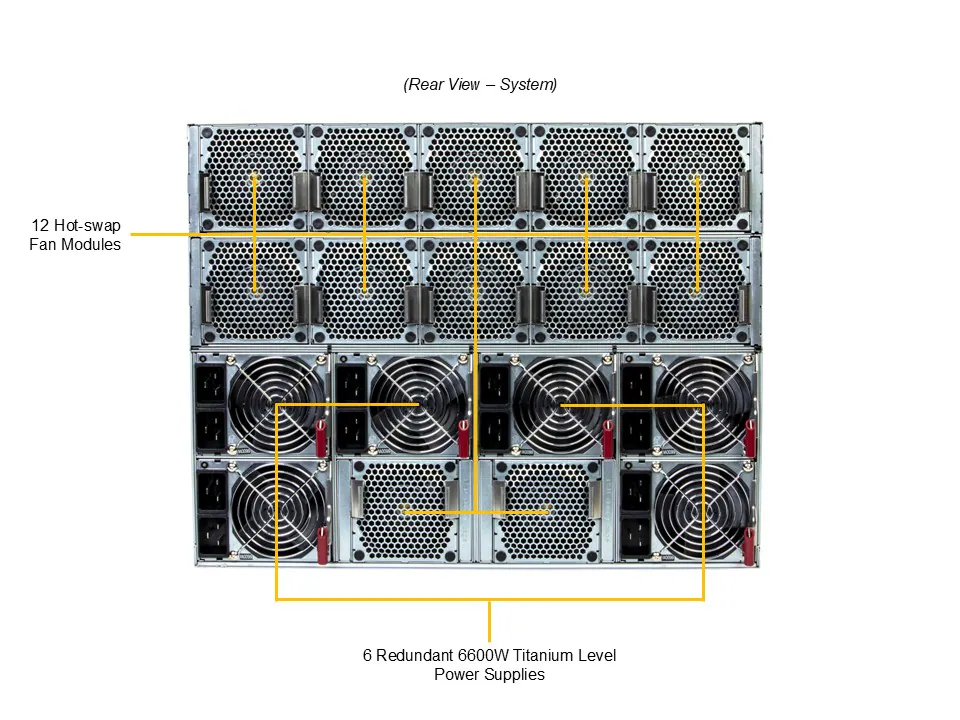

  • 6x 6600 Watts RPSU



Technical Specifications

Enclosure • 8U
• Dimension (W x H x D) 17.6" x 13.8" x 37.4" (449 x 356 x 950 mm)
CPU • Socket E2 (2x LGA 4710)
• 2x Intel® Xeon® 6700 Series Processors
• Supports CPU TDP up to 350W

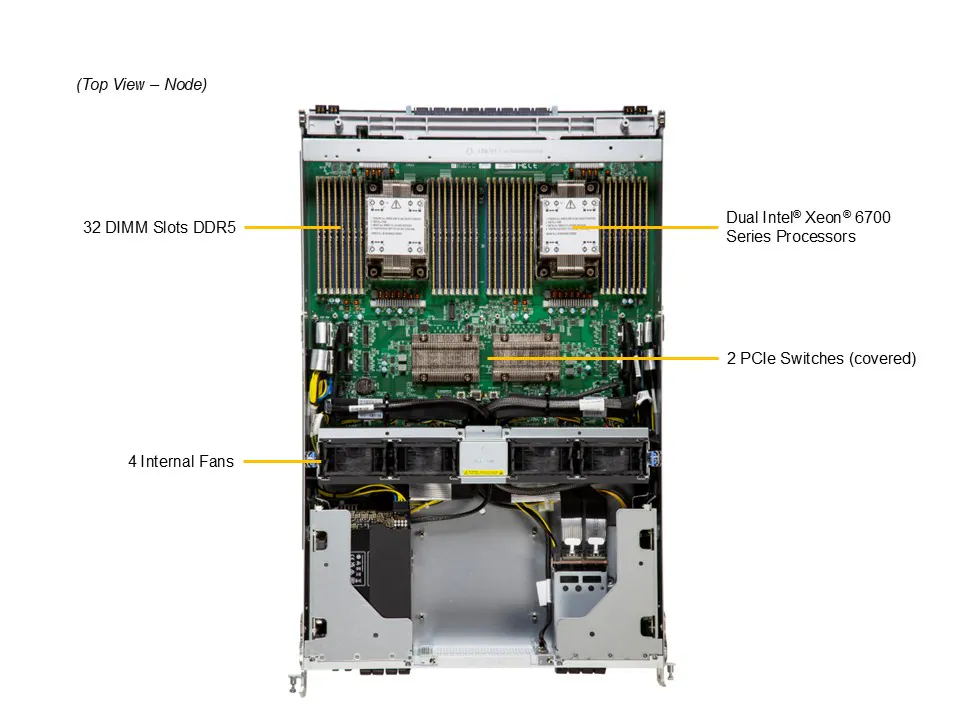

Memory • 32x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
Expansion Slots • 2x PCIe 5.0 x16 slots (FHHL)
Storage • 8x front hot-swap E1.S NVMe Drive Bays
M.2
• 2x M.2 NVMe Slots
Networking Front (I/O board)
• 2x 10Gb/s LAN (Intel® X710-AT2)
• 1x 10/100/1000 Mbps management LAN
Video - 1x VGA port - 1x mini-DP port
Power Supply • 6x 6600W redundant PSUs
• 80PLUS Titanium

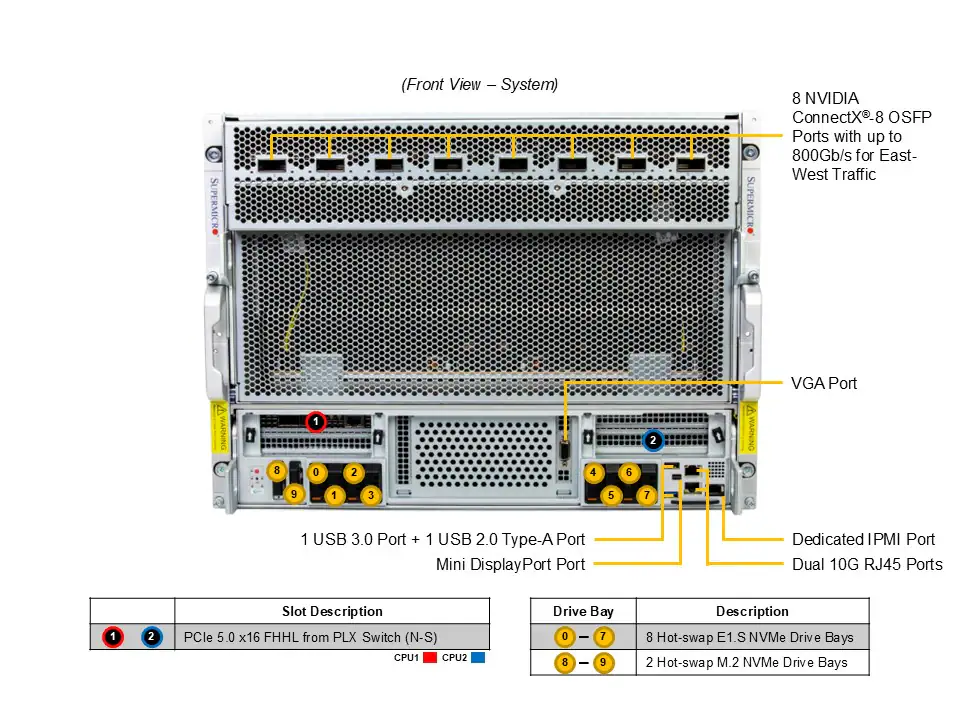

Front I/O I/O board
• 1x USB 3.0 port (Type-A)
• 1x USB 2.0 port (Type-A)
• 1x VGA port
• 1x mini-DP port
• 2x RJ45 ports
• 1x MLAN port (default)
• 1x Power button
• 1x UID button
LED
• HDD activity
• LAN1 activity
• LAN2 activity
• Power Fail
• Power status
• System information (overheat/UID)
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management - SuperCloud Composer®
- Server Manager (SSM)
- Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA)
