Colfax CX2850g-EK8 2U Rackmount Server




  • 8x NVIDIA A10/A30/A40/A100 Tensor Core GPUs
  • 1x AMD EPYC™ 7002 Series Processor
  • 8x 2.5" Hot-Swap Drives (2x U.2 NVMe)

Features

  • 8x NVIDIA A10/A30/A40/A100 Tensor Core GPUs
  • 1x AMD EPYC™ 7002 Series Processor
  • 8x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • 2x PCIe 4.0 x16 Half-Length Low-Profile Slots for Add-on Cards
  • 8x 2.5" Hot-Swap Drives (2x U.2 NVMe)
  • 1x M.2 NVMe SSD
  • 2x SFP+ 10Gb/s LAN Ports
  • 1x Dedicated Management Port
  • 2+0 2200 Watts PSU, 80 PLUS Platinum
  • 1x TPM Header



Technical Specifications

Enclosure • 2U rackmount
• Dimension (D x W x H) 31.5" x 17.64" x 3.4" (800mm x 448mm x 87.5mm)
CPU • Socket SP3
• Single AMD EPYC™ 7002 series processor
• TDP up to 225W, cTDP up to 240W
Memory • 8 DIMM sockets
• 8 Channels per CPU
• Supports up to 128GB RDIMM / 128GB LRDIMM modules
• Memory speed: Up to 3200 MHz
Expansion Slots • 8x PCIe x16 slots (Gen4 x16 bus) for GPUs*
• 2x PCIe x16 (Gen4 x16 bus) half-length low-profile slots
M.2
• 1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
• 1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2242/2260/2280/22110 cards

* Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
Storage • 8x 2.5" hot-swap drive bays
- 2x amber HDD trays compatible with Gen3 U.2 devices
- 6x blue HDD trays compatible with SATA devices only
Networking • 2x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx)
• 1x 10/100/1000 management LAN
Video • Integrated ASPEED AST2500 controller
• Connector type - D-Sub 15-pin
• Resolution - Up to 1920x1200
Power Supply • 2+0 2200W PSUs
• AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
• DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
• 80 plus Platinum
System Cooling • 8x 80x80x38mm fans (16300rpm)
Internal I/O • 1x TPM header
• 4x Slim-SAS connectors
• 2x M.2 slots
• 1x Buzzer
Front I/O • 1x Power button with LED
• 1x ID button with LED
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED
• 1x Reset button
Rear I/O • 2x USB 3.0
• 1x VGA
• 2x SFP+
• 1x MLAN
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 1x NMI button
• 1x System status LED
TPM • 1x TPM header with LPC interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

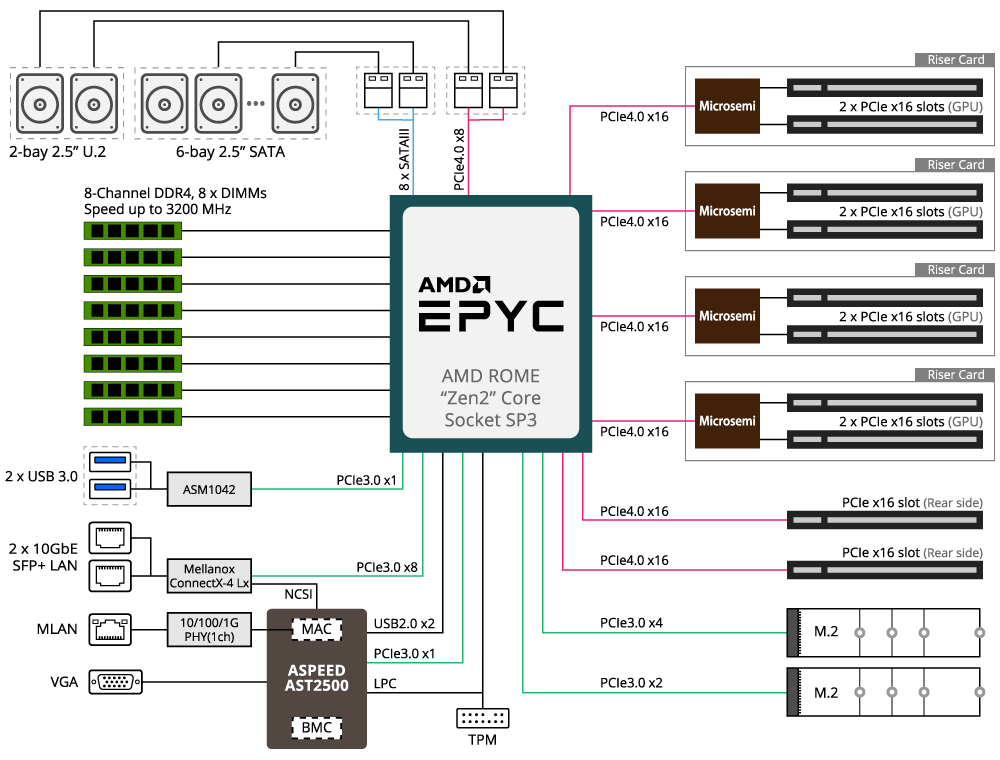

Block Diagram

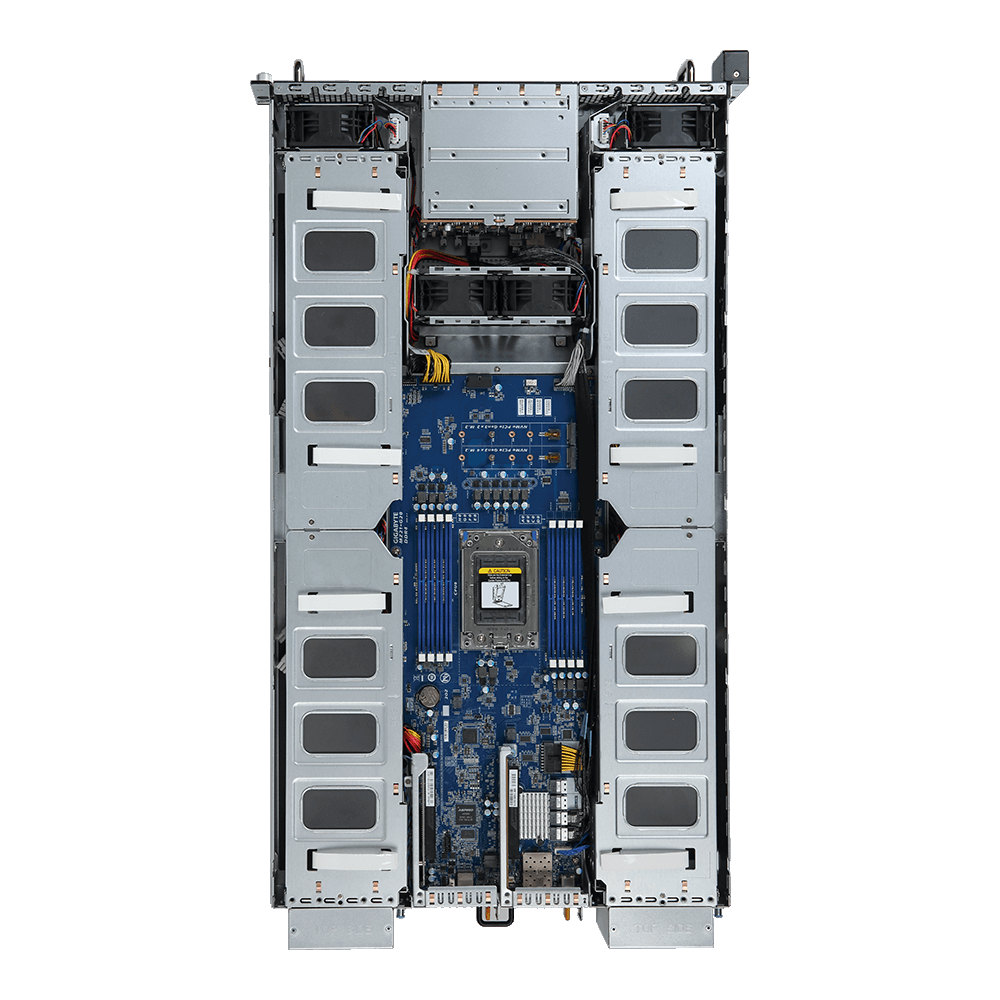

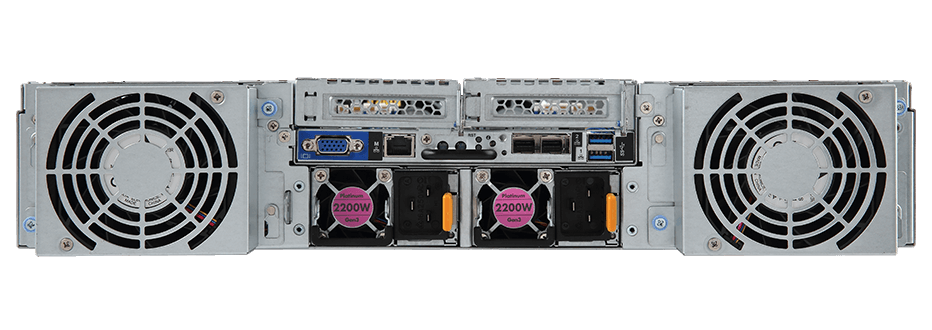

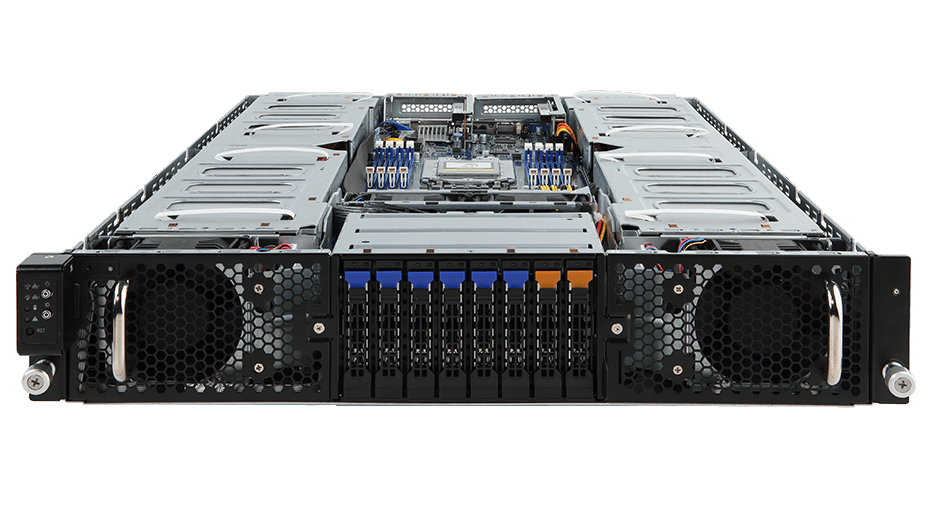

Images
$4,603.28


  Qty.Colfax CX2850g-EK8 2U Rackmount Server, Cost As Configured $4,603.28
Base Platform 1
Primary CPU 1
CPU 1 - Socket 1 of 8    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 8    1
CPU 1 - Socket 3 of 8    1
CPU 1 - Socket 4 of 8    1
CPU 1 - Socket 5 of 8    1
CPU 1 - Socket 6 of 8    1
CPU 1 - Socket 7 of 8    1
CPU 1 - Socket 8 of 8    1
M.2 Drive 1
SATA Drive 1    1

Set next    items (  ) like this
SATA Drive 2    1
SATA Drive 3    1
SATA Drive 4    1
SATA Drive 5    1
SATA Drive 6    1
NVM-E/SATA Drive 7    1
NVM-E/SATA Drive 8    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Nvidia GPU 3    1
Nvidia GPU 4    1
Nvidia GPU 5    1
Nvidia GPU 6    1
Nvidia GPU 7    1
Nvidia GPU 8    1
Ethernet HBA 1
Infiniband HBA 1
Operating System SW 1
   Colfax CX2850g-EK8 2U Rackmount Server, Cost As Configured $4,603.28
