Western Digital Ultrastar Edge Transportable Edge Server




High-Performance Edge Server for Low Latency Applications
Your operations depend on rapid access to good data. The Western Digital Ultrastar® Edge high-performance server lets you make better decisions faster by deploying remote data capture and analytics right where you need them. This high-performance edge server delivers data center cloud-like services where a network connection might be expensive, intermittent or even nonexistent. Now you can process data close to where it’s generated, reducing latency and giving your organization a tactical edge. The included robust, wheeled travel case and a rail kit make the Ultrastar Edge easy to transport and install.

Inquire for Pricing

Download Product Brief


Highlights

  • Extreme performance with 40 CPU cores and 512GB memory
  • Graphical processor unit for AI/ML tasks
  • Over 60TB of Ultrastar NVMe™ flash storage
  • High-performance 100GbE networking
  • Trusted Platform Module 2.0 for security

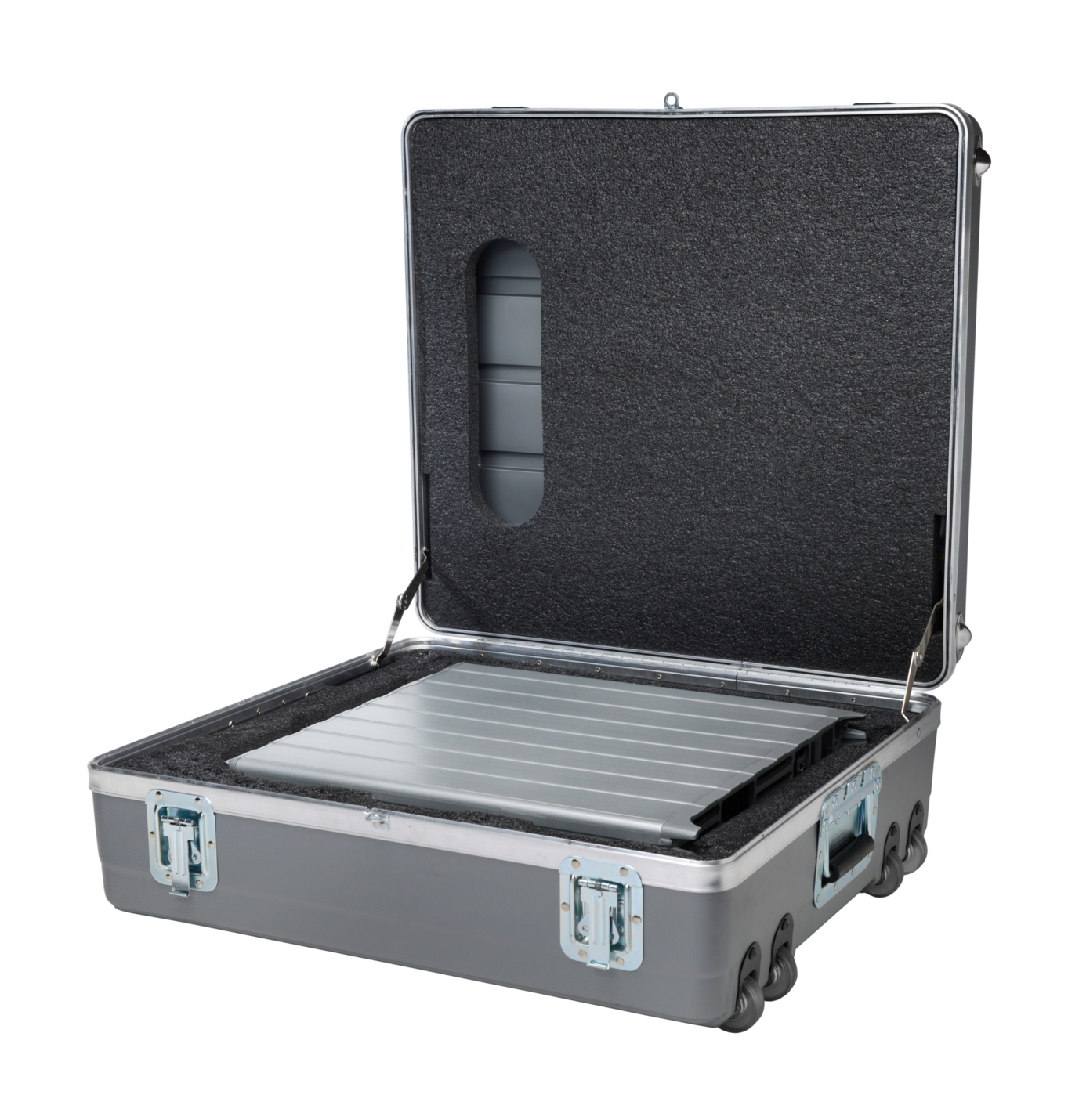

  • Robust transport case with wheels and handle

Applications and Workloads

  • Seismic Data
  • Scientific Exploration
  • Government, Military
  • Public Cloud Providers - IaaS & PaaS


Technical Specifications

Physical Dimensions • Height: 88.9mm (3.5")
• Width: 431.8mm (17")
• Depth: 502.9mm (19.8")
Weight w/o Case • 15.15kg (33.4lbs)
Max Drives • 8 Ultrastar DC SN640 NVMe SSDs
• 7.68TB per SSD, 1 DW/D, ISE (Instant Secure Erase)
Boot Drives • 2 M.2 NVMe 1TB SSDs
CPU • 2 Intel® Xeon® Gold 6230T, 2.1GHz, 20 cores each, 125W TDP
Memory • 512GiB DDR4 Installed (8x 64GiB DIMMs)
GPU • NVIDIA® Tesla® T4
Networking • Dual 10GBase-T RJ-45
• Mellanox® ConnectX®-5 100GbE QSFP28
I/O • 1 Serial DB9 Console Port
Power Supply • 850W
• 100-240V AC input, auto-ranging
• 80 Plus Platinum
Cooling Fans • 4 60mm fans
Management • IPMI 2.0 system management
• Dedicated DB9 Serial management port
Environmental • Operating Temperature: 0°C to 43°C
• Non-op Temperature: -5°C to 63°C
• Operating Altitude: 3,050m (10,000ft)
Physical Security • FIPS140-2 Level 2
