Colfax ProEdge™ SXT9700 Data Science Workstation



  • 2x 2nd Gen Intel® Xeon® Scalable Processors
  • 2x NVIDIA® Quadro® RTX 6000 / RTX 8000 / GV100 GPUs
  • 16x DIMMs
  • 8x 3.5" Drive Bays

Features

  • Pedestal or 4U Rackmount (w/Optional Rackmount Kit)
  • 2x 2nd Gen Intel® Xeon® Scalable Processors
  • 2x NVIDIA® Quadro® RTX 6000 / RTX 8000 / GV100 GPUs
  • Optional GPU Kit for Passive GPU Support
  • Intel C621 Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots:
    - 4 PCI-E 3.0 x16 (Double-Width) Slots
    - 2 PCI-E 3.0 x16 (Single-Width) Slots
    - 1 PCI-E 3.0 x4 Slot
  • 8x 3.5" Hot-Swap Drive Bays
  • 1x M.2 NVMe SSD
  • 2x 10GBase-T LAN ports via Intel X550
  • 2200W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN


NVIDIA Support Service

Enjoy optional software support services for NVIDIA developed software and containers for world-class support data scientists can rely on.

  • Service agreement between NVIDIA and Customer
  • NVIDIA provides end customer support for installation, configuration, usage and issues with NVIDIA containers and associated software Supported software
  • 24/7 portal, phone and email access to create support cases
  • Live support during local, regional business hours for technical assistance




Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-165W with IVR)
Memory • 16 DIMM Sockets
• Supports up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion PCI-Express
• 4 PCI-E 3.0 x16 (double-width) slots
• 2 PCI-E 3.0 x16 (single-width) slots
• 1 PCI-E 3.0 x4 (in x8 slot)
M.2
• M.2 Interface: PCI-E 3.0 x4
• Form Factor: 2280, 22110
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Intel® X550 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 10 SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
• 4 USB 2.0 ports (2 rear, 2 via headers)
VGA
• 1x VGA port
Serial Port/Header
• 2 COM ports (1 rear, 1 Header)
Chassis Form Factor • 4U Rackmountable / Tower
• Dimension (HxWxD): 18.2" (462mm) x 7.0" (178mm) x 26.5" (673mm)
Power Supply • 2200W Redundant Power Supplies with PMBus
• Total Output Power and Input
- 1200W with Input 100-127Vac
- 1800W with Input 200-220Vac
- 1980W with Input 220-230Vac
- 2090W with Input 230-240Vac
- 2090W with Input 200-220Vac
- 2200W with Input 220-240Vac (for UL/cUL use only)
- 2090W with Input 230-240Vdc (for CCC only)
• AC Input Frequency
- 50-60Hz
• +12V
- Max: 100A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 174.17A / Min: 0A (230-240Vac)
- Max: 183.3A / Min: 0A (220-240Vac)
• 5V sb
- Max: 1A / Min: 0A
• 80PLUS Titanium Certified
Drive Bays • 8x 3.5" hot-swap drive bays
System Cooling Fans
• 4x heavy duty fans
• 4x rear exhaust fans
• 2x optional rear fans (required for Passive GPUs)
Heatsink
• 2x active heatsinks with optimal fan speed control

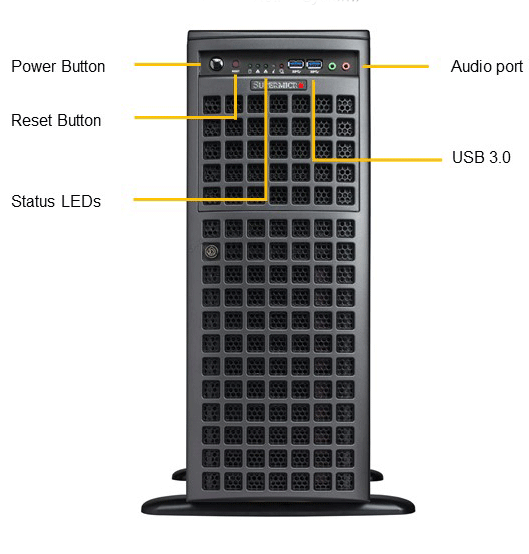

Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat & Power Fail LED
Ports
• 2 Front USB 3.0 ports
BIOS • AMI 32Mb SPI Flash ROM

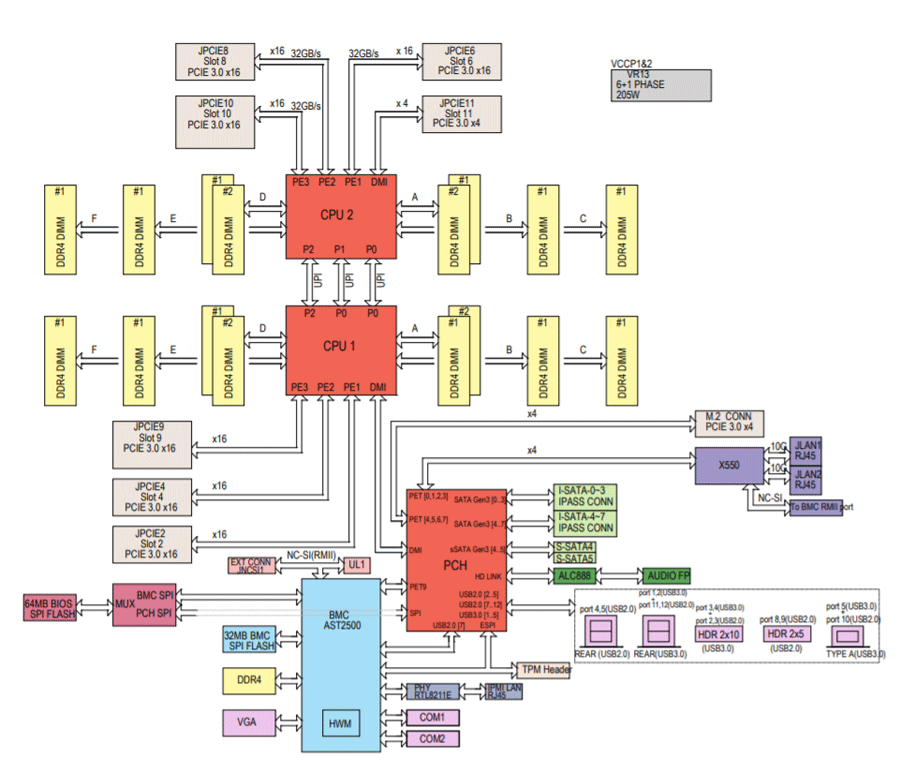

Block Diagram
