Colfax ProEdge™ WX3400 Workstation

Intel® Xeon® W-3500/3400 Processor
8x DIMMs Supporting DDR5 Memory
4x SATA HDDs/SSDs
2x 2.5" NVMe SSDs
3x M.2 NVMe SSDs

Features

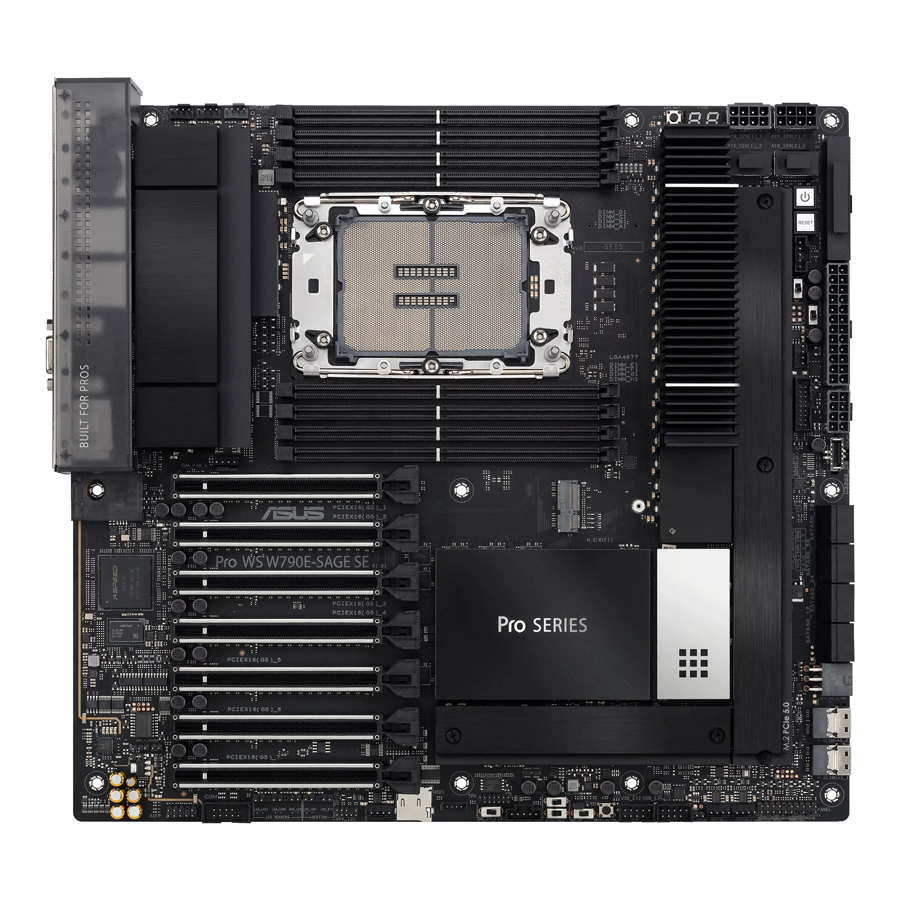

Asus Pro WS W790E-SAGE-SE Board
Intel® Xeon® W-3500/3400 Processor
ENERMAX LIQTECH TR4 II Series 360mm Liquid CPU Cooler (Learn More)
Intel® W790 Chipset
8x DIMMs Supports DDR5 ECC RDIMMM
7 PCI-E 5.0 x16 Slots
4x SATA HDDs/SSDs
2x 2.5" NVMe SSDs
3x M.2 NVMe SSDs
2x 10GBase-T LAN Ports
USB 3.2 Gen 2x2 Type-C®
Server-grade IPMI Remote Management

Optional (Not listed in the Configurator but available on request)

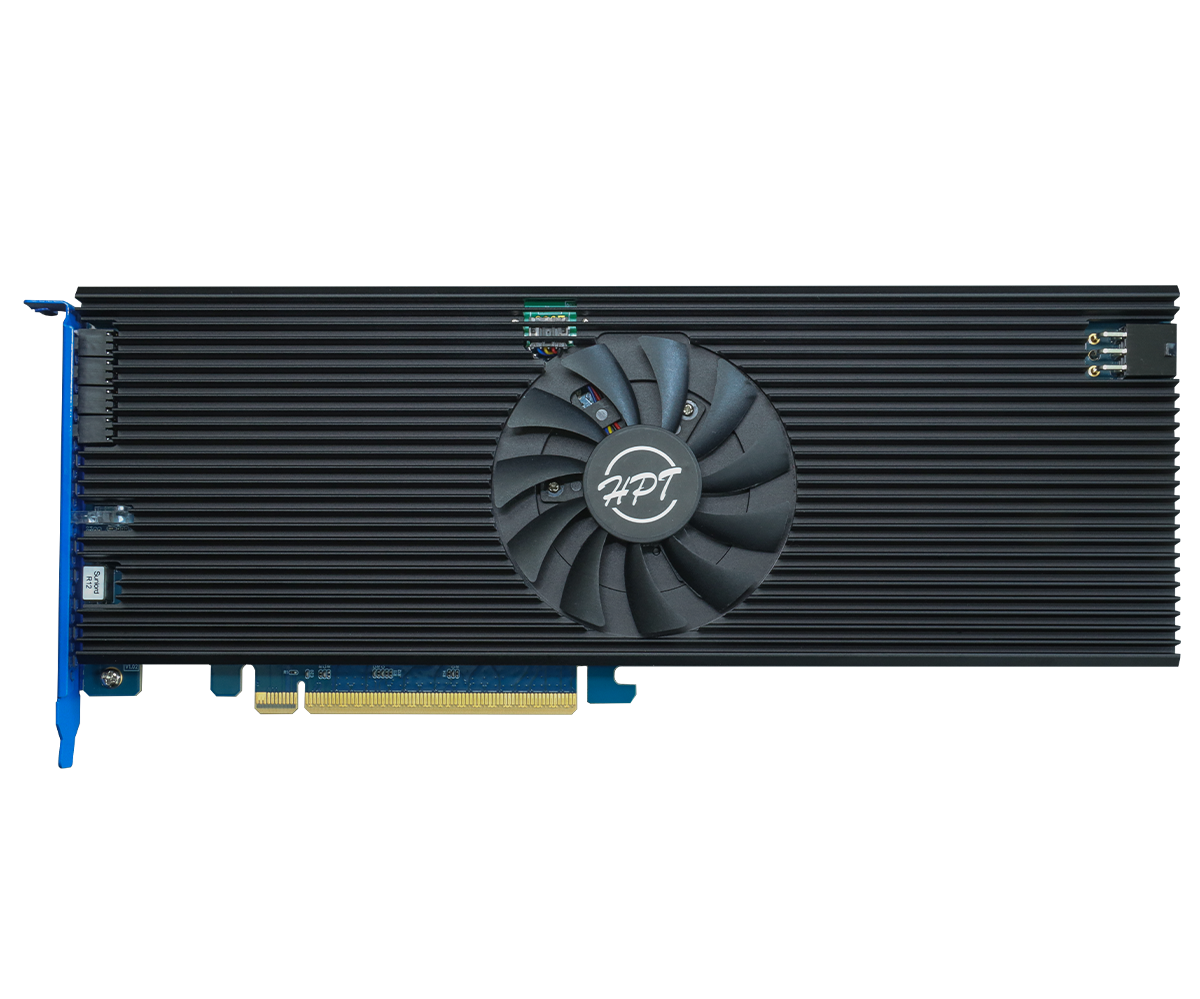

Rocket 7608A – PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC

Bus Interface: PCIe 5.0 x16
Port Count: 8x NVMe Ports
Connector Type: M.2
Device & Form factor: 2242, 2260, 2280
Cooling: Full-Length Aluminum Heatsink with cooling fan
Ext. Power Connector: Yes (uses PCIe Standard 2x3 Power Connector)
AIC Form factor: Full-Height, Single-Width
Operating System Support: Windows & Linux
FRU: Yes (stores VPD data)
Hardware Secure Boot: Yes
OOB Managament: No
Synthetic Hierarchy: Yes
RAID Support: Single, RAID 0, 1, 10
HighPoint Advanced Feature Suite: Yes

Download Datasheet

Technical Specifications


Motherboard	• Asus Pro WS W790E-SAGE-SE
CPU	• Socket LGA4677 • Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors
Chipset	• Intel® W790
Memory	• 8x DDR5 DIMM sockets (Max. 2048GB) • 4800MHz ECC Registered Memory • 8-channel memory architecture • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots	Intel® Xeon® W-3400 Series Processors • 7x PCIe 5.0 slots (x16/x16/x16/x16/x16/x8/x16) Intel® Xeon® W-2400 Series Processors • 4x PCIe 5.0 slots (x16/x16/x16/x16)
Integrated LAN	• 1x Intel® dual 10Gb Ethernet • 1x Realtek 1Gb Ethernet
Storage	Supports 3x M.2 slots, 2x SlimSAS slots and 8x SATA 6Gb/s ports Intel® Xeon® W-3400 Series Processors • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* Intel® W790 Chipset • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) • SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device • SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device • 8x SATA 6Gb/s port(s) * M.2_1 and M.2_2 slots will be disabled once an Intel® Xeon® W-2400 Series Processor is installed.
Audio	• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback - Rear optical S/PDIF out port - Premium audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports	Rear USB: Total 8 ports • 1x USB 3.2 Gen 2x2 port (1x USB Type-C®) • 5x USB 3.2 Gen 2 ports (4x Type-A + 1x USB Type-C®) • 2x USB 2.0 ports (2x Type-A) Front USB: Total 7 ports • 1x USB 3.2 Gen 2 connector (suppports USB Type-C®) • 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports • 2x USB 2.0 headers support additional 4 USB 2.0 ports

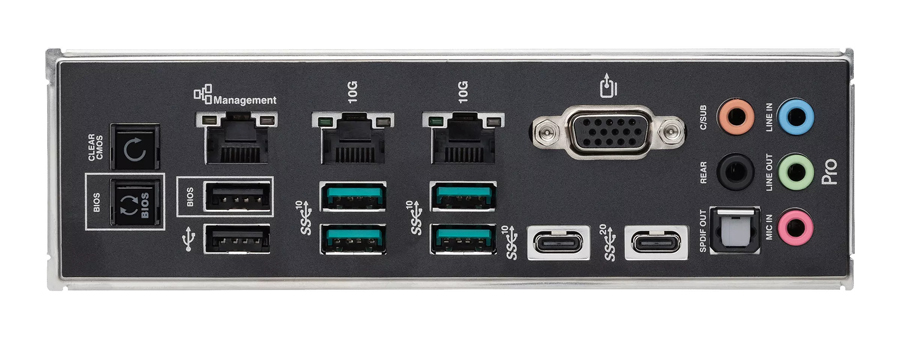

Back I/O Ports	• 1x USB 3.2 Gen 2x2 port (1x USB Type-C®) • 5x USB 3.2 Gen 2 ports (4x Type-A + 1x USB Type-C®) • 2x USB 2.0 ports (2x Type-A) • 1x VGA port • 2x Intel® dual 10Gb Ethernet ports • 1x Optical S/PDIF out • 5x Audio jacks • 1x Clear CMOS button • 1x USB BIOS FlashBack™ button
Internal I/O Ports	Fan and Cooling related • 1x 4-pin CPU Fan header • 1x 4-pin CPU OPT Fan header • 5x 4-pin Chassis Fan headers • 1x W_PUMP+ header Power related • 2x 24-pin Main Power connectors • 4x 8-pin +12V Power connectors • 1x 8-pin PCIe Power connector • 1x 6-pin PCIe Power connector Storage related • 3x M.2 slots (Key M) • 2x SlimSAS connectors • 8x SATA 6Gb/s ports • 1x VROC Key connector USB • 1x USB 3.2 Gen 2 connector (supports Type-C) • 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports • 2x USB 2.0 headers support additional 4 USB 2.0 ports BMC Related • 1x BMC switch • 1x VGA switch • 1x BMC LAN fixed IP switch • 1x IPMI switch • 2x Q_PSU switch • 2x PSU SMBus header • 1x Front panel location LED header • 1x Location button header • 1x VPP_I2C header • 1x Micro SD card socket • 1x BMC_T_SENSOR header • 1x BMC LED • 1x Location LED • 1x Message LED header Miscellaneous • 1x COM Port header • 1x FlexKey button • 1x Front Panel Audio header (AAFP) • 1x LN2 Mode jumper • 1x M.2 slot (Key E) • 1x ReTry button • 1x Safe Boot button • 1x SPI TPM header (14-1pin) • 1x Start button • 1x 20-3 pin System Panel header with Chassis intrude function • 1x Thermal Sensor header

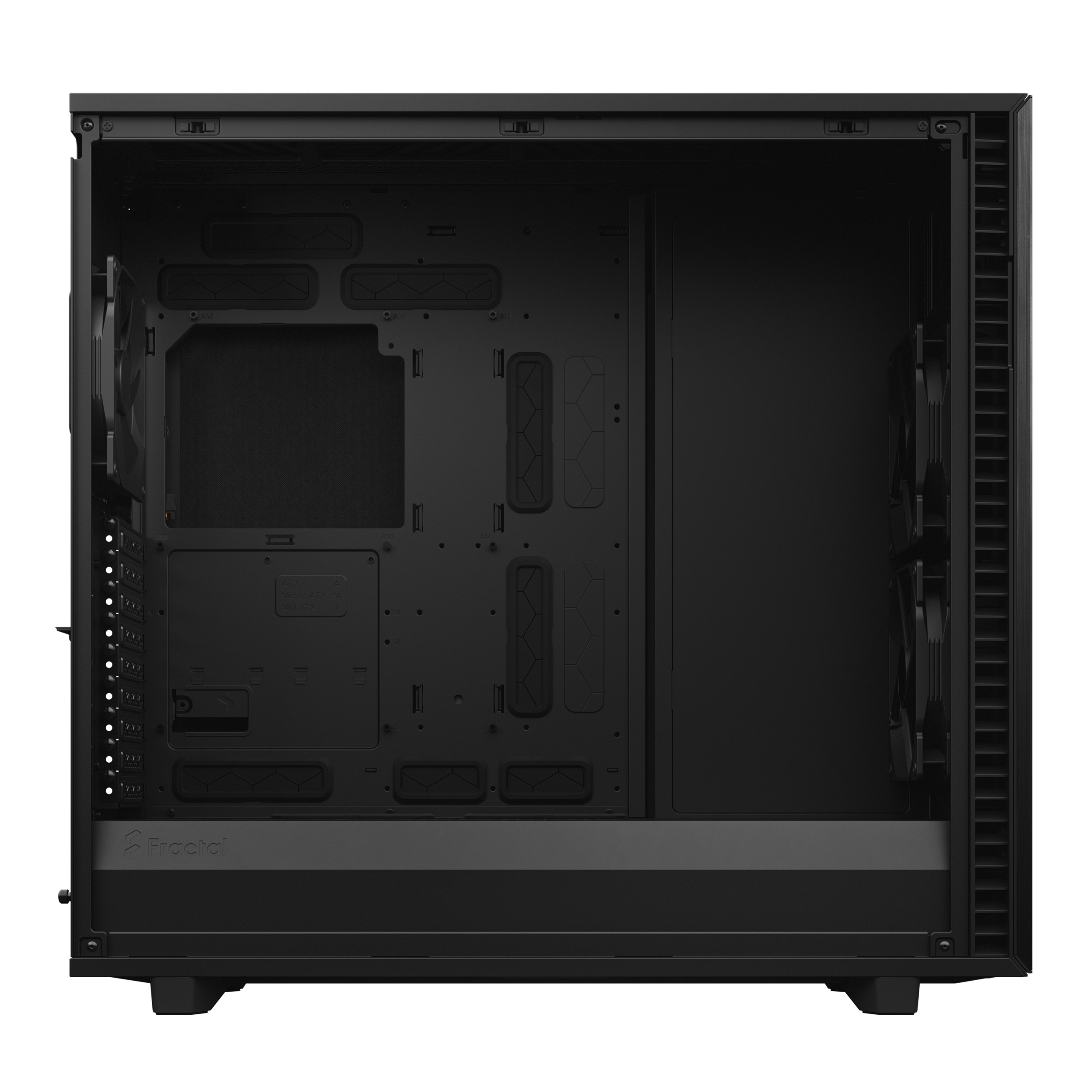

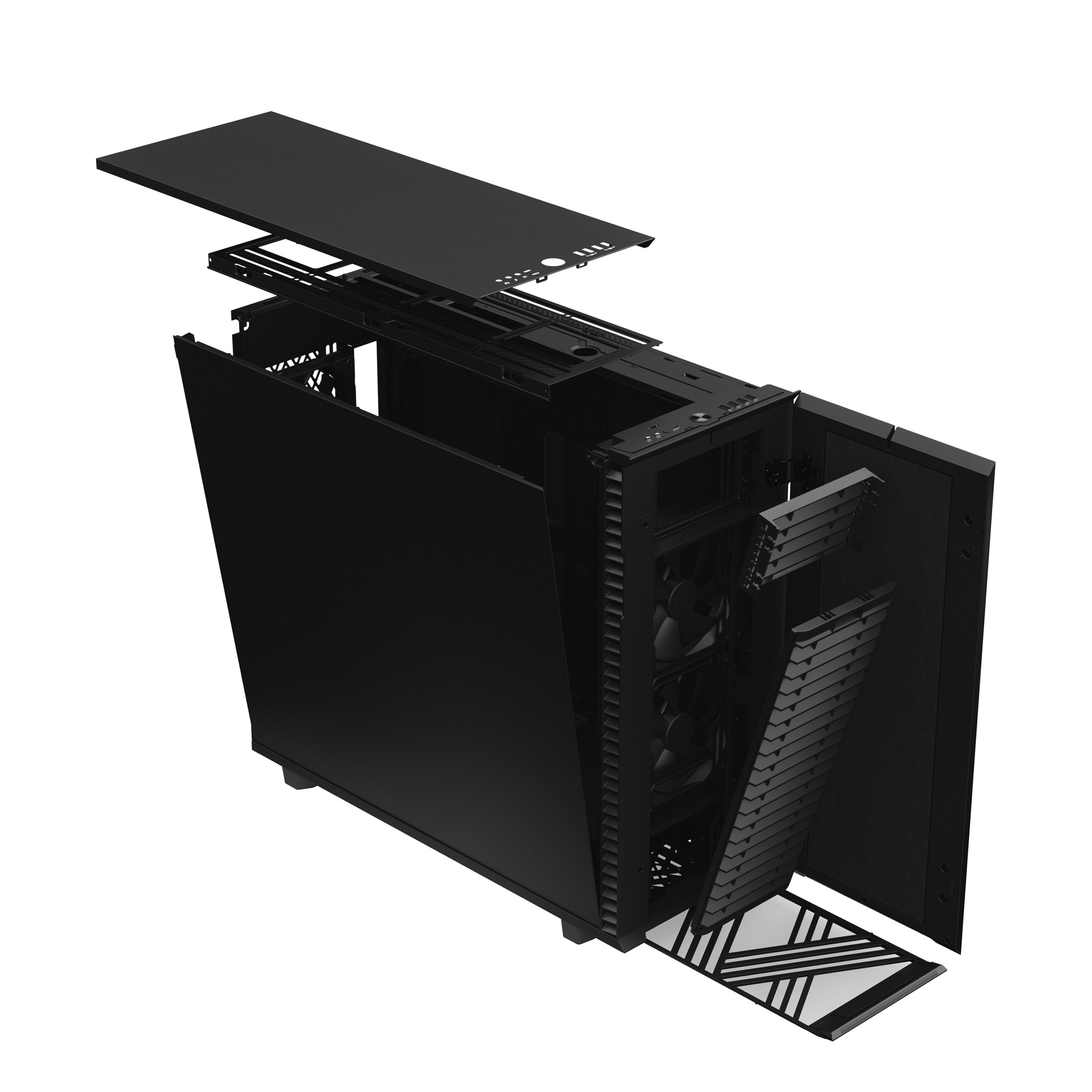

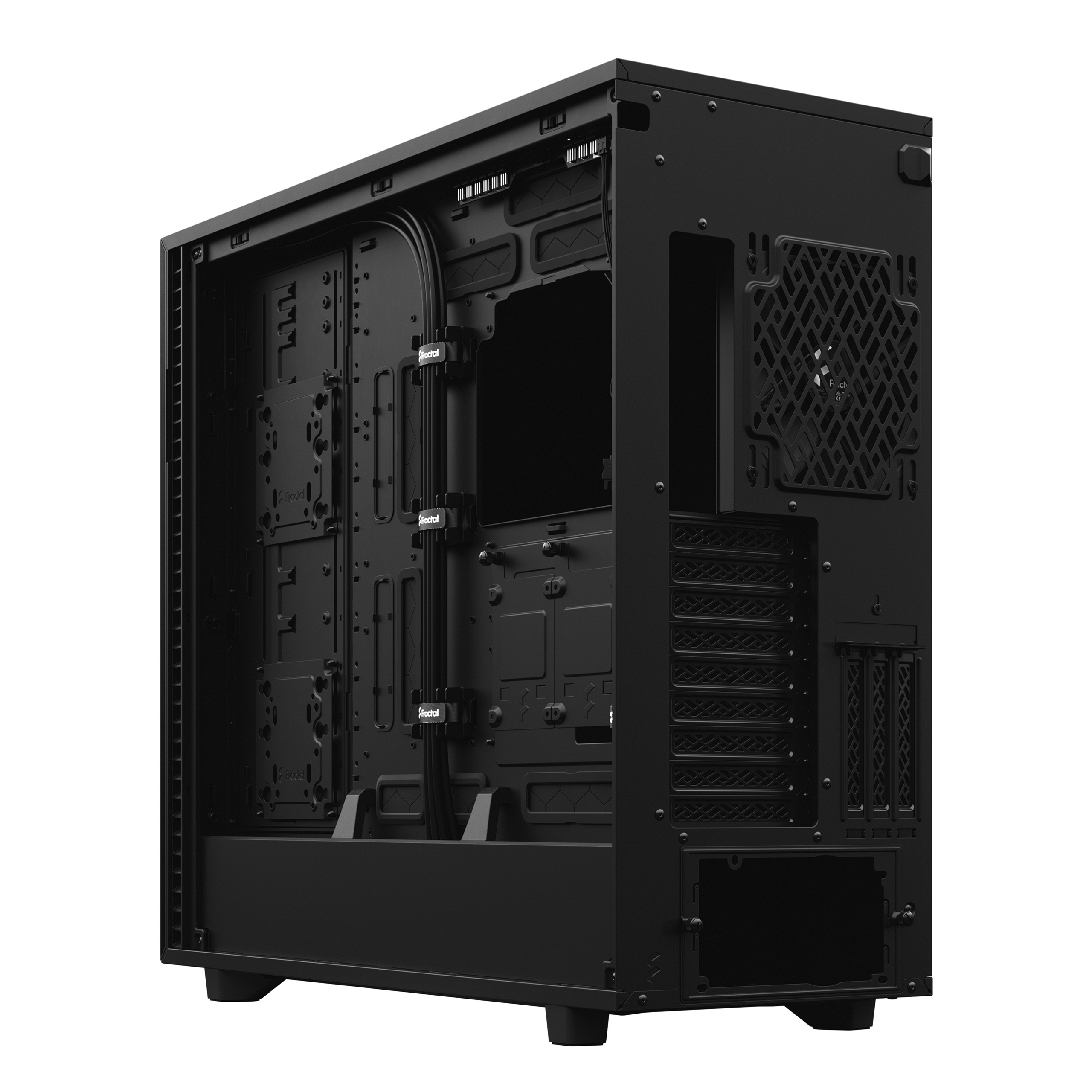

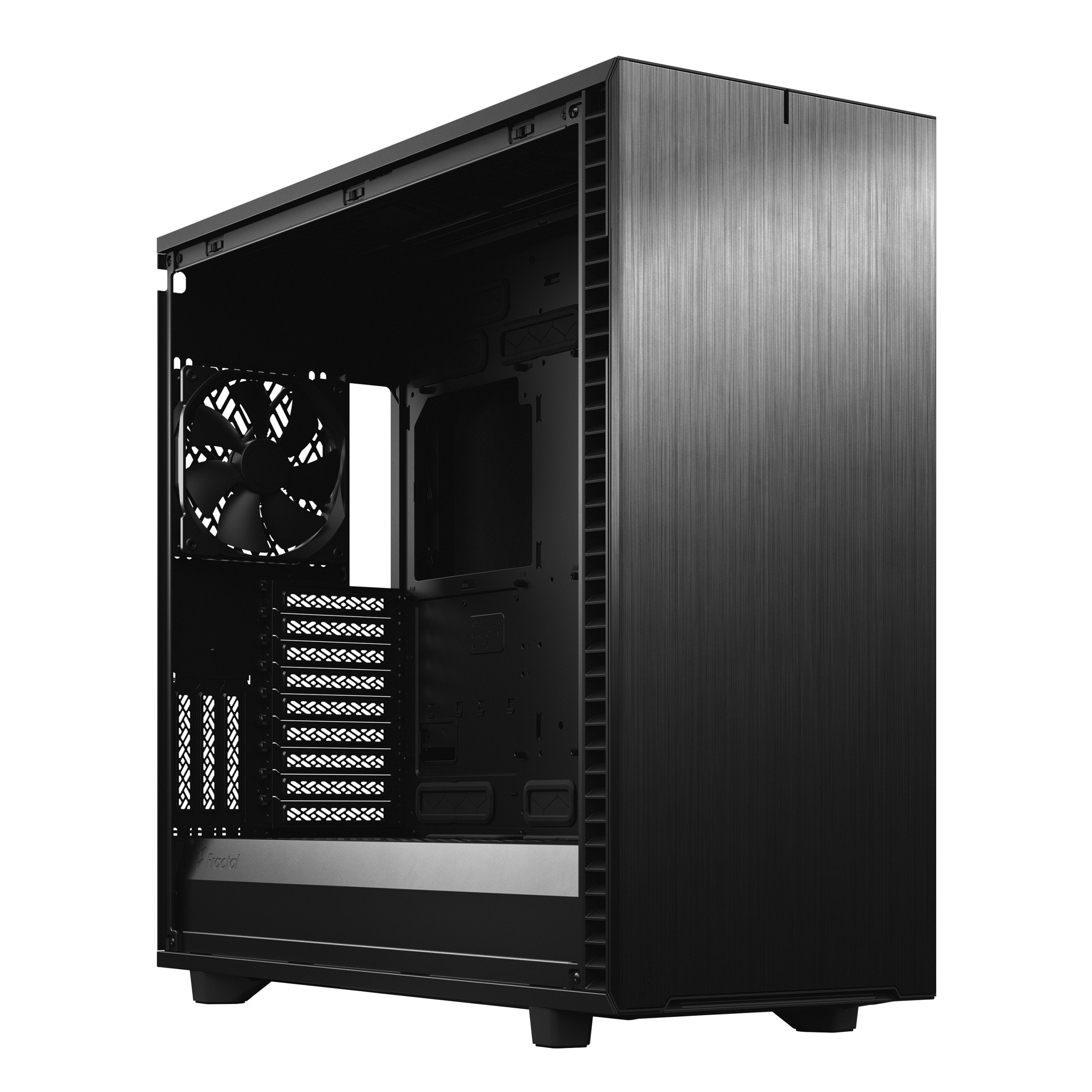

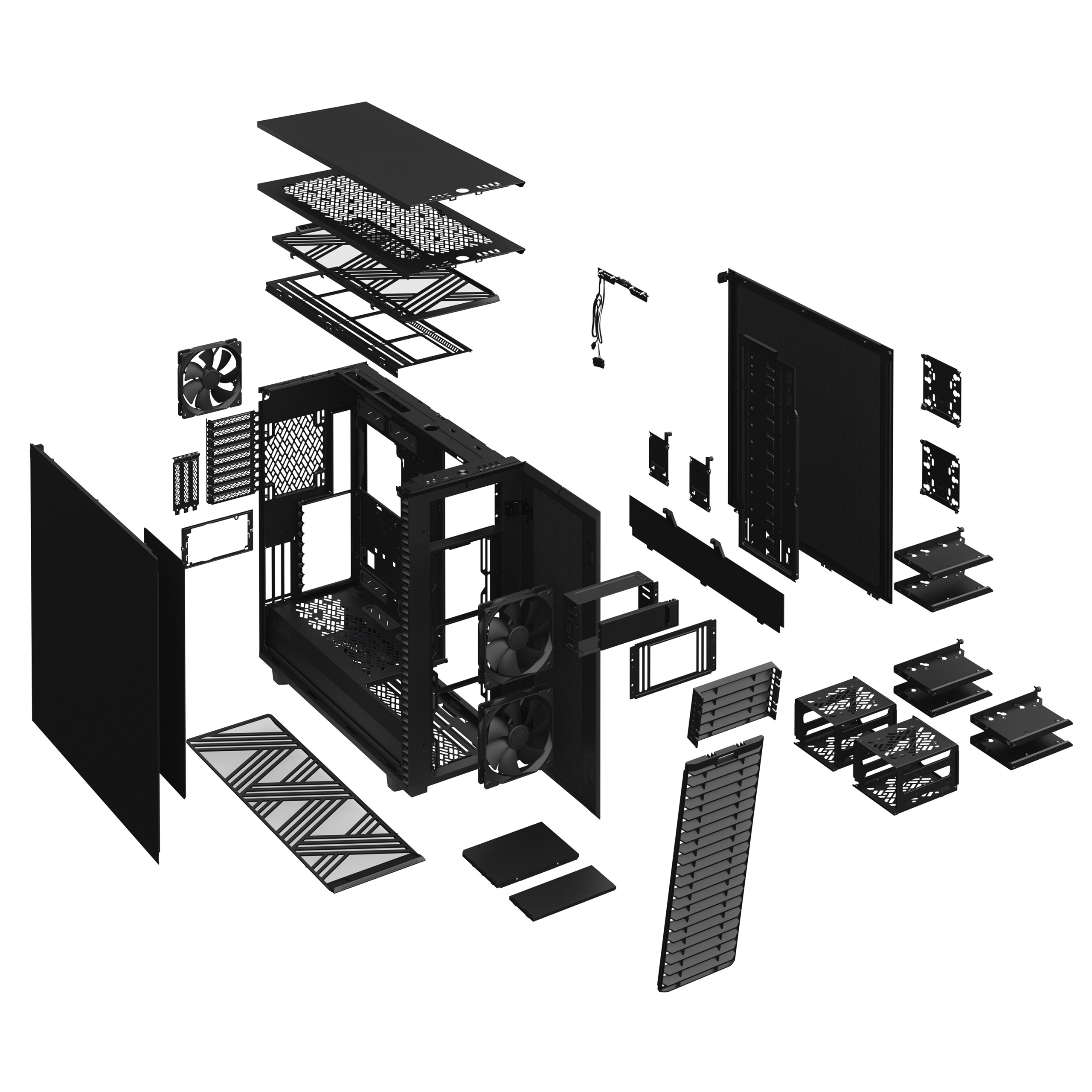

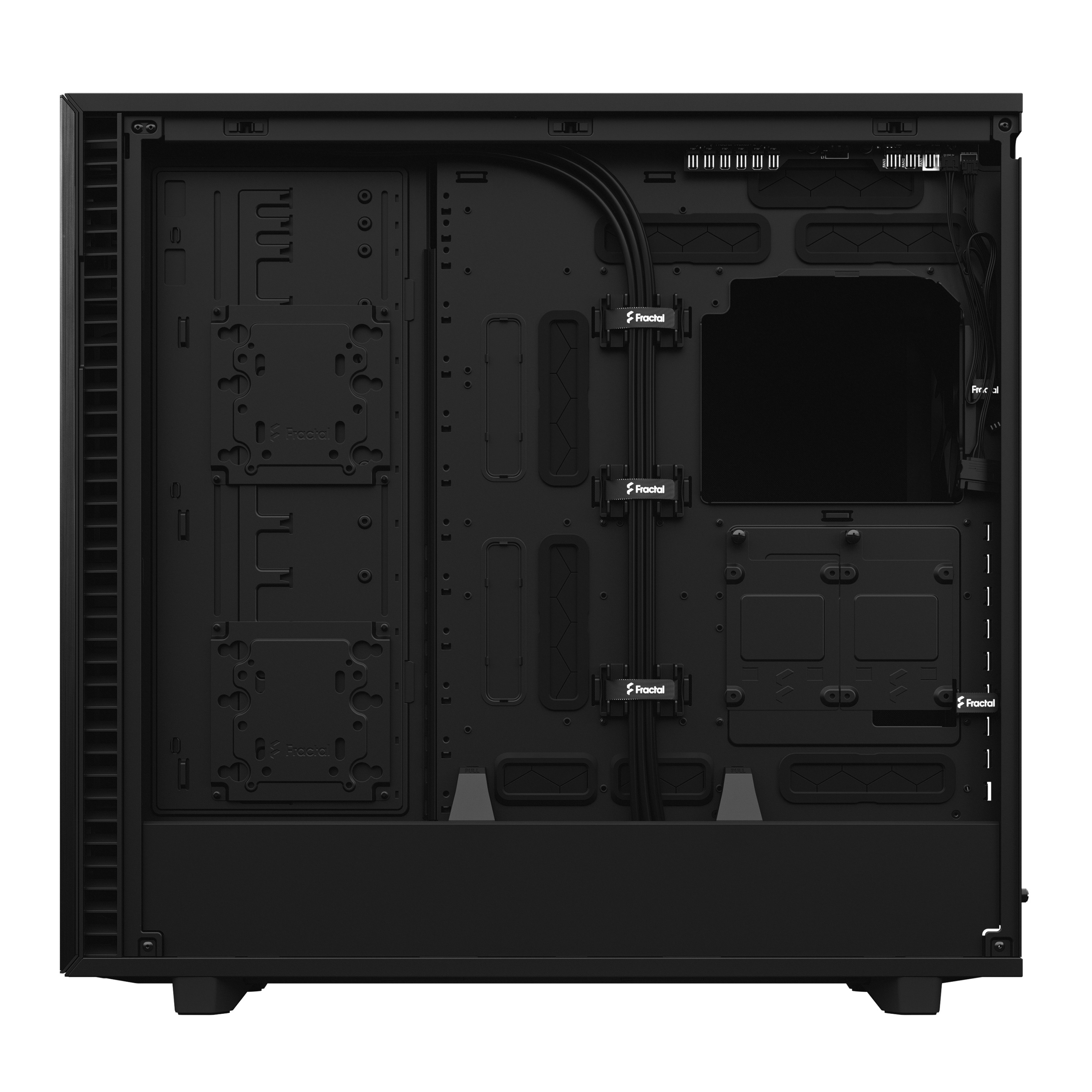

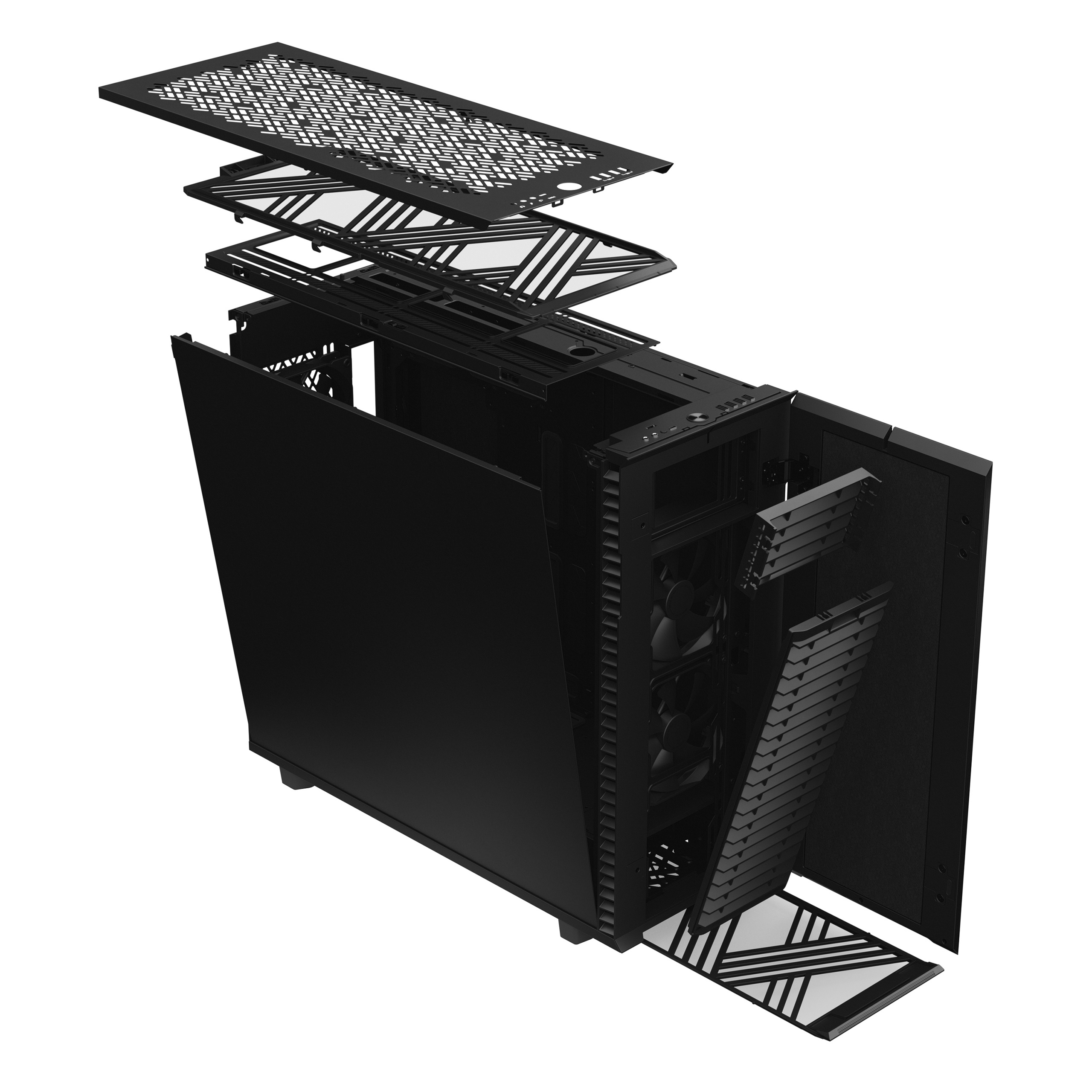

Chassis	Define 7 XL 3.5"/2.5" Universal drive brackets • 6 + 2 included, 18 positions total Dedicated 2.5" drive brackets • 2 included, 5 positions total 5.25" drive mounts • 2 Expansion slots • 9 + 3 Front ports • 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button Total fan mounts • 1 x 120 mm or 9 x 140 mm Front fan • 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) Top fan • 4 x 120 mm or 3 x 140 mm Rear fan • 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) Bottom fan • 2 x 120/140 mm Dust filters • Top, 2 x Front, Bottom + PSU Fixed velcro straps • Yes Cable routing grommets • Yes Captive thumbscrews • HDD brackets, SSD brackets, PSU bracket Left side panel • Industrial sound-damped steel Right side panel • Industrial sound-damped steel Compatibility Motherboard compatibility • E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB Power supply type • ATX PSU max length • 250 mm (both HDD cages installed) GPU max length • Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan) CPU cooler max height • 185 mm Front radiator • Up to 480/420 mm Top radiator • Up to 480/420 mm Rear radiator • 120 mm Bottom radiator • Up to 240/280 mm Cable routing space • 30 mm Vertical GPU Support (with Flex VRC-25) • 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling Dimensions Case dimensions (LxWxH) • 604 x 240 x 566 mm Case dimensions w/o feet/protrusions/screws • 590 x 240 x 548 mm Net weight • 16.53 kg

Images

$2,169.33

	Qty.	Colfax ProEdge™ WX3400 Workstation, Cost As Configured $2,169.33
Motherboard	1
Primary CPU	1
Liquid Pump	1
Chassis	1
Power Supply	1
Memory Socket 1 of 8	1	Set next items ( ) like this
Memory Socket 2 of 8	1
Memory Socket 3 of 8	1
Memory Socket 4 of 8	1
Memory Socket 5 of 8	1
Memory Socket 6 of 8	1
Memory Socket 7 of 8	1
Memory Socket 8 of 8	1
DVD+/-RW Drive	1
M.2 Drive 1	1	Set next items ( ) like this
M.2 Drive 2	1
M.2 Drive 3	1
U.2 Drive 1	1	Set next items ( ) like this
U.2 Drive 2	1
Disk Drive 1	1	Set next items ( ) like this
Disk Drive 2	1
Disk Drive 3	1
Disk Drive 4	1
Nvidia GPU 1	1	Set next items ( ) like this
Nvidia GPU 2	1
TPM	1
Asus ProArt LCD	1
Operating System SW	1
		Colfax ProEdge™ WX3400 Workstation, Cost As Configured $2,169.33
