Colfax AX930 Desktop




High-Performance Desktop

  • 3rd Gen AMD Ryzen™ Processor
  • 4x DIMMs Supporting DDR4 Memory
  • 2x HDDs, 2x SSDs and 2x M.2 NVMe SSDs

Features

  • Asus PRIME X570-PRO Board
  • 3rd Gen AMD Ryzen™ Processor
  • AMD X570 Chipset
  • 4x DIMMs Supporting Unbuffered DDR4 Memory
  • Expansion Options
    3rd Gen AMD Ryzen™ Processor
    - 2x PCIe 4.0 x16 (x16, x8x8)
    AMD X570 Chipset
    - 1x PCIe 4.0 x16 (max at x4)
    - 3x PCIe 4.0 x1
  • Up to 2 Fixed 3.5" SATA HDDs, 2x 2.5" SSDs and 2x M.2 NVMe SSDs
  • Realtek® ALC S1220A 8-Channel High Definition Audio
  • Integrated Intel® I211-AT Gigabit LAN
  • Corsair Carbide Series 275Q or 275R Mid-Tower Chassis



Technical Specifications

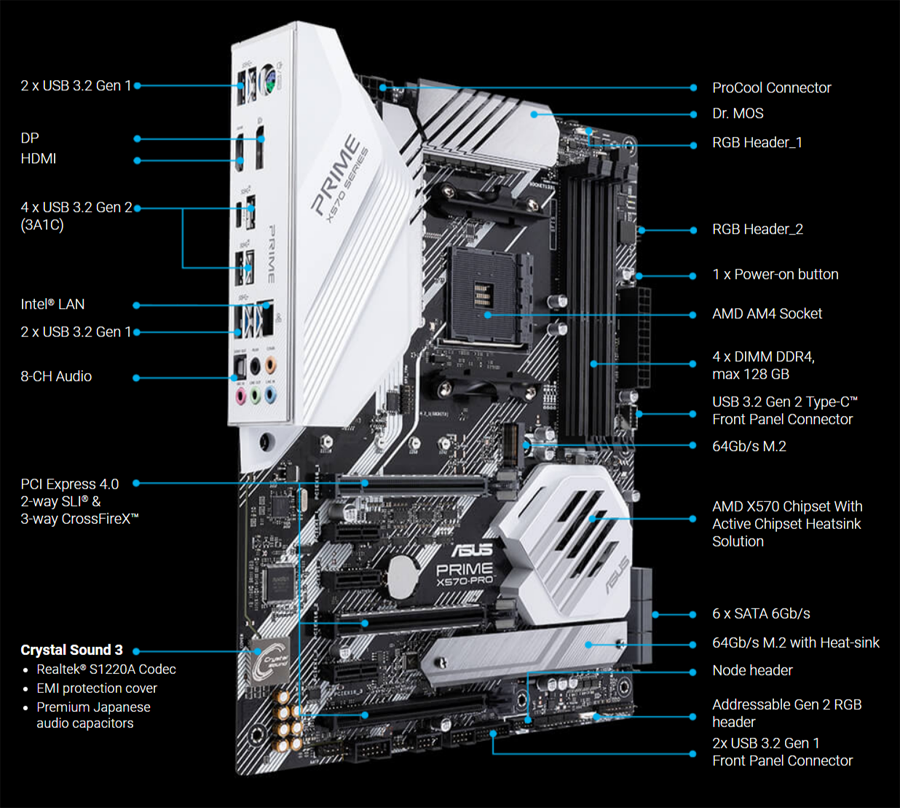

Motherboard • Asus PRIME X570-PRO
CPU • AMD AM4 Socket 3rd and 2nd AMD Ryzen™ Processor
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset AMD X570
Memory 3rd Gen AMD Ryzen™ Processor
• 4x DDR4 DIMM sockets (Max. 128GB)
• 4400 (O.C.*) / 4266 (O.C.*) / 4133 (O.C.*) / 4000 (O.C.*) / 3866 (O.C.*) / 3733 (O.C.*) / 3600 (O.C.*) / 3466 (O.C.*) / 3400 (O.C.*) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU

* WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.

Expansion Slots 3rd Gen AMD Ryzen™ Processor
• 2x PCIe 4.0 x16 (x16, x8x8)
AMD X570 Chipset
• 1x PCIe 4.0 x16 (max at x4)
• 3x PCIe 4.0 x1
Integrated LAN • Intel® I211-AT Gigabit Ethernet Controller
Storage 3rd Gen AMD Ryzen™ Processor
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD X570 Chipset
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10
Audio • Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
USB Ports 3rd Gen AMD Ryzen™ Processor
• 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X570 Chipset
• 1 x USB 3.2 Gen 2 front panel connector port(s)
• 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)
• 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
• 4 x USB 2.0 port(s) (4 at mid-board)
Back I/O Ports • 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
• 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
• 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I/O Ports • 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
• 1 x SPI TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x PCH_FAN (1 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x Node Connector(s)
• 1 x Water Pump header (4-pin)
• 1 x T_Sensor Connector
• 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Chassis Carbide Series 275Q Mid-Tower
• Form Factor
- Mid Tower
• Dimensions
- 460mm x 211mm x 455mm
• Maximum GPU Length
- 370mm
• Maximum PSU Length
- 180mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7+2 vertical
• Drive Bays
- 2 x 3.5"
- 4 x 2.5"
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

Carbide Series 275R Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Windowed
- Tempered Glass
• Dimensions
- 460mm x 211mm x 455mm
• Maximum GPU Length
- 370mm
• Maximum PSU Length
- 180mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7
• Drive Bays
- 2 x 3.5"
- 3 x 2.5"
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

Images

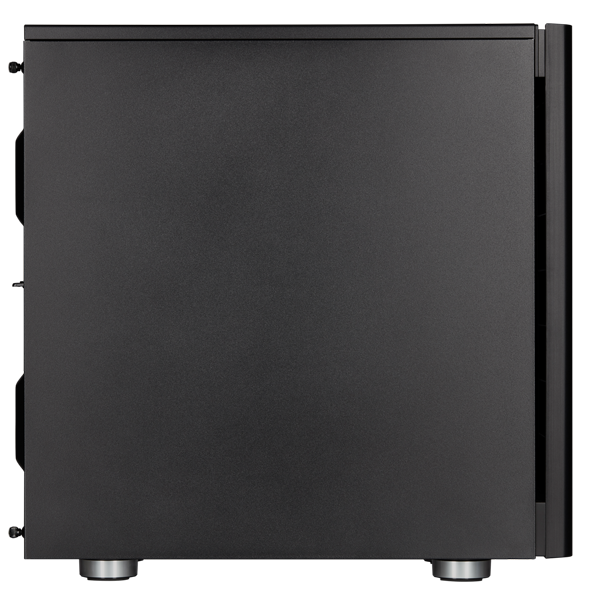

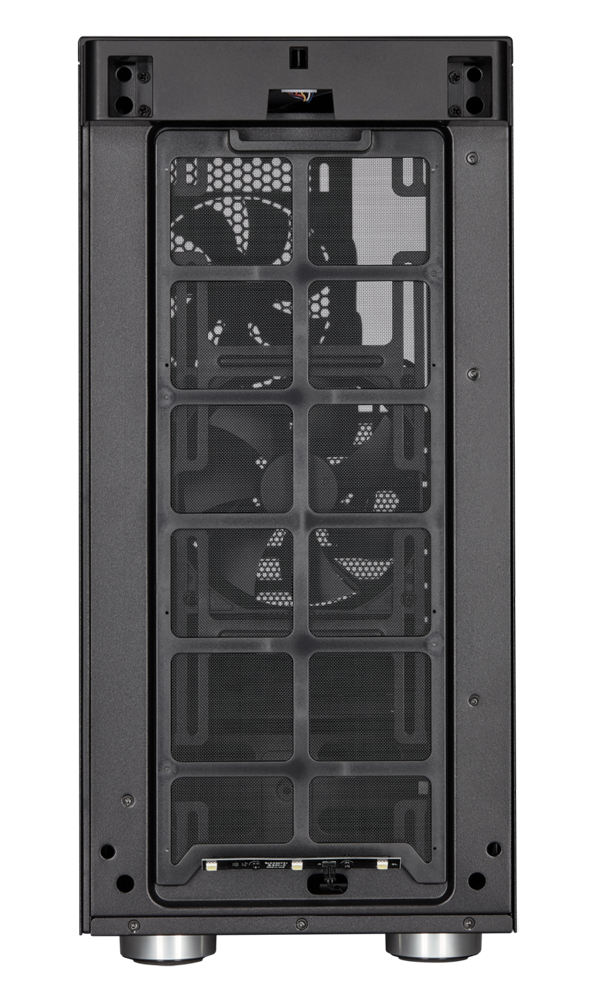

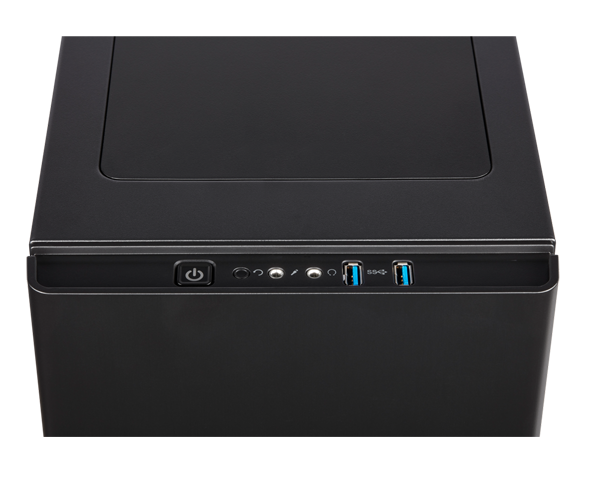

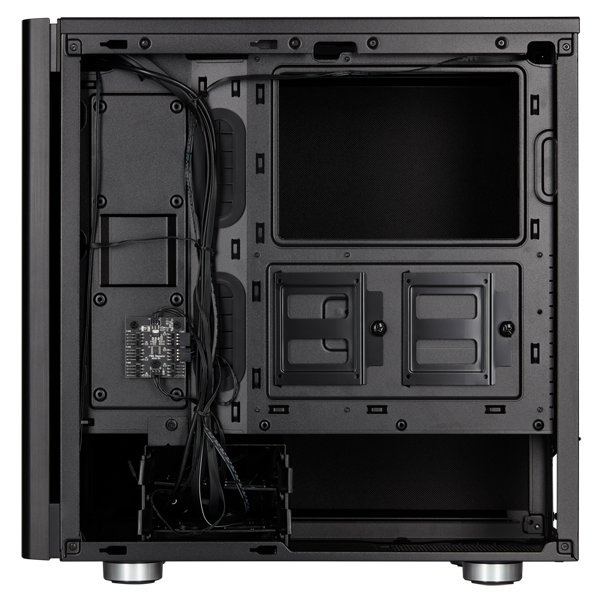

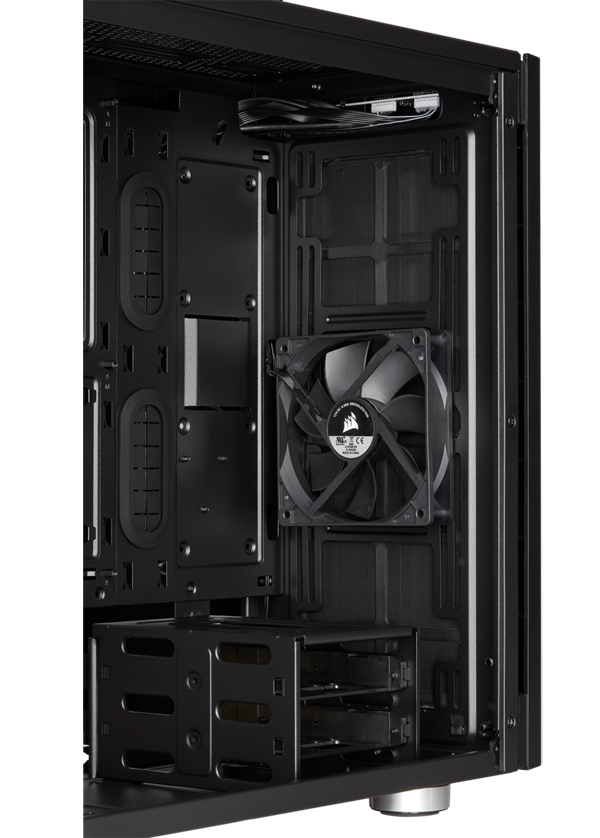

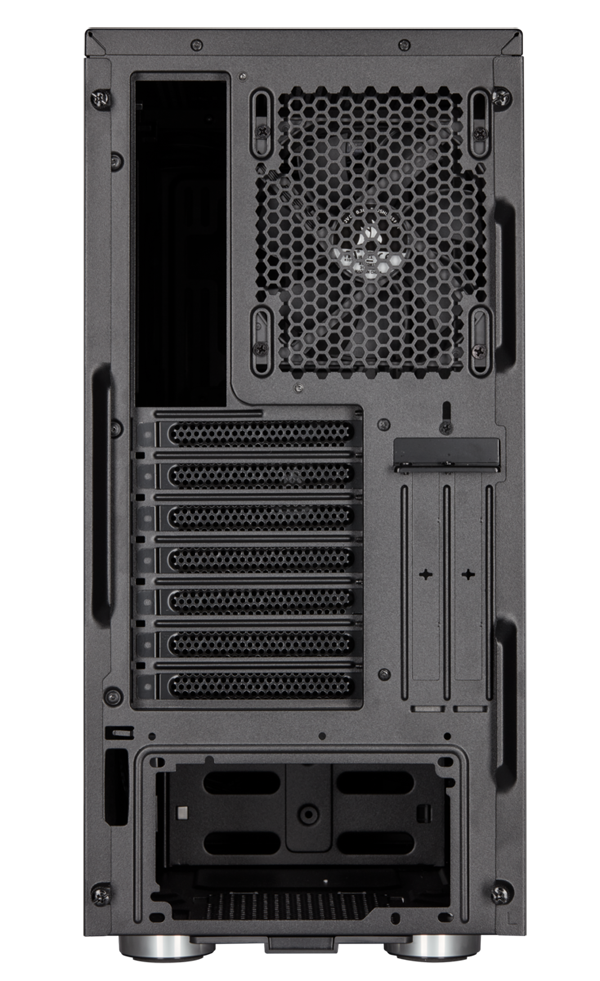

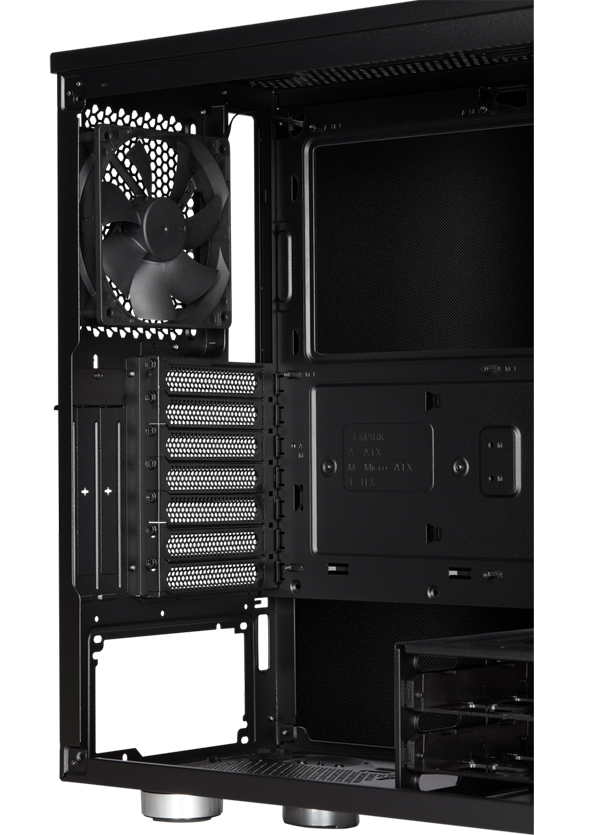

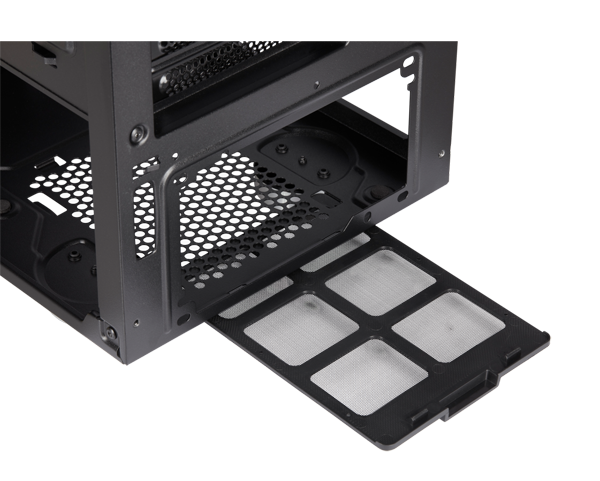

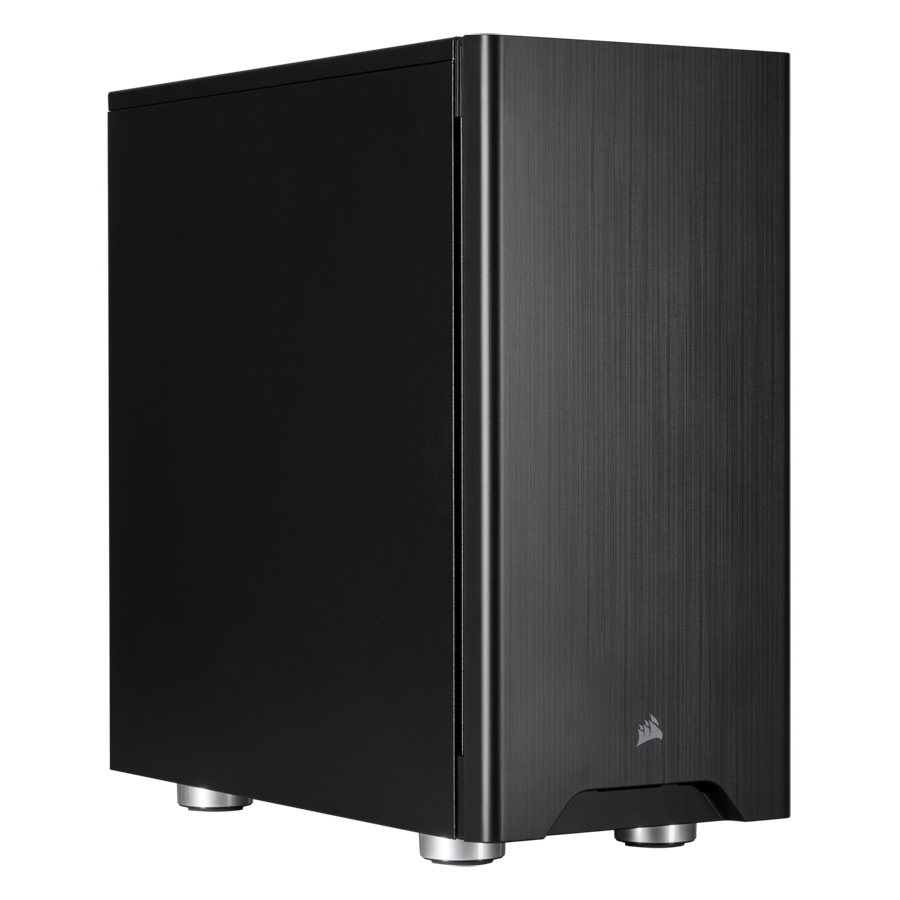

Corsair Carbide Series 275Q Mid-Tower

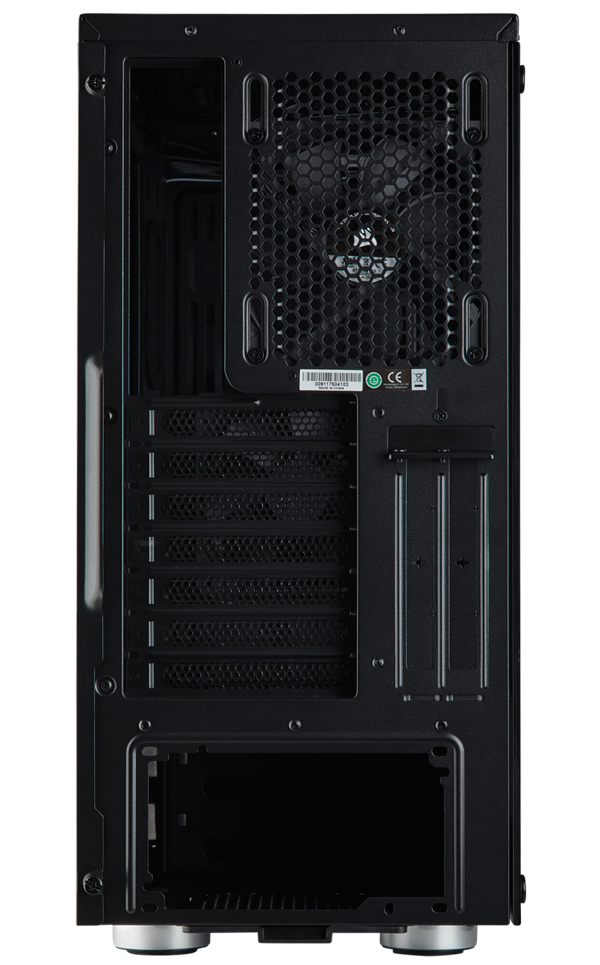

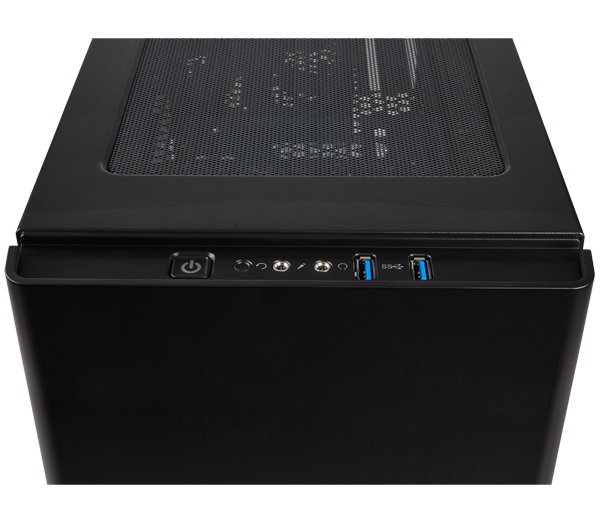

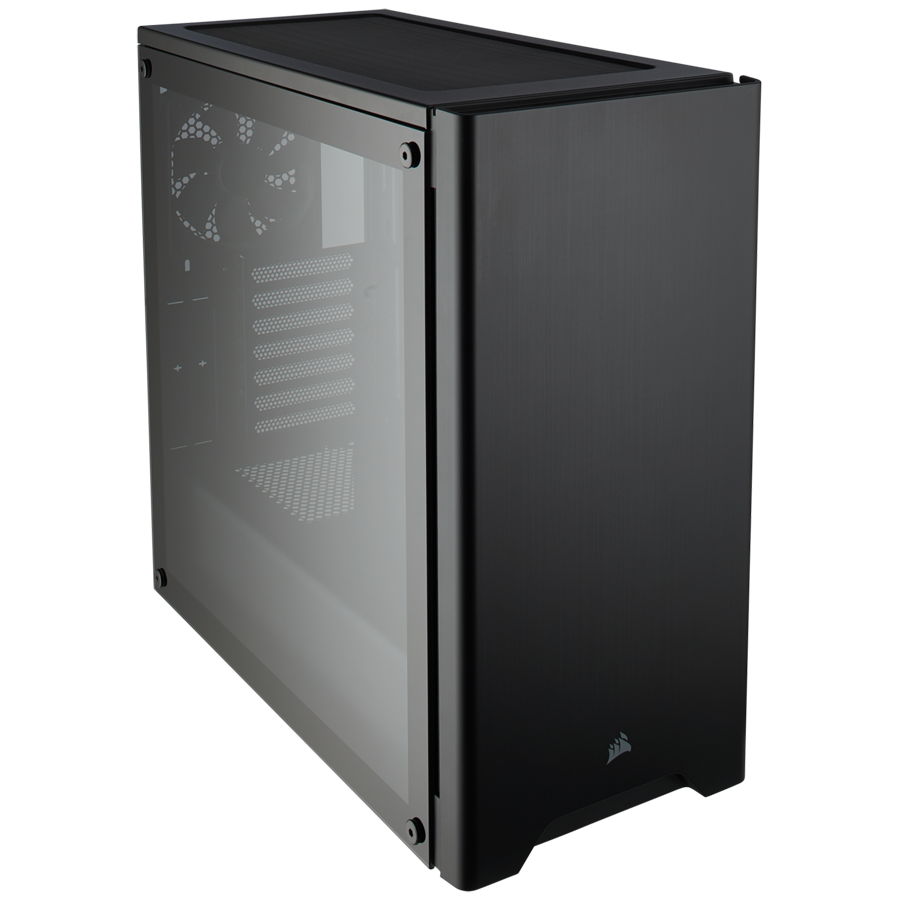

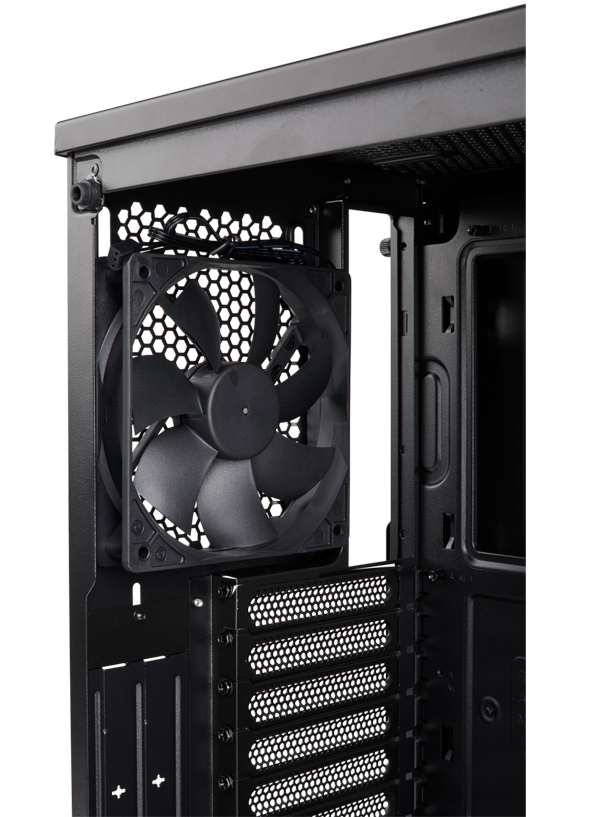

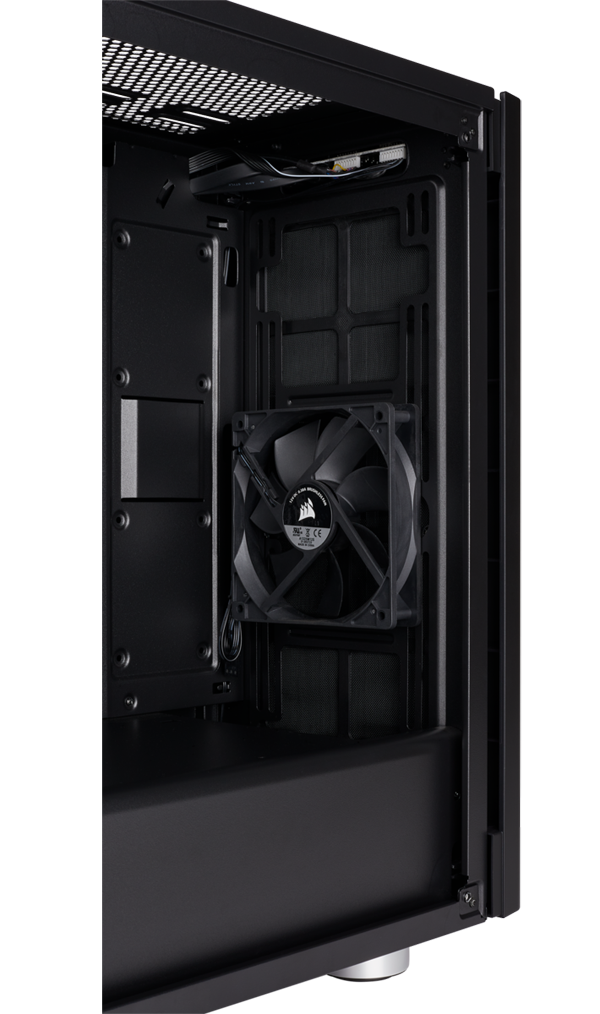

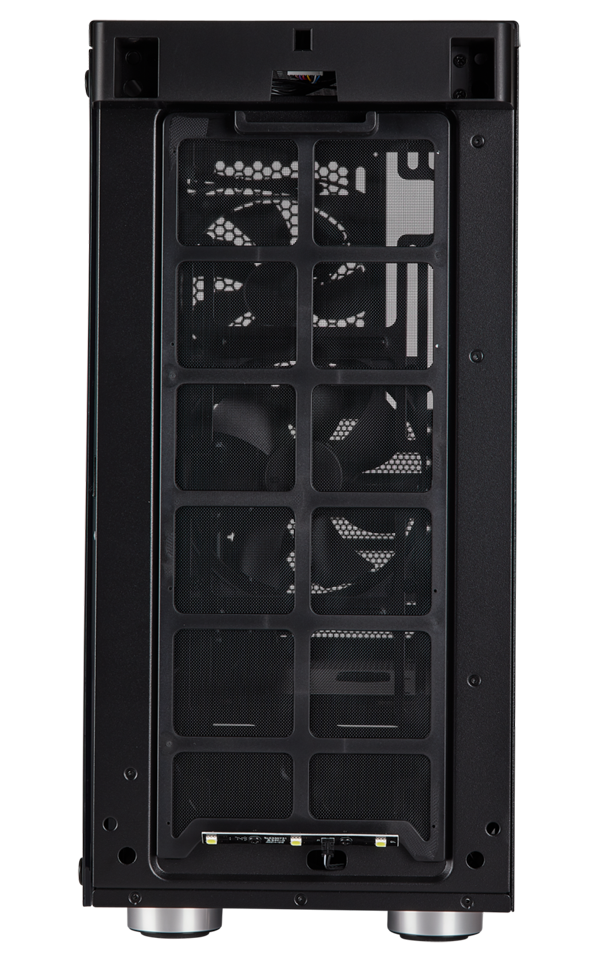

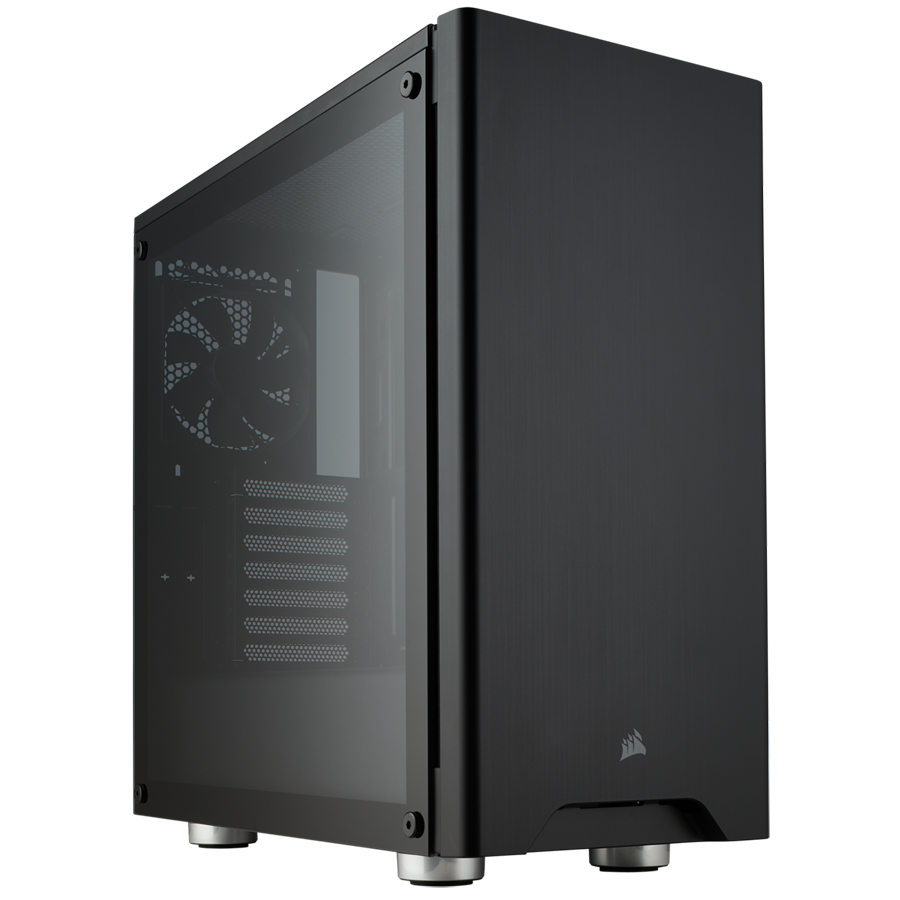

Corsair Carbide Series 275R Tempered Glass Mid-Tower
